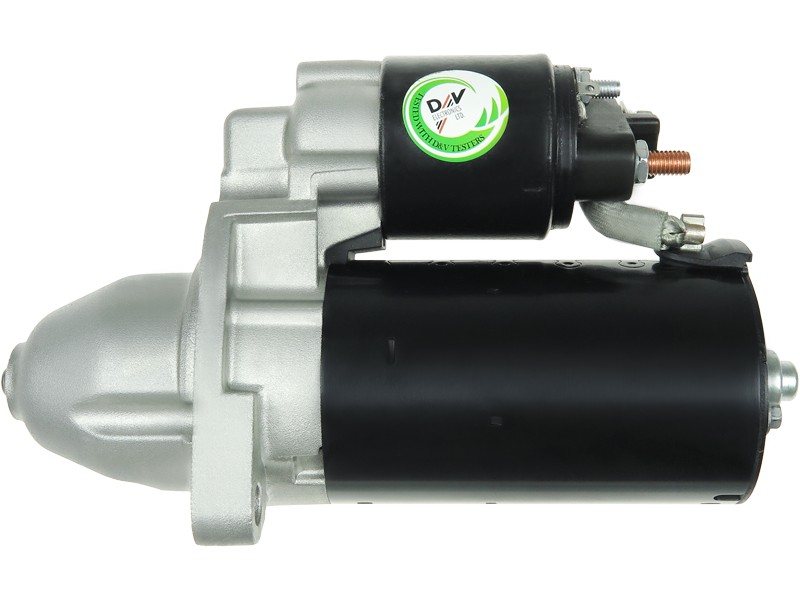

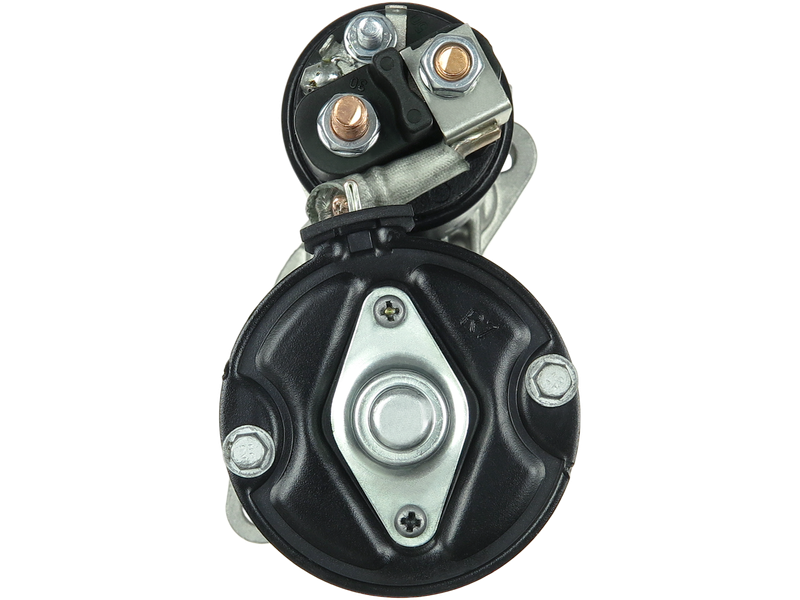

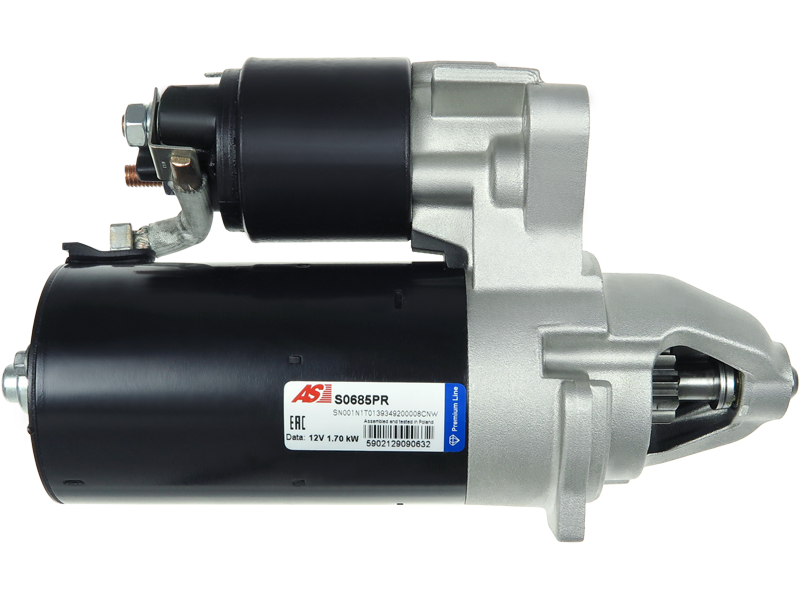

S0685PR - Remanufactured AS-PL Starter motor

Specifications

Kilowatt	1.7 kW
Length (L.1)	242 mm
Mount Hole Center - Center (O.1)	125 mm
Mount Hole Diameter (C.1)	10.5 mm
Mount Hole Diameter (C.2)	M10x1.25 mm
No./Mount holes	2 qty
No./Mount holes with thread	1 qty
No./Teeth	9 qty
Pinion at Rest (B)	30 mm
Rotation	CW
Spigot Diameter (A)	76 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
VW	Phaeton 3.2 V6	[AYT]	04.2002-05.2005
VW	Phaeton 3.2 V6	[BKL]	04.2002-05.2005
VW	Phaeton 3.2 V6 4-Motion	[BKL]	02.2004-11.2008
VW	Phaeton 3.2 V6 4-Motion	[BRK]	02.2004-11.2008
VW	Phaeton 3.6 V6 4-Motion	[CHNA]	11.2008-03.2016
VW	Phaeton 3.6 V6 4-Motion	[CMVA]	11.2008-03.2016

Reference Information

CST10558 88214763 UNITBOM120-618 CST10558OS 1115022 1115023 012911023C 25-4492 20401855 6010558 300.917.092 STRF987 012911023CX LRS03819 STR1187 CST10558GS CST10558ES LRS3819 STB5022 BOS0001115022 CST10558AS 0001115022 256095B 0001115023 AEY3819 DS2262 CST10558RS DRS1152

Video/Publications

0001115022 0001115023 012911023C 012911023CX 20401855 25-4492 256095B 300.917.092 6010558 88214763 AEY3819 BOS0001115022 CST10558 CST10558AS CST10558ES CST10558GS CST10558OS CST10558RS DRS1152 DS2262 LRS03819 LRS3819 STB5022 STRF987 UNITBOM120-618
