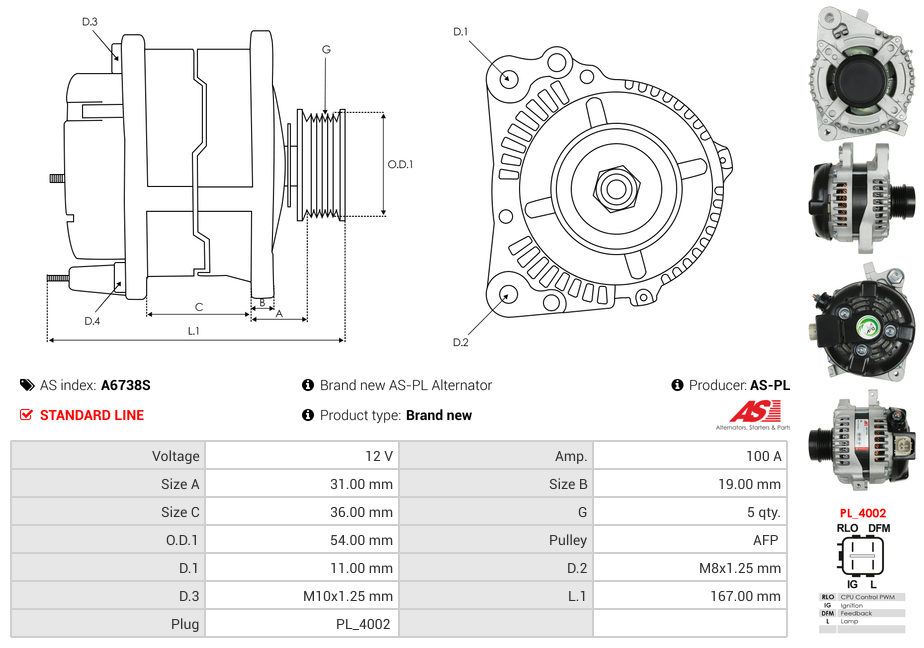

Specifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 19 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | M10x1.25 mm |
| Grooves | 5 qty |
| Length (L.1) | 167 mm |
| Mount Inside Length or Pad Mount C-C (C) | 36 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 54 mm |
| Plug Code | PL_4002 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley to Mount Distance (A) | 31 mm |
| Pulley Type | CLUTCH |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | IQ 1.33 | [1NR-FE] | 01.2009-12.2015 |
Reference Information
ALN1169 40103 UD100756A 27060-47070 27060-47071 LRA4238 27060-47080 J5112174 28-7847 554032RI 104210-2690 104210-2670 LRA04238 89216477Add Your Number
