Associated Numbers
10421092401042109240

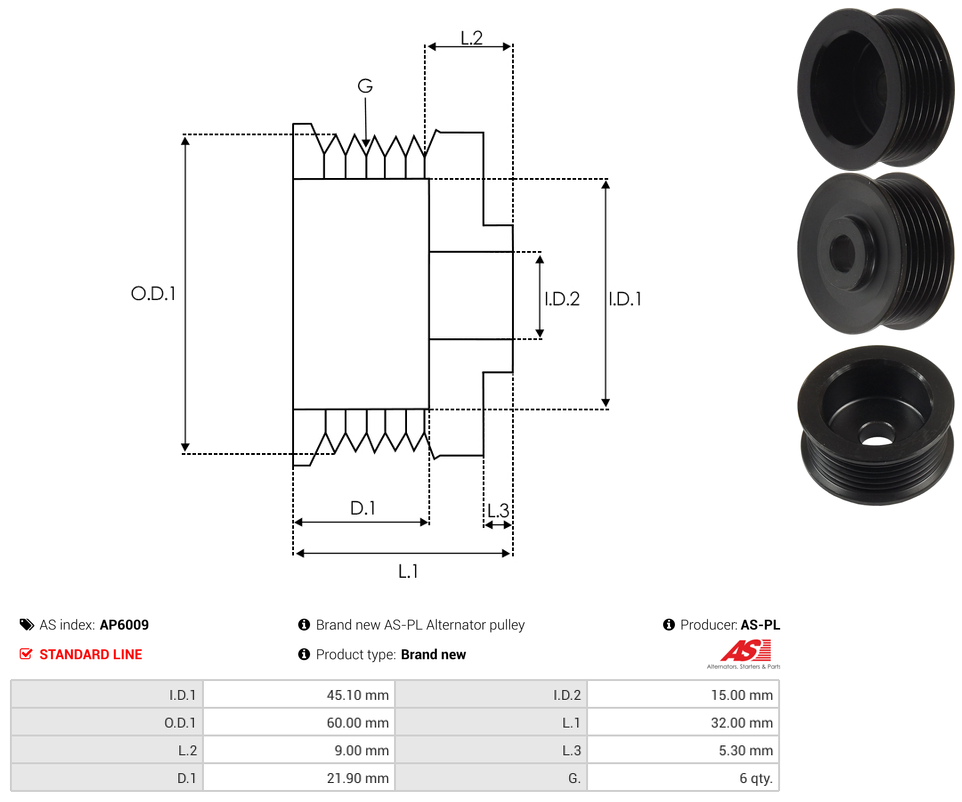

Specifications
| Depth (D.1) | 21.90 mm |
| Inside Diameter (I.D.1) | 45.10 mm |
| Inside Diameter (I.D.2) | 15 mm |
| Length 3 (L.3) | 5.30 mm |
| Length (L.1) | 32 mm |
| Length (L.2) | 9 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 60 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Unit Type | DENSO |
Reference Information
| UD02683AP | AS-PL |
