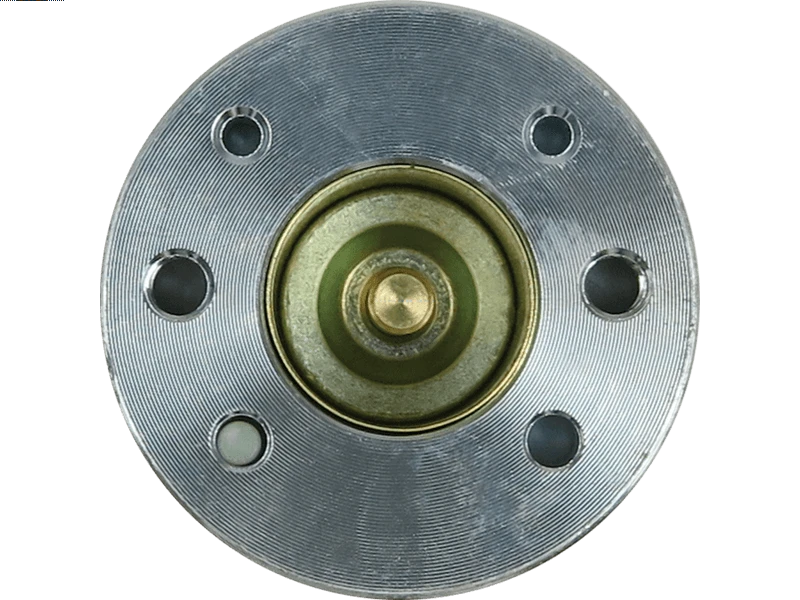

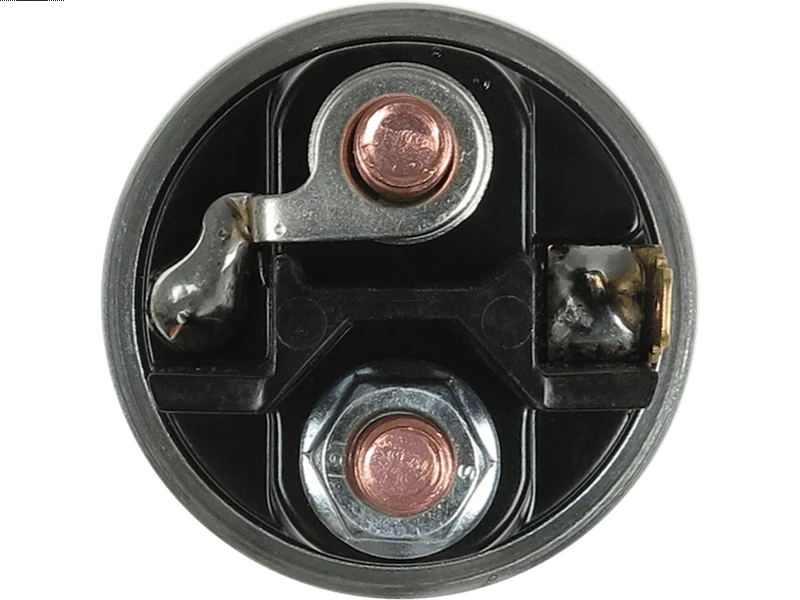

Brand new AS-PL Starter motor solenoid
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 53.45 including GST
NZ$ 46.48 excluding GST
or four payments of $13.36
with
Learn More
each
SS2020
2
Associated Numbers
S114615 S114626 S114652 S114653 S114653A S114653B S114657 11922677010 12409777010 12419577010 12429577010 S114315 S114316 S114317 S114317A S114317B S114318 S114318A S114319 S114320 S114320A S114345 S114345A S114364 S114377 S114378 S114413A S114414A S114424 S114550 S114550A S114650A S114651A S114653 S2027 S114815 S2031 S114414 S114615 S114626 S114652 S114653 S114653A S114653B S114657 11922677010 12409777010 12419577010 12429577010 S114315 S114316 S114317 S114317A S114317B S114318 S114318A S114319 S114320 S114320A S114345 S114345A S114364 S114377 S114378 S114413A S114414A S114424 S114550 S114550A S114650A S114651A S114653 S2027 S114815 S2031 S114414Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 12.6 mm |
| Inside Diameter (I.D.1) | 22.6 mm |
| L.B+ | 12.6 mm |
| Length (L.1) | 60.8 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 52.4 mm |
| Outside Diameter (O.D.2) | 44.8 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Type | Solenoid |
| Unit Type | HITACHI |
| Voltage | 12 V |
Reference Information
| 054.000.053 | PSH |
| 132094 | CARGO |
| 2114-27501 | HITACHI |
| 2114-37503 | HITACHI |
| 2114-67505 | HITACHI |
| 227685 | ERA |
| 23343-M8000 | NISSAN |
| 23343-M8001 | NISSAN |
| 23343-M8003 | NISSAN |
| 23343-V5201 | NISSAN |
| 60-25-15129 | WILSON |
| 6640-0811 | HITACHI |
| 66-8109 | WAI / TRANSPO |
| 66-8109-1 | WAI / TRANSPO |
| 81014224 | POWERMAX |
| 940113050237 | MAGNETI MARELLI |
| AME0237 | MAGNETI MARELLI |
| CQ2030200 | LAUBER |
| CQ2030366 | CQ |
| CSO20120 | CASCO |
| E8004 | GHIBAUDI |
| F032132094 | CARGO |
| F042010450 | BOSCH |
| SND1311 | WOODAUTO |
| SOL3002 | ELECTROLOG |
| SSH2094 | KRAUF |
| SSH4094 | KRAUF |
| SSH6094 | KRAUF |
| SSO20120 | SANDO |
| UD14378SS(ZM) | AS-PL |
| UD15939SS | AS-PL |
| ZM710 | ZM |
Video/Publications
11922677010 12409777010 12419577010 12429577010 S114315 S114316 S114317 S114317A S114317B S114318 S114318A S114319 S114320 S114320A S114345 S114345A S114364 S114377 S114378 S114413A S114414 S114414A S114424 S114550 S114550A S114615 S114626 S114650A S114651A S114652 S114655 S114657 S114815 S114815A S114816 S114844 S114883 S2027 S2031 S2060 S2062 S2073S S2079SView your shopping basket or Browse other items in Starter Solenoid.
