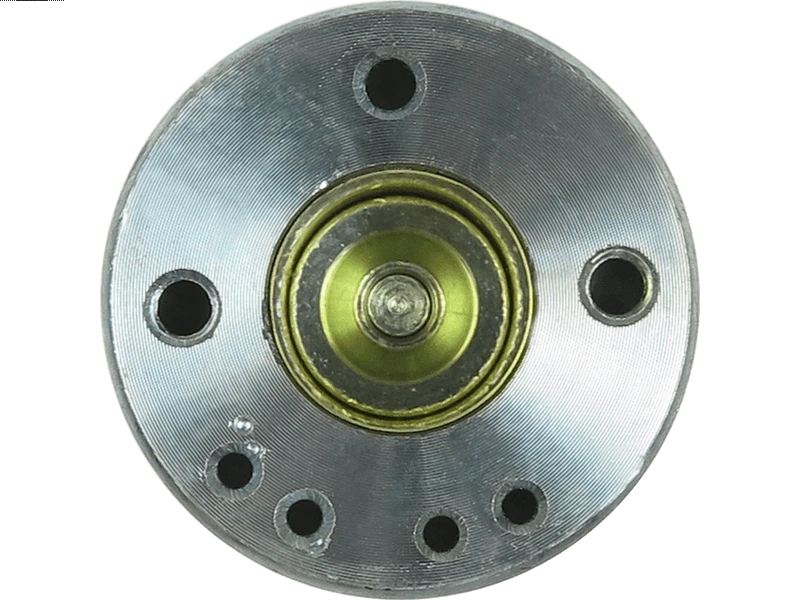

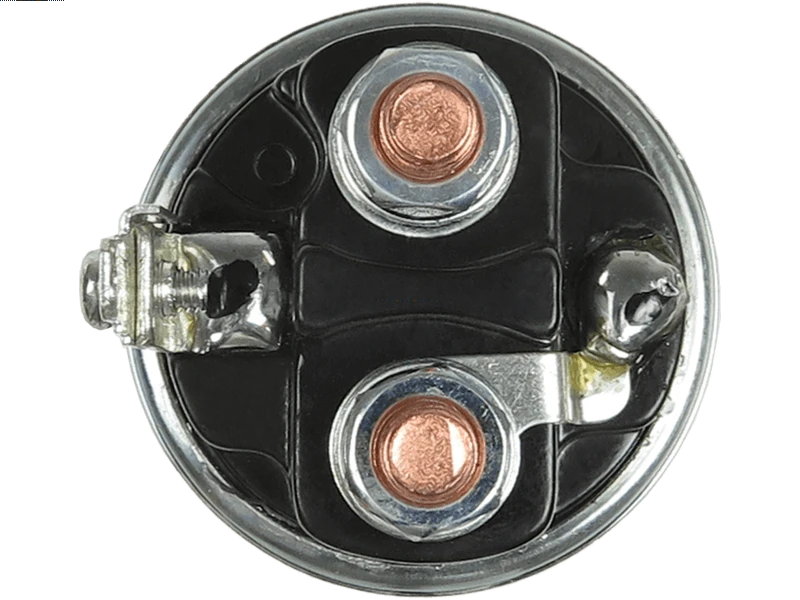

Brand new AS-PL Starter motor solenoid
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 61.96 including GST
NZ$ 53.88 excluding GST
or four payments of $15.49
with
Learn More
each
SS2034
2
Associated Numbers
S114303 S1362A S1362B S114441A S1389B S1383 S114403B S1389C S1389 S114290 S1362 S1389A S1370A S114374B S13121 S114290B S114290A S114303 S1362A S1362B S114441A S1389B S1383 S114403B S1389C S1389 S114290 S1362 S1389A S1370A S114374B S13121 S114290B S114290A
ss1226
Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 17.50 mm |
| Inside Diameter (I.D.1) | 22.50 mm |
| L.B+ | 17.50 mm |
| Length (L.1) | 73.40 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 53 mm |
| Outside Diameter (O.D.2) | 45.10 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Type | Solenoid |
| Unit Type | HITACHI |
| Voltage | 12 V |
Reference Information
| 1017140 | POWERMAX |
| 132698 | CARGO |
| 2114-47507 | HITACHI |
| 2114-77007 | HITACHI |
| 227651 | ERA |
| 227768 | ERA |
| 66-8110 | WAI / TRANSPO |
| 66-8110-1 | WAI / TRANSPO |
| 66-8110-5 | WAI / TRANSPO |
| 66-8158 | WAI / TRANSPO |
| 66-8158-5 | WAI / TRANSPO |
| 8003 | GHIBAUDI |
| 8023 | GHIBAUDI |
| 8124 | GHIBAUDI |
| 8942284530 | ISUZU |
| CQ2030100 | LAUBER |
| F032132698 | CARGO |
| SND1763 | WOODAUTO |
| SNLS-622 | UNIPOINT |
| SOL3003 | ELECTROLOG |
| SSH2698 | KRAUF |
| SSH9698 | KRAUF |
| ZM780 | ZM |
Video/Publications
S114290 S114290A S114290B S114303 S114374B S114403B S114441A S13121 S1362 S1362A S1362B S1370A S1383 S1389 S1389A S1389B S1389CView your shopping basket or Browse other items in Starter Solenoid.
