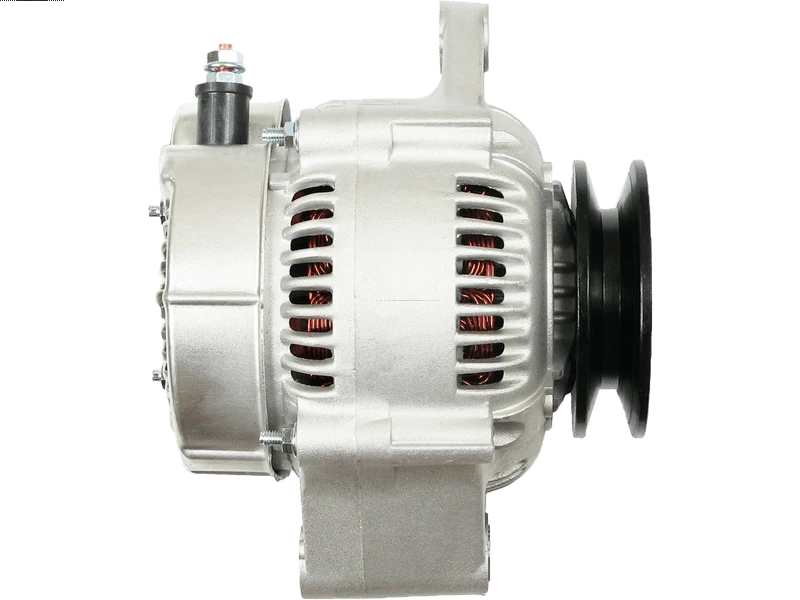

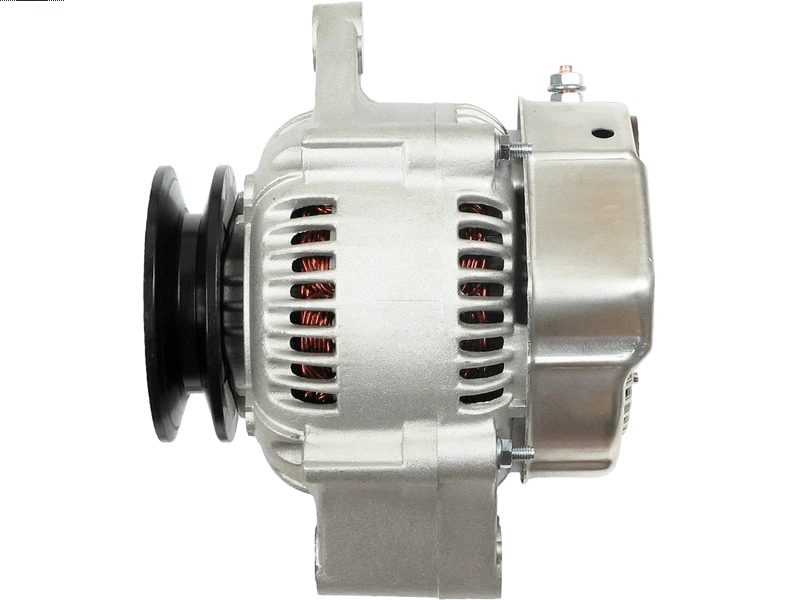

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 386.81 including GST
NZ$ 336.36 excluding GST
or four payments of $96.70
with
Learn More
each
A6016
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- < Critical Notes >
- Related Items
Information
1002117170Associated Numbers
1012110860 1012110861 1012110862 111603 CARGO CAL40605AS CASCO DRA3743 DELCO 1002117170 DENSO List 1002117370 EAA221672 EAA 481627 ELSTOCK JA984IR HC PARTS 8EL737059001 HELLA LRA02447 LUCAS 2706058020 TOYOTA 2706058090 ALT30093 WOODAUTO 11208006 196502030 5474SP 9760211717 1002116200 1002116210 196502050 2706058030 2706058050 483531 DRA3744 JA1118IR SA067 658484 anj355 100211-7170 100211-7370 20132506BN 2040605 27060-58020 27060-58090 40984RI 48-1627 8EL737059-001 EAA-221672 Denso show Cargo Mahle 12060391 EuroTec 12060393 PSH 235133304 DRI Toyota Elstock Spidan Remy L82060 ATL LucasSpecifications
| Amp | 30 A |
| Bottom Mounting Foot Width (B) | 58 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.50 mm |
| Length (L.1) | 157 mm |
| OEM Product | No |
| Plug Code | PL_3500 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 15.50 mm |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley Outside Diameter (O.D.2) | 86.50 mm |
| Pulley to Mount Distance (A) | 96 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Dyna 3.0 Diesel 200 | (BU61)[11B] | 08.1988-09.1993 |
Reference Information
| 100211-4780 | DENSO |
| 100211-7170 | DENSO |
| 100211-7370 | DENSO |
| 111603 | CARGO |
| 20132506BN | REAL |
| 2040605 | SANDO |
| 27060-58020 | TOYOTA |
| 270605802084 | TOYOTA |
| 27060-58020-84 | TOYOTA |
| 2706058030 | TOYOTA |
| 2706058050 | TOYOTA |
| 27060-58090 | TOYOTA |
| 40984RI | KUHNER |
| 48-1627 | ELSTOCK |
| 8EL737059-001 | HELLA |
| 9760211717 | ISUZU |
| 9760211-717 | TOYOTA |
| ALT30093 | WOODAUTO |
| ALT426050 | SIOM |
| ALT6260 | ELECTROLOG |
| ALTF796 | 3EFFE |
| CAL40605AS | CASCO |
| CGB-13743 | AINDE |
| DRA3743 | DELCO |
| F032111603 | CARGO |
| JA984IR | HC PARTS |
| LRA02447 | LUCAS |
| LRA2447 | LUCAS |
Video/Publications
A6016< Critical Notes >
We have listed some alternators as a cross over that are not 100% a match.
We added them as an option but may require slight modification.
If you have part number 101211-0860 101211-0861 101211-0862 then you will need to swap the pulley from your old unit if you need twin belts.
Also you will require ATP6006 Wiring adaptor plug
