Associated Numbers
112312 32468B 33202 33605 33606 35763 35763A 36463 36680 AM30931 STR88301 STZ0212 UD03132S410-22000
Arrowhead STC0007
JANNCO 41022000R
John Deere AM32092
Lester 5752
Tecumseh 32468, 32468A, 32468B, 33606, 35765, 35765A
Wilson 71355752, 91351002, 91351006
410220000
UD03132S ASPL
112312 CARGO
AM30931 JOHN DEERE
STZ0212 KRAUF
32468B TECUMSEH
33202 TECUMSEH
33605 TECUMSEH
33606 TECUMSEH
35763 TECUMSEH
35763A TECUMSEH
36463 TECUMSEH
36680 TECUMSEH
STR88301 WOODAUTO
33605 EAI
35763 Tecumseh
35763A Tecumseh
36463 Tecumseh
36680 Tecumseh
400099160 PSH
5749N WAI
AM30931 John Deere

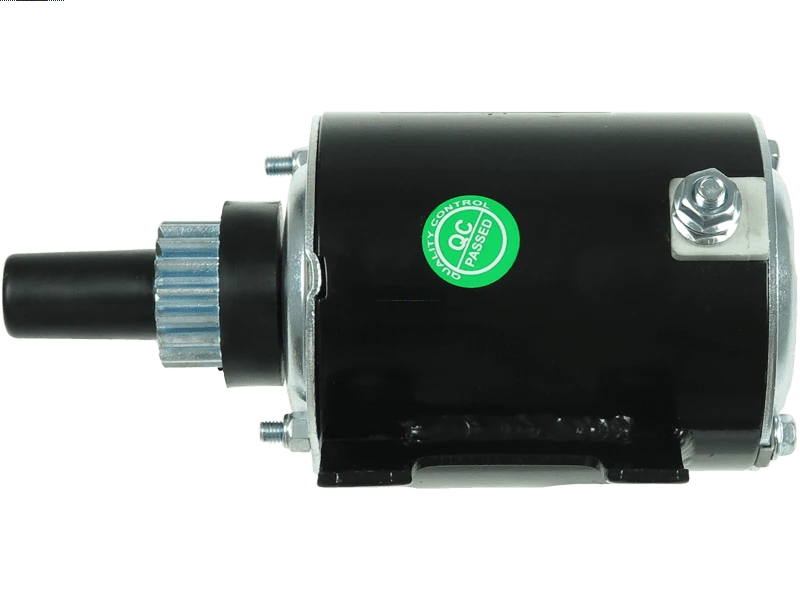

Specifications
Kilowatt | 0.48 kW |
Length (L.1) | 172 mm |
Mount Hole Center - Center (O.1) | 58 mm |
Mount Hole Center - Center (O.2) | 88 mm |
Mount Hole Center - Center (O.3) | 58 mm |
Mount Hole Center - Center (O.4) | 88 mm |
Mount Hole Diameter (C.1) | 8 mm |
Mount Hole Diameter (C.2) | 8 mm |
Mount Hole Diameter (C.3) | 8 mm |
Mount Hole Diameter (C.4) | 8 mm |
No./Mount holes | 4 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 16 qty |
Pinion at Rest (B) | 33.5 mm |
Rotation | ACW |
Unit Type | SMALL MOTOR( Briggs, Kohler, UT etc) |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
TECUMSEH | Engine | [HM100] | |
TECUMSEH | Engine | [HM70] | |
TECUMSEH | Engine | [OVM120] | |
TECUMSEH | Engine | [OVXL120] | |
TECUMSEH | Engine | [TVM170] | |
TECUMSEH | Engine | [TVM220] | |
TECUMSEH | Engine | [TVXL170] | |
TECUMSEH | Engine | [TVXL220] |
Reference Information
STRF336 36680 35763A 112312 36463 STR88301 32468B UD03132S AM30931 33202 35763 33606 STZ0212 33605Video/Publications
112312 32468B 33202 33605 33606 35763 35763A 36463 36680 AM30931 STR88301 STRF336 STZ0212 UD03132SAdd Your Number
