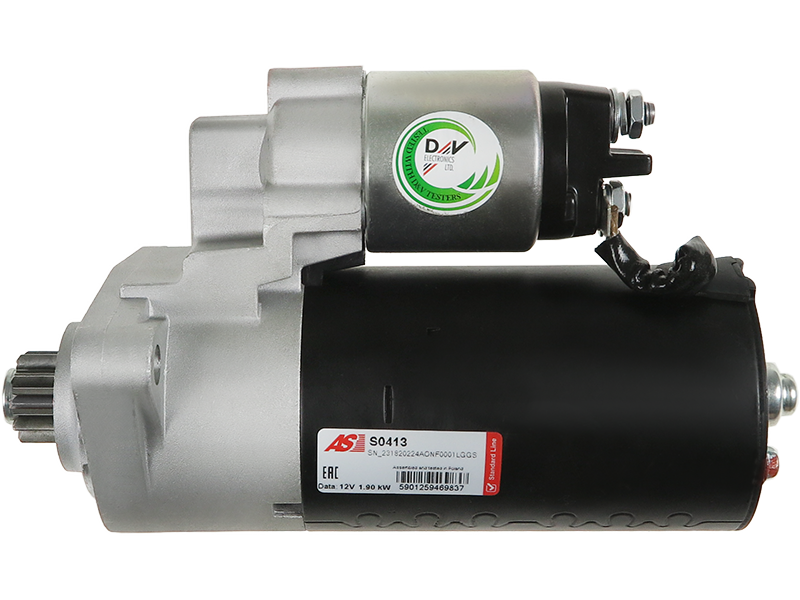

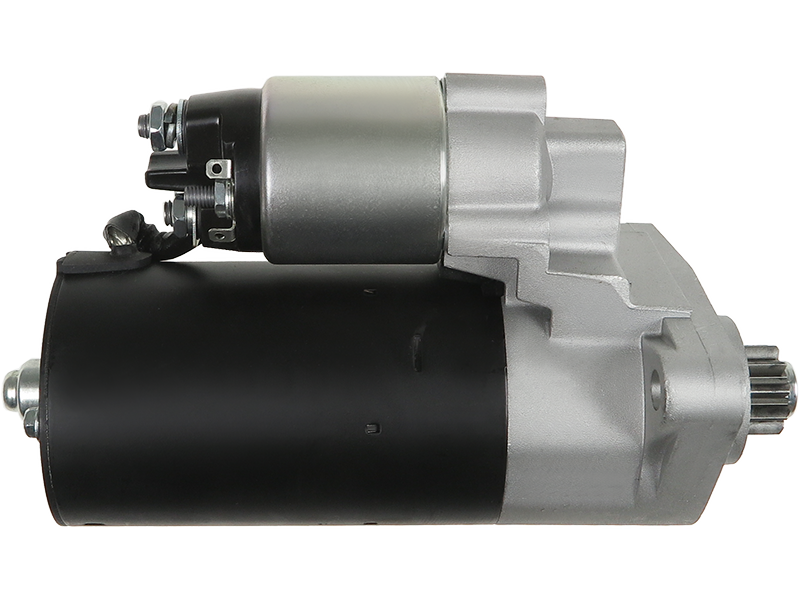

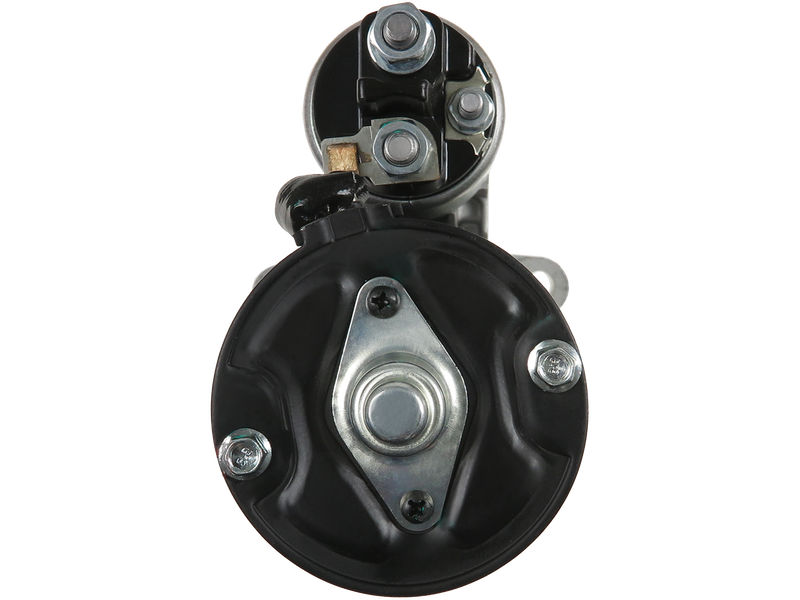

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 248.12 including GST
NZ$ 215.76 excluding GST
or four payments of $62.03
with
Learn More
each
S0413
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001125025Associated Numbers
0001125025 0986021907 114477 17454 20401421OE 22.3257 22.3257M 25-3224 254291 254291B 480.506.102 6010124 88214279 91-15-7242 94860410600 AEY1678 BOS0001125025 CST10124 CST10124AS CST10124ES CST10124GS CST10124OS CST10124RS DRS0098 EAA-122026 EAA-141012 EAA-151053 LRS01678 S-6260 SG0573 STR50321 UNIT BOM 120-421 17925N AUTOELECTRO BOSCHList BOSCH CARGO CASCO DELCO S6260 DIXIE EAA122026 EAA EAA141012 EAA151053 253224 ELSTOCK GHIBAUDI LAUBER LUCAS PORSCHE POWERMAX PSH REAL SANDO 120421 WAI / TRANSPO 91157242 WILSON WOODAUTO 7010582 Bosch Remy Light Duty Wilson References: Arrowhead SBO0181 SR0493X Lester 17925 PIC Picture ID Porsche J N 41024173 J& 0001125024 11090130 EuroTec Cargo 12089 EAI 231585 Elstock 480506102 910098 EDR A79050 ATL Lucas S0413 ASPL 00010DA10E show ruil 12130324 AES 12130394 1986S00807 Wood Auto LRS1678 RNL125025 RNL (USA) WOOSTR50321Specifications
| Kilowatt | 1.90 kW |
| Length (L.1) | 234 mm |
| Mount Hole Center - Center (O.1) | 92 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 28 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 60 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| PORSCHE | Cayenne 3.2 | 01.2006- | |
| PORSCHE | Cayenne 4.5 S | [M48.00] | 09.2002- |
| PORSCHE | Cayenne 4.5 S | [M48.00] | 09.2002-09.2007 |
| PORSCHE | Cayenne 4.5 Turbo | [M48.50] | 09.2002- |
| PORSCHE | Cayenne 4.5 Turbo | [M48.50] | 09.2002-09.2007 |
| PORSCHE | Cayenne 4.5 Turbo S | [M48.50] | 03.2006- |
| PORSCHE | Cayenne 4.5 Turbo S | [M48.50] | 03.2006-09.2007 |
| PORSCHE | Cayenne 4.5 Turbo S | [M48.50S] | 01.2004- |
| PORSCHE | Cayenne 4.5 Turbo S | [M48.50S] | 01.2004-09.2007 |
Reference Information
| 00010DA10E | BOSCH |
| 0001125024 | BOSCH |
| 0001125025 | BOSCH |
| 0986021907 | BOSCH |
| 114477 | CARGO |
| 17454 | DELCO |
| 17925N | WAI / TRANSPO |
| 1986S00807 | BOSCH |
| 20401421BN | REAL |
| 20401421OE | REAL |
| 22.3257 | CQ |
| 22.3257M | CQ |
| 25-3224 | ELSTOCK |
| 254291 | KUHNER |
| 254291B | KUHNER |
| 331035 | LOGISTIK |
| 480.506.102.010 | PSH |
| 480.506.102.210 | PSH |
| 480.506.102.280 | PSH |
| 480.506.102.281 | PSH |
| 480.506.102.460 | PSH |
| 5010386 | MEAT & DORIA |
| 6010124.0 | SANDO |
| 6010124.1 | SANDO |
| 88214279 | POWERMAX |
| 91-15-7242 | WILSON |
| 94860410600 | PORSCHE |
| 948604106X | PORSCHE |
| AEY1678 | AUTOELECTRO |
| ANM12318X | ANDEL |
| BOS0001125025 | WOODAUTO |
| CST10124AS | CASCO |
| CST10124GS | CASCO |
| DRS0098 | DELCO |
| F032114477 | CARGO |
| LRS01678 | LUCAS |
| LRS1678 | LUCAS |
| PRSL780 | 3EFFE |
| RNL125025 | RNL |
| S0413 | AS-PL |
| S12BH0260A2 | SIDAT |
| S132.845 | PSH |
| S145.403 | PSH |
| S148.900 | PSH |
| S-6260 | DIXIE |
| SG0573 | GHIBAUDI |
| SR0493X | BOSCH |
| STR1727 | ELECTROLOG |
| STR50321 | WOODAUTO |
| STRL780 | 3EFFE |
| STX200493 | STARDAX |
| STX200493R | STARDAX |
| TT15005PRO | TESLA TECHNICS |
| WOOSTR50321 | WOODAUTO |
Video/Publications
