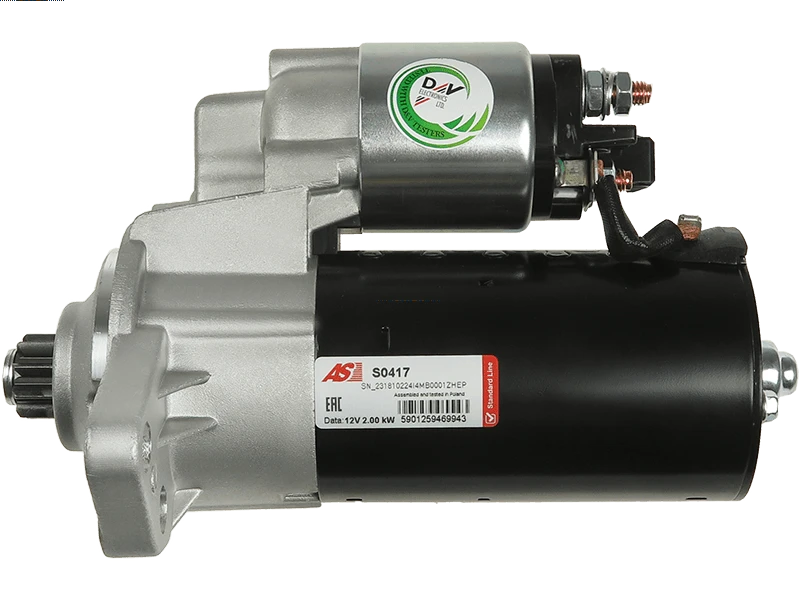

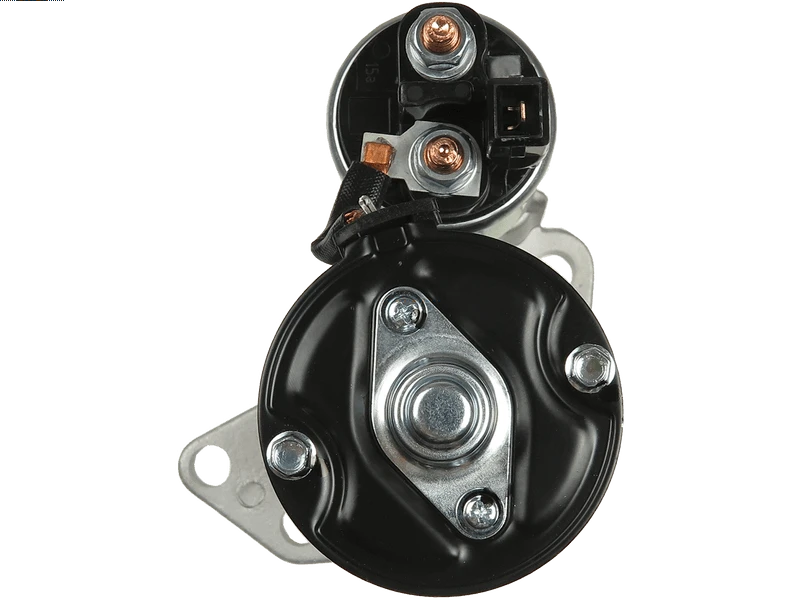

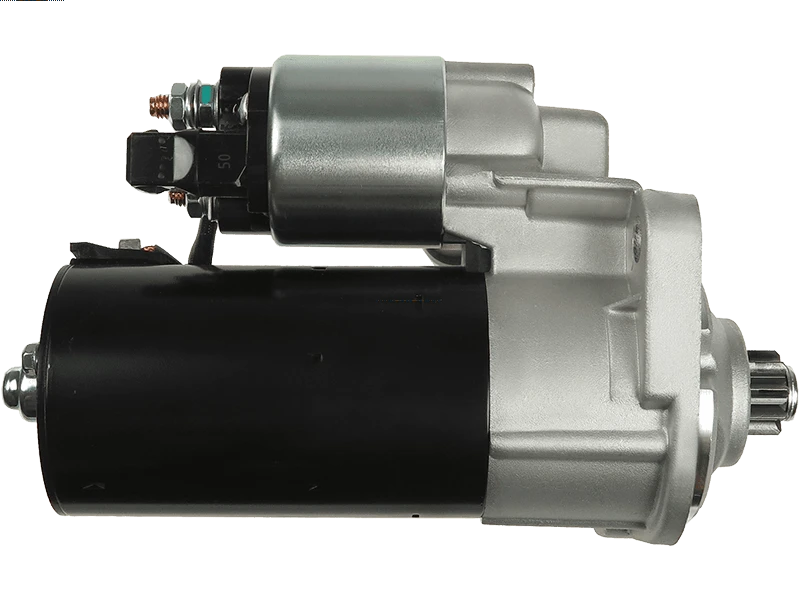

S0417 - Brand new AS-PL Starter motor

Associated Numbers

0001110076 0001110077 0001110098 0001110099 0001124003 0001124004 0001125005 0001125006 0001125035 0001125036 0041518701 020911023B 020911023D 020911023DX 020911023P 020911023PX 020911023R 020911024A WAI New 17030N Old 2-1365-BO ACE Zorkos CM17030N Alltech 111-17030 American Power Systems APS17030 Andre Niermann 01110076 ARC S1472 Armature G Roy 17030 Arrow Automotive Industries 35-2286 Atelier Dynamo S17030 Audi Volkswagen 020-911-023B 068-911-023T 068-911-023TX 068-911-024K 068-911-024KX Auto Electric Suppliers 17030N-2 Autoelectro AES5128 Beck Arnley Remanufactured 187-0674 Bepco 80-17030 Bosch 0 001 110 076 077 117 133 134 SR34X Service Europe 986 013 050 015 970 Canadian Tire 0195575 0198725 Casco CST10137AS Champion Parts Rebuilders 76-1612 Contis CNS015970 CPC CPI KIT Delphi SX3172 DNS S17030-1 DRI A/S Denmark 311025092 311047092 EGI S-17030 Elpar 0104036110 ERA 220189 Excel Expom ER-313 ER-315 Farcom 103324 Friesen 8015970 HC CS295 CS713 Hella 8EA 730 229-001 Herth & Buss 42017000 Knight Rebuilding S6278 Lester Letrika (Iskra) Sales IS 0723 Tech. AZE2537 Lucas Electrical LRS00781 S7231 Magneton 9-141-393 9-141-395 Mahle MS 303 Marelli 063521101330 Metron Minnpar 57-2282 6882282 Mondial 70-281-10 70-281-10N Nastra Tech N17030 Our Part Number # PASCO S-300181A Select Powerite Precision Remanufacturing BOS034 Quality Raw Rayloc 44-6194 446194 446763 4N6194 4N6763 Real 20401046 20401056 20488006 Reliance 61565 Road Warrior Rotex Sovereign SS825 Stratoline Suncoast Triscan 22-311-047-092 TSA UCP USA Valeo 455727 Wood Supplies STR2203 Zorko SNB5035 70-1089-1 70-1079-1G show 0001125014 0001125015 0001127016 Mercedes-Benz 020911012P VW 020911023RX 020911024AX 020911024C 020911024PX 0986015973 0986017000 ruil 0986017007 1032666 Ford 11015970 EuroTec 11016980 11017000 11131057 11398 EAI 1147435 11697 120363A PIC 120363B 141395 141396 17725 191653 1M2111000AA 20500966 Prestolite 20911023D 20911023DX 252231 Elstock 253223 300523093 PSH 300523113 311063092 311239092 3835 CEVAM 4125 4125SP Spidan 433267 438075 442005 455930 4756SP 55602 63720713 Magneti 726034 726834 72735676 738120001 8017000F 8EA011610531 8EA731779001 8EA738120001 9000693007 91157034 Wilson 91157116 91157166 9141395 9141396 915109E 95VW11000EB 95VW11000EC 95VW11000GA 95VW11000GC 95VWEB 95VWEC 95VWGA 97VW11000BA 97VWBA A0041518701 A17000 ATL AZE2626 CS1287 CS789 D7R529 D7RS120 D7RS129 D7RS29 DRS7000 Remy F042200145 F042S02058 FRS175 QH HCS1287 HCS789 IS1043 LRS00966 LRS01677 LRS966 MS48 MSR1136 OSM10713 Optimum SP4125 SR0407X (USA) SR0419X STR1007sa Electrolog STR1308sa STR2203A Unipoint STR23897 Stabeco

Specifications

Kilowatt	2 kW
Length (L.1)	234 mm
Mount Hole Center - Center (O.1)	33 mm
Mount Hole Center - Center (O.2)	112 mm
Mount Hole Center - Center (O.3)	123 mm
Mount Hole Diameter (C.1)	12.50 mm
Mount Hole Diameter (C.2)	12.50 mm
Mount Hole Diameter (C.3)	12.50 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
OEM Product	No
Pinion at Rest (B)	32 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	ACW
Spigot Diameter (A)	76 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
AUDI	A3 1.9 TDi	[AGR]	09.1996-07.2001
AUDI	A3 1.9 TDi	[AHF]	01.1997-08.2000
AUDI	A3 1.9 TDi	[ALH]	09.1996-07.2001
AUDI	A3 1.9 TDi	[ASV]	09.1999-07.2001
FORD	Galaxy 1.9 TDi	[AVG]	08.1997-04.2000
FORD	Galaxy 2.0 i	[NSE]	11.1995-
FORD	Galaxy 2.3 16V	[Y5B]	01.1997-
FORD	Galaxy 2.8 i	[AAA]	02.1995-04.1998
FORD	Galaxy 2.8 i 4x4	[AAA]	04.1996-04.1998
SEAT	Alhambra 1.9 TDi	[AFN]	08.1996-06.2000
SEAT	Cordoba 1.9 Diesel	[1Y]	01.1996-08.1996
SEAT	Cordoba 1.9 Diesel	[1Y]	02.1993-08.1996
SEAT	Cordoba 1.9 SDi	[AEF]	08.1996-06.1999
SEAT	Cordoba 1.9 SDi	[AEY]	08.1996-06.1999
SEAT	Cordoba 1.9 SDi	[AEY]	09.1996-06.1999
SEAT	Cordoba 1.9 SDi	[AGP]	06.1999-
SEAT	Cordoba 1.9 SDi	[AGP]	06.1999-10.2002
SEAT	Cordoba 1.9 SDi	[AQM]	06.1999-
SEAT	Cordoba 1.9 SDi	[AQM]	06.1999-10.2002
SEAT	Cordoba 1.9 TD	[AAZ]	02.1993-08.1996
SEAT	Ibiza 1.9 Diesel	[1Y]	04.1993-08.1996
SEAT	Ibiza 1.9 Diesel	[1Y]	10.1994-08.1996
SEAT	Ibiza 1.9 SDi	[AEF]	08.1996-08.1999
SEAT	Ibiza 1.9 SDi	[AEY]	08.1996-08.1999
SEAT	Ibiza 1.9 SDi	[AGP]	08.1999-02.2002
SEAT	Ibiza 1.9 SDi	[AQM]	08.1999-02.2002
SEAT	Ibiza 1.9 TD	[AAZ]	03.1993-08.1996
SEAT	Inca 1.7 Diesel	[AHB]	09.1996-
SEAT	Inca 1.9 Diesel	[1Y]	11.1995-
SEAT	Inca 1.9 SDi	[AEY]	11.1995-
SEAT	Inca 1.9 SDi	[AYQ]	09.2000-
SEAT	Leon 1.9 SDi	[AQM]	11.1999-
SEAT	Leon 1.9 TDi	[ALH]	11.1999-
SEAT	Toledo 1.9 Diesel	[1Y]	05.1991-03.1999
SEAT	Toledo 1.9 Diesel	[1Y]	12.1995-03.1999
SEAT	Toledo 1.9 TD	[AAZ]	05.1991-03.1999
SEAT	Toledo 1.9 TDi	[AGR]	04.1999-05.2006
SEAT	Toledo 1.9 TDi	[AHF]	04.1999-05.2006
SEAT	Toledo 1.9 TDi	[ALH]	04.1999-05.2006
SEAT	Toledo 2.3 V5	[AGZ]	04.1999-05.2001
SEAT	Toledo 2.3 V5	[AQN]	05.2001-05.2006
SKODA	Octavia 1.9 SDi	[AGP]	05.1997-07.2000
SKODA	Octavia 1.9 SDi	[AGP]	06.1997-
SKODA	Octavia 1.9 SDi	[AQM]	06.1997-
SKODA	Octavia 1.9 SDi	[AQM]	08.2000-12.2003
SKODA	Octavia 1.9 TDi	[AGR]	07.1998-
SKODA	Octavia 1.9 TDi	[AGR]	09.1996-
SKODA	Octavia 1.9 TDi	[AHF]	07.1998-
SKODA	Octavia 1.9 TDi	[AHF]	08.1997-09.2004
SKODA	Octavia 1.9 TDi	[ALH]	07.1998-
SKODA	Octavia 1.9 TDi	[ALH]	09.1996-
SKODA	Octavia 1.9 TDi	[ASV]	07.1998-
SKODA	Octavia 1.9 TDi	[ASV]	08.2000-09.2004
SKODA	Octavia 1.9 TDi 4x4	[AGR]	11.1999-09.2000
VW	Bora 1.9 TDi	[AGR]	10.1998-06.2001
VW	Bora 1.9 TDi	[AHF]	05.1999-06.2001
VW	Bora 1.9 TDi	[AHF]	10.1998-06.2001
VW	Bora 1.9 TDi	[ALH]	10.1998-06.2001
VW	Bora 1.9 TDi	[ASV]	05.1999-06.2001
VW	Bora 1.9 TDi 4-Motion	[AGR]	02.1999-06.2001
VW	Bora 1.9 TDi 4-Motion	[ALH]	02.1999-06.2001
VW	Bora 2.3 V5	[AGZ]	05.1999-10.2000
VW	Bora 2.3 V5	[AGZ]	10.1998-10.2000
VW	Bora 2.3 V5 4-Motion	[AGZ]	05.1999-10.2000
VW	Bora 2.3 V5 4-Motion	[AGZ]	12.1998-10.2000
VW	Caddy 1.7 SDi	[AHB]	07.1996-09.2000
VW	Caddy 1.9 Diesel	[1Y]	11.1995-
VW	Caddy 1.9 Diesel	[1Y]	11.1995-01.2004
VW	Caddy 1.9 SDi	[AEY]	11.1995-01.2004
VW	Caddy 1.9 SDi	[AYQ]	11.1995-01.2004
VW	CoRado 2.9 VR6	[ABV]	08.1991-12.1995
VW	Golf III 1.9 Diesel	[1Y]	07.1993-04.1999
VW	Golf III 1.9 Diesel	[1Y]	11.1991-08.1997
VW	Golf III 1.9 SDi	[AEY]	07.1995-04.1999
VW	Golf III 1.9 SDi	[AEY]	07.1995-08.1997
VW	Golf III 1.9 TD	[AAZ]	07.1993-04.1999
VW	Golf III 1.9 TD	[AAZ]	11.1991-08.1997
VW	Golf III 1.9 TDi	[AFN]	04.1996-04.1999
VW	Golf III 1.9 TDi	[AFN]	04.1996-08.1997
VW	Golf III 1.9 TDi	[AFN]	07.1996-05.1998
VW	Golf III 1.9 TDi	[AHU]	03.1994-04.1999
VW	Golf III 1.9 TDi	[AHU]	08.1995-05.1998
VW	Golf III 1.9 TDi	[AHU]	09.1993-08.1997
VW	Golf III 1.9 TDi	[ALE]	05.1997-12.1997
VW	Golf III 2.8 VR6	[AAA]	01.1992-08.1997
VW	Golf IV 1.6	[AWB]	08.2003-06.2005
VW	Golf IV 1.9 SDi	[AGP]	05.1999-
VW	Golf IV 1.9 SDi	[AGP]	08.1997-06.2005
VW	Golf IV 1.9 SDi	[AQM]	05.1999-
VW	Golf IV 1.9 SDi	[AQM]	08.1997-06.2005
VW	Golf IV 1.9 TDi	[AGR]	05.1999-09.2002
VW	Golf IV 1.9 TDi	[AGR]	10.1997-05.2004
VW	Golf IV 1.9 TDi	[AHF]	05.1999-06.2001
VW	Golf IV 1.9 TDi	[AHF]	08.1997-05.2004
VW	Golf IV 1.9 TDi	[AHU]	04.1998-06.2000
VW	Golf IV 1.9 TDi	[ALE]	04.1998-12.2001
VW	Golf IV 1.9 TDi	[ALH]	05.1999-05.2005
VW	Golf IV 1.9 TDi	[ALH]	05.1999-05.2006
VW	Golf IV 1.9 TDi	[ALH]	10.1997-05.2004
VW	Golf IV 1.9 TDi	[ASV]	08.1997-05.2004
VW	Golf IV 1.9 TDi 4-Motion	[AGR]	05.1999-05.2005
VW	Golf IV 1.9 TDi 4-Motion	[AGR]	07.1998-04.2002
VW	Golf IV 1.9 TDi 4-Motion	[ALH]	07.1998-
VW	Golf IV 2.3 V5	[AGZ]	05.1999-
VW	Golf IV 2.3 V5	[AGZ]	08.1997-10.2000
VW	Golf IV 2.3 V5 4-Motion	[AGZ]	05.1999-
VW	Golf IV 2.3 V5 4-Motion	[AGZ]	12.1998-10.2000
VW	New Beetle 1.9 TDi	[ALH]	01.1998-06.2004
VW	Passat 1.9 Diesel	[1Y]	05.1989-10.1993
VW	Passat 1.9 TD	[AAZ]	03.1991-05.1997
VW	Passat 1.9 TD	[AAZ]	03.1991-08.1996
VW	Passat 1.9 TDi	[1Z]	10.1993-05.1997
VW	Passat 1.9 TDi	[1Z]	10.1993-08.1996
VW	Passat 1.9 TDi	[AFN]	03.1996-03.1997
VW	Passat 1.9 TDi	[AFN]	03.1996-05.1997
VW	Passat 2.8 VR6	[AAA]	06.1991-05.1997
VW	Passat 2.8 VR6	[AAA]	06.1991-08.1996
VW	Polo 1.7 SDi	[AKW]	07.1997-09.2001
VW	Polo 1.7 SDi	[AKW]	08.1997-09.2001
VW	Polo 1.9 Diesel	[1Y]	01.1996-10.1996
VW	Polo 1.9 SDi	[1Y]	12.1995-08.1999
VW	Polo 1.9 SDi	[AEY]	06.1997-09.2001
VW	Polo 1.9 SDi	[AEY]	12.1995-08.1999
VW	Polo 1.9 SDi	[AGP]	08.1999-09.2001
VW	Polo 1.9 SDi	[AQM]	08.1999-09.2001
VW	Polo Classic 1.9 Diesel		06.1996-09.2001
VW	Sharan 1.9 TDi	[AFN]	09.1996-04.2000
VW	Sharan 2.8 VR6	[AAA]	09.1995-04.2000
VW	Sharan 2.8 VR6	[AMY]	09.1995-04.2000
VW	Sharan 2.8 VR6 Syncro	[AAA]	11.1996-04.2000
VW	Sharan 2.8 VR6 Syncro	[AMY]	11.1996-04.2000
VW	Transporter 2.5 TD	[AJT]	05.1998-04.2003
VW	Transporter 2.5 TDi	[ACV]	09.1995-03.2004
VW	Transporter 2.5 TDi	[ACV]	09.1995-04.2003
VW	Transporter 2.5 TDi	[AJT]	05.1998-03.2004
VW	Transporter 2.5 TDi	[AJT]	12.1998-04.2003
VW	Transporter 2.5 TDi	[AUF]	09.1995-03.2004
VW	Transporter 2.5 TDi	[AUF]	09.1995-04.2003
VW	Transporter 2.5 TDi Syncro	[ACV]	01.1996-03.2004
VW	Transporter 2.5 TDi Syncro	[ACV]	05.1998-04.2003
VW	Transporter 2.5 TDi Syncro	[ACV]	09.1995-04.2003
VW	Transporter 2.5 TDi Syncro	[AXL]	05.1998-
VW	Vento 1.9 Diesel	[1Y]	11.1991-09.1998
VW	Vento 1.9 SDi	[AEY]	04.1997-09.1998
VW	Vento 1.9 TD	[AAZ]	11.1991-09.1998
VW	Vento 1.9 TDi	[1Z]	09.1993-09.1998
VW	Vento 1.9 TDi	[AFN]	04.1996-09.1998
VW	Vento 1.9 TDi	[AHU]	09.1993-09.1998
VW	Vento 1.9 TDi	[ALE]	09.1993-09.1998
VW	Vento 2.8 VR6	[AAA]	01.1992-09.1998

Alternatives >>>

S0006 - 1.8kW Version

S0027 - 1.1kW Version - Not reommended to replace the 2.0 kW version

Reference Information

0001110076	BOSCH
0001110077	BOSCH
0001110098	BOSCH
0001110099	BOSCH
0001124003	BOSCH
0001124004	BOSCH
0001125005	BOSCH
0001125006	BOSCH
0001125035	BOSCH
0001125036	BOSCH
0041518701	MERCEDES
004151870180	MERCEDES
020911012P	VW
020911023A	VW
020911023AX	VW
020911023B	VW
020911023D	VW
020911023DX	VW
020911023J	VW
020911023NX	VW
020911023P	VW
020911023PX	VW
020911023R	VW
020911023RX	VW
020911024A	VW
020911024AX	VW
020911024C	VW
020911024CX	VW
020911024PX	VW
02A911023J	VW
02A911023JX	VW
02A911023R	VW
02A911023RX	VW
02T911023D	VW
063521250350	MAGNETI MARELLI
063720713010	MAGNETI MARELLI
068911023T	VW
068911023TX	VW
0986017000	BOSCH
098911023A	VW
098911023B	VW
1003308	FORD
1005821744	VW
1007765	FORD
1012221	FORD
1012395	FORD
101287	KUHNER
1025950	FORD
1029405	FORD
1029412	FORD
1032666	FORD
1059564	FORD
10713	KUHNER
1072559	FORD
10789	KUHNER
10974	KUHNER
10974V	KUHNER
11.131.057	ISKRA / LETRIKA
111900	CARGO
112286	CARGO
1147435	FORD
11697	EAI
1416238	FORD
1516828R	DAF
17725N	WAI / TRANSPO
17725R	WAI / TRANSPO
1HS911023D	VW
1M21-11000-AA	FORD
1M21-11000-AA	FORD
20401511BN	REAL
20401511OE	REAL
20479902OE	REAL
20500966	PRESTOLITE
20911023A	VW
20911023AX	VW
20911023D	VW
20911023DX	VW
20911023J	VW
20911023NX	VW
20911023P	VW
20911023PX	VW
20911023R	VW
20911023RX	VW
20911024A	VW
20911024AX	VW
20911024C	VW
220131	ERA
220388	ERA
25-2231	ELSTOCK
25-3223	ELSTOCK
300.523.093.000	PSH
300.523.093.006	PSH
300.523.093.010	PSH
300.523.093.215	PSH
300.523.093.310	PSH
300.523.093.390	PSH
300.523.093.395	PSH
300.523.093.500	PSH
300.523.093.508	PSH
330865	LOGISTIK
3835	CEVAM
390875	VW
4151870180	MERCEDES
42017000	HERTH+BUSS
455930	VALEO
5010154	MEAT & DORIA
6.0045.9	IKA
6010115.0	SANDO
6010115.1	SANDO
6015209.1	SANDO
726034	VALEO
72735676	MAHLE
8212562	POWERMAX
88212562	POWERMAX
8EA011610-531	HELLA
8EA012527-491	HELLA
8EA731779-001	HELLA
8EA738120-001	HELLA
91-15-7034	WILSON
91-15-7034N	WILSON
943241136010	MAGNETI MARELLI
944280170000	MAGNETI MARELLI
95VW-11000-BA	FORD
95VW-11000-BA	FORD
95VW-11000-BB	FORD
95VW-11000-BB	FORD
95VW-11000-CB	FORD
95VW-11000-CC	FORD
95VW-11000-EA	FORD
95VW-11000-EB	FORD
95VW-11000-EC	FORD
95VW-11000-GA	FORD
95VW-11000-GC	FORD
95VW-11000-GC	FORD
97VW-11000-AA	FORD
97VW-11000-BA	FORD
97VW-11000-BB	FORD
A0041518701	MERCEDES
AES9166	AUTOELECTRO
AZE2626	ISKRA / LETRIKA
CS1287	HC PARTS
CS713	HC PARTS
CS789	HC PARTS
CST10115AS	CASCO
CST10115GS	CASCO
CST15209GS	CASCO
F032111900	CARGO
F032112286	CARGO
IS1043	ISKRA / LETRIKA
L020911024C	VW
LRS00966	LUCAS
LRS01677	LUCAS
LRS1677	LUCAS
LRS966	LUCAS
M1210E	PRESTOLITE
M1210G	PRESTOLITE
MAHMS48	WOODAUTO
MAV172090	SIOM
MAV172100	SIOM
MAV3020	SIOM
MAV3430	SIOM
MAV6450	SIOM
MQS713	MAGNETI MARELLI
MRS17000	MAGNETI MARELLI
MS48	MAHLE
MSN2111	MAGNETI MARELLI
MSR1136	MAGNETI MARELLI
R95VW-11000-CC	FORD
RNL1700	RNL
S0417	AS-PL
S12BH0142A2	SIDAT
S132.156	PSH
S144.967	PSH
S148.514	PSH
S-6198	DIXIE
SG0018	GHIBAUDI
STB0789	KRAUF
STM545	ROLLCO
STR1308	ELECTROLOG
STR50026	WOODAUTO
STR50488	WOODAUTO
STRE219	3EFFE
STRS055	3EFFE
STRS116	3EFFE
STRS741	3EFFE
STV0789	KRAUF
STX200003	STARDAX
STX200003R	STARDAX
STX200038	STARDAX
STX200038R	STARDAX
STX200070	STARDAX
STX200070R	STARDAX
STX200078	STARDAX
STX200078R	STARDAX
STX200138	STARDAX
STX200138R	STARDAX
STX200169	STARDAX
STX200169R	STARDAX
STX200198	STARDAX
STX200198R	STARDAX
STX200230	STARDAX
SX 2075	STARLINE
VVW020911024C	VW
