Associated Numbers
20479362OE 23300-5X20C 25-4141 254738 254738V 438256 458416 554846RIP 6015263 8080336 AEY2469 CST15263 CST15263AS CST15263ES CST15263GS CST15263OS CST15263RS DRS0562 LRS02469 TS24E6 UD02351S
UD02351S ASPL
AEY2469 AUTOELECTRO
CST15263 CASCO
CST15263GS CASCO
DRS0562 DELCO
254141 ELSTOCK
8080336 FRIESEN
LRS02469 LUCAS
233005X20C NISSAN
20479362OE REAL
6015263 SANDO
438256 VALEO
458416 VALEOList
TS24E6 VALEOList
vxs920 snv025
11040837 EuroTec
12197 EAI
160578102 PSH
195081 Valeo
233005X20C Nissan
254141 Elstock
31246N WAI
438256 Valeo
458416 Valeo
910562 EDR
DRS0562 Remy
LRS02469 Lucas
STR0128sa Electrolog
TS24E6 Valeo

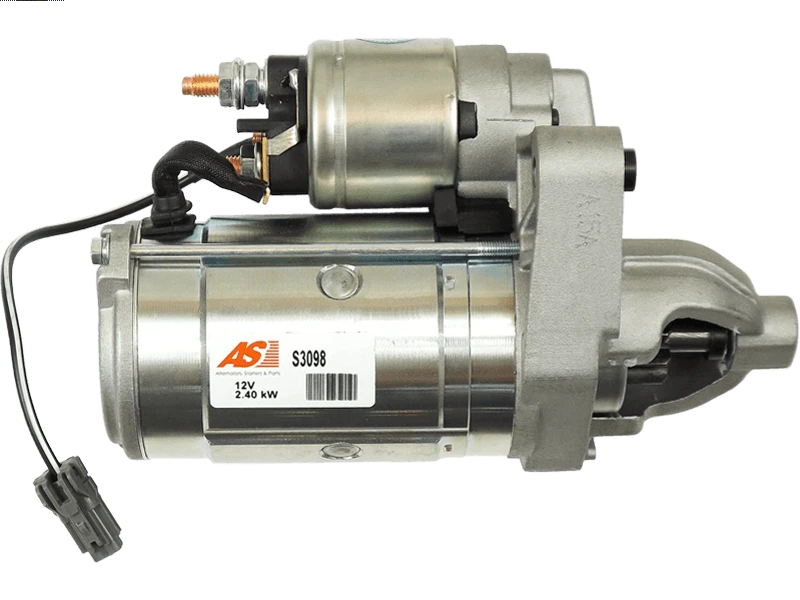

Specifications
Kilowatt | 2.4 kW |
Length (L.1) | 221 mm |
Mount Hole Center - Center (O.1) | 102 mm |
Mount Hole Diameter (C.1) | M10x1.5 mm |
Mount Hole Diameter (C.2) | M10x1.5 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 2 qty |
No./Teeth | 10 qty |
No./Teeth (Replaces) | 10 qty |
Pinion at Rest (B) | 22 mm |
Rotation | CW |
Unit Type | VALEO |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
NISSAN | Navara 3.0 dCi | [V9X] | 01.2010- |
NISSAN | Pathfinder 3.0 dCi | [V9X] | 01.2010- |
Reference Information
554846RIP RNLTS24E6 23300-5X20C AEY2469 STR0128 CST15263RS CST15263 STRS534 TS24E6 331462 6015263 254738V 8080336 UD02351S 115949 20479362OE LRS2469 458416 S3098 31246N CST15263OS PRSS534 CST15263ES CST15263GS DRS0562 254738 438256 25-4141 CST15263AS LRS02469Video/Publications
115949 20479362OE 23300-5X20C 25-4141 254738 254738V 438256 458416 554846RIP 6015263 8080336 AEY2469 CST15263 CST15263AS CST15263ES CST15263GS CST15263OS CST15263RS DRS0562 LRS02469 LRS2469 RNLTS24E6 S3098 STRS534 UD02351SAdd Your Number
