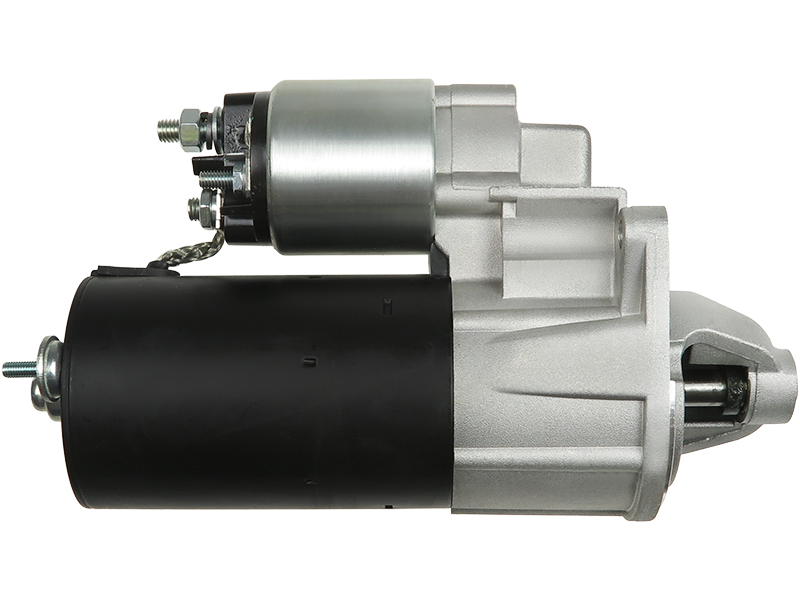

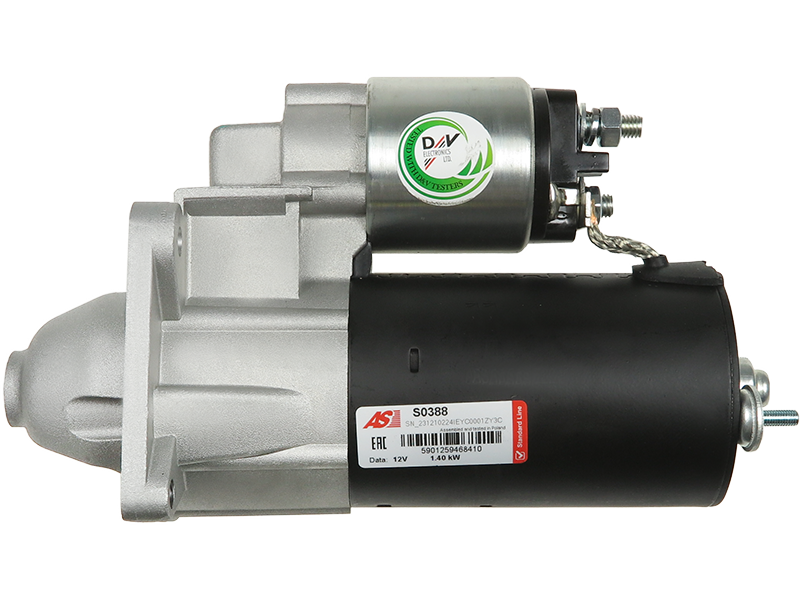

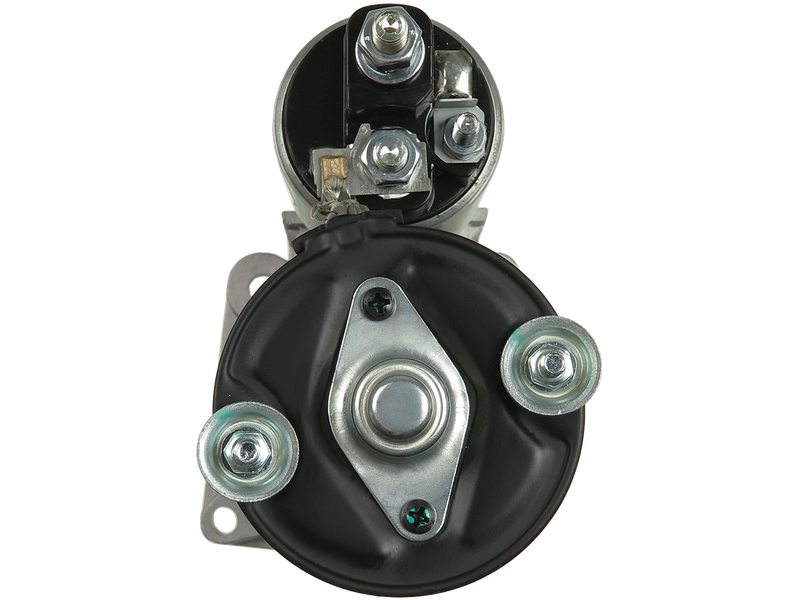

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 230.07 including GST
NZ$ 200.06 excluding GST
or four payments of $57.52
with
Learn More
UOM:
each
Product Code:
S0388
Quantity In Stock Nationally
1 in stock nationally
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001108159Associated Numbers
0001108048 0001108126 0001108136 0001108159 0001108225 100.505.093 10585 11.139.310 11497 17225N 20401602BN 20401602OE 20401702BN 20500742 22.0585 22.0585M 25-0218 3807 46414831 55195503 6010206 6010207 60512847 60585343 60814706 77274850 8015600 8212296 88212296 AES7142 AZE2124 CS585 CST10206AS CST10206GS CST10207AS DRS5600 EAA-121658 LRS00742 SS112 SS129 STR50432
60814706 ALFA ROMEOList
AES7142 AUTOELECTRO
0001108048 BOSCHList
0001108126 BOSCHList
0001108136 BOSCHList
0001108159 BOSCHList
0001108225 BOSCHList
CST10206AS CASCO
CST10206GS CASCO
CST10207AS CASCO
3807 CEVAM
DRS5600 DELCO
EAA121658 EAA
11497 EAI
250218 ELSTOCK
46414831 FIAT
55195503 FIAT
60512847 FIAT
60585343 FIAT
77274850 FIAT
8015600 FRIESEN
CS585 HC PARTS
11.139.310 ISKRA / LETRIKA
AZE2124 ISKRA / LETRIKA
22.0585 LAUBER
22.0585M LAUBER
LRS00742 LUCAS
8212296 POWERMAX
88212296 POWERMAX
20500742 PRESTOLITE
100.505.093 PSH
20401602BN REAL
20401602OE REAL
20401702BN REAL
6010206 SANDO
6010207 SANDO
SS112 SOVEREIGN
SS129 SOVEREIGN
17225N WAI / TRANSPO
STR50432 WOODAUTO
0001108048 Bosch
0001108126 Bosch
0001108159 Bosch
0001108225 Bosch
0001108241 Bosch
0986015600 Bosch ruil
100505093 PSH
11015600 EuroTec
11139310 Mahle
11497 EAI
120309 PIC
1426 Lester
1426SP Spidan
17225 Lester
17225N WAI
17225R WAI
23059 Lucas
250218 Elstock
458195 Valeo
46414831 Fiat
60512847 Alfa Romeo
605128470 Alfa Romeo
60814706 Alfa Romeo
77274850
8015600F Friesen
91157026 Wilson
915600 EDR
943251266 Magneti Marelli
A15600 ATL
A16910 ATL
CS585 HC
DRS5600 Remy
HCS585 HC
IS9310 Mahle
LRS00742 Lucas
LRS742 Lucas
MSR386 Magneti Marelli
OSM10599 Optimum
S26031 Hitachi
Magneti Marelli MSR386
MAHLE IS9310
References:
Alfa Romeo 60655876, 60813460, 60814706
Fiat 55193410, 60655876, 60813460, 60814706
Specifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 243 mm |
| Mount Hole Center - Center (O.1) | 73 mm |
| Mount Hole Center - Center (O.2) | 114 mm |
| Mount Hole Center - Center (O.3) | 73 mm |
| Mount Hole Diameter (C.1) | 8.50 mm |
| Mount Hole Diameter (C.2) | 8.50 mm |
| Mount Hole Diameter (C.3) | 8.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 10.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALFA ROMEO | 147 3.2 GTA V6 24V | [932A000] | 01.2003- |
| ALFA ROMEO | 147 (937_) 3.2 GTA (937.AXL1) | 932A.000 | 02.2003-03.2010 |
| ALFA ROMEO | 155 (167_) 1.7 T.S. (167.A4D, 167.A4H) | AR67105 | 04.1993-04.1996 |
| ALFA ROMEO | 155 (167_) 1.7 T.S. (167.A4G) | AR67103 | 04.1993-04.1996 |
| ALFA ROMEO | 155 (167_) 1.8 T.S. (167A4) | AR67101 | 02.1992-05.1994 |
| ALFA ROMEO | 155 (167_) 1.8 T.S. (167A4) | AR67102 | 02.1992-05.1994 |
| ALFA ROMEO | 155 (167_) 1.8 T.S. (167.A4C, 167.A) | AR67402 | 02.1992-12.1997 |
| ALFA ROMEO | 155 (167_) 1.8 T.S. Sport (167.A4A, 167.A4C, 167.A4E) | AR67101 | 03.1992-12.1996 |
| ALFA ROMEO | 155 (167_) 1.8 T.S. Sport (167.A4A, 167.A4C, 167.A4E) | AR67102 | 03.1992-12.1996 |
| ALFA ROMEO | 155 (167_) 2.0 T.S. (167.A2A, 167.A2D) | AR67201 | 02.1992-05.1995 |
| ALFA ROMEO | 155 (167_) 2.0 T.S. (167.A2A, 167.A2D) | AR67202 | 02.1992-05.1995 |
| ALFA ROMEO | 155 (167_) 2.0 T.S. (167.A2D) | AR67201 | 02.1992-01.1995 |
| ALFA ROMEO | 155 (167_) 2.0 T.S. (167.A2D) | AR67202 | 02.1992-01.1995 |
| ALFA ROMEO | 155 (167_) 2.5 V6 (167.A1C, 167.A1) | AR67301 | 03.1992-05.1995 |
| ALFA ROMEO | 155 (167_) 2.5 V6 (167.A1C, 167.A1E) | AR67302 | 09.1992-12.1997 |
| ALFA ROMEO | 155 (167_) 2.5 V6 (167.A1C, 167.A1E) | AR67303 | 09.1992-12.1997 |
| ALFA ROMEO | 155 2.0 16V T.SPARK | [AR67204] | 01.1995-12.1996 |
| ALFA ROMEO | 155 2.0 8V T.SPARK | [AR67201] | 01.1992-12.1995 |
| ALFA ROMEO | 155 2.0 8V T.SPARK | [AR67202] | 01.1992-12.1995 |
| ALFA ROMEO | 155 2.5 V6 | [AR67301] | 01.1992-12.1996 |
| ALFA ROMEO | 155 2.5 V6 | [AR67301] | 01.1996-12.1997 |
| ALFA ROMEO | 155 2.5 V6 | [AR67302] | 01.1992-12.1996 |
| ALFA ROMEO | 155 2.5 V6 | [AR67302] | 01.1996-12.1997 |
| ALFA ROMEO | 155 2.5 V6 | [AR67303] | 01.1992-12.1996 |
| ALFA ROMEO | 155 2.5 V6 | [AR67303] | 01.1996-12.1997 |
| ALFA ROMEO | 156 2.5 V6 24V | [AR32401] | 01.1997-12.2000 |
| ALFA ROMEO | 156 2.5 V6 24V | [AR32401] | 01.2000-12.2005 |
| ALFA ROMEO | 156 2.5 V6 24V | [AR32405] | 01.1997-12.2000 |
| ALFA ROMEO | 156 2.5 V6 24V | [AR32405] | 01.2000-12.2005 |
| ALFA ROMEO | 156 3.2 GTA V6 24V | [932A000] | 01.2002-12.2005 |
| ALFA ROMEO | 156 (932_) 2.5 V6 24V (932A1) | AR32401 | 09.1997-09.2002 |
| ALFA ROMEO | 156 (932_) 2.5 V6 24V (932A1) | AR32402 | 09.1997-09.2002 |
| ALFA ROMEO | 156 (932_) 2.5 V6 24V (932A11_) | AR32405 | 10.2000-09.2005 |
| ALFA ROMEO | 156 (932_) 3.2 GTA (932AXB) | 932A.000 | 03.2002-09.2005 |
| ALFA ROMEO | 156 Sportwagon (932_) 2.5 V6 24V (932A1) | AR32401 | 02.1997-08.2003 |
| ALFA ROMEO | 156 Sportwagon (932_) 2.5 V6 24V (932B1100) | AR32405 | 02.1997-05.2006 |
| ALFA ROMEO | 156 Sportwagon (932_) 3.2 GTA (932.BXB00) | 932A.000 | 03.2002-05.2006 |
| ALFA ROMEO | 164 (164_) 2.0 (164A2C) | AR06416 | 06.1987-09.1998 |
| ALFA ROMEO | 164 (164_) 2.0 Twin Spark (164.A2C, 164.A2L, 164A2H) | AR06416 | 06.1987-08.1992 |
| ALFA ROMEO | 164 (164_) 2.0 Twin Spark (164.A2C, 164.A2L, 164A2H) | AR06420 | 06.1987-08.1992 |
| ALFA ROMEO | 164 (164_) 2.0 Twin Spark (164.A2H, 164.A2) | AR06420 | 06.1987-09.1992 |
| ALFA ROMEO | 164 (164_) 2.0 Twin Spark (164.H3) | AR64103 | 09.1992-09.1998 |
| ALFA ROMEO | 164 (164_) 2.0 V6 Turbo (164.A2G, 164.A2F) | AR64101 | 03.1991-09.1992 |
| ALFA ROMEO | 164 (164_) 2.0 V6 Turbo (164.K3) | AR64102 | 09.1992-09.1998 |
| ALFA ROMEO | 164 (164_) 2.5 V6 (164A1C) | AR66201 | 09.1992-09.1998 |
| ALFA ROMEO | 164 (164_) 3.0 (164A) | AR06410 | 11.1987-09.1991 |
| ALFA ROMEO | 164 (164_) 3.0 (164AG) | AR06410 | 09.1990-12.1993 |
| ALFA ROMEO | 164 (164_) 3.0 (164H1) | AR64304 | 04.1993-02.1995 |
| ALFA ROMEO | 164 (164_) 3.0 24V (164.K1) | AR64306 | 09.1992-09.1998 |
| ALFA ROMEO | 164 (164_) 3.0 24V (164.K1) | AR66301 | 09.1992-09.1998 |
| ALFA ROMEO | 164 (164_) 3.0 24V (164.K1) | AR66302 | 09.1992-09.1998 |
| ALFA ROMEO | 164 (164_) 3.0 24V (164K1G, 164K1F) | AR66302 | 03.1995-10.1997 |
| ALFA ROMEO | 164 (164_) 3.0 24V Q4 (164.K1M, 164.K1C) | AR64307 | 02.1994-09.1998 |
| ALFA ROMEO | 164 (164_) 3.0 24V Q4 (164.K1M, 164.K1C) | AR64308 | 02.1994-09.1998 |
| ALFA ROMEO | 164 (164_) 3.0 24V QV (164.H1) | AR64304 | 09.1992-09.1998 |
| ALFA ROMEO | 164 (164_) 3.0 24V QV All-wheel Drive (164K1H) | AR64304 | 11.1992-10.1997 |
| ALFA ROMEO | 164 (164_) 3.0 24V QV All-wheel Drive (164K1H) | AR64307 | 11.1992-10.1997 |
| ALFA ROMEO | 164 (164_) 3.0 i.e. QV (164.AG) | AR06430 | 09.1990-09.1992 |
| ALFA ROMEO | 164 (164_) 3.0 i.e. QV (164.AG) | AR64301 | 09.1990-09.1992 |
| ALFA ROMEO | 164 (164_) 3.0 V6 (164.A) | AR06410 | 06.1987-09.1992 |
| ALFA ROMEO | 164 (164_) 3.0 V6 (164.AD, 164.AH, 164.AB) | AR06412 | 06.1987-09.1992 |
| ALFA ROMEO | 164 (164_) 3.0 V6 (164.H1A, 164.H1B, 164.K1P) | AR64303 | 09.1992-09.1998 |
| ALFA ROMEO | 164 (164_) 3.0 V6 (164.H1A, 164.H1B, 164.K1P) | AR64305 | 09.1992-09.1998 |
| ALFA ROMEO | 164 (164_) 3.0 V6 (164.H1A, 164.H1B, 164.K1P) | AR64399 | 09.1992-09.1998 |
| ALFA ROMEO | 164 (164_) 3.0 V6 (164.H1A, 164.H1B, 164.K1P) | AR66303 | 09.1992-09.1998 |
| ALFA ROMEO | 164 2.0 T.SPARK | [AR06416] | 01.1988-12.1992 |
| ALFA ROMEO | 164 2.0 T.SPARK | [AR06420] | 01.1988-12.1992 |
| ALFA ROMEO | 164 2.0 T.SPARK | [AR64103] | 01.1992-12.1998 |
| ALFA ROMEO | 164 2.0 V6 Turbo | [AR64102] | 01.1991-12.1992 |
| ALFA ROMEO | 164 2.0 V6 Turbo | [AR64102] | 01.1992-12.1998 |
| ALFA ROMEO | 164 3.0 V6 12V | [AR64305] | 01.1992-12.1998 |
| ALFA ROMEO | 164 3.0 V6 24V | [AR06410] | 01.1987-12.1992 |
| ALFA ROMEO | 164 3.0 V6 24V | [AR06412] | 01.1987-12.1992 |
| ALFA ROMEO | 164 3.0 V6 24V | [AR64301] | 01.1990-12.1992 |
| ALFA ROMEO | 164 3.0 V6 24V | [AR64302] | 01.1990-12.1992 |
| ALFA ROMEO | 164 3.0 V6 24V | [AR64304] | 01.1990-12.1992 |
| ALFA ROMEO | 164 3.0 V6 24V | [AR64308] | 01.1990-12.1992 |
| ALFA ROMEO | 166 2.0 V6 Turbo | [AR34102] | 01.1998-12.2004 |
| ALFA ROMEO | 166 2.5 V6 24V | [AR34201] | 01.1998-12.2000 |
| ALFA ROMEO | 166 2.5 V6 24V | [AR36201] | 01.1998-12.2000 |
| ALFA ROMEO | 166 2.5 V6 24V | [AR36201] | 01.2000-12.2007 |
| ALFA ROMEO | 166 3.0 V6 24V | [AR34301] | 01.1998-12.2000 |
| ALFA ROMEO | 166 3.0 V6 24V | [AR34301] | 01.2000- |
| ALFA ROMEO | 166 3.0 V6 24V | [AR36101] | 01.1998-12.2000 |
| ALFA ROMEO | 166 3.0 V6 24V | [AR36101] | 01.2000- |
| ALFA ROMEO | 166 3.2 V6 24V | [936A000] | 01.2003- |
| ALFA ROMEO | 166 (936_) 2.0 V6 (936A3___) | AR34102 | 09.1998-10.2000 |
| ALFA ROMEO | 166 (936_) 2.5 V6 24V (936A2___) | AR34201 | 09.1998-12.2006 |
| ALFA ROMEO | 166 (936_) 2.5 V6 24V (936A21__) | AR36201 | 10.2000-06.2007 |
| ALFA ROMEO | 166 (936_) 3.0 V6 24V (936A1000, 936A1001) | AR34301 | 09.1998-06.2007 |
| ALFA ROMEO | 166 (936_) 3.0 V6 24V (936A1000, 936A1001) | AR34302 | 09.1998-06.2007 |
| ALFA ROMEO | 166 (936_) 3.0 V6 24V (936A11__) | AR36101 | 10.2000-06.2007 |
| ALFA ROMEO | 166 (936_) 3.2 V6 24V (936AXB00, 936AXA00) | 936A.000 | 10.2003-06.2007 |
| ALFA ROMEO | GT 3.2 V6 | [936A000] | 01.2003- |
| ALFA ROMEO | GT (937_) 3.2 GTA (937CXP1B) | 936A.000 | 11.2003-09.2010 |
| ALFA ROMEO | GTV 2.0 V6 Turbo | [AR16202] | 01.1995-12.2000 |
| ALFA ROMEO | GTV 3.0 V6 24V | [AR16102] | 01.1996-12.2000 |
| ALFA ROMEO | GTV 3.0 V6 24V | [AR16105] | 01.2000-12.2005 |
| ALFA ROMEO | GTV 3.2 | [936A6000] | 01.2003-12.2005 |
| ALFA ROMEO | GTV (916_) 2.0 V6 Turbo (916.C2A) | AR16202 | 06.1995-09.1998 |
| ALFA ROMEO | GTV (916_) 3.0 V6 24V (916.C1) | AR16102 | 10.1996-10.2000 |
| ALFA ROMEO | GTV (916_) 3.0 V6 24V (916.C1B__) | AR16105 | 10.2000-10.2005 |
| ALFA ROMEO | GTV (916_) 3.2 V6 24V (916CXB00) | 936A6.000 | 04.2003-10.2005 |
| ALFA ROMEO | Spider 2.0 V6 Turbo | [AR16202] | 01.1995-12.2000 |
| ALFA ROMEO | Spider 3.0 V6 12V | [AR16101] | 01.1995-12.2000 |
| ALFA ROMEO | Spider 3.0 V6 24V | [AR16105] | 01.2000-12.2003 |
| ALFA ROMEO | Spider 3.2 V6 24V | [936A6000] | 01.2003-12.2006 |
| ALFA ROMEO | SPIDER (916_) 2.0 V6 Turbo (916S2A) | AR16202 | 05.1998-04.2005 |
| ALFA ROMEO | SPIDER (916_) 3.0 V6 24V (916S1) | AR16102 | 01.1999-10.2003 |
| ALFA ROMEO | SPIDER (916_) 3.0 V6 (916S1) | AR16101 | 06.1995-04.2005 |
| ALFA ROMEO | SPIDER (916_) 3.0 V6 (916S1) | AR16199 | 04.1995-04.1998 |
| ALFA ROMEO | SPIDER (916_) 3.0 V6 (916S1B00) | AR16105 | 09.1994-04.2005 |
| ALFA ROMEO | SPIDER (916_) 3.2 V6 24V (916SXB00) | 936A6.000 | 04.2003-04.2005 |
| FIAT | CROMA (154_) 2500 V6 | 834G.000 | 06.1993-08.1996 |
| FIAT | Croma I 2.5 i.e. V6 | [834G.000] | 01.1993-12.1996 |
| LANCIA | Kappa 3.0i 24V V6 | [838B.000] | 01.1994-12.2000 |
| LANCIA | KAPPA (838_) 3.0 24V (838AD1AA, 838AD11A, 838XD1AA, 838ZD1AA) | 838B.000 | 10.1994-10.2001 |
| LANCIA | KAPPA Coupe (838_) 3.0 24V (838CD, 838CD11A) | 838B.000 | 09.1996-03.2001 |
| LANCIA | KAPPA SW (838_) 3.0 24V (838BD11A) | 838B.000 | 07.1996-10.2001 |
| LANCIA | Thema 3.0 i.e. V6 | [834F.000] | 01.1992-12.1994 |
| LANCIA | THEMA (834_) 3000 V6 (834GD, 834FD) | 834F.000 | 08.1992-07.1994 |
| LANCIA | THEMA SW (834_) 3000 V6 (834GD, 834FD) | 834F.000 | 09.1992-07.1994 |
| LANCIA | Thesis 3.0 V6 24V | [841A.000] | 01.2002- |
| LANCIA | Thesis 3.2 V6 24V | [841A.000] | 01.2003- |
| LANCIA | THESIS (841_) 3.0 V6 (841AXC1101) | 841A.000 | 07.2002-07.2009 |
| LANCIA | THESIS (841_) 3.2 V6 (841.AXF110) | 841L.000 | 05.2003-07.2009 |
Reference Information
| 0001108048 | BOSCH |
| 0001108126 | BOSCH |
| 0001108136 | BOSCH |
| 0001108159 | BOSCH |
| 0001108225 | BOSCH |
| 100.505.093 | WAI |
| 100.505.093.461 | WAI |
| 100.505.093.608 | WAI |
| 100.505.093.945 | WAI |
| 10585 | KUHNER |
| 11.139.310 | ISKRA / LETRIKA |
| 11497 | EAI |
| 17225N | WAI |
| 195100503000 | FIAT |
| 20401602BN | REAL |
| 20401602OE | REAL |
| 20401702BN | REAL |
| 20500742 | PRESTOLITE |
| 220143 | ERA |
| 22.0585 | LAUBER |
| 22.0585M | LAUBER |
| 25-0218 | ELSTOCK |
| 330737 | LOGISTIK |
| 3807 | CEVAM |
| 46414831 | FIAT |
| 51832955 | FIAT |
| 55193410 | FIAT |
| 551934100 | FIAT |
| 55195503 | FIAT |
| 551955030 | FIAT |
| 6010206 | SANDO |
| 6010207 | SANDO |
| 60512847 | FIAT |
| 605128470 | FIAT |
| 60585343 | FIAT |
| 60655876 | FIAT |
| 60813460 | FIAT |
| 60814706 | ALFA ROMEO |
| 60875810 | FIAT |
| 60875811 | FIAT |
| 71723347 | FIAT |
| 71782389 | FIAT |
| 71786192 | FIAT |
| 71791039 | FIAT |
| 71794175 | FIAT |
| 77274850 | FIAT |
| 8015600 | FRIESEN |
| 8212296 | POWERMAX |
| 88212296 | POWERMAX |
| AES7142 | AUTOELECTRO |
| ANM17820X | ANDEL |
| AZE2124 | ISKRA / LETRIKA |
| CS585 | HC PARTS |
| CST10206AS | CASCO |
| CST10206GS | CASCO |
| CST10207AS | CASCO |
| DRS5600 | DELCO |
| LRS00742 | LUCAS |
| LRS742 | LUCAS |
| MAV6330 | SIOM |
| S0388 | AS-PL |
| S129.645 | WAI |
| S12BH0400A2 | SIDAT |
| SS112 | SOVEREIGN |
| SS129 | SOVEREIGN |
| STR10306 | ELECTROLOG |
| STR1138 | ELECTROLOG |
| STR1703 | ELECTROLOG |
| STR50432 | WOODAUTO |
| STRS182 | 3EFFE |
| STX200265 | STARDAX |
| STX200265R | STARDAX |
Video/Publications
S0388View your shopping basket or Browse other items in Starter Motors.
