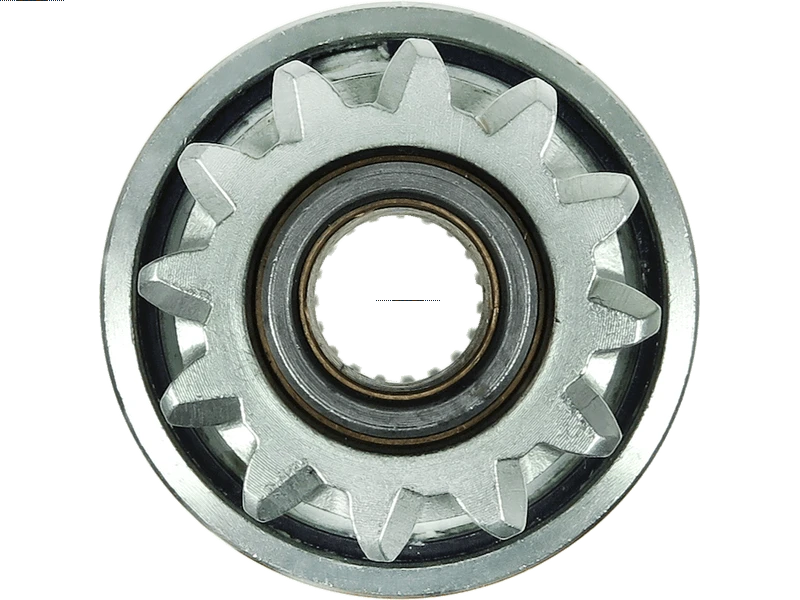

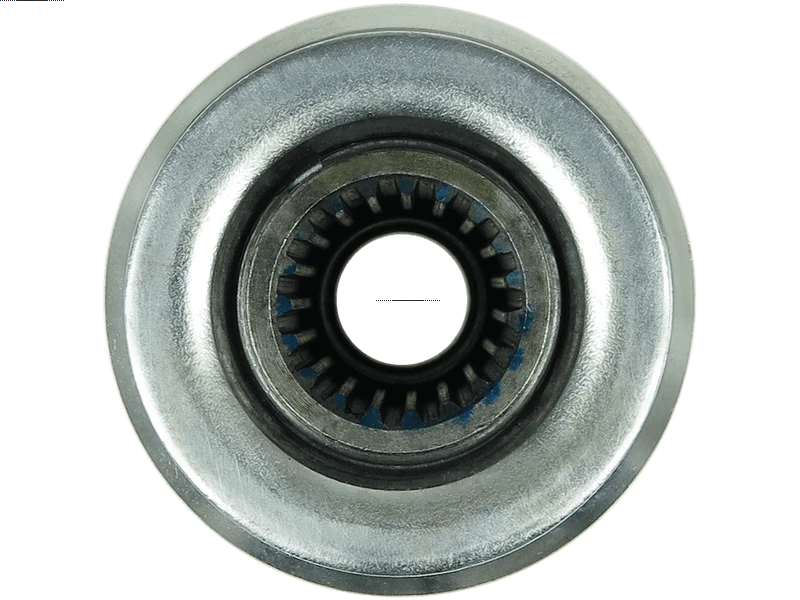

Brand new AS-PL Starter motor drive
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 97.44 including GST
NZ$ 84.73 excluding GST
or four payments of $24.36
with
Learn More
each
SD1022
1
Associated Numbers
10478812 10478815 10478817 10478818 10478925 10478926 10478961 10478999 10479013 10479060 10479061 10479071 10479098 10479102 10479121 10479139 10479215 1993995 10478812 10478815 10478817 10478818 10478925 10478926 10478961 10478999 10479013 10479060 10479061 10479071 10479098 10479102 10479121 10479139 10479215 1993995Specifications
| Inside Diameter (I.D.1) | 16 mm |
| Length (L.1) | 102.50 mm |
| Length (L.2) | 25.70 mm |
| No./Splines | 19 qty |
| No./Teeth | 12 qty |
| OEM Product | No |
| Outside Diameter (O.D.1) | 58 mm |
| Outside Diameter (O.D.2) | 46 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Type | Drive |
| Unit Type | DELCO |
Reference Information
| 1010472 | POWERMAX |
| 1.01.0780.1 | ZEN |
| 10472565 | DELCO |
| 10641 | FACET |
| 225569 | ERA |
| 230911 | CARGO |
| 3E7857 | CATERPILLAR |
| 54-153 | WAI / TRANSPO |
| 54-153-1 | WAI / TRANSPO |
| CQ2010879 | CQ |
| DRV2621 | ELECTROLOG |
| F032230911 | CARGO |
| SDV30628 | WOODAUTO |
