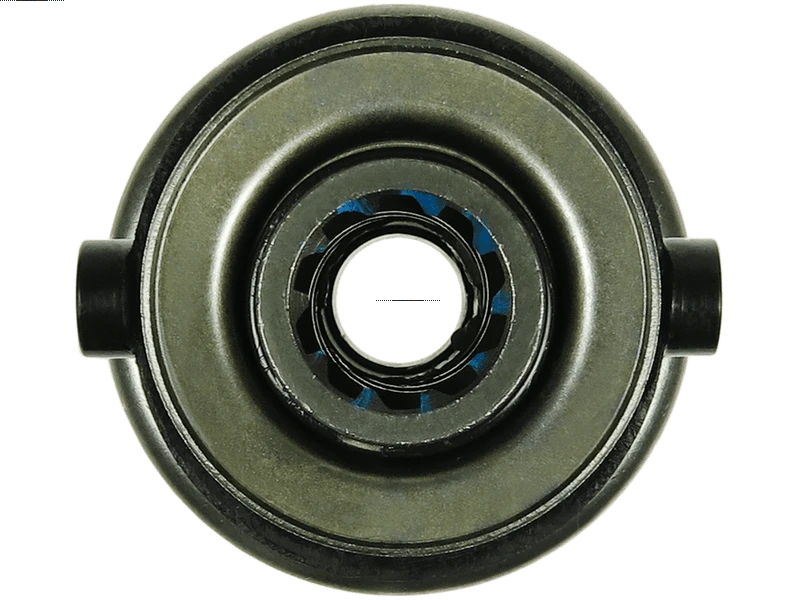

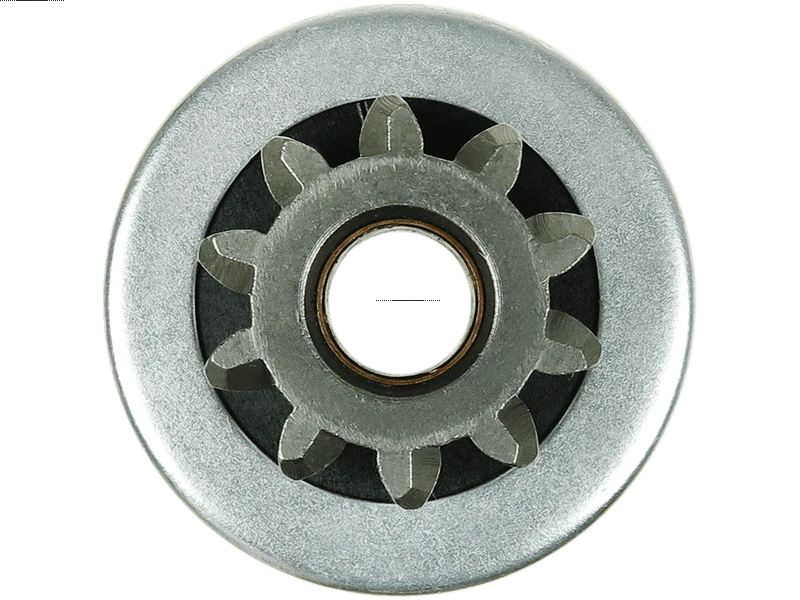

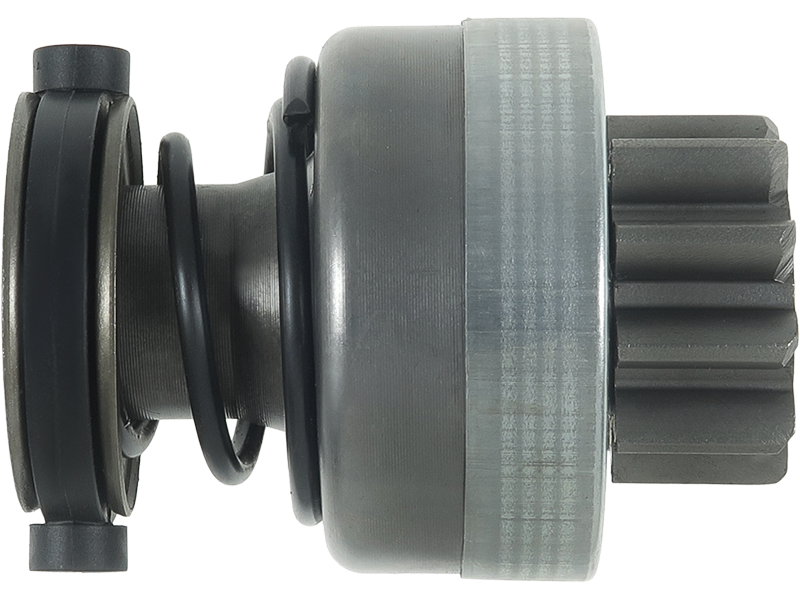

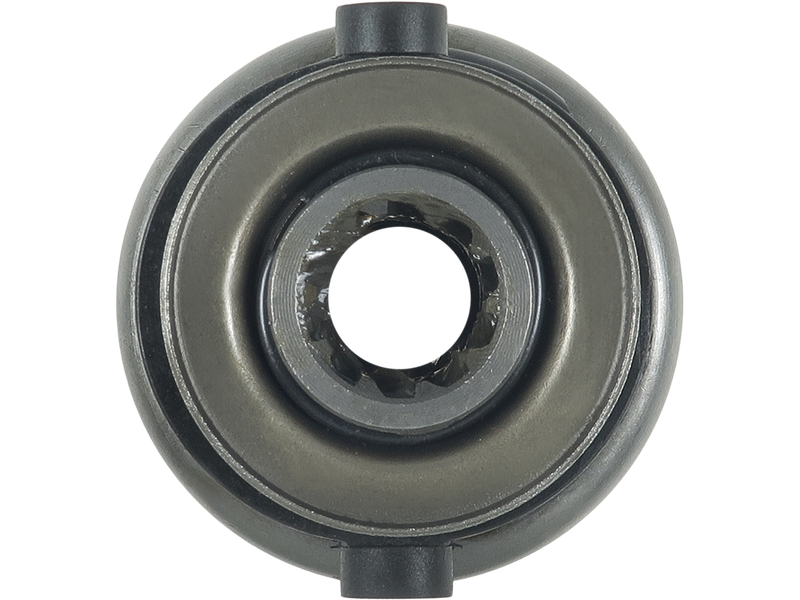

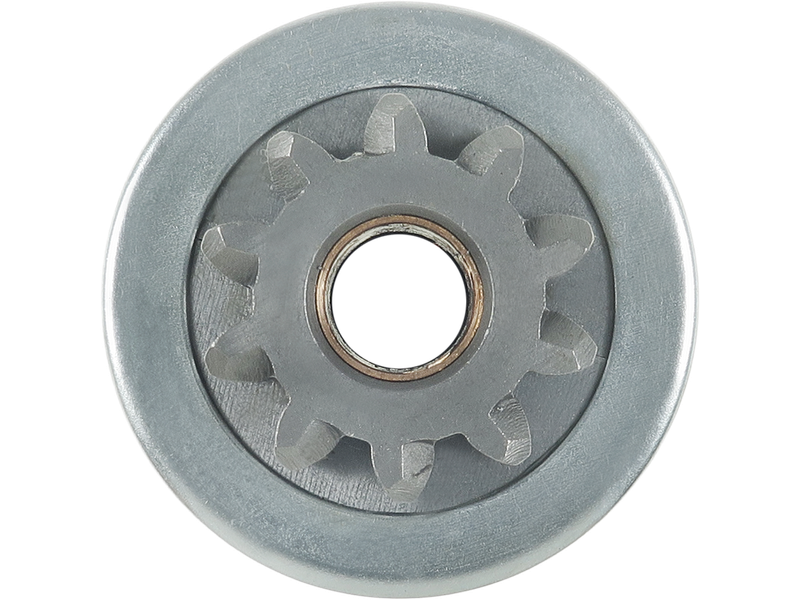

Brand new AS-PL Starter motor drive
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 49.13 including GST
NZ$ 42.72 excluding GST
or four payments of $12.28
with
Learn More
each
SD0101
2
Associated Numbers
0001230004 0001230008 0001231001 0001231009 0001231012 0001231016 0001231017 0001231026 0001231027 0001231039 0001230021 F002G20785 0001230022 0001230018 0001230025 0001230020 0001230026 0001231046 S0082 S0178 S0150 0001230004 0001230008 0001231001 0001231009 0001231012 0001231016 0001231017 0001231026 0001231027 0001231039 0001230021 F002G20785 0001230022 0001230018 0001230025 0001230020 0001230026 0001231046 S0082 S0178 S0150Specifications
| Inside Diameter (I.D.1) | 14.2 mm |
| Length (L.1) | 83 mm |
| Length (L.2) | 20.4 mm |
| No./Splines | 10 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Outside Diameter (O.D.1) | 61 mm |
| Outside Diameter (O.D.2) | 40 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Type | Drive |
| Unit Type | BOSCH |
Reference Information
| 1.01.1159.0 | ZEN |
| 1017530 | POWERMAX |
| 1159 | ZEN |
| 13-200 | STEMOT |
| 2006209571 | BOSCH |
| 2203 | GHIBAUDI |
| 225538 | ERA |
| 231756 | CARGO |
| 233728 | CARGO |
| 333185 | CARGO |
| 335173 | CARGO |
| 42537064 | IVECO |
| 42560356 | IVECO |
| 4.5039.1 | IKA |
| 52-42-90 | VISNOVA |
| 52-42-94 | VISNOVA |
| 54-91144 | WAI / TRANSPO |
| 6033AD0184 | BOSCH |
| 6033AD0200 | BOSCH |
| 6033AD3110 | BOSCH |
| 6033AD3334 | BOSCH |
| 6033AD3336 | BOSCH |
| 6033AD3338 | BOSCH |
| 6033AD4019 | BOSCH |
| 6033AD4119 | BOSCH |
| 6033AD4240 | BOSCH |
| 81017530 | POWERMAX |
| 861208 | PRESTOLITE |
| 9002336237 | BOSCH |
| 940113020393 | MAGNETI MARELLI |
| BOS6033AD3334 | WOODAUTO |
| CDR10606 | CASCO |
| CQ2010205 | CQ |
| DRV1386 | ELECTROLOG |
| F032231756 | CARGO |
| F032233728 | CARGO |
| F032333185 | CARGO |
| F032335173 | CARGO |
| RE508813 | JOHN DEERE |
| SDB1756 | KRAUF |
| SDB9756 | KRAUF |
| SDR10606 | SANDO |
| SDV38107 | WOODAUTO |
| SDV38218 | WOODAUTO |
| SDV38233 | WOODAUTO |
| ZN1159 | ZEN |
Video/Publications
0001230004 0001230008 0001230018 0001230020 0001230021 0001230022 0001230025 0001230026 0001231001 0001231009 0001231012 0001231016 0001231017 0001231026 0001231027 0001231039 0001231046 F002G20785 S0082 S0150 S0178 S0179 S0296 S0301 S0302 S0656SView your shopping basket or Browse other items in Drives, Pinions and Clutches.
