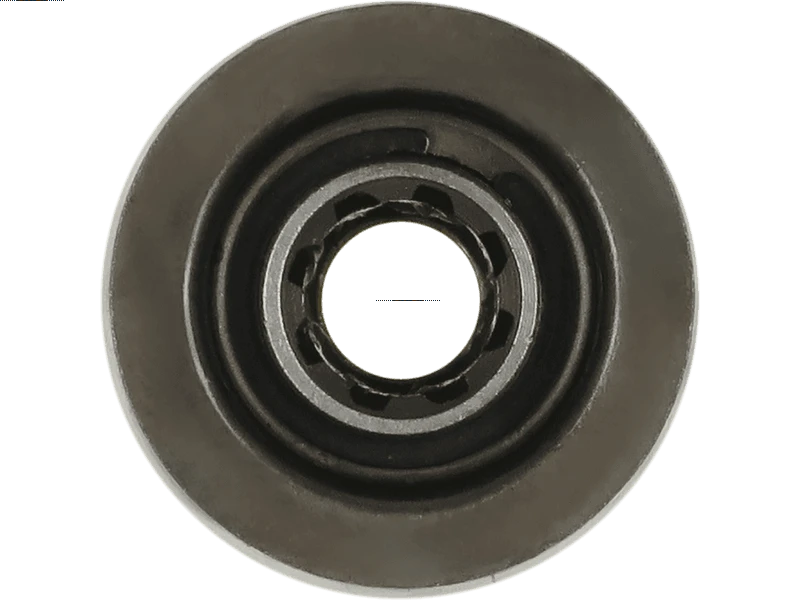

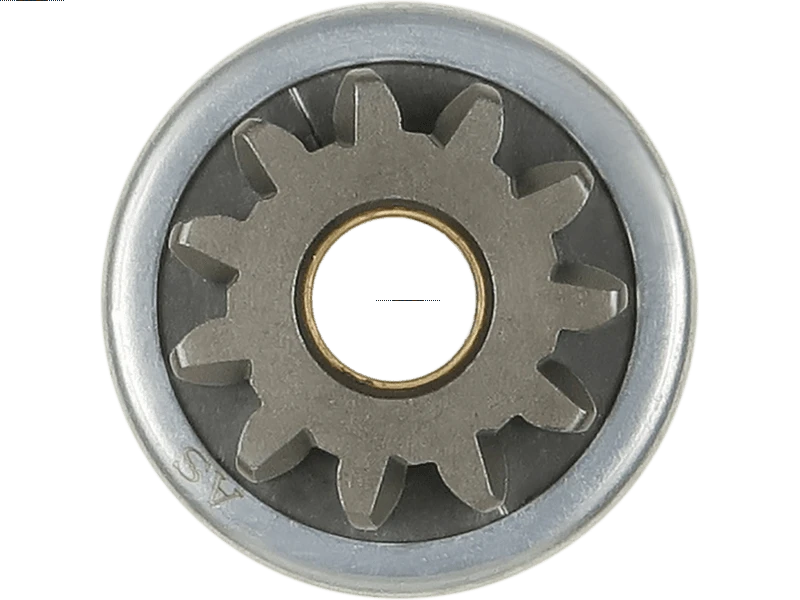

SD5067 - Brand new AS-PL Starter motor drive

Specifications

Inside Diameter (I.D.1)	12 mm
Length (L.1)	51.70 mm
Length (L.2)	16.60 mm
No./Splines	8 qty
No./Teeth	11 qty
OEM Product	No
Outside Diameter (O.D.1)	45.40 mm
Outside Diameter (O.D.2)	34.40 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Type	Drive
Unit Type	MITSUBISHI

Reference Information

08-057	STEMOT
1764	ZEN
236779	CARGO
332330	CARGO
54-8346	WAI / TRANSPO
6104	GHIBAUDI
DRV5170	ELECTROLOG
F032236779	CARGO
F032332330	CARGO
M191T19971	MITSUBISHI
M191X19971	MITSUBISHI
SD7848	KRAUF
SDM0681	KRAUF
SDM4848	KRAUF
SDM5848	KRAUF
SDM6848	KRAUF
SDM8848	KRAUF
ZN1764	ZEN

Video/Publications

3M8111002BB M0001T80681 M000T32871 M000T33271 M000T39471 M000T87481 M000T87481ZC M000T87681 M000T87781 M000T87781ZC M000T88581ZP M000T89182 M000T89281 M000T90685 M000T90685ZC M000T90981 M01T80681 M0T32871 M0T33271 M0T39471 M0T87481 M0T87481ZC M0T87681 M0T87781 M0T87781ZC M0T88581ZP M0T89182 M0T89281 M0T90685 M0T90685ZC M0T90981 S5253S S5259S S5290S S5317S S5362S S5379S S5400S S5401S S5486S
