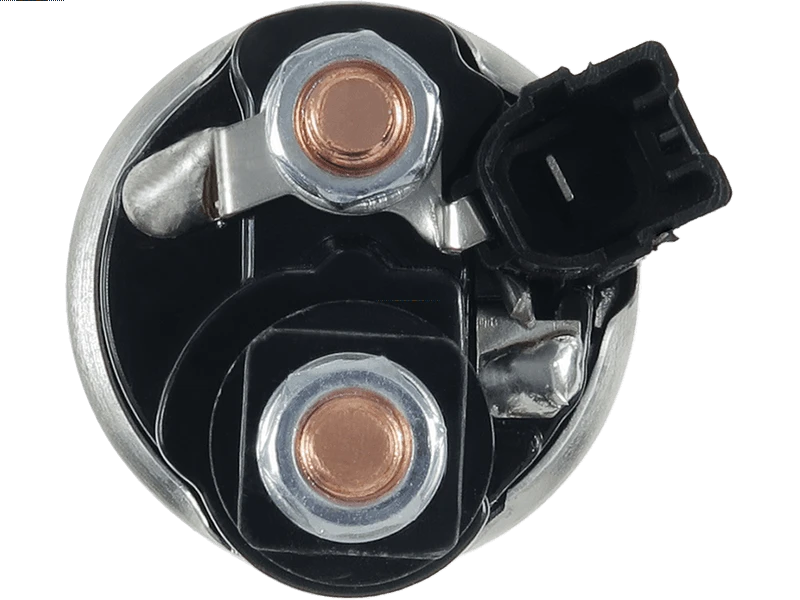

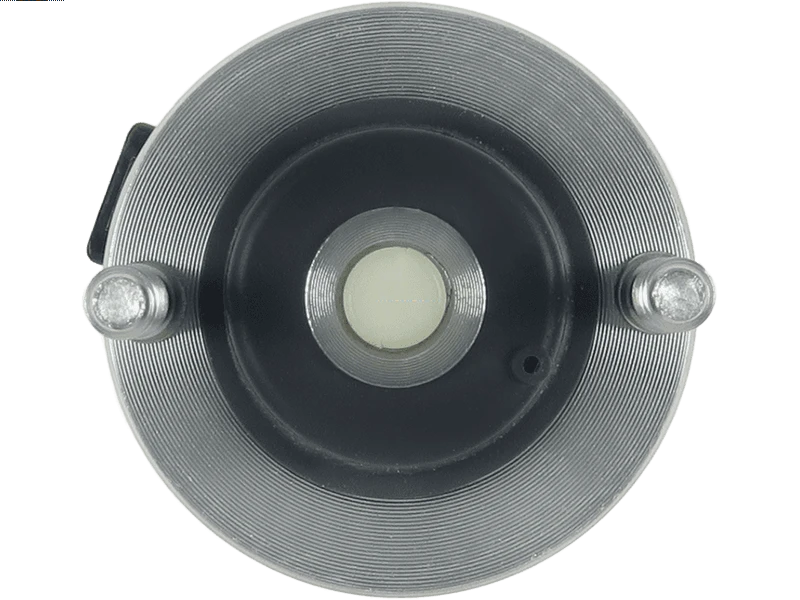

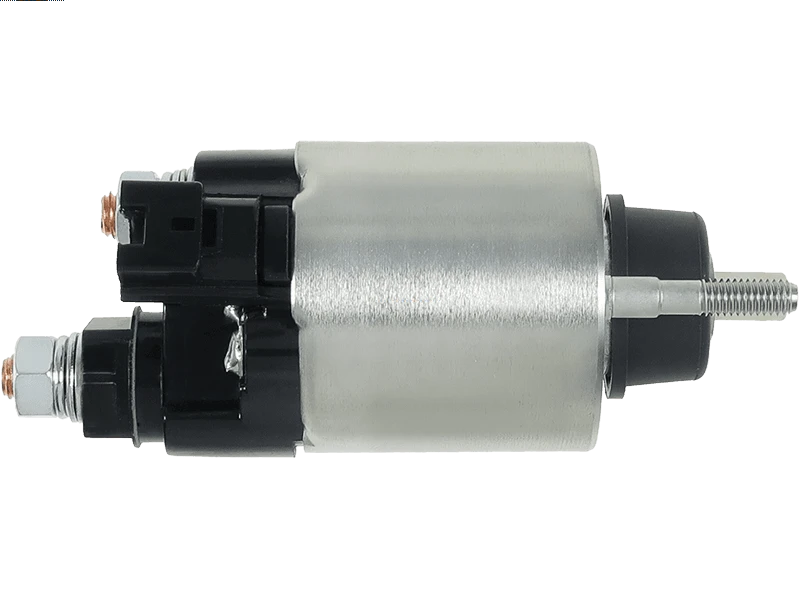

Brand new AS-PL Starter motor solenoid
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 65.32 including GST
NZ$ 56.80 excluding GST
or four payments of $16.33
with
Learn More
each
SS6018
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
2280000940 2280000941 2280002900 2280004020 2280004030 2280006730 2280006740 2280006750 2280006760 2280006840 2280008350 2280008360 2280008540 2280008550 2280009530 2280009540 4280004550 2280008000 2280008001 2280008541 2280008542 2810021020 2810021021 28100-22100 428000-3950 4280003950 4280003951 2810022100 428000-3951 4280003470 4280003471 2280008002 2810075151Specifications
Product features :
| Starter solenoids | |
| Voltage [ V ] | 12 |
| I.D.1 [ mm ] | 24.80 |
| O.D.1 [ mm ] | 50.00 |
| O.D.2 [ mm ] | 50.00 |
| L.1 [ mm ] | 68.50 |
| B+ [ mm ] | M8x1.25 |
| L.B+ [ mm ] | 9.50 |
| Coil bolt [ mm ] | M8x1.25 |
| L.Coil bolt [ mm ] | 11.00 |
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 11 mm |
| Inside Diameter (I.D.1) | 24.80 mm |
| L.B+ | 9.50 mm |
| Length (L.1) | 81 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 50 mm |
| Outside Diameter (O.D.2) | 50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Type | Solenoid |
| Unit Type | DENSO |
| Voltage | 12 V |
Reference Information
| 054.000.547.050 | PSH |
| 054.000.547.056 | PSH |
| 054.000.547.590 | PSH |
| 136886 | CARGO |
| 153400-1520 | DENSO |
| 153400-3750 | DENSO |
| 28150-0C080 | TOYOTA |
| 28150-0L180 | TOYOTA |
| 28150-0Y170 | TOYOTA |
| 28150-11080 | TOYOTA |
| 28150-16160 | TOYOTA |
| 28150-21020 | TOYOTA |
| 28150-28060 | TOYOTA |
| 28150-31090 | TOYOTA |
| 28150-31100 | TOYOTA |
| 28150-40090 | TOYOTA |
| 28150-40130 | TOYOTA |
| 28150-75150 | TOYOTA |
| 28226-31170 | TOYOTA |
| 28226-36120 | TOYOTA |
| 46298 | MEAT & DORIA |
| 4.6381.9 | IKA |
| 4708 | ZM |
| 66-8221 | WAI / TRANSPO |
| 66-8224 | WAI / TRANSPO |
| 81011243 | POWERMAX |
| AM-44639 | AUTO MAGNETO |
| CQ2030736 | CQ |
| E9032 | GHIBAUDI |
| F032136886 | BOSCH |
| SND12294 | WOODAUTO |
| SOL6039 | ELECTROLOG |
| SSN6180 | KRAUF |
| UD10712SS | AS-PL |
| ZM4708 | ZM |
Video/Publications
2810011140 4280004550 428000-8021 S6170 2810021020 2810016160 S6220S S6321S 2280009540 2280006750 2280001100 S6309S 4380001790 4280003470 4280002140 S6406S S6223S S6477S 2810021030 2280000941 2280008540 S6392S 2280004020 2280006760 2280000940 S6125 2280006840 S6035 2280008350 S6748S 2280004030 2280008550 2280004031 S6036 2280004032 2280004033 2280006730 DRS3384 2280008360 2280006743 S6289S 2810016150 2810016230 2280002900 2280008000 2280009530 2280006740 2280006742 2280006741View your shopping basket or Browse other items in Starter Solenoid.
