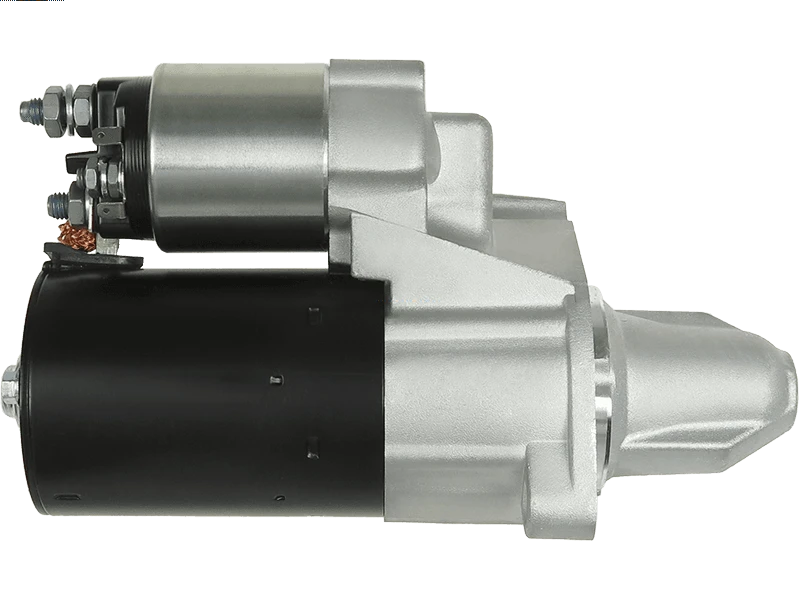

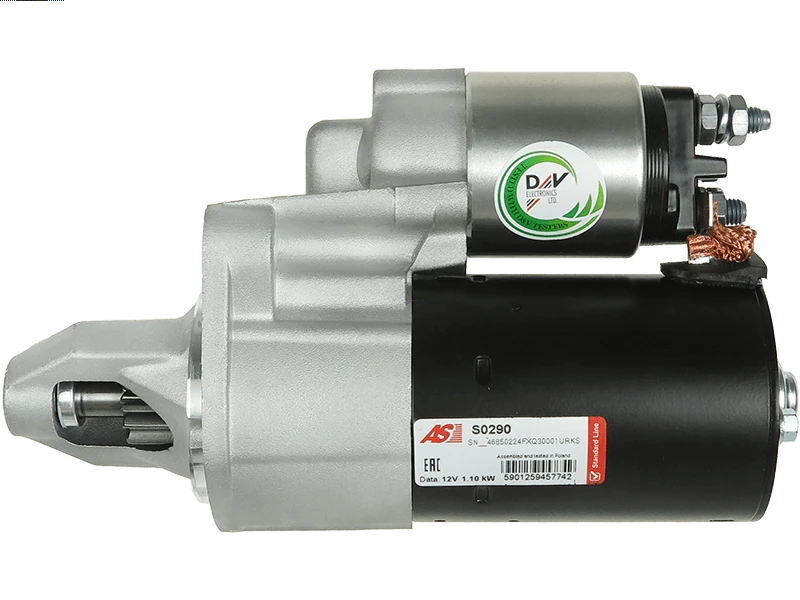

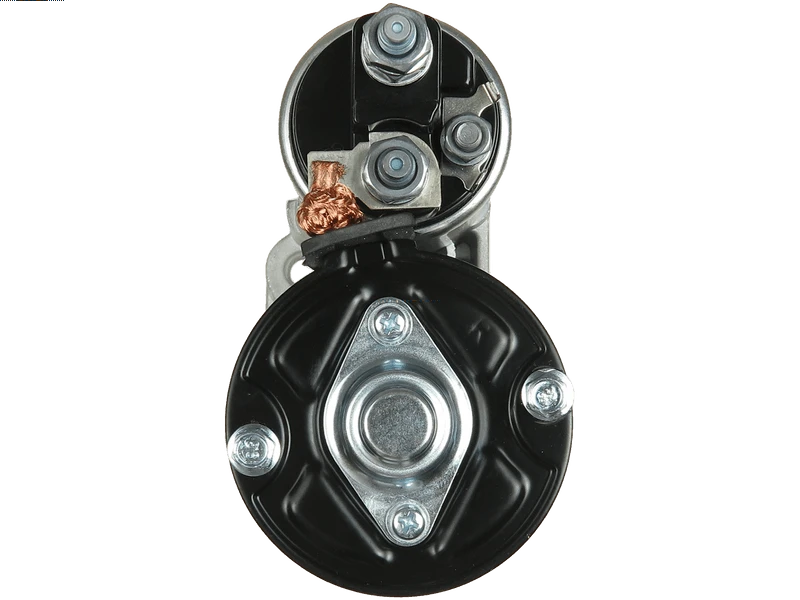

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 241.57 including GST
NZ$ 210.06 excluding GST
or four payments of $60.39
with
Learn More
each
S0290
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Alternatives >>>
- Reference Information
- Video/Publications
Information
0001107459Associated Numbers
0001107459 Bosch 0001107459RB RNL 0001107459RG 0001107459SEL +line 0001107460 0061516001 Mercedes-Benz 006151600180 021193 Da Silva 0986022280 Exchange 0986022283 10439465 Alanko 107213 Farcom 11022280 EuroTec 11439465 115825 HC-Cargo 122237 EAA 1390303200 JP Group 13989 Mapco 19115 Lester 19115N WAI 19115R 1986S00677 220593 ERA 223284 Lauber 254324 Elstock 254816 DAS 254816B 325075102 DRI 332098 Logistik 3915 CEVAM 438491 Valeo 439465 458872 550573102 PSH 6010433 Sando 8022280 Friesen 88214381 PowerMax 910192 EDR A0061516001 A006151600180 A22280 ATL AEY2652 Auto Electro AI80078 Ainde AS2697 Charge AS2697AC BOS0001107459 Wood CST10433 Casco CST10433GS DRS0192 Delco Remy DS021193 F00E100559 F032115825 IR9713 Protech KTR1101146204 KTR LRS02652 Lucas LRS2652 RNL2228 S0290 AS-PL S133440 Short code S145319 S149027 SBE1484 Everkraft SBO1236 Quasar SBO433 AutoTeam ST01820 TMI ST1234 AMK STR1482sa Electrolog STR50565 V301207549 Vemo WOOSTR50565 690001107459Specifications
| Kilowatt | 1.10 kW |
| Length (L.1) | 221 mm |
| Mount Hole Center - Center (O.1) | 89 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 27 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 60 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | C 230 2.5 | [203.052] | 01.2005- |
| MERCEDES BENZ | C 230 2.5 | [203.252] | 01.2005- |
| MERCEDES BENZ | C 230 2.5 | [203.752] | 01.2005- |
| MERCEDES BENZ | C 230 2.5 | [204.052] | 01.2007- |
| MERCEDES BENZ | C 230 2.5 | (S204)[M272.921] | 08.2007-08.2014 |
| MERCEDES BENZ | C 230 2.5 | (W204)[M272.921] | 01.2007-01.2014 |
| MERCEDES BENZ | C 230 2.5 4-Matic | [204.085] | 01.2007- |
| MERCEDES BENZ | C 230 2.5 4-Matic | (W204)[M272.911] | 07.2007-01.2014 |
| MERCEDES BENZ | C 250 2.5 | (S204)[M272.921] | 02.2008-12.2012 |
| MERCEDES BENZ | C 280 3.0 | [203.054] | 01.2005- |
| MERCEDES BENZ | C 280 3.0 | [203.254] | 01.2005- |
| MERCEDES BENZ | C 280 3.0 | [204.054] | 01.2007- |
| MERCEDES BENZ | C 280 3.0 | (S204)[M272.947] | 08.2007-08.2014 |
| MERCEDES BENZ | C 280 3.0 | (W204)[M272.947] | 01.2007-01.2014 |
| MERCEDES BENZ | C 280 3.0 4-Matic | [203.092] | 01.2005- |
| MERCEDES BENZ | C 280 3.0 4-Matic | [203.292] | 01.2005- |
| MERCEDES BENZ | C 280 3.0 4-Matic | [204.081] | 01.2007- |
| MERCEDES BENZ | C 280 3.0 4-Matic | (W204)[M272.948] | 07.2007-01.2014 |
| MERCEDES BENZ | C 300 3.0 | [204.054] | 01.2009- |
| MERCEDES BENZ | C 300 3.0 | (S204)[M272.947] | 08.2007-08.2014 |
| MERCEDES BENZ | C 300 3.0 | (W204)[M272.947] | 07.2009-01.2014 |
| MERCEDES BENZ | C 300 3.0 4-Matic | [204.081] | 01.2007- |
| MERCEDES BENZ | C 300 3.0 4-Matic | (W204)[M272.948] | 07.2007-01.2014 |
| MERCEDES BENZ | C 300 3.5 | [204.056] | 01.2007- |
| MERCEDES BENZ | C 300 3.5 4-Matic | [204.087] | 01.2007- |
| MERCEDES BENZ | C 300 3.5 CGI | 01.2008- | |
| MERCEDES BENZ | C 350 3.5 | (S204)[M272.961] | 08.2007-08.2014 |
| MERCEDES BENZ | C 350 3.5 | (W204)[M272.961] | 01.2007-01.2014 |
| MERCEDES BENZ | C 350 3.5 4-Matic | (W204)[M272.971] | 07.2007-01.2014 |
| MERCEDES BENZ | C 350 3.5 CGi | (W204)[M272.982] | 09.2008-01.2014 |
| MERCEDES BENZ | CL 500 5.5 | (C216)[M273.961] | 06.2006-12.2013 |
| MERCEDES BENZ | CL 500 5.5 4-Matic | (C216)[M273.968] | 02.2008-12.2013 |
| MERCEDES BENZ | CLK 280 3.0 | [209.354] | 01.2005- |
| MERCEDES BENZ | CLK 350 3.5 | [209.356] | 01.2005- |
| MERCEDES BENZ | CLK 500 5.5 | [209.372] | 01.2006- |
| MERCEDES BENZ | CLK 500 5.5 | [209.375] | 01.2002- |
| MERCEDES BENZ | E 250 2.5 | (W212)[M272.923] | 05.2009-12.2011 |
| MERCEDES BENZ | E 300 3.0 | (S212)[M272.952] | 11.2009-12.2011 |
| MERCEDES BENZ | E 300 3.0 | (W212)[M272.952] | 01.2009-12.2013 |
| MERCEDES BENZ | E 350 3.5 | (A207)[M272.961] | 03.2010-12.2011 |
| MERCEDES BENZ | E 350 3.5 | (A207)[M272.988] | 03.2010-12.2011 |
| MERCEDES BENZ | E 350 3.5 | (C207)[M272.988] | 01.2010-12.2011 |
| MERCEDES BENZ | E 350 3.5 | (S212)[M272.980] | 08.2009-12.2011 |
| MERCEDES BENZ | E 350 3.5 | (W212)[M272.980] | 01.2009-12.2013 |
| MERCEDES BENZ | E 350 3.5 4-Matic | (S212)[M272.977] | 11.2009-12.2011 |
| MERCEDES BENZ | E 350 3.5 4-Matic | (W212)[M272.977] | 01.2009-08.2011 |
| MERCEDES BENZ | E 350 3.5 CGi | (A207)[M272.982] | 01.2010-12.2014 |
| MERCEDES BENZ | E 350 3.5 CGi | (A207)[M272.984] | 01.2010-12.2014 |
| MERCEDES BENZ | E 350 3.5 CGi | (C207)[M272.982] | 01.2009-12.2011 |
| MERCEDES BENZ | E 350 3.5 CGi | (C207)[M272.984] | 01.2009-12.2011 |
| MERCEDES BENZ | E 350 3.5 CGi | (S212)[M272.983] | 11.2009-12.2011 |
| MERCEDES BENZ | E 350 3.5 CGi | (W212)[M272.982] | 01.2009-08.2011 |
| MERCEDES BENZ | E 350 3.5 CGi | (W212)[M272.983] | 01.2009-08.2011 |
| MERCEDES BENZ | E 500 5.5 | (A207)[M273.966] | 01.2010-12.2011 |
| MERCEDES BENZ | E 500 5.5 | (C207)[M273.966] | 01.2009-12.2016 |
| MERCEDES BENZ | E 500 5.5 | (S212)[M273.971] | 11.2009-12.2011 |
| MERCEDES BENZ | E 500 5.5 | (W212)[M273.971] | 01.2009-12.2011 |
| MERCEDES BENZ | E 500 5.5 4-Matic | (W212)[M273.970] | 01.2009-12.2011 |
| MERCEDES BENZ | GLK 280 3.0 4-Matic | (X204)[M272.948] | 06.2008-06.2009 |
| MERCEDES BENZ | GLK 300 3.0 4-Matic | (X204)[M272.948] | 07.2009-12.2015 |
| MERCEDES BENZ | GLK 350 3.5 4-Matic | (X204)[M272.971] | 06.2008-04.2011 |
| MERCEDES BENZ | S 280 3.0 | (V221)[M272.946] | 08.2006-12.2013 |
| MERCEDES BENZ | S 280 3.0 | (W221)[M272.946] | 08.2006-12.2013 |
| MERCEDES BENZ | S 300 3.0 | (V221)[M272.946] | 08.2006-12.2013 |
| MERCEDES BENZ | S 300 3.0 | (W221)[M272.946] | 08.2006-12.2013 |
| MERCEDES BENZ | S 350 3.5 | (V221)[M272.965] | 10.2005-12.2013 |
| MERCEDES BENZ | S 350 3.5 | (W221)[M272.965] | 10.2005-12.2013 |
| MERCEDES BENZ | S 350 3.5 4-Matic | (V221)[M272.975] | 02.2008-12.2013 |
| MERCEDES BENZ | S 350 3.5 4-Matic | (W221)[M272.975] | 02.2008-12.2013 |
| MERCEDES BENZ | S 450 4.7 | (V221)[M273.922] | 12.2005-12.2013 |
| MERCEDES BENZ | S 450 4.7 | (W221)[M273.922] | 12.2005-12.2013 |
| MERCEDES BENZ | S 450 4.7 4-Matic | (V221)[M273.924] | 12.2005-12.2013 |
| MERCEDES BENZ | S 450 4.7 4-Matic | (W221)[M273.924] | 12.2005-12.2013 |
| MERCEDES BENZ | S 500 5.5 | (V221)[M273.961] | 10.2005-12.2013 |
| MERCEDES BENZ | S 500 5.5 | (W221)[M273.961] | 10.2005-12.2013 |
| MERCEDES BENZ | S 500 5.5 4-Matic | (V221)[M273.961] | 10.2005-12.2013 |
| MERCEDES BENZ | S 500 5.5 4-Matic | (V221)[M273.968] | 10.2005-12.2013 |
| MERCEDES BENZ | S 500 5.5 4-Matic | (W221)[M273.961] | 10.2005-12.2013 |
| MERCEDES BENZ | S 500 5.5 4-Matic | (W221)[M273.968] | 10.2005-12.2013 |
| MERCEDES BENZ | SL 280 3.0 | (R230)[M272.949] | 03.2008-01.2012 |
| MERCEDES BENZ | SL 300 3.0 | (R230)[M272.949] | 04.2009-01.2012 |
| MERCEDES BENZ | SL 350 3.5 | (R230)[M272.966] | 03.2006-01.2012 |
| MERCEDES BENZ | SL 350 3.5 | (R230)[M272.968] | 04.2008-01.2012 |
| MERCEDES BENZ | SL 500 5.5 | (R230)[M273.965] | 03.2006-01.2012 |
| MERCEDES BENZ | SLK 280 3.0 | (R171)[M272.942] | 01.2005-02.2011 |
| MERCEDES BENZ | SLK 300 3.0 | (R171)[M272.942] | 04.2009-02.2011 |
| MERCEDES BENZ | SLK 350 3.5 | (R171)[M272.963] | 06.2004-02.2011 |
| MERCEDES BENZ | SLK 350 3.5 | (R171)[M272.969] | 01.2008-02.2011 |
Alternatives >>>
S0460S - 1.8 kW Version 30mm Longer in body length
Reference Information
| 0001107459 | BOSCH |
| 0001107460 | BOSCH |
| 0061516001 | MERCEDES |
| 006151600180 | MERCEDES |
| 006151600183 | MERCEDES |
| 006151600187 | MERCEDES |
| 006151600188 | MERCEDES |
| 06-10214-SX | STELLOX |
| 0986022280 | BOSCH |
| 10010433AV | ITAB AUTOMOTIVE |
| 10010433OV | ITAB AUTOMOTIVE |
| 10439465 | ALANKO |
| 107213 | FARCOM |
| 11022280 | EUROTEC |
| 115825 | CARGO |
| 19115 | DIXIE |
| 19115N | WAI / TRANSPO |
| 1986S00677 | BOSCH |
| 20401334BN | REAL |
| 20401334OE | REAL |
| 220593 | ERA |
| 220593A | ERA |
| 25-4324 | ELSTOCK |
| 254816 | KUHNER |
| 254816B | KUHNER |
| 3120129 | HENKEL PARTS |
| 3120130 | HENKEL PARTS |
| 325075102 | DRI |
| 332098 | LOGISTIK |
| 3915 | CEVAM |
| 438491 | VALEO |
| 458872 | VALEO |
| 5010395 | MEAT & DORIA |
| 5010395G | MEAT & DORIA |
| 550.573.102.010 | PSH |
| 550.573.102.211 | PSH |
| 550.573.102.215 | PSH |
| 550.573.102.280 | PSH |
| 550.573.102.460 | PSH |
| 550.573.102.461 | PSH |
| 6010433.0 | SANDO |
| 6010433.1 | SANDO |
| 728102801 | FREY |
| 8022280 | FRIESEN |
| 88214381 | POWERMAX |
| 8EA011612-591 | HELLA |
| 91-15-7284 | WILSON |
| 91-15-7284N | WILSON |
| A0061516001 | MERCEDES |
| A006151600180 | MERCEDES |
| A006151600183 | MERCEDES |
| A006151600187 | MERCEDES |
| A006151600188 | MERCEDES |
| A22280 | ATL AUTOTECHNIK |
| AC-CBS5900 | ACAUTO |
| AI-80078 | AINDE |
| AZMT-53-010-1012 | A.Z. MEISTERTEILE |
| BOS0001107459 | WOODAUTO |
| CMA-621812 | COMLINE |
| CST10433AS | CASCO |
| CST10433GS | CASCO |
| DRS0192 | DELCO |
| F032115825 | CARGO |
| IR9713 | PROTECH |
| LRS02652 | LUCAS |
| LRS2652 | LUCAS |
| S0290 | AS-PL |
| S12BH0276 | SIDAT |
| S12BH0276A2 | SIDAT |
| S-50565 | DTS |
| S-6288 | DIXIE |
| SBO433 | AUTOTEAM |
| ST01820 | TMI |
| STB4759 | KRAUF |
| STR1482 | ELECTROLOG |
| STR50565 | WOODAUTO |
| STRL169 | 3EFFE |
| TT16540 | TESLA |
| V30-12-07459 | VEMO |
| WG2013157 | WILMINK GROUP |
| WOOSTR50565 | WOODAUTO |
Video/Publications
