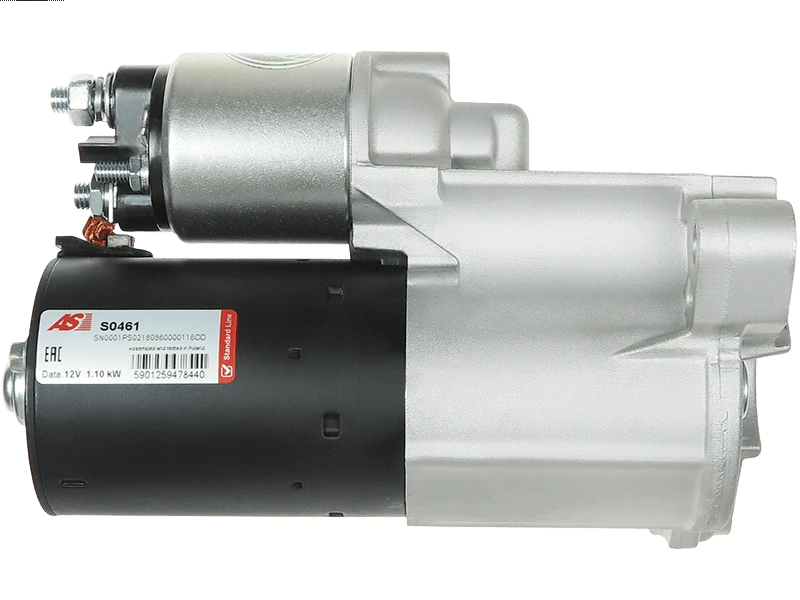

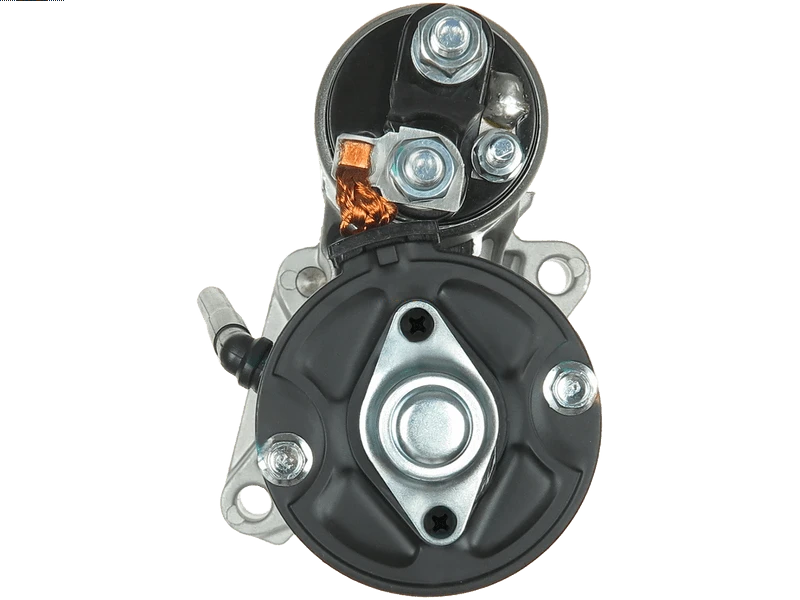

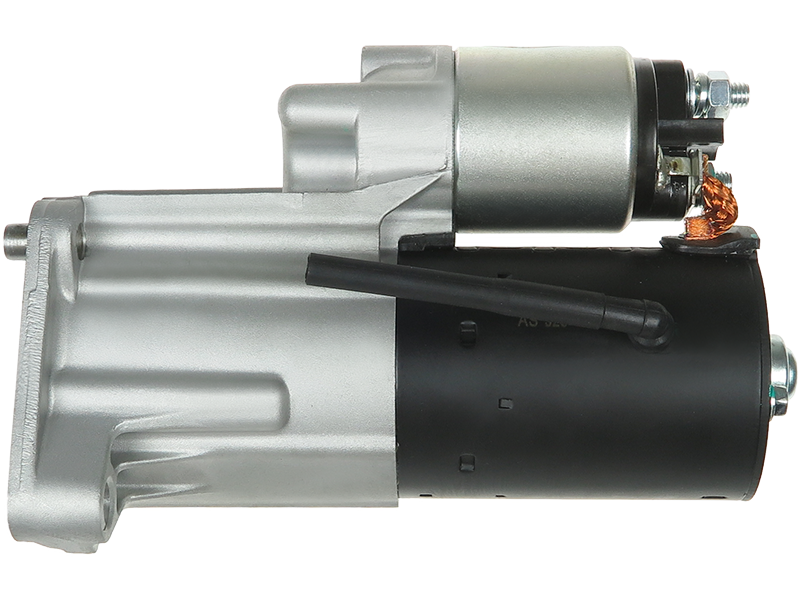

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 228.95 including GST
NZ$ 199.09 excluding GST
or four payments of $57.24
with
Learn More
each
S0461
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001121422Associated Numbers
0001121422 0001121423 0001121427 19095R 25-4001 254892 254892B 6G9N11000LC AEY2329 DRS0389 LR009338 LRS02329 SS637 UD01336S Bosch 0001121428 0001121443 0001121444 115943 Cargo 12183 EAI WAI 254001 Elstock 450531103 PSH 6G9N11000LA Ford 6G9N11000LB 6G9N11000LD 910389 EDR Remy LR002348 Rover Group Hitachi LR029180 Lucas Arrowhead SBO0233 Beck Arnley 1871045 SR0826X 6G9NLB 6G9NLC 6G9NLD Lester 19095 19179 LRS2329 PIC Picture ID 1206411 1906231 Light Duty 17530 LR007022 LR017803 Youtech/PartRef 423687 Wilson 91157280 J N 41024293 References: BSR0826X J& ASPL AUTOELECTRO BOSCHList DELCO ELSTOCK FORDList LUCAS ROVER SOVEREIGN / TRANSPO bxs0178 SNB172Specifications
| Kilowatt | 1.10 kW |
| Length (L.1) | 209 mm |
| Mount Hole Center - Center (O.1) | 115 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | -7 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 56 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LAND ROVER | Freelander 3.2 | [B6324S] | 01.2006- |
Reference Information
| 0001121422 | BOSCH |
| 0001121423 | BOSCH |
| 0001121427 | BOSCH |
| 0001121428 | BOSCH |
| 0001121443 | BOSCH |
| 0001121444 | BOSCH |
| 10010A01AV | ITAB AUTOMOTIVE |
| 10010A01OV | ITAB AUTOMOTIVE |
| 10438845 | ALANKO |
| 115943 | CARGO |
| 12183 | EAI |
| 183ST21 | STARTCAR |
| 19095N | WAI / TRANSPO |
| 2040110ABN | REAL |
| 2040110AOE | REAL |
| 25-4001 | ELSTOCK |
| 25-4001CT | AINDE |
| 254892 | KUHNER |
| 3118136 | HENKEL PARTS |
| 3118138 | HENKEL PARTS |
| 331277 | LOGISTIK |
| 339018102 | DRI |
| 3793 | CEVAM |
| 450.531.103.010 | PSH |
| 450.531.103.280 | PSH |
| 5010495 | MEAT & DORIA |
| 5010495G | MEAT & DORIA |
| 6010A01.0 | SANDO |
| 6010A01.1 | SANDO |
| 6G9N-11000-LA | FORD |
| 6G9N-11000-LB | FORD |
| 6G9N-11000-LC | FORD |
| 6G9N-11000-LD | FORD |
| 6G9N-11000-LE | FORD |
| 88214517 | POWERMAX |
| 91-15-7280 | WILSON |
| AC-CBS5910 | ACAUTO |
| AEY2329 | AUTOELECTRO |
| ANM12609 | ANDEL |
| ANM12609X | ANDEL |
| BOS0001121443 | WOODAUTO |
| BREF032115943 | CARWOOD GROUP |
| BREF0321986S00793 | CARWOOD GROUP |
| BST2579 | BORG & BECK |
| CST10A01AS | CASCO |
| CST10A01GS | CASCO |
| DRS0389 | DELCO |
| F032115943 | CARGO |
| H5010495 | HOFFER |
| H5010495G | HOFFER |
| IR1009 | PROTECH |
| LR002348 | LAND ROVER |
| LR007022 | LAND ROVER |
| LR009338 | LAND ROVER |
| LR017803 | LAND ROVER |
| LR029180 | LAND ROVER |
| LR9015 | SNRA |
| LRS02329 | LUCAS |
| LRS2329 | LUCAS |
| MAV12A010 | SIOM |
| MAV12A010A | SIOM |
| QRS2490 | QUINTON HAZELL |
| S100364 | BTS TURBO |
| S101242 | BTS TURBO |
| S12BH0649 | SIDAT |
| S12BH0649A2 | SIDAT |
| SBO0233 | ARROWHEAD |
| SBOA01A | AUTOTEAM |
| ST01528 | TMI |
| STB4127 | KRAUF |
| STM1340 | ROLLCO |
| STR1576 | ELECTROLOG |
| STR50222 | WOODAUTO |
| STX210292R | STARDAX |
| TT16640 | TESLA TECHNICS |
| UD01336S | AS-PL |
Video/Publications
