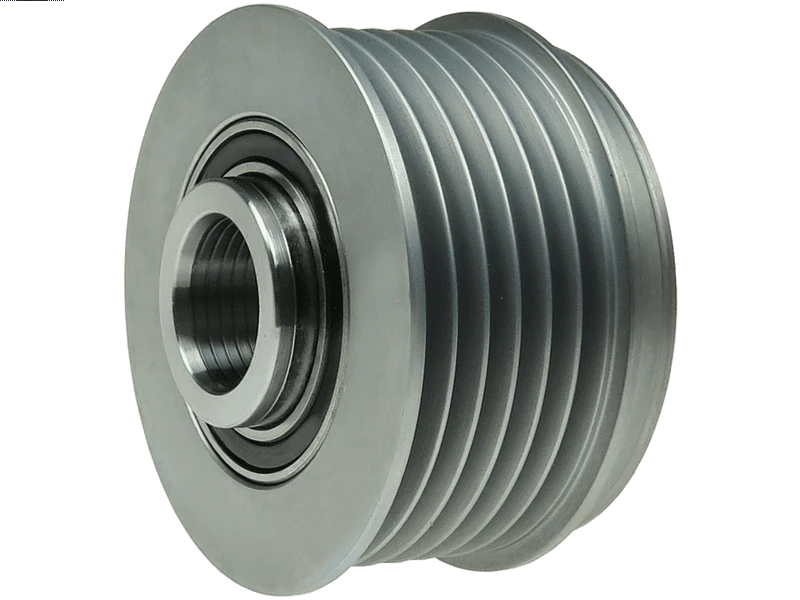

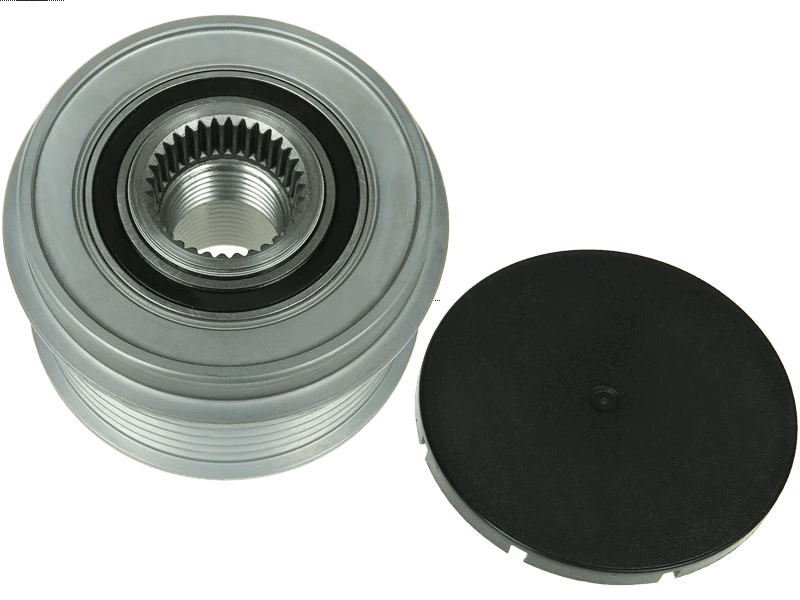

Brand new AS-PL Alternator freewheel pulley
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 132.04 including GST
NZ$ 114.82 excluding GST
or four payments of $33.01
with
Learn More
each
AFP5023S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
A5285 A2TX0881A A002TX0881A A001TG0281 A002TG2181 A002TJ0481 A002TJ0481ZC A002TJ0881 A002TX0281 A002TX0881 A002TX0891 A002TX3581ZC A003TG0081 A003TG0081A A003TG2881 A003TG3181 A003TG6781 A003TJ0381 A003TJ1081 A003TJ2581 A003TJ3181 A003TL0081 A004TJ0181 A004TJ0181ZC A004TJ0182 A004TJ0182ZC A1TG0281 A2TG2181 A2TJ0881 A2TX0281 A2TX0881 A2TX0891 A2TX1981 A2TX1981ZT A2TX3581ZC A3RG3181 A3TG0081 A3TG0081A A3TG2881 A3TG3181 A3TG6781 A3TJ0181ZC A3TJ0182 A3TJ0381 A3TJ1081 A3TJ2581 A3TJ3181 A3TL0081 A4TJ0181 A4TJ0181ZC A5242 A5109 MITSUBISHISpecifications
| Inside Diameter (I.D.1) | 17 mm |
| Length (L.1) | 38 mm |
| Length (L.2) | 9 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 55 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Thread size & pitch (d.) | M17x1.5 mm |
| Unit Type | MITSUBISHI |
Alternatives >>>
AFP5002 - Steel protective cover on front of pulley, Grey Pulley
AFP5002(INA) - OEM fitment pulley
AFP5009 - Steel Protective Cover on front of pulley, Black Pulley
Reference Information
| 051.000.085 | PSH |
| 1115198 | POWERMAX |
| 130-05-504 | ASHIKA |
| 130504 | JAPKO |
| 1800A061 | MITSUBISHI |
| 1800A121 | MITSUBISHI |
| 1800A155 | MITSUBISHI |
| 1800A313 | MITSUBISHI |
| 219028 | ERA |
| 219089 | ERA |
| 22-27-5036 | WILSON |
| 235424 | CARGO |
| 23750-AA070 | SUBARU |
| 2443-8060 | DIXIE |
| 24-83275 | WAI / TRANSPO |
| 24-83275-1 | WAI / TRANSPO |
| 24-83281 | WAI / TRANSPO |
| 24-83281-3 | WAI / TRANSPO |
| 24-83281-7 | WAI / TRANSPO |
| 335281 | CARGO |
| 3.5418.1 | IKA |
| 519-40511 | MITSUBISHI |
| 5350094000 | INA |
| 535009410 | INA |
| 535014510 | INA |
| 535024610 | INA |
| 5511 | ZEN |
| 555139RI | KUHNER |
| 5612 | ZEN |
| 57076 | RUVILLE |
| 57340 | RUVILLE |
| 588058 | VALEO |
| 588087 | VALEO |
| 59999 | RUVILLE |
| 619-31122 | MITSUBISHI |
| 81115198 | POWERMAX |
| 940113010078 | MAGNETI MARELLI |
| A628X92171 | MITSUBISHI |
| AMA0078 | MAGNETI MARELLI |
| APM4424 | KRAUF |
| APM5424 | KRAUF |
| APM6424 | KRAUF |
| CCP90288 | CASCO |
| EC4032 | WOODAUTO |
| EC4336 | WOODAUTO |
| EC47610 | WOODAUTO |
| F032235424 | CARGO |
| F032335281 | CARGO |
| F-238163 | INA |
| F-238163.01 | INA |
| F-238163.02 | INA |
| F-238163.03 | INA |
| F-238163.04 | INA |
| F-552562 | INA |
| F-552562.01 | INA |
| F-577572 | INA |
| INA535024610 | WOODAUTO |
| LF18-18-330 | MAZDA |
| LF18-18-330A | MAZDA |
| LF18-18-W11A | MAZDA |
| LW18-18-W11 | MAZDA |
| P0095 | GHIBAUDI |
| PUL5102 | ELECTROLOG |
| RA-504 | JAPANPARTS |
| SCP90288 | SANDO |
| UD42253AFP | AS-PL |
| ZN5511 | ZEN |
| ZN5612 | ZEN |
Video/Publications
A001TG0281 A002TG2181 A002TJ0481 A002TJ0481ZC A002TJ0881 A002TX0281 A002TX0881 A002TX0881A A002TX0891 A002TX3581ZC A003TG0081 A003TG0081A A003TG2881 A003TG3181 A003TG6781 A003TJ0381 A003TJ1081 A003TJ2581 A003TJ3181 A003TL0081 A004TJ0181 A004TJ0181ZC A004TJ0182 A004TJ0182ZC A1TG0281 A2TG2181 A2TJ0481 A2TJ0481ZC A2TJ0881 A2TX0281 A2TX0881 A2TX0881A A2TX0891 A2TX1981 A2TX1981ZT A2TX3581ZC A3RG3181 A3TG0081 A3TG0081A A3TG2881 A3TG3181 A3TG6781 A3TJ0181ZC A3TJ0182 A3TJ0381 A3TJ1081 A3TJ2581 A3TJ3181 A3TL0081 A4TJ0181 A4TJ0181ZC A5109 A5242 A5285View your shopping basket or Browse other items in Clutch Pulley.
