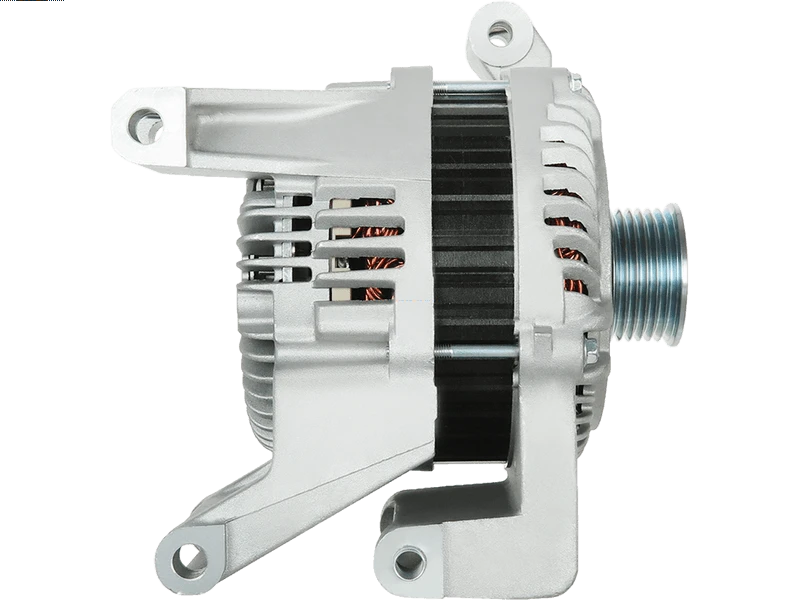

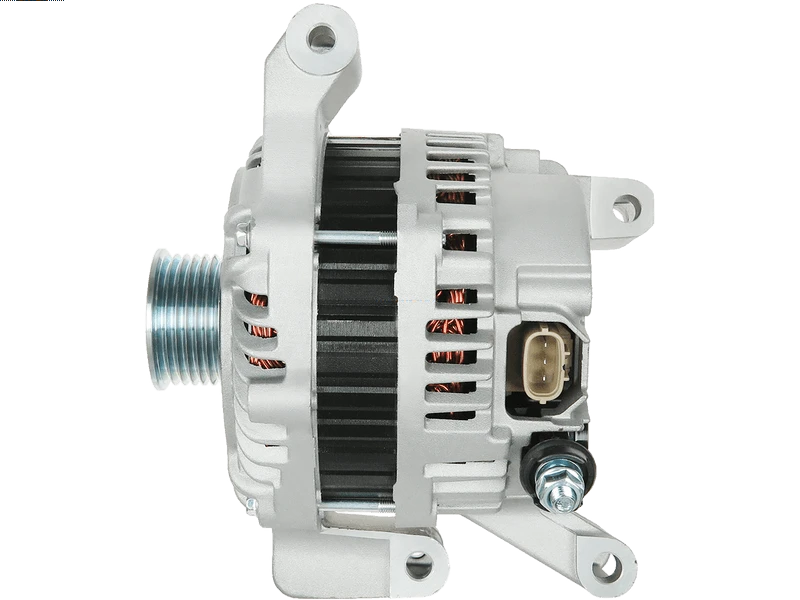

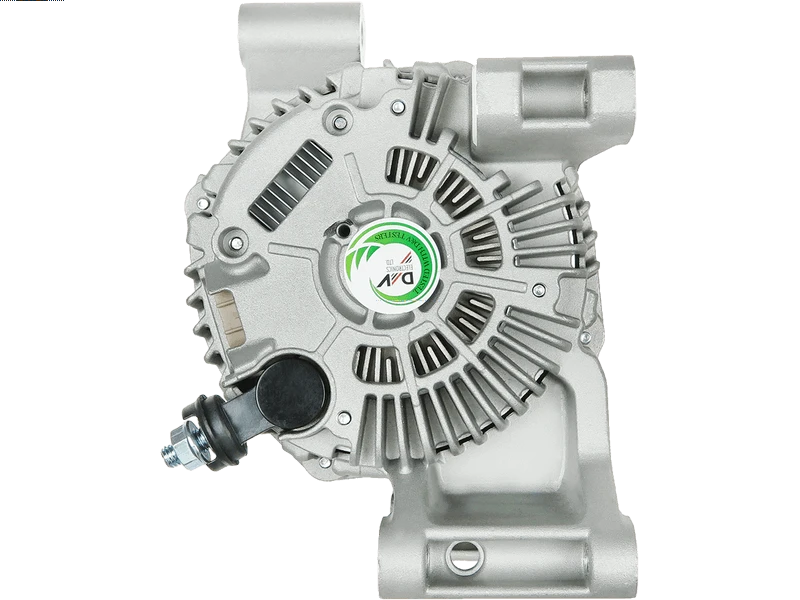

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 501.63 including GST
NZ$ 436.20 excluding GST
or four payments of $125.41
with
Learn More
each
A5358
A5128
5
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
A3TJ1091Associated Numbers
MXA2063 65-6640-2 UD11023A ASPL AEK3494 AUTOELECTRO CAL35272GS CASCO 276604 ELSTOCK LRA03494 LUCAS LFB618300 MAZDA LFBL18300 A3TJ1091 MITSUBISHI List A3TJ3391 11398 145570110 A003TJ1091 A003TJ3391 Mitsubishi Remy Light Duty 12906 Wilson 90273388 References: Arrowhead AMT0218 Beck Arnley 1861394 Lester Mazda A003TJ1091ZC A3TJ1091ZC PIC Picture ID 2035084A J N 40048111 656640 6566401 656640G anj590GQ 20137272OE 2035272 27-6604 LFB6-18-300 LFBL-18-300 anj590 6566402Specifications
| Amp | 110 A |
| Bottom Mounting Foot Width (B) | 76 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | 10.50 mm |
| Diameter (D.4) | 10.50 mm |
| Length (L.1) | 179 mm |
| Mount Inside Length or Pad Mount C-C (C) | 70 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 45 mm |
| Pad mount thickness (E.2) | 80 mm |
| Pad mount thickness (E.3) | 45 mm |
| Pad mount thickness (E.4) | 75 mm |
| Plug Code | PL_3310 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 49 mm |
| Pulley to Mount Distance (A) | 72 mm |
| Pulley Type | Solid |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MAZDA | 3 2.0 MZR | [LF..] | 01.2009- |
| MAZDA | 3 2.0 MZR DISI | [LF..] | 01.2009-12.2013 |
| MAZDA | 5 2.0 MZR | [LF..] | 01.2010- |
Reference Information
| 20137272OE | REAL |
| 2035272 | SANDO |
| 27-6604 | ELSTOCK |
| A003TJ1091 | MITSUBISHI |
| A003TJ3391 | MITSUBISHI |
| A2TJ0791 | MITSUBISHI |
| A3TJ1091 | MITSUBISHI |
| A3TJ1091AM | MITSUBISHI |
| A3TJ3391 | MITSUBISHI |
| A5128 | AS-PL |
| AEK3494 | AUTOELECTRO |
| ALTE488 | 3EFFE |
| CAL35272GS | CASCO |
| LFB6-18-300 | MAZDA |
| LFBL-18-300 | MAZDA |
| LRA03494 | LUCAS |
| LRA3494 | LUCAS |
| STX100845 | STARDAX |
| UD11023A | AS-PL |
Video/Publications
A5128Related Items
