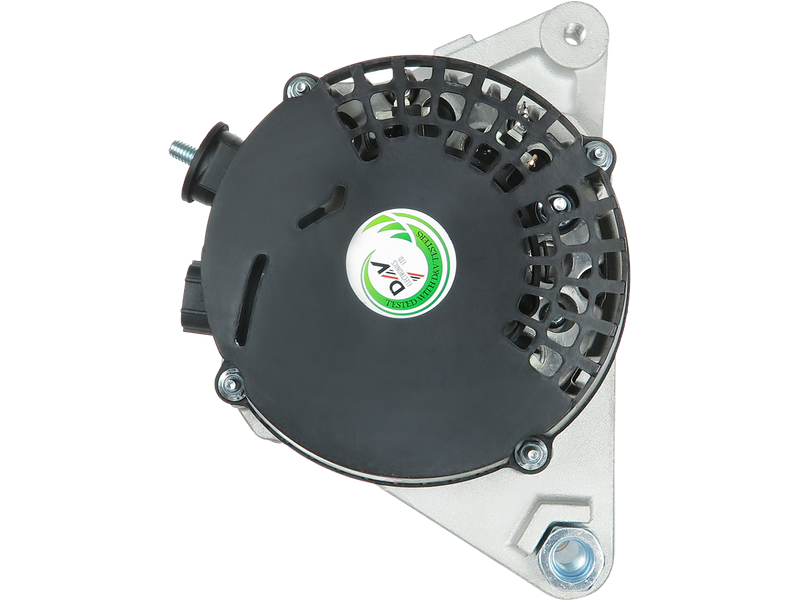

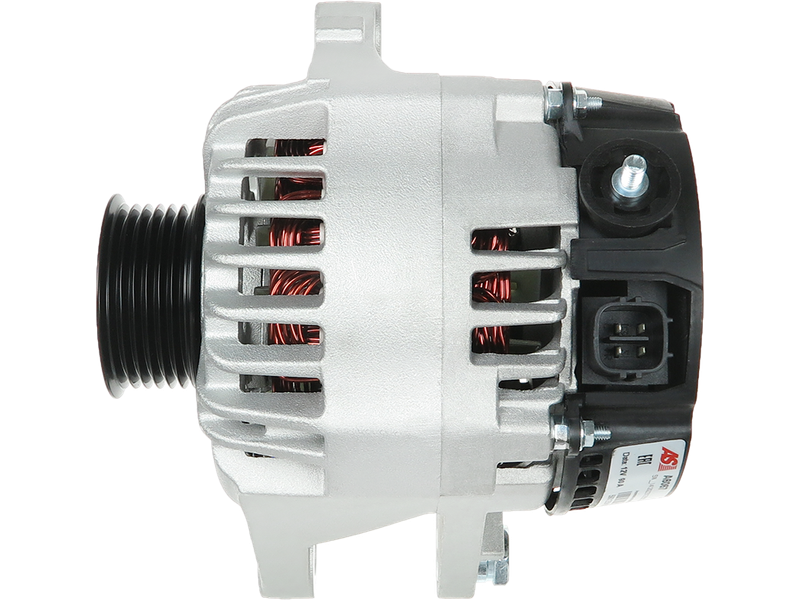

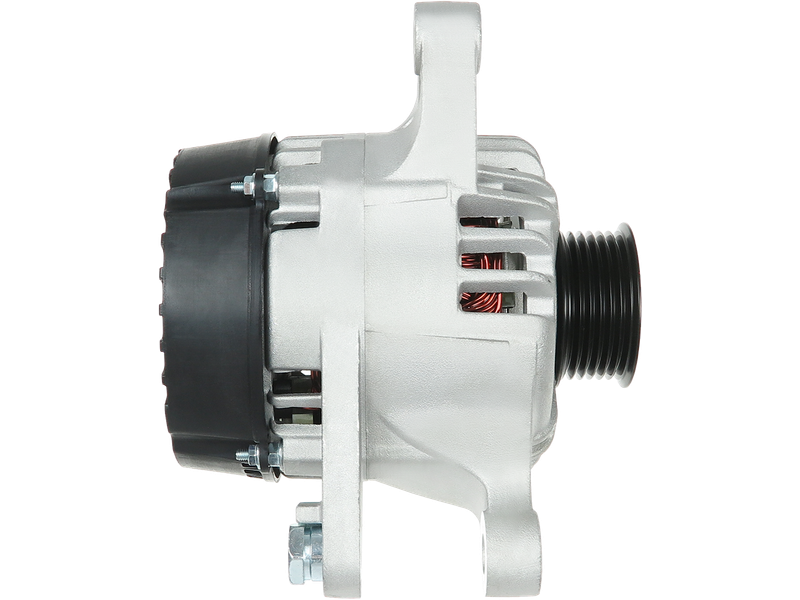

A6067 - Brand new AS-PL Alternator

Associated Numbers

LRA02906 LUCAS 270600D140 TOYOTA 270600D170 270600D190 2706022230 ALT30484 WOODAUTO 0124325080 1022119270 1022119280 195563090 20201039 270600D140B 270600D191 270600D300 6320SP 9046110F 946110 DRB6110 HJA1894IR LRA03019 N5112118 TRA328 Cargo 114709 116332 Denso HCPARTS KRAUF ALB1894AN ALB1894UX Motorherz ALB1894RB ALB1894WA ALN1894RB Toyota WAI 1302325W 22518N bxa057 651045 anb243 101210-0890 101210-0891 102211-8500 104210-8060 20130220 27060-0D140 27060-0D170 27060-0D190 27060-22230 28-5520 401894RI 401894RID A6067 104210-9210 27060-0D260 UD11379A

Specifications

Amp	90 A
Bottom Mounting Foot Width (B)	17.50 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	11 mm
Diameter (D.3)	M10x1.25 mm
Diameter (D.4)	M10x1.25 mm
Length (L.1)	162.50 mm
Mount Inside Length or Pad Mount C-C (C)	40 mm
OEM Product	No
Plug Code	PL_4000
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	6 qty
Pulley Outside Diameter (O.D.1)	55 mm
Pulley to Mount Distance (A)	34 mm
Pulley Type	Solid
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
TOYOTA	Auris 1.4	[4ZZ-FE]	03.2007-09.2012
TOYOTA	Auris 1.4 VVTi	[4ZZ-FE]	03.2007-
TOYOTA	Avensis 1.6 VVT-i	[3ZZ-FE]	04.2003-11.2008
TOYOTA	Avensis 1.6 VVT-i	(T25)[3ZZ-FE]	01.2003-12.2008
TOYOTA	Avensis 1.8	[1ZZ-FE]	03.2003-10.2008
TOYOTA	Avensis 1.8	[1ZZ-FE]	04.2003-11.2008
TOYOTA	Avensis 1.8 VVT-i	(T25)[1ZZ-FE]	01.2003-12.2008
TOYOTA	Corolla 1.4	(E12)[4ZZ-FE]	01.2001-12.2007
TOYOTA	Corolla 1.4 VVT-i	[4ZZ-FE]	01.2002-02.2007
TOYOTA	Corolla 1.4 VVT-i	[4ZZ-FE]	10.2001-10.2006
TOYOTA	Corolla 1.4 VVT-i	[4ZZ-FE]	11.2001-02.2007
TOYOTA	Corolla 1.4 VVT-i	[4ZZ-FE]	11.2006-11.2013
TOYOTA	Corolla 1.6	(E12)[3ZZ-FE]	01.2001-12.2007
TOYOTA	Corolla 1.6 VVT-i	[3ZZ-FE]	01.2002-08.2007
TOYOTA	Corolla 1.6 VVT-i	[3ZZ-FE]	01.2002-12.2006
TOYOTA	Corolla 1.6 VVT-i	[3ZZ-FE]	10.2001-03.2008
TOYOTA	Corolla 1.8	[2ZR-FE]	10.2006-07.2014
TOYOTA	Corolla Verso 1.6	[3ZZ-FE]	04.2004-03.2009
TOYOTA	Corolla Verso 1.6	(ZER)[3ZZ-FE]	01.2004-
TOYOTA	Corolla Verso 1.8	[1ZZ-FE]	04.2004-03.2009
TOYOTA	Corolla Verso 1.8i	(E12J)[4S-FE]	01.2004-
TOYOTA	Corolla Verso 1.8i	(ZER)[1ZZ-FE]	01.2004-
TOYOTA	Corolla Verso 1.8i	(ZER)[4S-FE]	01.2004-
TOYOTA	Corolla Verso 1.8 VVT-i	(130)[1ZZ-FE]	01.2004-
TOYOTA	Yaris I 1.0 VVT-i	(P1)[1KR-FE]	01.2004-12.2005

Reference Information

0124325079	BOSCH
0124325080	BOSCH
063377542010	MAGNETI MARELLI
063731894010	MAGNETI MARELLI
0986046110	BOSCH
101210-0890	DENSO
101210-0891	DENSO
102211-8500	DENSO
102211-9270	DENSO
102211-9280	DENSO
104210-8060	DENSO
11.1894	LAUBER
11.1894M	LAUBER
114709	CARGO
116332	CARGO
195.563.090.010	PSH
195.563.090.261	PSH
195.563.090.415	PSH
20132792BN	REAL
20132792OE	REAL
20132792RC	REAL
2040297.0	SANDO
2040297.1	SANDO
2040297.2	SANDO
210980	ERA
22518N	WAI / TRANSPO
27060-03D00	TOYOTA
27060-0D140	TOYOTA
270600D14084	TOYOTA
270600D140B	TOYOTA
27060-0D170	TOYOTA
27060-0D190	TOYOTA
27060-0D191	TOYOTA
27060-0D300	TOYOTA
27060-0T300	TOYOTA
27060-22230	TOYOTA
27060OD140	TOYOTA
28-5520	ELSTOCK
28-5594	ELSTOCK
311913	RHIAG
401894RI	KUHNER
401894RID	KUHNER
445155	LOGISTIK
447134	LOGISTIK
57370	EAI
89212249	POWERMAX
8EL011712-191	HELLA
8EL738211-301	HELLA
9046110	FRIESEN
9320	CEVAM
943318941010	MAGNETI MARELLI
944390461100	MAGNETI MARELLI
A131.435	PSH
A148.284	PSH
A149.840	PSH
A6067	AS-PL
AEB1894	AUTOELECTRO
AI-90153	AINDE
AI-90153R	AINDE
ALN3893	KRAUF
ALT2187	ROLLCO
ALT30484	WOODAUTO
ALT422970	SIOM
ALT422970A	SIOM
ALT422970R	SIOM
ALT492	ROLLCO
ALT6367	ELECTROLOG
ALTL753	3EFFE
ALTL753NE	3EFFE
ALTL753U	3EFFE
CAL40297AS	CASCO
CAL40297GS	CASCO
CAL40297RS	CASCO
CGB-85520	AINDE
DAN1021	DENSO
DB7220	DELCO
DB7220N	DELCO
DENDAN1021	WOODAUTO
DRB6110	DELCO
F032114709	CARGO
F032116332	CARGO
J5112118	HC PARTS
JA1894IR	HC PARTS
LRA02906	LUCAS
LRA03019	LUCAS
LRA2906	LUCAS
LRA3019	LUCAS
MAN7542	MAGNETI MARELLI
MARC1894	MAGNETI MARELLI
MQA1894	MAGNETI MARELLI
MRA46110	MAGNETI MARELLI
PRAL753	3EFFE
PRAL753U	3EFFE
RAA27221	DELCO
SB186	SOVEREIGN
STX100332	STARDAX
STX100332R	STARDAX

Video/Publications

A6067
