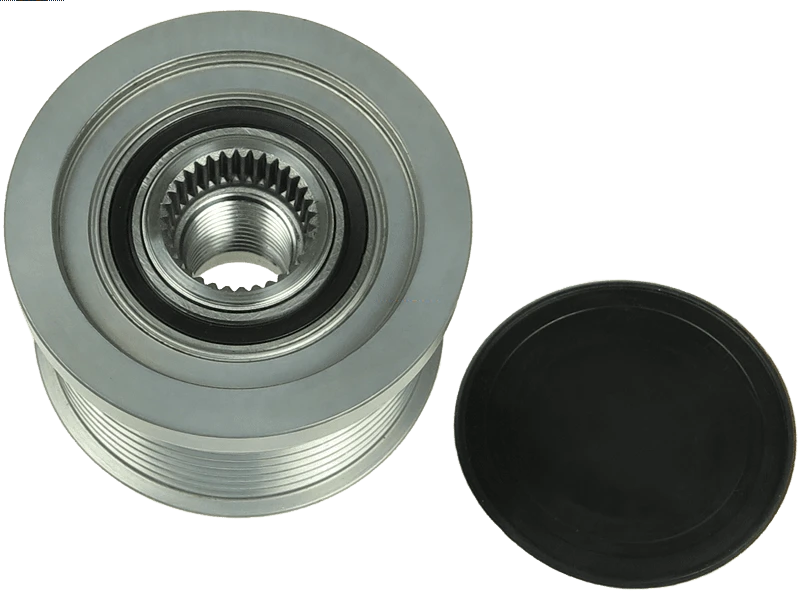

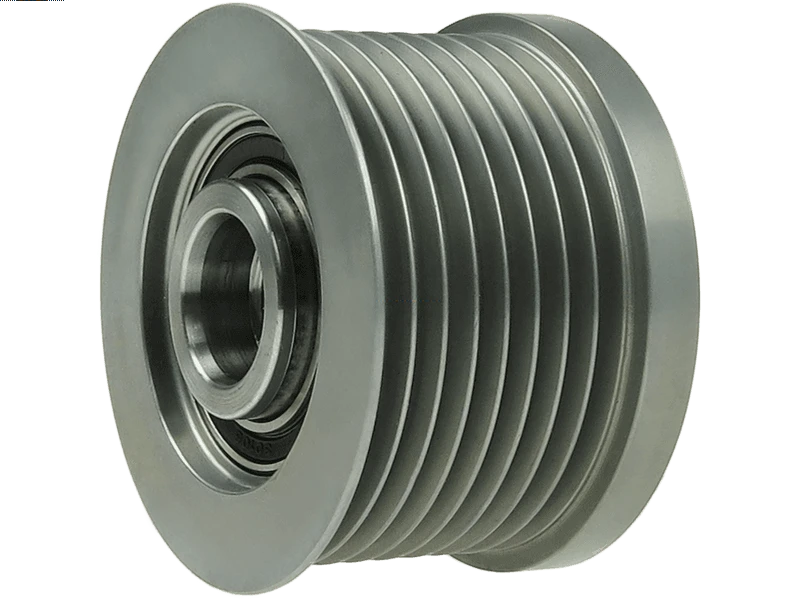

Brand new AS-PL Alternator freewheel pulley
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 111.09 including GST
NZ$ 96.60 excluding GST
or four payments of $27.77
with
Learn More
each
AFP0100S
1
- Associated Numbers
- Specifications
- Alternatives >>>
- Reference Information
- Video/Publications
- < Critical Notes >
Associated Numbers
A0306 0123315501 0124325166 0124515126 0986046000 235718 CARGO 335014 CCP90280 CASCO 2460-8082 DIXIE 219109 ERA P0122 GHIBAUDI 3.5360.1 IKA F-233379 INA F-233379.01 F-233379.02 F-233379.1 AL158161 JOHN DEERE AL161112 AL166835 AL166836 APB5718 KRAUF APB9718 5350131000 LUK 535013110 81113268 POWERMAX 051.000.116 PSH 58882 RUVILLE 24-91308 WAI / TRANSPO 24-91308-3 EC4381 WOODAUTO INA535013110 5534 ZEN 9600022 ZM 28706 ZNP BOSCH Cargo 2491308 263D08C John Deere 353701 5534ZEN 79202165A Lester 920650 Litens AL156091 F233379 FAG F23337901 F23337902 J112969 KTR102000232 KTR L12669 PUL1077sa Electrolog 49-233Specifications
| Inside Diameter (I.D.1) | 17 mm |
| Length (L.1) | 38.70 mm |
| Length (L.2) | 3.90 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 56.10 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 8 qty |
| Thread size & pitch (d.) | M16x1.5 mm |
| Unit Type | BOSCH |
Alternatives >>>
AFP9015(V) replaces F-233379.01 and F-233379.02
AFP9015(INA) replaces F-233379.01 and F-233379.02
208-24008 Replaces F-233379 and F-233379.03
AFP0100S replaces F-233379.01 and F-233379.02
Reference Information
| 051.000.116 | PSH |
| 219109 | ERA |
| 235718 | CARGO |
| 2460-8082 | DIXIE |
| 24-91308 | WAI / TRANSPO |
| 24-91308-3 | WAI / TRANSPO |
| 28706 | ZNP |
| 335014 | CARGO |
| 3.5360.1 | IKA |
| 5350131000 | INA |
| 535013110 | INA |
| 5534 | ZEN |
| 58882 | RUVILLE |
| 81113268 | POWERMAX |
| 9600022 | ZM |
| AL158161 | JOHN DEERE |
| AL161112 | JOHN DEERE |
| AL166835 | JOHN DEERE |
| AL166836 | JOHN DEERE |
| APB5718 | KRAUF |
| APB9718 | KRAUF |
| CCP90280 | CASCO |
| EC4381 | WOODAUTO |
| F032235718 | CARGO |
| F032335014 | CARGO |
| F-233379 | INA |
| F-233379.01 | INA |
| F-233379.02 | INA |
| F-233379.1 | INA |
| INA535013110 | WOODAUTO |
| P0122 | GHIBAUDI |
| PUL1077 | ELECTROLOG |
| SCP90280 | SANDO |
| ZN5534 | ZEN |
Video/Publications
0123315501 0124325166 0124515126 0986046000< Critical Notes >
Check the depth of where the thread starts and compare.
There is variences in the pulleys where the thread starts in the bore. Revision part numbers (01 02 03 etc) can have this problem.
Check your pulley before ordering
