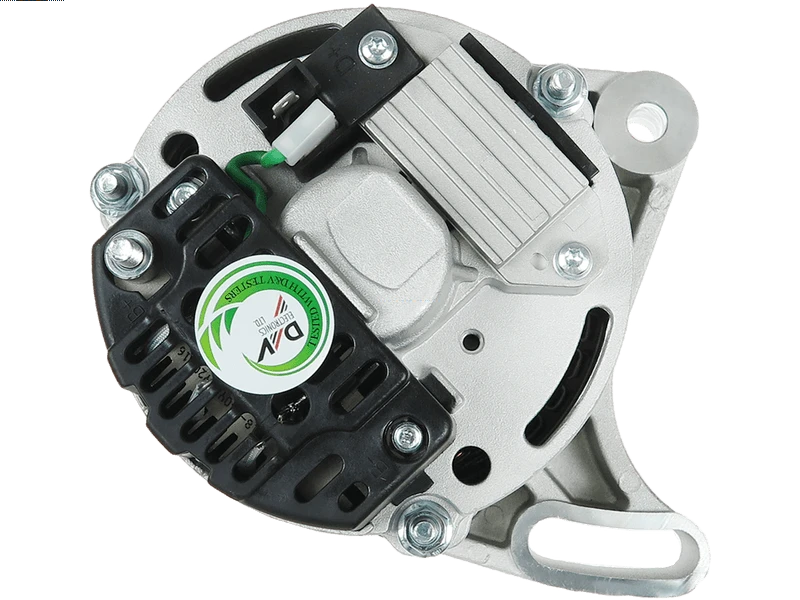

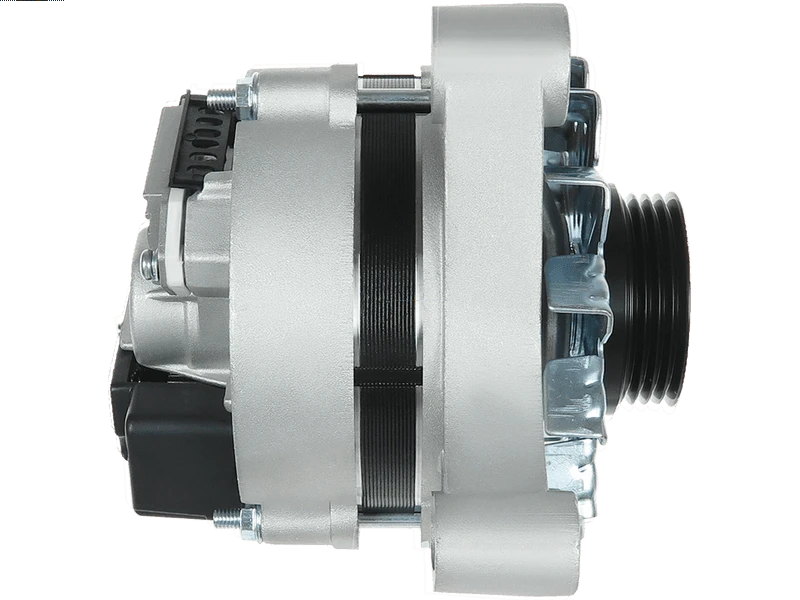

A4018 - Brand new AS-PL Alternator

Associated Numbers

0986038621 Bosch ruil AEA3226 AUTOELECTRO BOSCH 113471 CARGO CAL30117 CASCO CAL30117AS CAL30117GS 2456 CEVAM 4506 DA4528 DELCO DRA3418 DAN575 DENSO DAN619 EAA-221155 EAA 28-2673 ELSTOCK 210219 ERA 46231658 FIAT 7713141 AG0208 GHIBAUDI 32201695 HERTH+BUSS 6.3079.9 IKA 11.201.695 ISKRA / LETRIKA AAK4556 LETRIKAList IA0695 ALE0851 KRAUF LRB00326 LUCAS LRB326 63320040 MAGNETI MARELLIList 63320140 63321082 63321173 63321488 943321082 MARELLI 944390386210 MRA38621 MG360 MAHLE 89212782 POWERMAX 20110148 PRESTOLITE 20110326 505.017.065 PSH 20104711BN REAL 20104711OE 2030117 SANDO 436481 VALEO 437551 21525N WAI TRANSPO ALT12037 WOODAUTO DENDAN619 MAHMG360 UD13062A AS-PL 11201695 Mahle Cargo 12035640 EuroTec 12038620 12039470 12047740 12090007 Prestolite 282673 Elstock Valeo Fiat 46231659 46231693 46528046 505017065 5268SP Spidan 56108 EAI 5895028 Magneti Marelli 63320111 63321141 746056 746068 7636428 7636431 7713140 7715541 77347410 7779821 7779915 8EL731712001 Hella 9038621F Friesen 9039471F 933418 EDR 943321173 A13E63 ALT4071 Unipoint CA851IR HC Denso DRA3408 Remy F032UA0025 F032UA0025FEB F032UA0025K4H F042307030 F042A07030 F042A0H240 HCA851IR L38625 ATL L39475 L47740 Lucas MAN331 MAN640 OAN11186 Optimum W27237 van Heck MAN368 439030 Delco 063321082010 A11VI46 NA466 Substitutes: IA9029 References: DRA3353 RM0466 46407644 46420960 LRB148 63303739 63320200 63321173010 63321200 63321233 63321270 63321600 541728 Superseded From: 11.209.432 AAK5720 0986039471 46000353 46407644ES 46407646ES 46407647 46420960ES 46742110 46758244 5895028ES 7712541 7715541ES 7779915ES 063303739010 063320200010 063320319010 063321173010 063321200010 063321233010 063321235010 063321270010 063321600010 63321235 Paris Rhone 434481 0986035641 11201358 2518028 2541399 433085 436118 436230 436401 46231657 46231660 505017055 5152SP 55604 55698 5999868 5999869 63320001 63320034 63320102 63321067 63321198 7565832 7683167 77305410 77347411 7L65832AA VW 9035641F 9120690411 935641 943321000 A13E01 A13E50 AAK4177 ALT1081sa Electrolog ALT9009sa CA572IR DAN574 DAN612 HCA572IR IA0358 KTR1010034110 KTR L38620 LRA558 LRA558R LRA695 MAN300 MAN342 NA335 11201735 20100695 20695R 20696N 20696R 280996 3339 Lester 3339SP 505017045 5152 63321000 746069 AAK4580 CA350IR DAN605 DRA3409 DRA5641 DRA5641N HCA350IR L35640 L35645 LRA00695 MG205 W23020 W26182 30851RI 30851RIM 30890RI 30890RIM CAL30117ES CAL30117OS CAL30117RS GA321173-A Reman Europe Parts 8EL 731 712-001 CA 851 IR IAT A21525 Industry 21525 Letrika Sales Tech (Europe) MG 360 PIC 282-415 Voltux V2-21525 Wagner 063320040 063320122 063321173 063321488 0986038620 show 123862E RNL 18200695 AES 2541619 439034 46235343 46432317 493002 Daihatsu 493990 63320040010 63320111010 63320122 63320122010 63320140010 63321082010 63321141010 63321175010 63321488010 71721142 71721176 72735359 746868 Wood Auto ALT20726 HC-Parts DENDAN575 DRA3408N MAN776 RAA14529 RNL3862 RNL3862T UNIALT4071 WOOALT12037 WOOALT20726

Specifications

Amp	65 A
Bottom Mounting Foot Width (B)	32 mm
Diameter (D.1)	10 mm
Diameter (D.2)	11 mm
Length (L.1)	163 mm
OEM Product	No
Plug Code	PL_9104
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	4 qty
Pulley Outside Diameter (O.D.1)	59 mm
Pulley to Mount Distance (A)	54.50 mm
Pulley Type	Solid
Unit Type	MAGNETI MARELLI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
AUTOBIANCHI	Y10 1.1	[156C.000]	06.1989-10.1995
AUTOBIANCHI	Y10 1.1 4WD	[156C.000]	06.1989-10.1995
AUTOBIANCHI	Y10 1.1 i.e. Cat	[156C.046]	09.1990-10.1995
FIAT	Cinquecento 0.9 i.e. S	[1170A1.000]	07.1991-07.1999
FIAT	Cinquecento 0.9 i.e. S	[1170A1.046]	07.1991-07.1999
FIAT	Cinquecento 1.1 Sporting	[176B2.000]	10.1994-01.1998
FIAT	Palio 1.2	[178B7.045]	07.1997-08.2002
FIAT	Palio 1.2	[178C4.066]	07.1997-08.2002
FIAT	Palio 1.2	[188A4.000]	07.1997-08.2002
FIAT	Panda 1000 4x4	[141C2.000]	05.1986-12.1994
FIAT	Panda 1000 4x4	[156A2.246]	05.1986-12.1994
FIAT	Panda 1000 i.e. Cat	[141C2.000]	10.1987-08.1998
FIAT	Panda 1000 i.e. Cat	[156A2.246]	10.1987-08.1998
FIAT	Panda 1100	[176B2.000]	02.1995-09.2003
FIAT	Panda 1100	[187A1.000]	02.1995-09.2003
FIAT	Panda 1100 4x4	[176B2.000]	02.1995-07.2004
FIAT	Panda Van 1000 i.e	[156A2.246]	08.1992-02.2004
FIAT	Punto 1.2 16V	[176B9.000]	04.1997-09.1999
FIAT	Punto 1.4 GT Turbo	[176B6.000]	09.1996-07.1999
FIAT	Punto 85 16V 1.2	[176B9.000]	04.1997-06.2000
FIAT	Seicento 1.1	[176B2.000]	01.1998-01.2010
FIAT	Seicento 1.1	[187A1.000]	01.1998-01.2010
FIAT	Siena 1.2	[178B5.000]	09.1998-12.2009
FIAT	Siena 1.6 16V	[178B3.000]	09.1998-12.2009
FIAT	Strada 1.2	[178B5.000]	06.1999-12.2006
FIAT	Uno 45 1.0	[156A2.048]	06.1986-12.1993
FIAT	Uno 45 1.0	[156A2.100]	06.1986-12.1993
FIAT	Uno 45 1.0		06.1986-12.1993
FIAT	Uno 45 i.e. 1.0	[156A2.246]	04.1984-10.1995
FIAT	Uno 60 1.1	[160A3.000]	04.1989-12.1992
LANCIA	Kappa 2.4 T.DS	[838A3.000]	07.1996-10.2001
LANCIA	Kappa 2.4 T.DS	[838A7.000]	07.1996-10.2001
LANCIA	Y10 1.1 Fire	[176B2.000]	01.1995-12.1995
LANCIA	Y10 1.1 Fire All-wheel Drive	[176B2.000]	01.1995-12.1995
LANCIA	Y10 1.1 i.e Fire	[156C.000]	08.1989-06.1992
LANCIA	Y10 1.1 i.e. Fire	[156C.046]	07.1989-09.1995
LANCIA	Y10 1.1 i.e. Fire All-wheel Drive	[156C.046]	09.1992-12.1995
LANCIA	Y 1.1	[176B2.000]	11.1995-09.2003
LANCIA	Y 1.2	[188A4.000]	03.1996-09.2003
LANCIA	Y 1.2	[840A3.000]	03.1996-09.2003
LANCIA	Y 1.2 16V	[176B9.000]	04.1997-09.2003

Reference Information

0986038621	BOSCH
11.201.695	ISKRA / LETRIKA
113471	CARGO
20104711BN	REAL
20104711OE	REAL
2030117	SANDO
210219	ERA
210230	ERA
21525N	WAI / TRANSPO
2456	CEVAM
28-2673	ELSTOCK
30851RI	KUHNER
30851RIM	KUHNER
32201695	HERTH+BUSS
437551	VALEO
4506	CEVAM
46231658	FIAT
46231659	FIAT
46528046	FIAT
493002	DAIHATSU
493990	DAIHATSU
505.017.065	PSH
5530046	MEAT & DORIA
6.3079.9	IKA
63320040	MAGNETI MARELLI
63320140	MAGNETI MARELLI
63321082	MAGNETI MARELLI
63321173	MAGNETI MARELLI
63321488	MAGNETI MARELLI
71721174	FIAT
71721176	FIAT
71724052	FIAT
71780108	FIAT
7636428	FIAT
7636431	FIAT
7636431	AUTOBIANCHI
7713140	IVECO
7713140	FIAT
7713141	FIAT
77347410	FIAT
89212782	POWERMAX
943321082	MAGNETI MARELLI
944390386210	MAGNETI MARELLI
A12ML0015A2	SIDAT
A132.642	PSH
A149.290	PSH
A4018	AS-PL
AAK4556	ISKRA / LETRIKA
AEA3226	AUTOELECTRO
AG0208	GHIBAUDI
ALE0851	KRAUF
ALT12037	WOODAUTO
ALT7858	ELECTROLOG
ALT90067	ELECTROLOG
ALTL138	3EFFE
ANM35638X	ANDEL
CA851IR	HC PARTS
CAL30117	CASCO
CAL30117AS	CASCO
CAL30117ES	CASCO
CAL30117GS	CASCO
CAL30117OS	CASCO
CAL30117RS	CASCO
DA4528	DELCO
DAN575	DENSO
DAN619	DENSO
DENDAN619	WOODAUTO
DRA3418	DELCO
F032113471	CARGO
GA321173-A	GPARTS
IA0695	ISKRA / LETRIKA
LRB00326	LUCAS
LRB326	LUCAS
MAHMG360	WOODAUTO
MG360	MAHLE
MG 360	MAHLE
MRA38621	MAGNETI MARELLI
PRAL138	3EFFE
RNL3564	RNL
RNL3862	RNL
STA0012R	BOVEZ
STX100089	STARDAX
STX100089R	STARDAX
