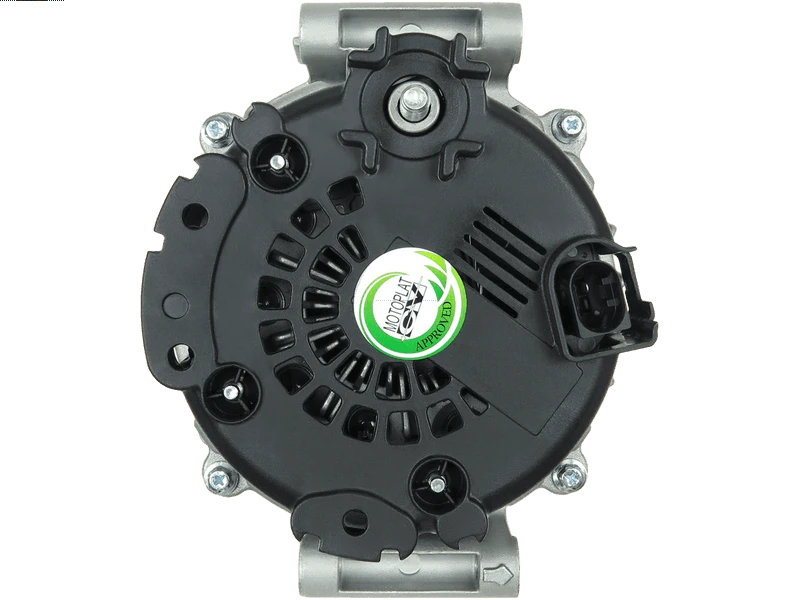

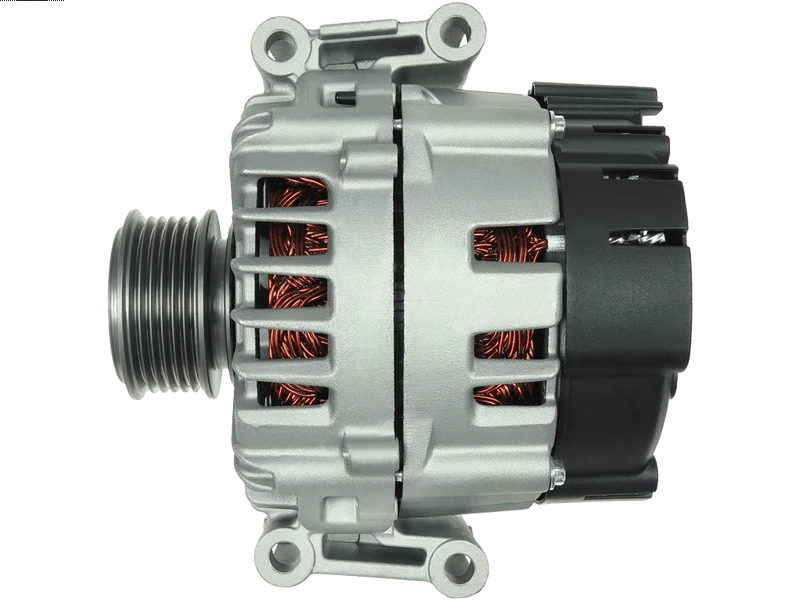

A3406S - Brand new AS-PL Alternator

Associated Numbers

06E903018L VW 06E903018LX 12090514 EuroTec 205566180 PSH 286790 Elstock 439795 Valeo 440435 57427 EAI 614131 FG20S017 LRA03650 Lucas A3406S AS-PLList UD14858A AS-PL AEK3650 AUTOELECTRO CAL15006 CASCO 4183 CEVAM DA2822 DELCO DRA1712 A-9614 DIXIE 28-6790 ELSTOCK ALV9795 KRAUF LUCAS 205.566.180 2015006 SANDO VALEO VALEOList 06E903019E 6E903018L 6E903018LX 11800N WAI / TRANSPO ALT14513 WOODAUTO VAL439795 554213RIV CAL15006AS CAL15006ES CAL15006GS CAL15006OS CAL15006RS Originalnumber Manufacturer Parts 2113971802 DRI 2614131B Sanden Remy show FG20S037 FGN20S017 FGN20S037

Specifications

Amp	180 A
Diameter (D.1)	9.50 mm
Diameter (D.2)	9.50 mm
Diameter (D.3)	9.50 mm
Diameter (D.4)	9.50 mm
Length (L.1)	192 mm
Mount Inside Length or Pad Mount C-C (C)	57 mm
OEM Product	No
Pad mount thickness (E.1)	70 mm
Pad mount thickness (E.2)	70 mm
Plug Code	PL_2306
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	6 qty
Pulley Outside Diameter (O.D.1)	60.50 mm
Pulley to Mount Distance (A)	30.50 mm
Pulley Type	Clutch
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
AUDI	A4 3.0 TFSi Quattro	[CHMB]	02.2012-12.2015
AUDI	A4 3.0 TFSi Quattro	[CMUA]	02.2012-12.2015
AUDI	A4 3.0 TFSi Quattro	[CRED]	02.2012-12.2015
AUDI	A5 3.0 TFSi Quattro	[CHMB]	12.2011-01.2017
AUDI	A5 3.0 TFSi Quattro	[CMUA]	11.2011-01.2017
AUDI	A5 3.0 TFSi Quattro	[CMUA]	12.2011-01.2017
AUDI	A5 3.0 TFSi Quattro	[CRED]	11.2011-01.2017
AUDI	A5 3.0 TFSi Quattro	[CRED]	12.2011-01.2017
AUDI	Q5 3.0 TFSi Quattro	[CTUC]	06.2012-
AUDI	Q5 3.0 TFSi Quattro	[CTVA]	06.2012-
AUDI	S4 3.0 Quattro	[CAKA]	11.2008-12.2015
AUDI	S4 3.0 Quattro	[CCBA]	11.2008-12.2015
AUDI	S4 3.0 Quattro	[CGWC]	11.2008-12.2015
AUDI	S4 3.0 Quattro	[CGXC]	11.2008-12.2015
AUDI	S4 3.0 Quattro	[CREC]	11.2008-12.2015
AUDI	S4 3.0 Quattro	[CTDA]	11.2008-12.2015
AUDI	S4 3.0 Quattro	[CTUB]	11.2008-12.2015
AUDI	S5 3.0 Quattro	[CAKA]	06.2009-01.2017
AUDI	S5 3.0 Quattro	[CAKA]	10.2011-01.2017
AUDI	S5 3.0 Quattro	[CCBA]	06.2009-01.2017
AUDI	S5 3.0 Quattro	[CGWC]	06.2009-01.2017
AUDI	S5 3.0 Quattro	[CGWC]	10.2011-01.2017
AUDI	S5 3.0 Quattro	[CGXC]	06.2009-01.2017
AUDI	S5 3.0 Quattro	[CGXC]	10.2011-01.2017
AUDI	S5 3.0 Quattro	[CREC]	06.2009-01.2017
AUDI	S5 3.0 Quattro	[CREC]	10.2011-01.2017
AUDI	S5 3.0 Quattro	[CTDA]	06.2009-01.2017
AUDI	S5 3.0 Quattro	[CTDA]	10.2011-01.2017
AUDI	S5 3.0 Quattro	[CTUB]	06.2009-01.2017
AUDI	S5 3.0 Quattro	[CTUB]	10.2011-01.2017
AUDI	S5 3.0 Quattro Sportback	[CAKA]	01.2010-01.2017
AUDI	S5 3.0 Quattro Sportback	[CGWC]	01.2010-01.2017
AUDI	S5 3.0 Quattro Sportback	[CGXC]	01.2010-01.2017
AUDI	S5 3.0 Quattro Sportback	[CREC]	01.2010-01.2017
AUDI	S5 3.0 Quattro Sportback	[CTDA]	01.2010-01.2017
AUDI	S5 3.0 Quattro Sportback	[CTUB]	01.2010-01.2017
AUDI	S5 3.0 TFSi Quattro Sportback	[CHMB]	12.2011-01.2017
AUDI	S5 3.0 TFSi Quattro Sportback	[CMUA]	12.2011-01.2017
AUDI	S5 3.0 TFSi Quattro Sportback	[CRED]	12.2011-01.2017
AUDI	SQ5 3.0 TFSi Quattro	[CTUD]	05.2013-
AUDI	SQ5 3.0 TFSi Quattro	[CTXA]	05.2013-

Reference Information

06E903018L	VW
06E903018LX	VW
06E903019E	VW
06E903019EX	VW
11800N	WAI / TRANSPO
2015006	SANDO
205.566.180	PSH
205.566.180.004	PSH
205.566.180.009	PSH
28-6790	ELSTOCK
4183	CEVAM
439795	VALEO
440435	VALEO
55151162	MEAT & DORIA
554213RIV	KUHNER
6E903018L	VW
6E903018LX	VW
6E903019E	VW
6E903019EX	VW
A12VA0759AS	SIDAT
A131.583	PSH
A145.880	PSH
A3406S	AS-PL
A-9614	DIXIE
AEK3650	AUTOELECTRO
ALT00661	ELECTROLOG
ALT14513	WOODAUTO
ALTE922	3EFFE
ALV9795	KRAUF
CAL15006	CASCO
CAL15006AS	CASCO
CAL15006ES	CASCO
CAL15006GS	CASCO
CAL15006OS	CASCO
CAL15006RS	CASCO
DA2822	DELCO
DRA1712	DELCO
FG20S017	VALEO
LRA03650	LUCAS
LRA3650	LUCAS
UD14858A	AS-PL
VAL439795	WOODAUTO
