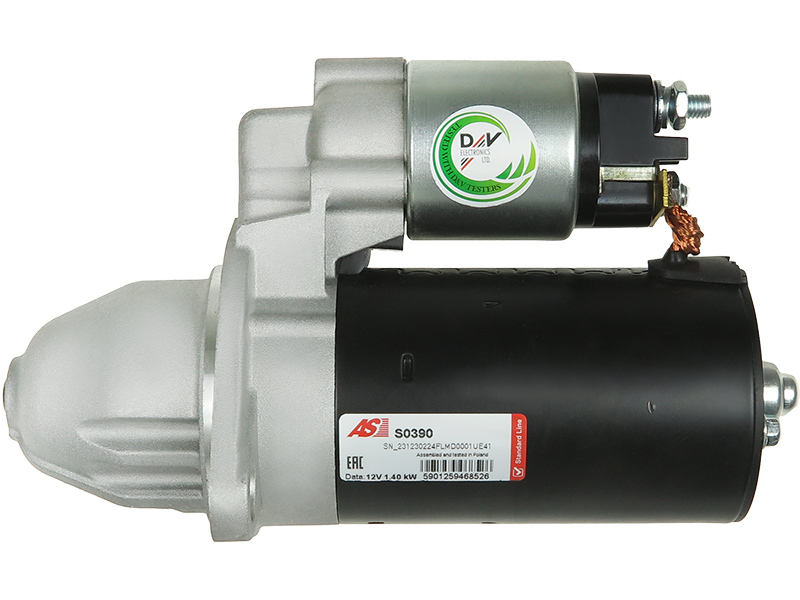

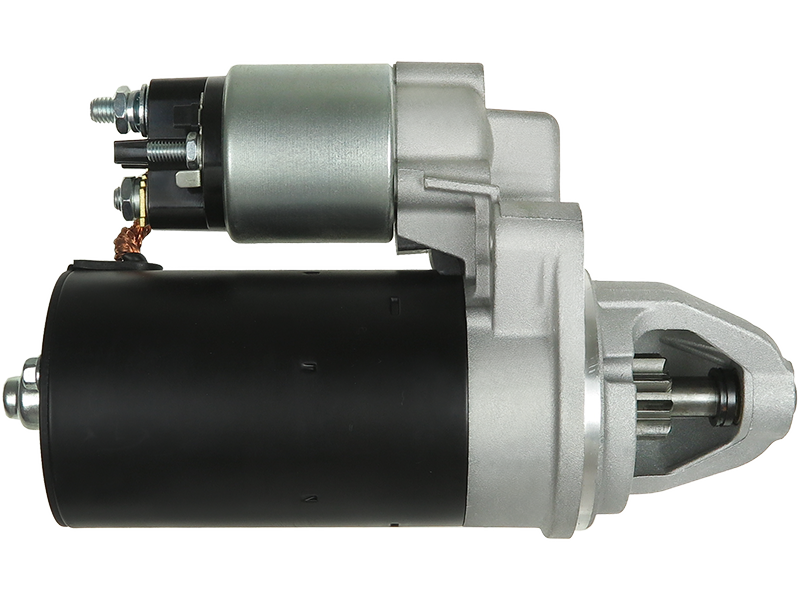

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 257.23 including GST
NZ$ 223.68 excluding GST
or four payments of $64.31
with
Learn More
UOM:
each
Product Code:
S0390
Quantity In Stock Nationally
2 in stock nationally
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001108200Associated Numbers
0001108200 0001108201 07D911023A STR50520 UNIT BOM 120-442
0001108200 BOSCHList
0001108201 BOSCHList
07D911023A VW
UNIT BOM 120442 WAI / TRANSPO
STR50520 WOODAUTO
0001108200 Bosch
0001108201 Bosch
07D911023A VW
11090138 EuroTec
17973N WAI
200554092 PSH
254440 Elstock
91157221 Wilson
LRS02767 Lucas
Remy Light Duty 17445
Wilson 91157221
References:
Arrowhead SBO0184
Bosch 0001108200, 0001108201
Lester 17973
PIC Picture ID 120442
Remy Light Duty 17445
Wilson 91157221
Specifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 229 mm |
| Mount Hole Center - Center (O.1) | 101 mm |
| Mount Hole Diameter (C.1) | M12x1.75 mm |
| Mount Hole Diameter (C.2) | 16 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 29 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | Passat 4.0 4-Motion | [BDN] | 09.2001-09.2004 |
| VW | PASSAT B5 (3B2) 2.8 V6 | ACK | 08.1996-11.2000 |
| VW | PASSAT B5 (3B2) 2.8 V6 | AHA | 08.1996-11.2000 |
| VW | PASSAT B5 (3B2) 2.8 V6 | APR | 08.1996-11.2000 |
| VW | PASSAT B5 (3B2) 2.8 V6 | AQD | 08.1996-11.2000 |
| VW | PASSAT B5 (3B2) 2.8 V6 Syncro/4motion | ACK | 10.1996-11.2000 |
| VW | PASSAT B5 (3B2) 2.8 V6 Syncro/4motion | AHA | 10.1996-11.2000 |
| VW | PASSAT B5 (3B2) 2.8 V6 Syncro/4motion | ALG | 10.1996-11.2000 |
| VW | PASSAT B5 (3B2) 2.8 V6 Syncro/4motion | APR | 10.1996-11.2000 |
| VW | PASSAT B5 (3B2) 2.8 V6 Syncro/4motion | AQD | 10.1996-11.2000 |
| VW | PASSAT B5.5 (3B3) 4.0 W8 4motion | BDN | 09.2001-09.2004 |
| VW | PASSAT B5.5 (3B3) 4.0 W8 4motion | BDP | 09.2001-09.2004 |
| VW | PASSAT B5.5 Variant (3B6) 4.0 W8 4motion | BDN | 09.2001-09.2004 |
| VW | PASSAT B5.5 Variant (3B6) 4.0 W8 4motion | BDP | 09.2001-09.2004 |
| VW | PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9) 4.2 V8 4motion | BGH | 05.2003-03.2016 |
| VW | PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9) 4.2 V8 4motion | BGJ | 05.2003-03.2016 |
| VW | Phaeton 4.2 V8 4-Motion | [BGH] | 05.2003- |
| VW | Phaeton 4.2 V8 4-Motion | [BGJ] | 05.2003- |
Reference Information
| 0001108200 | BOSCH |
| 0001108201 | BOSCH |
| 0001108201-R | BOSCH |
| 021194 | DA SILVA |
| 07D911023A | VW |
| 07D911023AX | VW |
| 106923 | FARCOM |
| 11090138 | EUROTEC |
| 25-4440 | ELSTOCK |
| 311345092 | DRI |
| 331962 | LOGISTIK |
| 3413 | CEVAM |
| 460376 | VALEO |
| 8081305 | FRIESEN |
| 88214797 | POWERMAX |
| 91-15-7221 | WILSON |
| LRS02767 | LUCAS |
| LRS2767 | LUCAS |
| S104569 | BTS TURBO |
| ST01917 | TMI |
| STB4800 | KRAUF |
| STR1876 | ELECTROLOG |
Video/Publications
