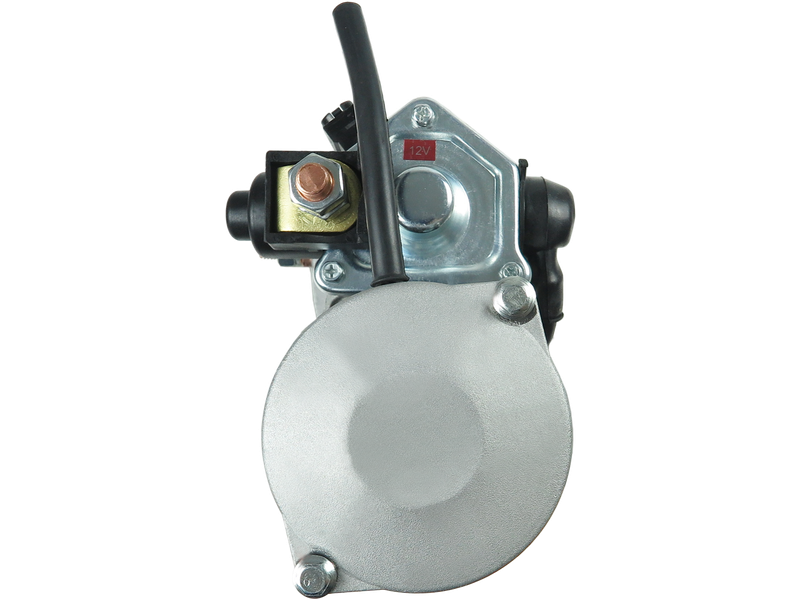

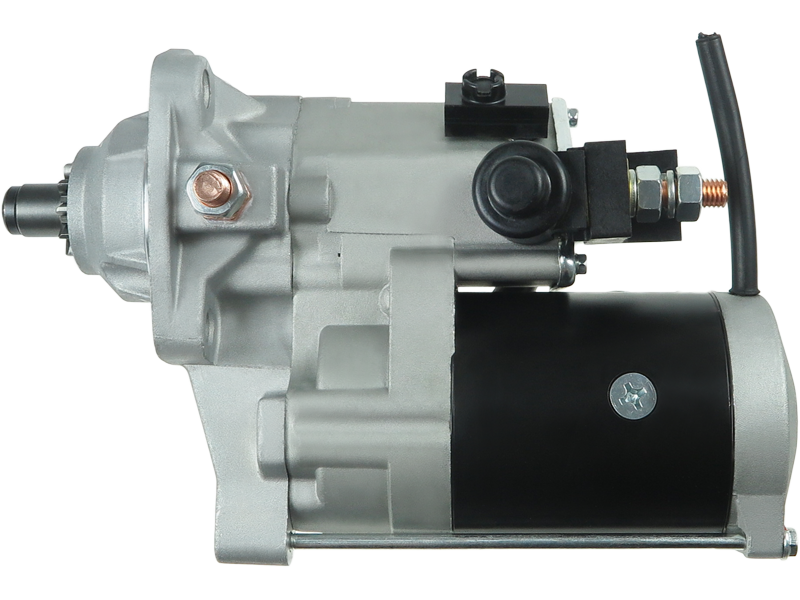

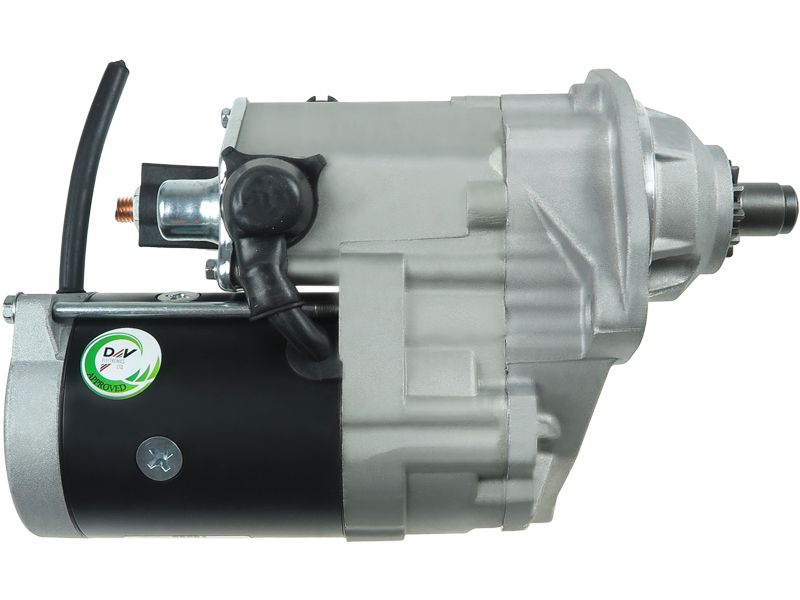

S6094 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 558.95 including GST

NZ$ 486.04 excluding GST



or four payments of $139.74 with
Afterpay Payment Offer Learn More

each
S6094
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

2280006530
113736 18018N 18566N 201228 201228D 20432202BN 228000-5281 228000-6530 228000-6531 228000-6532 228000-7870 228000-7871 228000-7873 228000-8080 228000-8081 228000-8082 228000-8083 228000-9140 25-4279 2589223C91 6040202 8532 C07825 CST40202AS EAA-121394 JS1228 LRS02606 RE501294 RE501298 RE69704 RE70957 RE70975 S6094 SE501403 STR30045 TY24439 ASPLList CARGO CASCO CEVAM CLARK 2280005281 DENSO 2280006530 DENSOList 2280006531 2280006532 2280007870 2280007871 2280007873 2280008080 2280008081 2280008082 2280008083 2280009140 EAA121394 EAA 254279 ELSTOCK HC PARTS IHC JOHN DEERE LUCAS REAL SANDO WAI / TRANSPO WOODAUTO 708993G snj237 019140 Andre Niermann 11040659 EuroTec 15130031 18018 Lester 18018R 18457 18566R 18567 22726ND2 2280006350 Denso 2280006540 2280006541 228000787 2280007872 630510113 PSH 91295363 Wilson 91295458 91295579 A78120 ATL Clark DRS0901 Remy DSN2006 DSN2007 Lucas John Deere RE504244 STR6053sa Electrolog TG2280806532 References: Arrowhead SND0028 SND0398 Atlantic Quality Parts 14000120 2280004630 2280004631 2280005280 228000653 9722809787 PIC Picture ID 190890 190890A 91295458N J N 41052074 J& Starter Motor 028000-5040 [7N0923] 12v 4kw STARTER MOTOR 1 UNIT 028000-5960 [4N0241] 028000-5961 [9X0354] 128000-5970 128000-8080 228000-2360 CW
Kilowatt4 kW
Length (L.1)317 mm
Mount Hole Center - Center (O.1)90 mm
Mount Hole Center - Center (O.2)127 mm
Mount Hole Center - Center (O.3)90 mm
Mount Hole Diameter (C.1)12.50 mm
Mount Hole Diameter (C.2)12.50 mm
Mount Hole Diameter (C.3)12.50 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth11 qty
No./Teeth (Replaces)11 qty
OEM ProductNo
Pinion at Rest (B)48 mm
Product LineStandard Line
Product TypeBrand new
RotationCW
Spigot Diameter (A)89 mm
Unit TypeDENSO
Voltage12 V
Wet ClutchYes
Make Model Type Year
JOHN DEERE 8110 8.1 [JD6081] 01.1999-12.2001
JOHN DEERE 8120 8.1 [6081H] 01.2001-12.2006
JOHN DEERE 8210 8.1 [JD6081] 01.1999-12.2001
JOHN DEERE 8220 8.1 [6081H] 01.2001-12.2006
JOHN DEERE 8310 8.1 [JD6081] 01.1999-12.2001
JOHN DEERE 8320 8.1 [6081H] 01.2001-12.2006
JOHN DEERE 8410 8.1 [JD6081] 01.1999-12.2001
JOHN DEERE 8420 8.1 [6081H] 01.2001-12.2006
JOHN DEERE 8520 8.1 [6081H] 01.2001-12.2006
JOHN DEERE 9540 6.8 WTS [6068HZ006] 01.2001-12.2004
JOHN DEERE 9560 8.1 WTS [6081HZ008] 01.2001-12.2004
JOHN DEERE 9580 8.1 WTS [6081HZ009] 01.2001-12.2004
JOHN DEERE 9640 8.1 WTS [6081HZ009] 01.2001-12.2004
JOHN DEERE 9660 8.1 WTS [6081HZ010] 01.2001-12.2004
JOHN DEERE 9680 8.1 WTS [6081HZ011] 01.2001-12.2004
113736CARGO
18018NWAI / TRANSPO
18566NWAI / TRANSPO
201228KUHNER
201228DKUHNER
20432202BNREAL
228000-5281DENSO
228000-6530DENSO
228000-6531DENSO
228000-6532DENSO
228000-7870DENSO
228000-7871DENSO
228000-7873DENSO
228000-8080DENSO
228000-8081DENSO
228000-8082DENSO
228000-8083DENSO
228000-9140DENSO
25-4279ELSTOCK
2589223C91IHC
501294JOHN DEERE
5040576MEAT & DORIA
6040202SANDO
8532CEVAM
C07825CLARK
CGB-26530AINDE
CST40202ASCASCO
F032113736CARGO
JS1228HC PARTS
LRS02606LUCAS
LRS2606LUCAS
MAV422020SIOM
RE501294JOHN DEERE
RE501298JOHN DEERE
RE529661JOHN DEERE
RE69704JOHN DEERE
RE70473JOHN DEERE
RE70957JOHN DEERE
RE70959JOHN DEERE
RE70975JOHN DEERE
S12DE0374SIDAT
S12DE0374A2SIDAT
S6094AS-PL
SE501403JOHN DEERE
STR30045WOODAUTO
STR6053ELECTROLOG
STRW1143EFFE
TY24439JOHN DEERE
S6094
