S6216S - Brand new AS-PL Starter motor

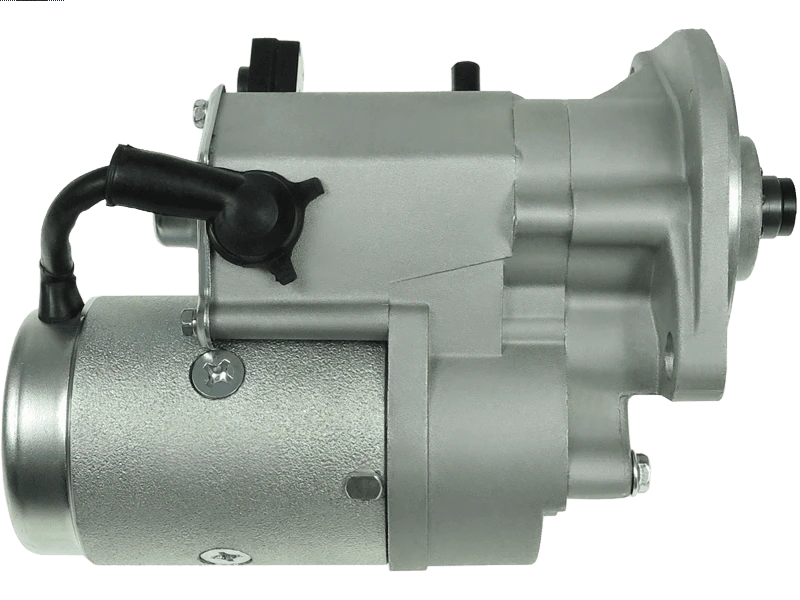

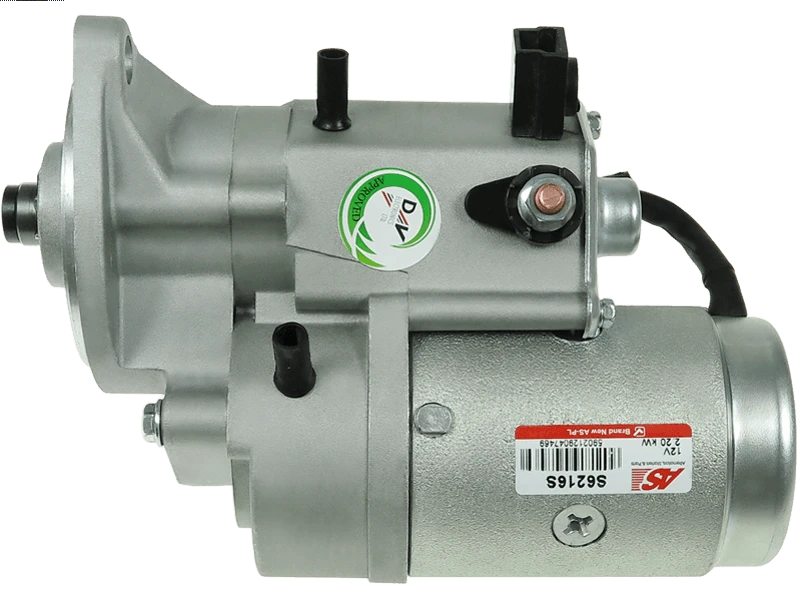

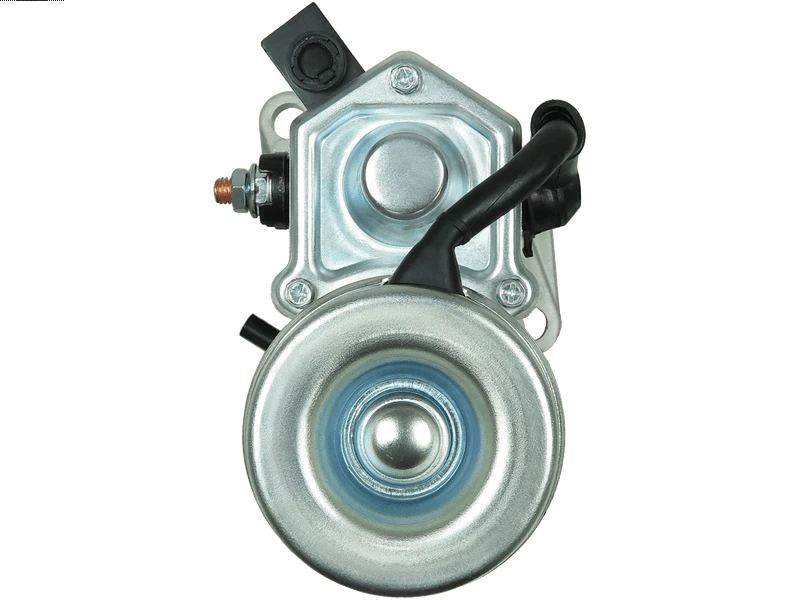

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S6216S
Price: 375.59 NZD
Availability: InStock

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

DENSO

Price:

NZ$ 375.59 including GST

NZ$ 326.60 excluding GST

UOM:

each

Product Code:

S6216S

Quantity In Stock Nationally:

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications
Add Your Number

114332 18981N 246-22102 246-22102R 25-4461 254422 428000-2650 428000-2651 600-863-1410 6040229 91-29-5603 91-29-5603N 940.503.092 CST40229 CST40229AS CST40229ES CST40229GS CST40229OS CST40229RS DRS1008 LRS03788 S-80094 STR30030 STR70381 UD13645S

UD13645S ASPL
114332 CARGO
CST40229 CASCO
DRS1008 DELCO
4280002650 DENSOList
4280002651 DENSO
24622102 DIXIE
24622102R DIXIE
S80094 DIXIE
254461 ELSTOCK
6008631410 KOMATSU
LRS03788 LUCAS
940.503.092 PSH
6040229 SANDO
18981N WAI / TRANSPO
91295603 WILSON
91295603N WILSON
STR30030 WOODAUTO
STR70381 WOODAUTO
dxs4014 708506 snj406GQ
019010 Andre Niermann
031114250 Hitachi
18980N WAI
18980R WAI
18981N WAI
18981R WAI
190742 PIC
2280009010 Denso
254461 Elstock
31701378R
31791096R
4280002650 Denso
498258900
6008631310 Komatsu
6008631410 Komatsu
910348 EDR
91295564 Wilson
91295603 Wilson
940503092 PSH
A403603 Chevrolet
C6008631410 Cummins
D470410
DRS0348 Remy
DRS1008 Remy
DSN2062 Denso
KDJ1301
LRS03788 Lucas
Denso 4280802650
Wilson 91295603

References:
Arrowhead SND0679
Cummins 8631410
Denso 2808023, 428000265, 4280002650, 4280002651, 4280802650
Komatsu 6008631410
Lester 18981
PIC Picture ID 190743
Wilson 91295603
Denso 428000265, 4280002650, 4280002651, 428080265

Substitutes:
J&N 41052217
Denso 2808023

References:
Arrowhead ND4280802650
J&N 41052217
Denso 2808023, 4280002650, 428080265
Komatsu 6008631410
Lester 18981
PIC Picture ID 190743
J&N 41052217
Denso 4280802650
Wilson 91295603

References:
Arrowhead ND2808023
Denso 4280002650, 4280802650

Kilowatt	2.2 kW
Length (L.1)	236 mm
Mount Hole Center - Center (O.1)	120 mm
Mount Hole Diameter (C.1)	13.5 mm
Mount Hole Diameter (C.2)	13.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
Pinion at Rest (B)	20 mm
Rotation	CW
Spigot Diameter (A)	95 mm
Unit Type	DENSO
Voltage	12 V

Make	Model	Type	Year
CUMMINS	CFP33-F10		01.2004-12.2010
CUMMINS	CFP33-F20		01.2004-12.2010
CUMMINS	CFP33-F25		01.2004-12.2010
CUMMINS	CFP33-F30		01.2004-12.2010
CUMMINS	CFP33-F35		01.2004-12.2010
CUMMINS	Engine	[B3.3]
KOMATSU	WA70-6	[4D95LEW-5]
MASSEY FERGUSON	MF9220	[B3.3]	01.2004-12.2006
TORO	Groundmaster 5910

600-863-1410 STR30030 LRS3788 940.503.092 31114250 S-80094 CST40229 CST40229RS C6008631410 18981N DRS1008 LRS03788 CST40229GS 114332 254422 246-22102 CST40229ES 246-22102R STR70381 CST40229AS UD13645S 91-29-5603 6008611410 STR6714 CST40229OS S6216S 6040229 6008631310 428000-2650 428000-2651 91-29-5603N 31701378 25-4461
