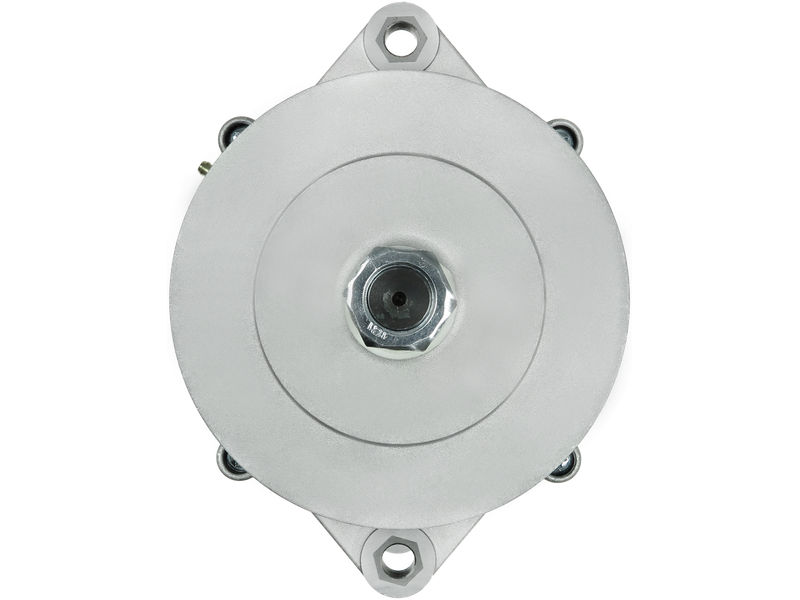

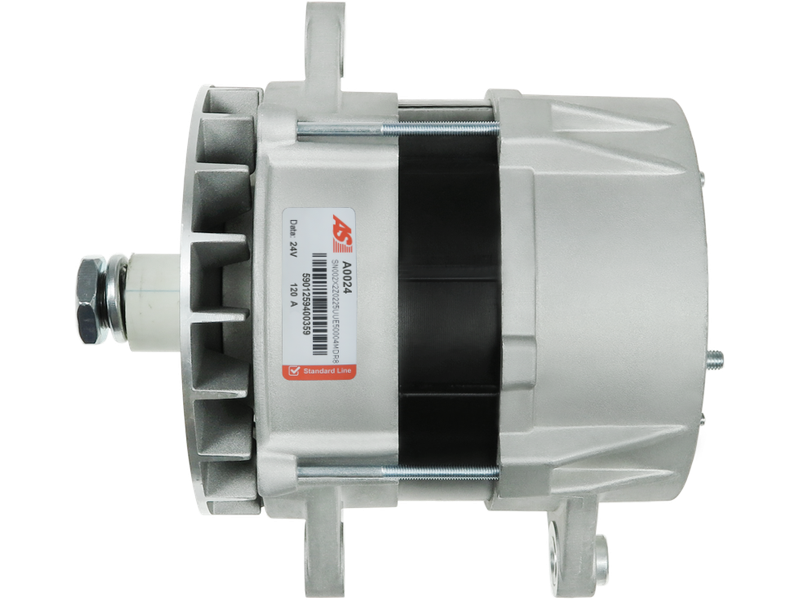

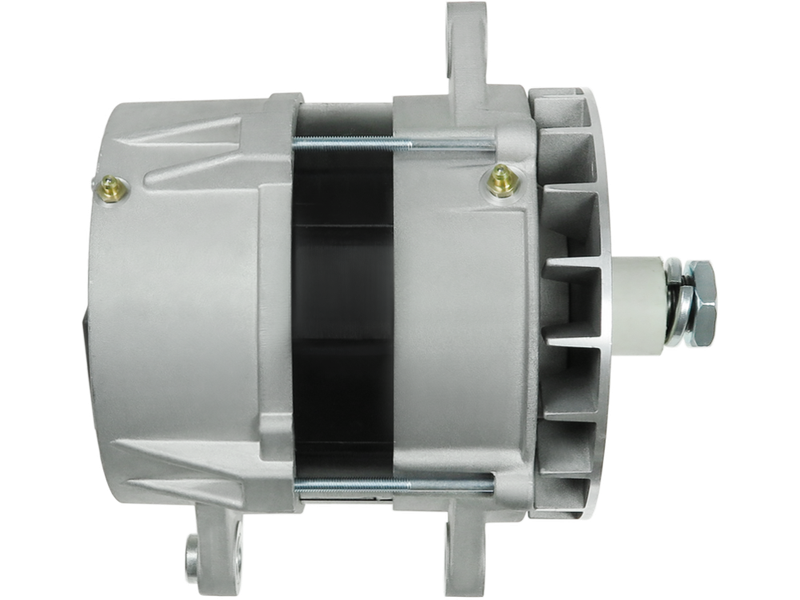

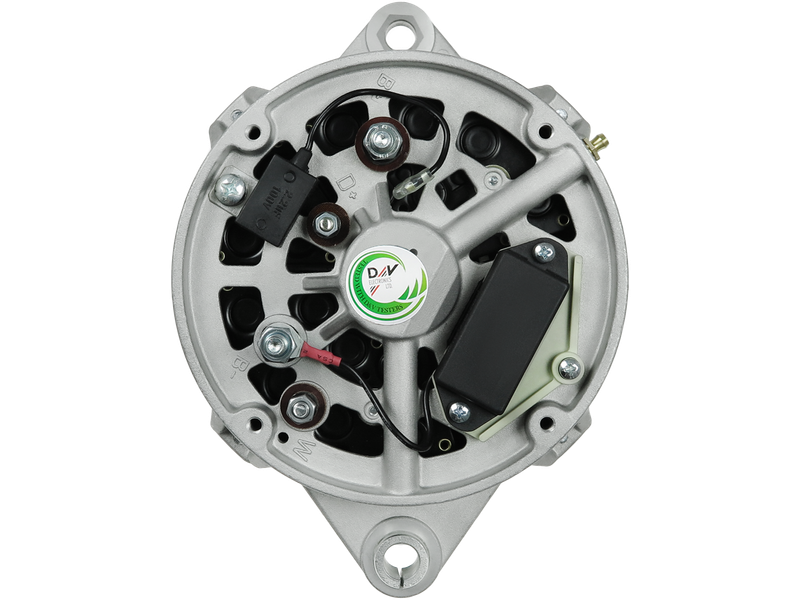

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 1,476.00 including GST
NZ$ 1,283.48 excluding GST
or four payments of $369.00
with
Learn More
each
A0024
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0120689538Associated Numbers
0120689516 0120689524 0120689538 0120689539 0120689550 108922 11.209.448 112302 1277790 18.3009 19025340 1986A00010 20101136IT 20101136OE 2010631 4831585 553042RI 553042RIB 553042RIK 861338 A0024 AAT1385 ALT10161 CAL10631ES CAL10631GS CAL10631IS DRA0502 EAA-221272 UNIT BOM 220-5200ASpecifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 16 mm |
| Diameter (D.1) | 13.50 mm |
| Diameter (D.2) | 13.50 mm |
| Diameter (D.3) | 13.50 mm |
| Insulated Earth | No |
| Length (L.1) | 254 mm |
| Mount Inside Length or Pad Mount C-C (C) | 87 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Type | No Pulley |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DAF | 95.31 | [Ati] | 01.1988-12.1992 |
| DAF | 95.310 | [Ati] | 01.1988-12.1992 |
| DAF | 95.33 | [Ati] | 01.1990-12.1992 |
| DAF | 95.330 | [Ati] | 01.1990-12.1992 |
| DAF | 95.35 | [Ati] | 01.1988-12.1992 |
| DAF | 95.350 | [Ati] | 01.1988-12.1992 |
| DAF | 95.36 | [Ati] | 01.1990-12.1992 |
| DAF | 95.360 | [Ati] | 01.1990-12.1992 |
| DAF | 95.38 | [Ati] | 01.1988-12.1992 |
| DAF | 95.380 | [Ati] | 01.1988-12.1992 |
| DAF | 95.4 | [Ati] | 01.1990-12.1992 |
| DAF | 95.400 | [Ati] | 01.1990-12.1992 |
| DAF | 95.43 | [Ati] | 01.1992- |
| DAF | 95.430 | [Ati] | 01.1992- |
| KASSBOHRER | S200 | 01.1976-12.1981 | |
| KASSBOHRER | S208H | 01.1979-12.1983 | |
| KASSBOHRER | S211H | 01.1985-12.1995 | |
| KASSBOHRER | S212H | 01.1980-12.1983 | |
| KASSBOHRER | S215 | 01.1983-12.1995 | |
| KASSBOHRER | S215H | 01.1976-12.1981 | |
| KASSBOHRER | S215H | 01.1980-12.1995 | |
| PEGASO | 6424 Bus | 01.1985-12.1995 | |
| SCANIA | BK112 | 01.1982-12.1983 |
Reference Information
| 0120689516 | BOSCH |
| 0120689524 | BOSCH |
| 0120689538 | BOSCH |
| 0120689539 | BOSCH |
| 0120689550 | BOSCH |
| 0121544702 | MERCEDES |
| 0121545002 | MERCEDES |
| 063536895380 | MAGNETI MARELLI |
| 108922 | FIAT |
| 11.209.448 | ISKRA / LETRIKA |
| 112302 | CARGO |
| 12577N | WAI / TRANSPO |
| 1277790 | PRESTOLITE |
| 18.3009 | CQ |
| 19025340 | DELCO |
| 1986A00010 | BOSCH |
| 20101136BN | REAL |
| 20101136EL | REAL |
| 20101136IT | REAL |
| 20101136OE | REAL |
| 2010631.0 | SANDO |
| 2010631.1 | SANDO |
| 2010631.3 | SANDO |
| 2010631.5 | SANDO |
| 210292 | ERA |
| 220-60538 | ROBERT'S |
| 2488 | CEVAM |
| 42575000 | FIAT |
| 441973 | LOGISTIK |
| 4775918 | IVECO |
| 4798922 | IVECO |
| 4831585 | IVECO |
| 506.004.140.018 | PSH |
| 506.004.140.215 | PSH |
| 553042RI | KUHNER |
| 553042RIB | KUHNER |
| 553042RIK | KUHNER |
| 7421356000 | KASSBOHRER |
| 861338 | PRESTOLITE |
| 89214226 | POWERMAX |
| A0024 | AS-PL |
| A0121544702 | MERCEDES |
| A0121545002 | MERCEDES |
| AAT1385 | ISKRA / LETRIKA |
| AG0040 | GHIBAUDI |
| ALB2302 | KRAUF |
| ALT10161 | WOODAUTO |
| ALT10162 | WOODAUTO |
| ALT1154 | ELECTROLOG |
| ALT126310 | SIOM |
| ALT126310A | SIOM |
| ALT126310EL | SIOM |
| ALT126310IS | SIOM |
| ALT126650 | SIOM |
| ALT1345 | ELECTROLOG |
| ALT2231 | ELECTROLOG |
| ALTL822 | 3EFFE |
| ALTL822D | 3EFFE |
| ALTS784 | 3EFFE |
| ANM32722X | ANDEL |
| CAL10631AS | CASCO |
| CAL10631ES | CASCO |
| CAL10631GS | CASCO |
| CAL10631IS | CASCO |
| CGB-19538 | AINDE |
| DRA0502 | DELCO |
| F032112302 | CARGO |
| IA9435 | ISKRA / LETRIKA |
| MAN2004 | MAGNETI MARELLI |
| PRAL822 | 3EFFE |
| PRAL822D | 3EFFE |
| PRAS784 | 3EFFE |
Video/Publications
