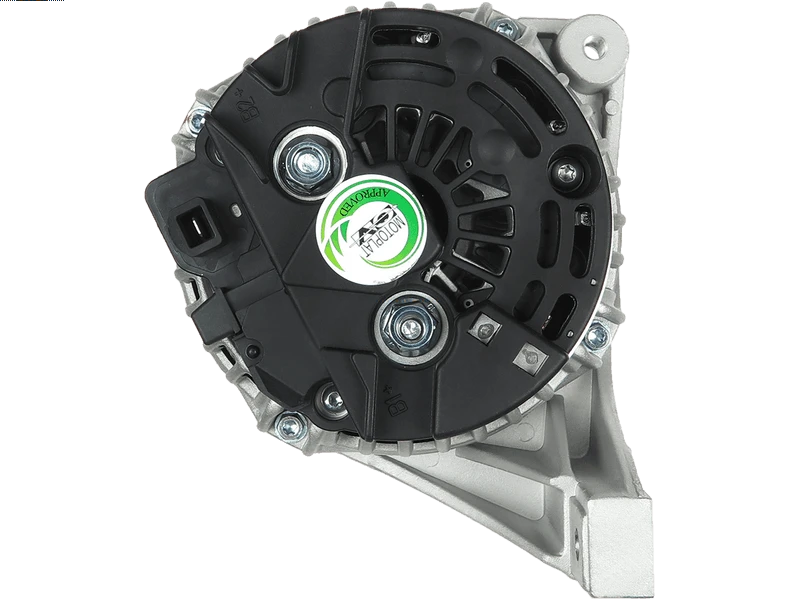

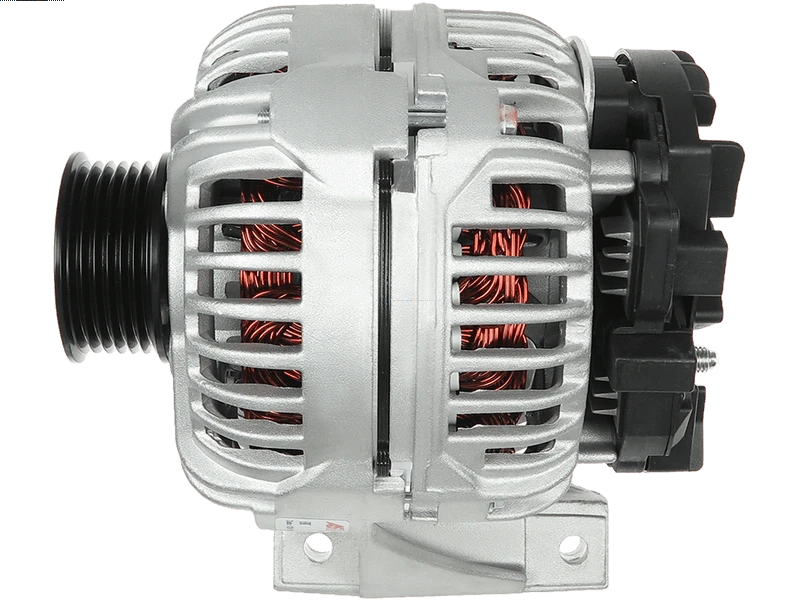

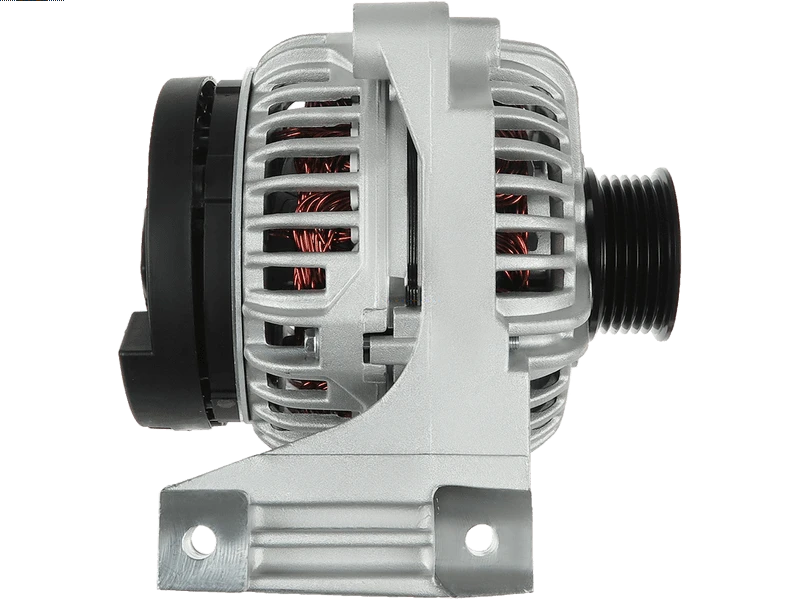

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 466.74 including GST
NZ$ 405.86 excluding GST
or four payments of $116.69
with
Learn More
each
A0060
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0124515017Associated Numbers
0124515017 0124515018 0986041150 0986041153 11.1443 11.1443M 112078 13802N 20101223OE 2010322 28-3637 301443RI 437802 4634 56862 8111001 815.517.120 8602277 89212672 8EL737641-001 9041150 9212672 9442841 9459038 AEC1443 ALT10372 CA1443IR CAL10322GS DRB1150 LRA01817 RAA22261 SA362
BXA024
Specifications
| Amp | 120 A |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 9.50 mm |
| Diameter (D.3) | 9.50 mm |
| Length (L.1) | 187 mm |
| Mount Inside Length or Pad Mount C-C (C) | 83 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 108.50 mm |
| Plug Code | PL_1200 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 46 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | S60 2.0 Turbo | [B5204T5] | 11.2000-08.2004 |
| VOLVO | S60 2.3 T5 | [B5234T3] | 11.2000-03.2004 |
| VOLVO | S60 2.4 | [B5244S] | 11.2000-08.2004 |
| VOLVO | S60 2.4 | [B5244S2] | 11.2000-08.2004 |
| VOLVO | S60 2.4 Bifuel | [B5244SG2] | 06.2002-08.2004 |
| VOLVO | S60 2.4 Turbo | [B5244T3] | 11.2000-07.2004 |
| VOLVO | S60 2.4 Turbo AWD | [B5244T3] | 11.2001-07.2003 |
| VOLVO | S60 R 2.5 Turbo AWD | [B5254T4] | 03.2003- |
| VOLVO | S80 2.0 | [B5204T4] | 06.1998-07.2000 |
| VOLVO | S80 2.0 Turbo | [B5204T3] | 06.1998-07.2000 |
| VOLVO | S80 2.0 Turbo | [B5204T5] | 08.1999-07.2006 |
| VOLVO | S80 2.4 | [B5244S] | 01.1999-07.2006 |
| VOLVO | S80 2.4 | [B5244S2] | 01.1999-07.2006 |
| VOLVO | S80 2.4 Bifuel | [B5244SG2] | 09.2001-07.2006 |
| VOLVO | S80 2.4 Turbo | [B5244T3] | 06.2000-07.2003 |
| VOLVO | S80 2.8 T6 | [B6284T] | 05.1998-07.2001 |
| VOLVO | S80 2.9 | [B6294S] | 03.1999-07.2001 |
| VOLVO | S80 2.9 24V | [B6304S3] | 05.1998-08.1999 |
| VOLVO | S80 3.0 | [B6294S2] | 08.2001-07.2006 |
| VOLVO | S80 3.0 T6 | [B6294T] | 06.2001-07.2006 |
| VOLVO | V70 2.3 T5 | [B5234T3] | 03.2000-07.2004 |
| VOLVO | V70 2.4 | [B5244S] | 03.2000-07.2007 |
| VOLVO | V70 2.4 | [B5244S2] | 03.2000-07.2007 |
| VOLVO | V70 2.4 Bifuel | [B5244SG] | 09.2001-07.2006 |
| VOLVO | V70 2.4 Turbo | [B5244T3] | 03.2000-07.2002 |
| VOLVO | V70 2.4 Turbo AWD | [B5244T3] | 03.2000-07.2003 |
| VOLVO | XC70 2.4 Turbo AWD | [B5244T3] | 09.2000-09.2002 |
Reference Information
| 011-003-000108R | REMANTE |
| 011554 | DA SILVA |
| 0124515017 | BOSCH |
| 0124515017-R | BOSCH |
| 0124515019 | BOSCH |
| 0124515222 | BOSCH |
| 0986041150 | BOSCH |
| 0986041153 | BOSCH |
| 10442197 | ALANKO |
| 11.1443 | LAUBER |
| 11.1443M | LAUBER |
| 112078 | CARGO |
| 11442197 | ALANKO |
| 119009 | FARCOM |
| 12041150 | EUROTEC |
| 13802N | WAI / TRANSPO |
| 13902 | MAPCO |
| 1986A00838 | BOSCH |
| 20010322AV | ITAB AUTOMOTIVE |
| 20010322OV | ITAB AUTOMOTIVE |
| 20-0173 | AIRSTAL |
| 20101223OE | REAL |
| 2010322 | SANDO |
| 210881 | ERA |
| 210881A | ERA |
| 2381351202 | DRI |
| 28-3637 | ELSTOCK |
| 301443RI | KUHNER |
| 301443RIB | KUHNER |
| 310823 | RHIAG |
| 3125874 | HENKEL PARTS |
| 3125875 | HENKEL PARTS |
| 32041150 | HERTH+BUSS |
| 437802 | VALEO |
| 441590 | LOGISTIK |
| 444588 | VALEO |
| 4634 | CEVAM |
| 56862 | EAI |
| 8111001 | VOLVO |
| 81110010 | VOLVO |
| 81110017 | VOLVO |
| 815.517.120 | PSH |
| 815.517.120.010 | PSH |
| 815.517.120.340 | PSH |
| 815.517.120.461 | PSH |
| 8602277 | VOLVO |
| 8620045 | KAMOKA |
| 862ST65 | STARTCAR |
| 89212672 | POWERMAX |
| 8EL012428-121 | HELLA |
| 8EL737641-001 | HELLA |
| 9041150 | FRIESEN |
| 9212672 | POWERMAX |
| 9442841 | VOLVO |
| 94428410 | VOLVO |
| 94428414 | VOLVO |
| 944390411500 | MAGNETI MARELLI |
| 9459038 | VOLVO |
| 9559038 | VOLVO |
| A0060 | AS-PL |
| A135.472 | PSH |
| AC-CBA1443 | ACAUTO |
| AEC1443 | AUTOELECTRO |
| AG0081 | GHIBAUDI |
| AG0081RB | GHIBAUDI |
| AL01784 | TMI |
| ALT10372 | WOODAUTO |
| ALT123220 | SIOM |
| ALT1598 | ELECTROLOG |
| ALTF202 | 3EFFE |
| ALTH003 | 3EFFE |
| ANM43370 | ANDEL |
| ANM43370X | ANDEL |
| AX 1324 | STARLINE |
| AZMT-49-035-1156 | A.Z. MEISTERTEILE |
| BBA2185 | BORG & BECK |
| BREF0320986041150 | CARWOOD GROUP |
| BREF032112078 | CARWOOD GROUP |
| BREF0321986A00838 | CARWOOD GROUP |
| CA1443IR | HC PARTS |
| CAL10322AS | CASCO |
| CAL10322GS | CASCO |
| CGB-13150 | AINDE |
| CGB-83637 | AINDE |
| DRB1150 | DELCO |
| F032112078 | CARGO |
| G100503 | BTS TURBO |
| IR6511 | PROTECH |
| L41150 | ATL AUTOTECHNIK |
| LEA0622 | LE PART |
| LRA01817 | LUCAS |
| LRA1817 | LUCAS |
| PRAF202 | 3EFFE |
| RAA22261 | DELCO |
| SA362 | SOVEREIGN |
| STA0535R | BOVEZ |
| STX100409 | STARDAX |
| TT11183 | TESLA TECHNICS |
| TT11183PRO | TESLA TECHNICS |
| VO8011 | SNRA |
| WAL00486 | WALKER |
| WG2280667 | WILMINK GROUP |
| WG2282891 | WILMINK GROUP |
Video/Publications
