A0103 - Brand new AS-PL Alternator

Name: Brand new AS-PL Alternator
Brand: AS-PL
SKU: A0103
Price: 381.32 NZD
Availability: BackOrder

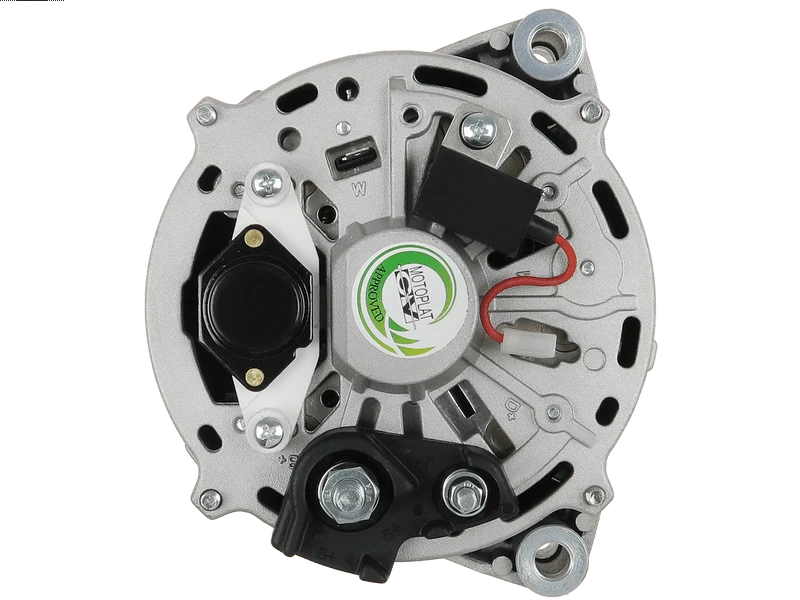

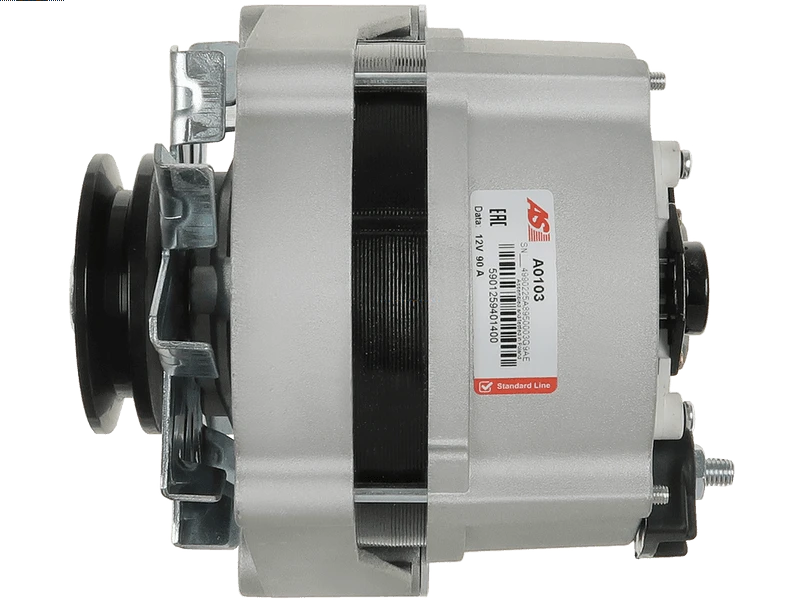

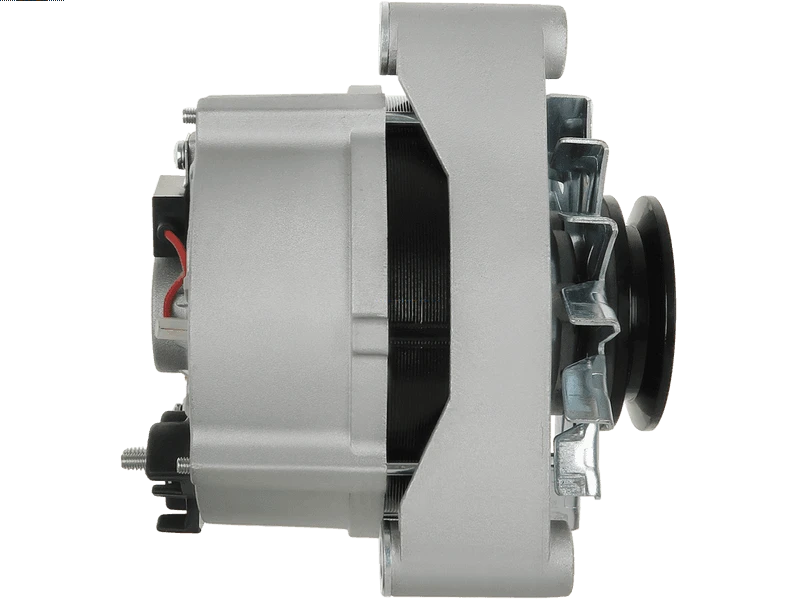

Brand new AS-PL Alternator

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

BOSCH

Price:

NZ$ 381.32 including GST

NZ$ 331.58 excluding GST

or four payments of $95.33 with
Learn More

UOM:

each

Product Code:

A0103

Quantity In Stock Nationally:

No stock in NZ - Call us for possible procurement options

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications

0120469514 0120469515 0120469534 0120469535 0120469548 0120469555 0120469556 0120469557 0120469558 0120469721 035903015D 035903015G 035903015P 035903015Q 035903016C 035903017 035903017X 049903023M 068903017E 068903017EX 068903025H 069903023C 0986030518 0986033118 11.0328 110990 205.007.090 28-0512 2940357 30163RI 30163RIR 30328RI 436211 436212 55577 8EL725730-001 9030510 9AR2796 A0103 ALT10242 CA328IR DRA0510 DRA3110 LRA00805 NA206 VA276

Amp	90 A
Bottom Mounting Foot Width (B)	56 mm
Diameter (D.1)	8 mm
Diameter (D.2)	8 mm
Length (L.1)	178 mm
OEM Product	No
Plug Code	PL_9104
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	1 qty
Pulley Groove Width (W.1)	10 mm
Pulley Outside Diameter (O.D.1)	57 mm
Pulley Outside Diameter (O.D.2)	77 mm
Pulley to Mount Distance (A)	83 mm
Pulley Type	Solid
Unit Type	BOSCH
Voltage	12 V

Make	Model	Type	Year
AUDI	100 1.6	[YV]	08.1976-02.1983
AUDI	100 1.8	[DS]	08.1985-08.1986
AUDI	100 1.9	[WH]	08.1980-12.1982
AUDI	100 2.0 Diesel	[CN]	08.1978-07.1982
AUDI	100 2.1	[WB]	10.1977-07.1982
AUDI	100 2.1	[WC]	03.1977-07.1982
AUDI	100 2.1	[WE]	10.1977-07.1982
AUDI	100 2.1	[WG]	03.1977-07.1982
AUDI	100 2.2	[KZ]	10.1984-09.1986
AUDI	100 2.2	[WB]	07.1977-07.1982
AUDI	100 2.2	[WC]	07.1977-02.1983
AUDI	100 2.2	[WE]	07.1977-07.1982
AUDI	200 2.2 Turbo	[WJ]	10.1979-08.1982
AUDI	80 1.6	[SA]	02.1986-07.1986
AUDI	80 1.6	[YN]	08.1978-07.1981
AUDI	80 1.6	[YP]	08.1978-07.1980
AUDI	80 1.6	[YY]	02.1979-07.1981
AUDI	80 1.6 GLE	[YZ]	01.1979-06.1982
AUDI	80 1.6 TD	[CY]	08.1981-07.1984
AUDI	80 1.8	[DS]	08.1985-08.1986
AUDI	80 1.8	[JN]	08.1985-08.1986
AUDI	80 1.8	[SF]	02.1986-07.1986
AUDI	80 1.9	[WN]	09.1981-07.1983
AUDI	80 2.0	[HP]	10.1983-09.1984
AUDI	80 2.0	[JS]	10.1983-09.1984
AUDI	80 2.0 Quattro	[JS]	10.1983-09.1984
AUDI	80 2.2	[WE]	10.1980-07.1981
AUDI	80 2.2	[WE]	10.1980-08.1983
AUDI	80 2.2 Quattro	[KK]	08.1982-07.1984
AUDI	80 2.2 Quattro	[KL]	08.1982-07.1984
AUDI	90 1.6 TD	[CY]	08.1985-01.1987
AUDI	90 2.0	[HP]	10.1984-11.1985
AUDI	90 2.0	[JS]	10.1984-11.1985
AUDI	90 2.2	[HY]	10.1984-11.1985
AUDI	90 2.2	[KV]	10.1984-11.1985
AUDI	90 2.2	[KX]	01.1985-11.1985
AUDI	90 2.2 E Quattro	[JT]	10.1984-11.1985
AUDI	90 2.2 E Quattro	[KV]	11.1984-11.1985
AUDI	Coupe 1.6	[YN]	07.1980-08.1981
AUDI	Coupe 1.8	[DD]	08.1981-08.1982
AUDI	Coupe 1.8 GT	[DS]	09.1982-12.1982
AUDI	Coupe 1.9	[WN]	08.1980-07.1983
AUDI	Coupe 2.0	[HP]	08.1983-07.1984
AUDI	Coupe 2.0	[JS]	09.1983-07.1985
AUDI	Coupe 2.1 Turbo Quattro	[GV]	07.1980-07.1987
AUDI	Coupe 2.1 Turbo Quattro	[WR]	07.1980-07.1987
AUDI	Coupe 2.2 GT	[KE]	04.1982-07.1984
AUDI	Coupe 2.2 GT	[KL]	09.1982-07.1984
AUDI	Coupe 2.2 GT	[KV]	09.1984-07.1985
AUDI	Coupe 2.2 GT	[KX]	01.1984-07.1985
AUDI	Coupe 2.2 Quattro	[JT]	12.1984-07.1985
AUDI	Coupe 2.2 Quattro	[KV]	10.1984-07.1985
PORSCHE	924 2.0	[XJ]	11.1975-08.1985
PORSCHE	924 2.0	[XK]	11.1975-08.1985
PORSCHE	924 2.0 Turbo	[M31.01]	11.1978-06.1980
VW	Passat 1.3	[EP]	08.1985-07.1987
VW	Passat 1.3	[EU]	08.1985-07.1987
VW	Passat 1.6	[DT]	03.1985-03.1988
VW	Passat 1.6	[PP]	03.1987-03.1988
VW	Passat 1.6	[RL]	08.1986-03.1988
VW	Passat 1.6	[WV]	08.1981-07.1983
VW	Passat 1.6	[YN]	08.1980-07.1981
VW	Passat 1.6	[YP]	08.1980-02.1983
VW	Passat 1.6 Diesel	[CR]	08.1981-07.1982
VW	Passat 1.6 TD	[CY]	01.1985-07.1985
VW	Passat 1.8	[DS]	01.1985-07.1985
VW	Passat 1.8	[DZ]	12.1983-07.1984
VW	Passat 1.8	[JN]	01.1985-07.1985
VW	Passat 1.8	[RM]	05.1986-03.1988
VW	Passat 1.9	[WN]	01.1981-07.1983
VW	Passat 1.9	[WN]	08.1981-07.1983
VW	Passat 2.0	[HP]	08.1983-07.1987
VW	Passat 2.0	[JS]	08.1983-12.1985
VW	Passat 2.0 Syncro	[JS]	08.1984-07.1985
VW	Passat 2.2	[KV]	01.1985-12.1985
VW	Passat 2.2	[KX]	01.1985-12.1985
VW	Passat 2.2	[KX]	08.1985-12.1985
VW	Passat 2.2 Syncro	[JT]	08.1985-12.1985
VW	Santana 1.6	[WV]	08.1981-07.1983
VW	Santana 1.6	[YP]	08.1981-12.1982
VW	Santana 1.6 TD	[CY]	04.1982-12.1984
VW	Santana 1.8	[DS]	01.1983-12.1984
VW	Santana 1.9	[WN]	08.1981-07.1983
VW	Santana 2.0	[HP]	08.1983-12.1984
VW	Santana 2.0	[JS]	08.1983-12.1984
VW	Santana 2.1	[WE]	08.1982-12.1983
VW	Scirocco 1.6	[EG]	08.1980-07.1982
VW	Scirocco 1.8	[DX]	08.1982-12.1982
VW	Scirocco 1.8	[EV]	08.1982-12.1982
VW	Scirocco 1.8	[JJ]	08.1982-12.1982
VW	Scirocco 1.8	[PB]	08.1982-12.1982

0120469514	BOSCH
0120469515	BOSCH
0120469534	BOSCH
0120469535	BOSCH
0120469548	BOSCH
0120469555	BOSCH
0120469556	BOSCH
0120469557	BOSCH
0120469558	BOSCH
0120469721	BOSCH
035903016C	VW
035903017	VW
035903017X	VW
047903015	VW
049903023A	VW
049903023M	VW
049903023N	VW
063903017	VW
063903017X	VW
068903017E	VW
068903017EX	VW
068903025H	VW
069903023C	VW
0986030518	BOSCH
0986033118	BOSCH
11.0328	LAUBER
110990	CARGO
2010126ABN	REAL
2010A62.0	SANDO
205.007.090	PSH
205.007.090.215	PSH
205.007.090.460	PSH
28-0512	ELSTOCK
2940357	VALEO
30163RI	KUHNER
30163RIR	KUHNER
30328RI	KUHNER
436211	VALEO
436212	VALEO
440475	LOGISTIK
55577	EAI
8EL725730-001	HELLA
9030510	FRIESEN
9AR2796	MOTOROLA
A0103	AS-PL
ALT10242	WOODAUTO
ALTS959	3EFFE
ANM32730X	ANDEL
CA328IR	HC PARTS
CAL10A62AS	CASCO
DRA0510	DELCO
DRA3110	DELCO
F032110990	CARGO
LRA00805	LUCAS
LRA805	LUCAS
NA206	VALEO
STX100931	STARDAX
STX100980	STARDAX
STX101010	STARDAX
STX101014	STARDAX
VA276	VALEO

A0103
