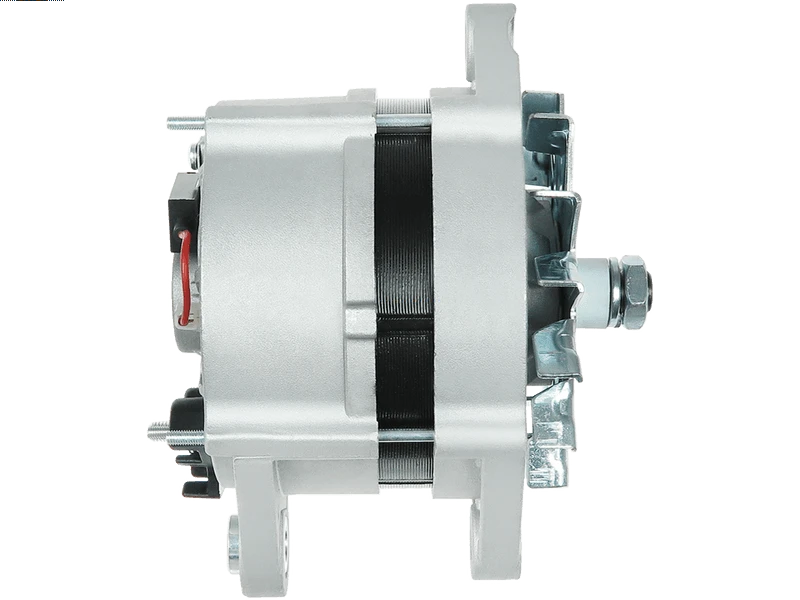

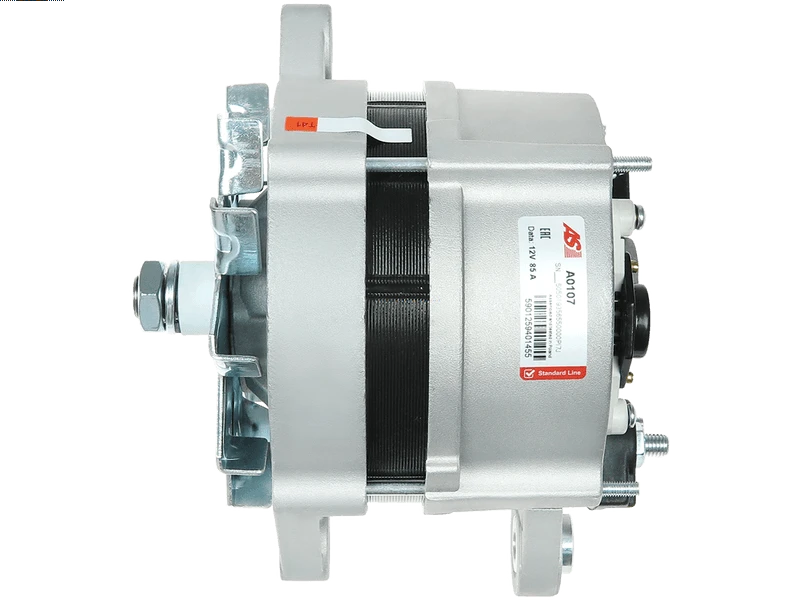

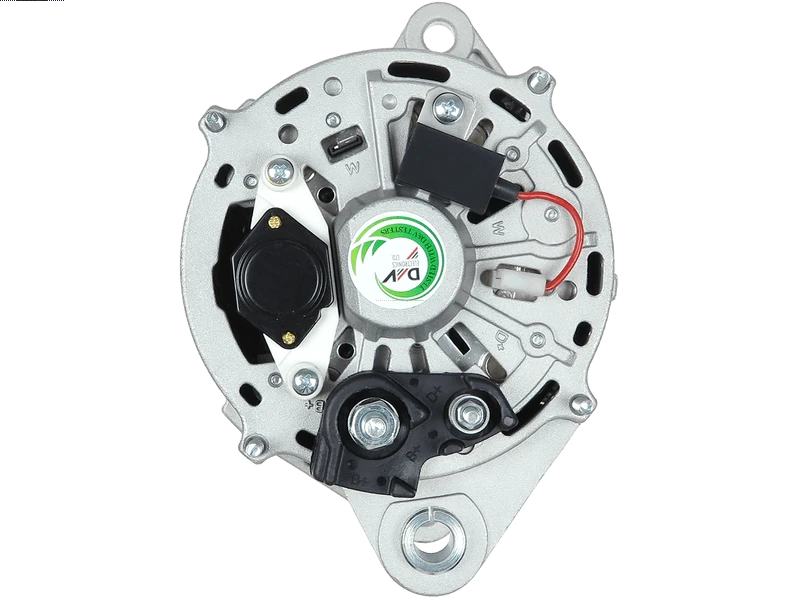

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 355.21 including GST
NZ$ 308.88 excluding GST
or four payments of $88.80
with
Learn More
each
A0107
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0120469646Associated Numbers
0120469641 0120469646 0120469647 0120469666 0120469667 0120469710 0120469836 0986035020 0986035770 11.0569 11.0569M 112453 2010116 20101611BN 2126 28-1669 30569RI 30843RI 4332 436587 55691 8EL725859-001 9035770 943356859 AEA1297 ALT10168 CA569IR CAL10116AS CAL10116RS DRA5020 EAA-221504 IA9433 LRB00197Specifications
| Amp | 85 A |
| Bottom Mounting Foot Width (B) | 17 mm |
| Diameter (D.1) | 12 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | 12 mm |
| Length (L.1) | 183 mm |
| Mount Inside Length or Pad Mount C-C (C) | 65 mm |
| OEM Product | No |
| Plug Code | PL_9105 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Type | No Pulley |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALFA ROMEO | 164 2.0 Turbo | [AR06476] | 01.1988-09.1992 |
| FIAT | Croma 2.0 i.e. 2000 | [154C3.000] | 03.1987-09.1992 |
| FIAT | Croma 2.0 i.e. 2000 | [154C3.046] | 10.1987-07.1990 |
| FIAT | Croma 2.0 i.e. 2000 | [834B.000] | 03.1987-09.1992 |
| FIAT | Croma 2.0 i.e. 2000 | [834B.048] | 03.1986-09.1990 |
| FIAT | Croma 2.0 i.e. Turbo | [834C.146] | 11.1986-09.1990 |
| FIAT | Croma 2.0 i.e. Turbo 2000 | [154A2.000] | 12.1985-06.1990 |
| FIAT | Croma 2.0 i.e. Turbo 2000 | [834C.146] | 06.1987-07.1990 |
| FIAT | Croma 2.5 Diesel | [8144.67] | 12.1985-12.1989 |
| FIAT | Croma 2.5 TD | [8144.97S] | 12.1991-08.1996 |
| FIAT | Croma 2.5 TD 2500 | [8144.91.2000] | 12.1985-08.1989 |
| IVECO | 35-10 2.4 Diesel | [8140.21.200] | 02.1985-06.1989 |
| IVECO | 35-12 2.5 Diesel | [8140.47.2700] | 10.1990-04.1996 |
| IVECO | 45-10 2.4 Diesel | [8140.21.200] | 02.1985-06.1989 |
| IVECO | 45-10 2.5 Diesel | [8140.27.2720] | 09.1989-04.1996 |
| IVECO | 45-12 2.5 Diesel | [8140.47.2711][8140.47.2721] | 06.1990-04.1996 |
| IVECO | 49-10 2.4 Diesel | [8140.21.200] | 02.1985-06.1989 |
| IVECO | 49-10 2.5 Diesel | [8140.47.2790] | 01.1989-04.1996 |
| IVECO | 49-12 2.5 Diesel | [8140.47.2711][8140.47.2721] | 06.1990-04.1996 |
| IVECO | 59-12 2.5 Diesel | [8140.47.2700][8140.47.2711] | 05.1991-04.1996 |
| LANCIA | Thema 2.0 i.e. | [834B.000] | 11.1984-09.1988 |
| LANCIA | Thema 2.0 i.e. 16V | [834B2.000] | 05.1988-08.1992 |
| LANCIA | Thema 2.0 i.e. Turbo | [834B2.246] | 02.1989-05.1992 |
| LANCIA | Thema 2.0 i.e. Turbo | [834C.000] | 11.1984-09.1988 |
| LANCIA | Thema 2.0 i.e. Turbo | [834C.146] | 07.1986-05.1990 |
| LANCIA | Thema 2.0 i.e. Turbo 16V | [834C1.000] | 12.1988-06.1990 |
| LANCIA | Thema 2.0 Turbo 16V | [834C.146] | 06.1988-05.1990 |
| LANCIA | Thema 2.5 TD | [8144.91] | 11.1984-09.1988 |
| LANCIA | Thema 2.5 TD | [8144.97] | 06.1988-05.1992 |
| LANCIA | Thema 2.5 TD | [8144.97S] | 05.1988-07.1992 |
| LANCIA | Thema 2.5 TD | [8144.97Y] | 05.1992-11.1994 |
| LANCIA | Thema 2.5 TDS | [8144.97] | 06.1988-05.1992 |
| LANCIA | Thema 2.5 TDS | [8144.97S] | 05.1992-11.1994 |
| LANCIA | Thema 2.8 i.e. V6 | [834E.000] | 11.1984-09.1988 |
| LANCIA | Thema 2.8 i.e. V6 | [834E.146] | 06.1988-05.1992 |
| LANCIA | Thema 2.9 | [F105L] | 09.1987-05.1989 |
| LANCIA | Thema 2.9 | [F105L.046] | 10.1987-05.1992 |
Reference Information
| 00000005999520 | FIAT |
| 0120469641 | BOSCH |
| 0120469646 | BOSCH |
| 0120469647 | BOSCH |
| 0120469666 | BOSCH |
| 0120469667 | BOSCH |
| 0120469710 | BOSCH |
| 0120469836 | BOSCH |
| 0986035020 | BOSCH |
| 0986035770 | BOSCH |
| 11.0569 | LAUBER |
| 11.0569M | LAUBER |
| 112453 | CARGO |
| 2010116 | SANDO |
| 20101611BN | REAL |
| 210193 | ERA |
| 2126 | CEVAM |
| 28-1669 | ELSTOCK |
| 30569RI | KUHNER |
| 30843RI | KUHNER |
| 311220 | RHIAG |
| 4332 | CEVAM |
| 436587 | VALEO |
| 440716 | LOGISTIK |
| 46123952 | FIAT |
| 4795332 | IVECO |
| 4801210 | FIAT |
| 4801210 | IVECO |
| 55691 | EAI |
| 5991719 | IVECO |
| 5991720 | FIAT |
| 5991721 | FIAT |
| 5999520 | FIAT |
| 5999520 | IVECO |
| 60800242 | FIAT |
| 77512410 | FIAT |
| 8EL725859-001 | HELLA |
| 9035770 | FRIESEN |
| 92901639 | IVECO |
| 943356859 | MAGNETI MARELLI |
| 9448466 | IVECO |
| 99448466 | IVECO |
| A0107 | AS-PL |
| AEA1297 | AUTOELECTRO |
| ALT10168 | WOODAUTO |
| ALT121160 | SIOM |
| ALT121160A | SIOM |
| ALT121160R | SIOM |
| ALT1384 | ELECTROLOG |
| ALTS063 | 3EFFE |
| ALTS063RR | 3EFFE |
| ANM37240X | ANDEL |
| CA569IR | HC PARTS |
| CAL10116AS | CASCO |
| CAL10116RS | CASCO |
| CGB-81669 | AINDE |
| DRA5020 | DELCO |
| F032112453 | CARGO |
| IA9433 | ISKRA / LETRIKA |
| LRB00197 | LUCAS |
| LRB197 | LUCAS |
| PRAS063 | 3EFFE |
| STX100526 | STARDAX |
Video/Publications
