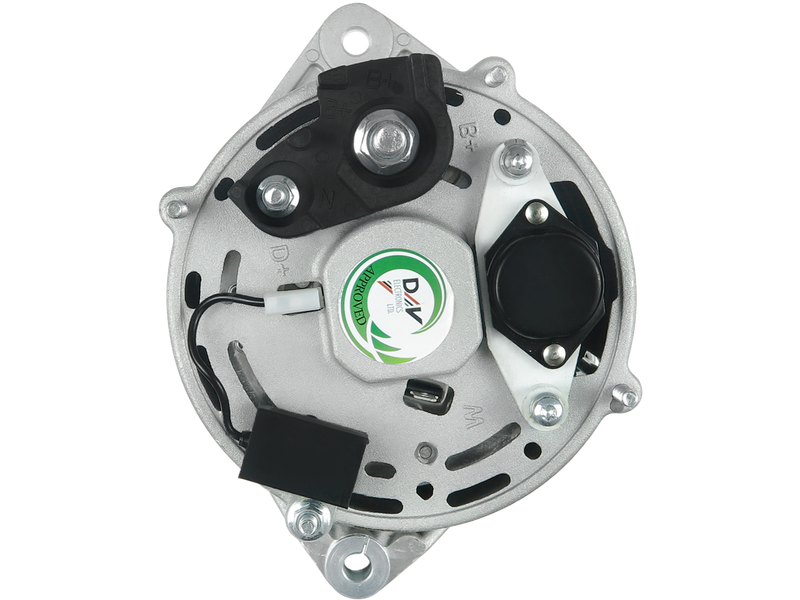

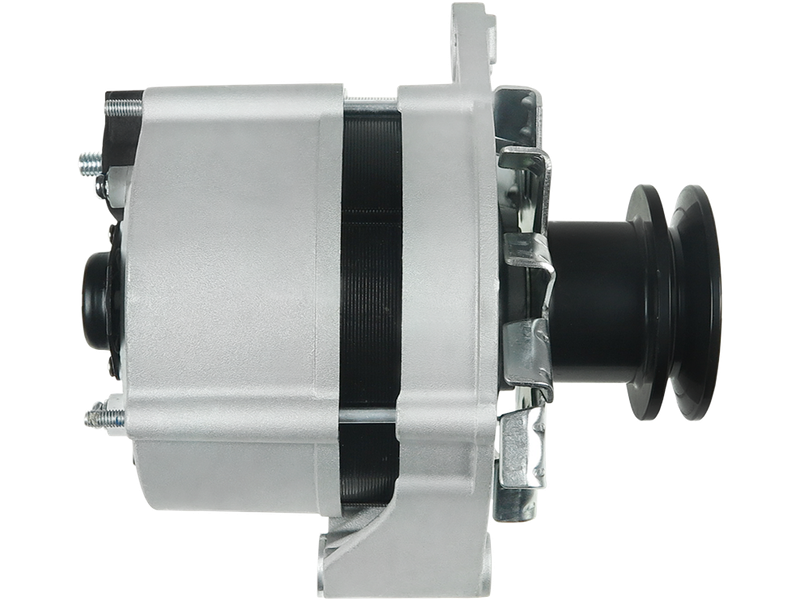

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 353.60 including GST
NZ$ 307.48 excluding GST
or four payments of $88.40
with
Learn More
each
A0141
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0120489262 0120489434 0120489435 068903017M 068903017MX 068903031D 068903031L 0986034560 11.0319 11.201.211 11.201.611 111287 20100983 20101191BN 2010191 20110129 23588R 28-0956 28-2961 30139RIM 30319RI 32034560 436225 4369 55769 89213665 8EL725721-001 9034560 9213665 A0141 AAK1179 AAK3510 AEA1229 ALT10289 CA319IR CAL10191AS DRA4560 EAA-221347 IA0211 LRB00129 23588NSpecifications
| Amp | 65 A |
| Bottom Mounting Foot Width (B) | 56 mm |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Length (L.1) | 190 mm |
| OEM Product | No |
| Plug Code | PL_9105 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 10 mm |
| Pulley Outside Diameter (O.D.1) | 47 mm |
| Pulley Outside Diameter (O.D.2) | 73 mm |
| Pulley to Mount Distance (A) | 109.50 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | Caddy 1.6 Diesel | [JK] | 08.1985-07.1990 |
| VW | Caddy 1.6 Diesel | [ME] | 08.1990-07.1992 |
| VW | Transporter 1.6 Diesel | [CS] | 08.1985-07.1987 |
| VW | Transporter 1.6 TD | [JX] | 12.1985-07.1992 |
| VW | Transporter 1.6 TD Syncro | [JX] | 03.1986-07.1992 |
| VW | Transporter 1.7 Diesel | [KY] | 10.1986-07.1992 |
Reference Information
| 0120489434 | BOSCH |
| 0120489435 | BOSCH |
| 036903017G | VW |
| 036903017GX | VW |
| 068903017M | VW |
| 068903017MX | VW |
| 068903031C | VW |
| 068903031D | VW |
| 068903031L | VW |
| 068903031S | VW |
| 068903031SX | VW |
| 068903315 | VW |
| 0986034560 | BOSCH |
| 11.0319 | LAUBER |
| 111287 | CARGO |
| 11.201.211 | ISKRA / LETRIKA |
| 11.201.611 | ISKRA / LETRIKA |
| 1516554R | DAF |
| 20100983 | PRESTOLITE |
| 20101191BN | REAL |
| 2010191 | SANDO |
| 20110129 | PRESTOLITE |
| 210108 | ERA |
| 23588N | WAI / TRANSPO |
| 23588R | WAI / TRANSPO |
| 28-2961 | ELSTOCK |
| 30139RIM | KUHNER |
| 30319RI | KUHNER |
| 311159 | RHIAG |
| 32034560 | HERTH+BUSS |
| 436225 | VALEO |
| 4369 | CEVAM |
| 440466 | LOGISTIK |
| 55769 | EAI |
| 89213665 | POWERMAX |
| 8EL725721-001 | HELLA |
| 9034560 | FRIESEN |
| 9213665 | POWERMAX |
| A0141 | AS-PL |
| AAK1179 | ISKRA / LETRIKA |
| AAK3510 | ISKRA / LETRIKA |
| AEA1229 | AUTOELECTRO |
| ALT10289 | WOODAUTO |
| ALT3170 | SIOM |
| ALT3170A | SIOM |
| ALT79049 | ELECTROLOG |
| ALTS610 | 3EFFE |
| ALTS610L | 3EFFE |
| ANM36780X | ANDEL |
| CA319IR | HC PARTS |
| CAL10191AS | CASCO |
| DRA4560 | DELCO |
| F032111287 | CARGO |
| IA0211 | ISKRA / LETRIKA |
| LRB00129 | LUCAS |
| LRB129 | LUCAS |
| MG 375 | MAHLE |
| MG 401 | MAHLE |
| PRAS610 | 3EFFE |
| PRAS610L | 3EFFE |
| RNL3456 | RNL |
| STX100731 | STARDAX |
| STX101011 | STARDAX |
