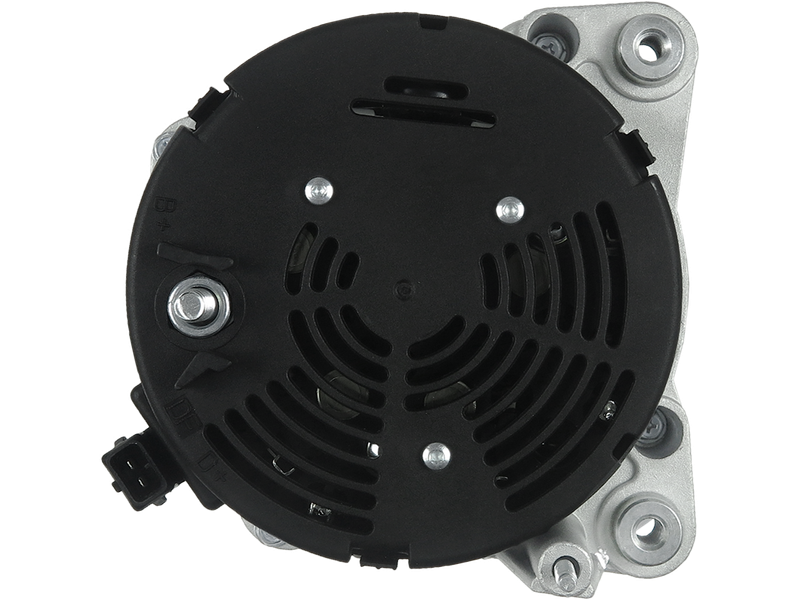

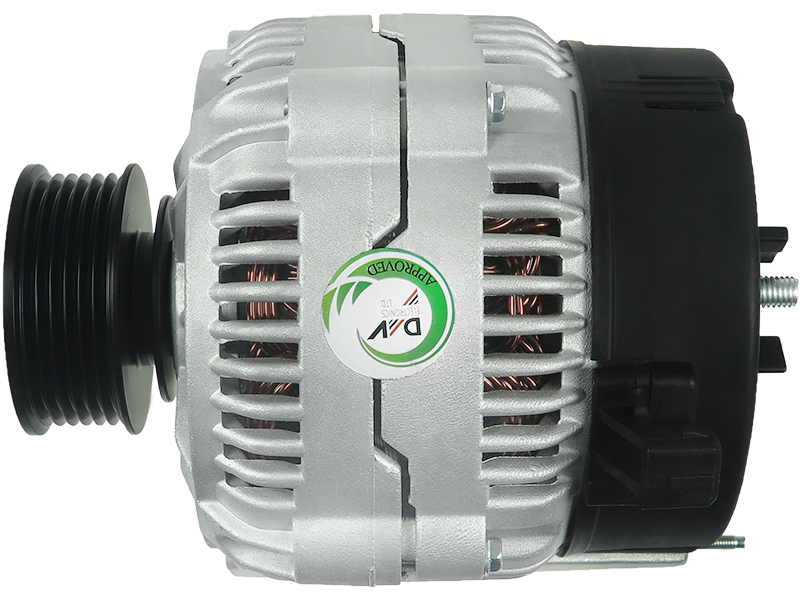

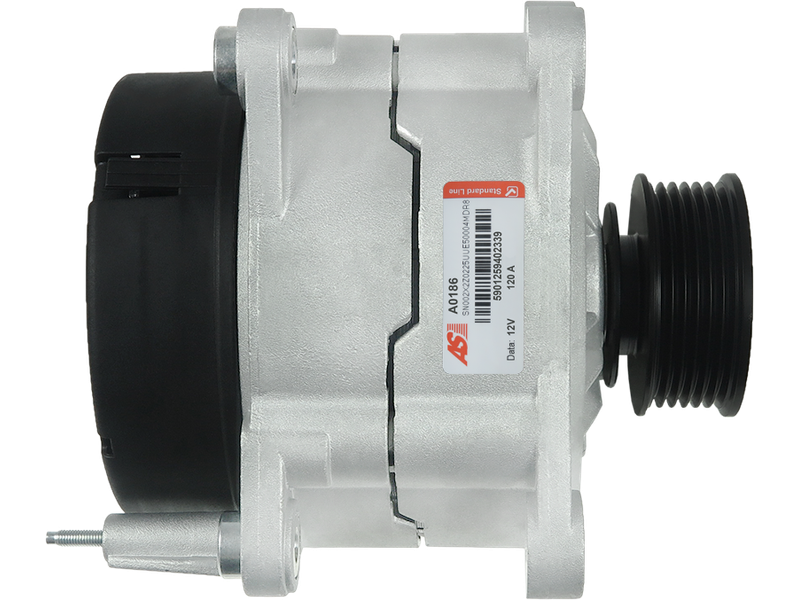

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 411.09 including GST
NZ$ 357.47 excluding GST
or four payments of $102.77
with
Learn More
each
A0186
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
0123515016Associated Numbers
0123510026 0123515016 028903027P 0986040360 11.1229 11.1264 111898 13626R 20101105BN 2010501 28-2763 301229RI 32040360 437618 4547 56590 89213797 8EL737310-001 9040360 A0186 AEA2296 ALT10366 B120510614 CA1229IR CAL10501AS DRB0360 EAA-221379 IA1269 LRB00296 13626NSpecifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 15 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 194 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61 mm |
| OEM Product | No |
| Plug Code | PL_2100 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 68 mm |
| Pulley to Mount Distance (A) | 39 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | LT 28-35 2.5 SDi | [AGX] | 07.1996-07.1998 |
| VW | LT 28-35 2.5 TDi | [AHD] | 05.1996-07.1998 |
| VW | LT 28-35 2.8 TDi | [AGK] | 06.1997-07.1998 |
| VW | LT 40-55 2.5 SDi | [AGX] | 05.1996-07.1998 |
| VW | LT 40-55 2.5 TDi | [AHD] | 05.1996-07.1998 |
| VW | LT 40-55 2.8 TDi | [AGK] | 07.1997-07.1998 |
| VW | Multivan 2.5 | [AET] | 08.1996-06.2003 |
| VW | Transporter 2.4 Diesel | [AAB] | 01.1996-04.2003 |
| VW | Transporter 2.4 Diesel | [AJA] | 08.1997-08.1998 |
| VW | Transporter 2.4 Diesel Syncro | [AAB] | 01.1996-03.2004 |
| VW | Transporter 2.5 | [ACU] | 12.1995-10.1996 |
| VW | Transporter 2.5 | [AEN] | 12.1995-10.1996 |
| VW | Transporter 2.5 | [AET] | 08.1996-06.2003 |
| VW | Transporter 2.5 | [AEU] | 08.1996-06.2003 |
| VW | Transporter 2.5 Syncro | [ACU] | 12.1995-10.1996 |
| VW | Transporter 2.5 Syncro | [AEN] | 09.1995-12.1995 |
| VW | Transporter 2.5 Syncro | [AET] | 07.1996-06.2003 |
| VW | Transporter 2.5 Syncro | [AEU] | 10.1992-11.2001 |
| VW | Transporter 2.5 TD | [AJT] | 05.1998-10.1998 |
| VW | Transporter 2.5 TDi | [ACV] | 01.1995-10.1998 |
| VW | Transporter 2.5 TDi | [AJT] | 05.1998-10.1998 |
| VW | Transporter 2.5 TDi Syncro | [ACV] | 01.1995-10.1998 |
| VW | Transporter 2.5 TDi Syncro | [AXL] | 01.1995-10.1998 |
Reference Information
| 0123510026 | BOSCH |
| 0123515016 | BOSCH |
| 028903027D | VW |
| 028903027P | VW |
| 028903028B | VW |
| 0986040360 | BOSCH |
| 11.1229 | LAUBER |
| 11.1264 | LAUBER |
| 111898 | CARGO |
| 13626N | WAI / TRANSPO |
| 13626R | WAI / TRANSPO |
| 1515434R | DAF |
| 1516434R | DAF |
| 20101105BN | REAL |
| 2010501 | SANDO |
| 209439 | ERA |
| 28-2763 | ELSTOCK |
| 28903027D | VW |
| 28903027P | VW |
| 301229RI | KUHNER |
| 32040360 | HERTH+BUSS |
| 437618 | VALEO |
| 441376 | LOGISTIK |
| 4547 | CEVAM |
| 56590 | EAI |
| 89213797 | POWERMAX |
| 8EL737310-001 | HELLA |
| 9040360 | FRIESEN |
| 905710100042 | MWM |
| A0186 | AS-PL |
| A12BH0527A2 | SIDAT |
| AEA2296 | AUTOELECTRO |
| AI-90093 | AINDE |
| ALT10366 | WOODAUTO |
| ALT1852 | ELECTROLOG |
| ALT6780 | SIOM |
| ALTE569 | 3EFFE |
| ALTS307 | 3EFFE |
| ANM42580X | ANDEL |
| B120510614 | BOSCH |
| CA1229IR | HC PARTS |
| CAL10501AS | CASCO |
| CGB-82763 | AINDE |
| DRB0360 | DELCO |
| F032111898 | CARGO |
| IA1269 | ISKRA / LETRIKA |
| LRB00296 | LUCAS |
| LRB296 | LUCAS |
| MG 33 | MAHLE |
| STA0450R | BOVEZ |
| STX100777 | STARDAX |
Video/Publications
A0186Related Items
