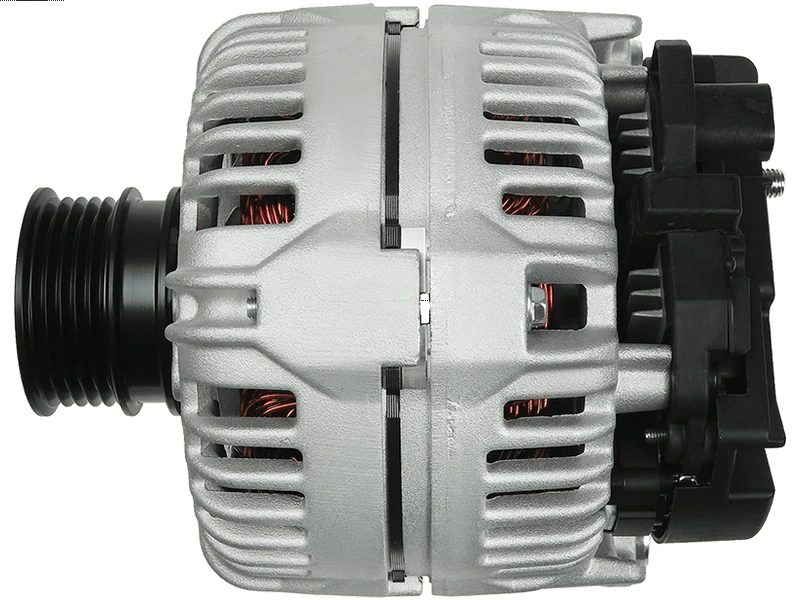

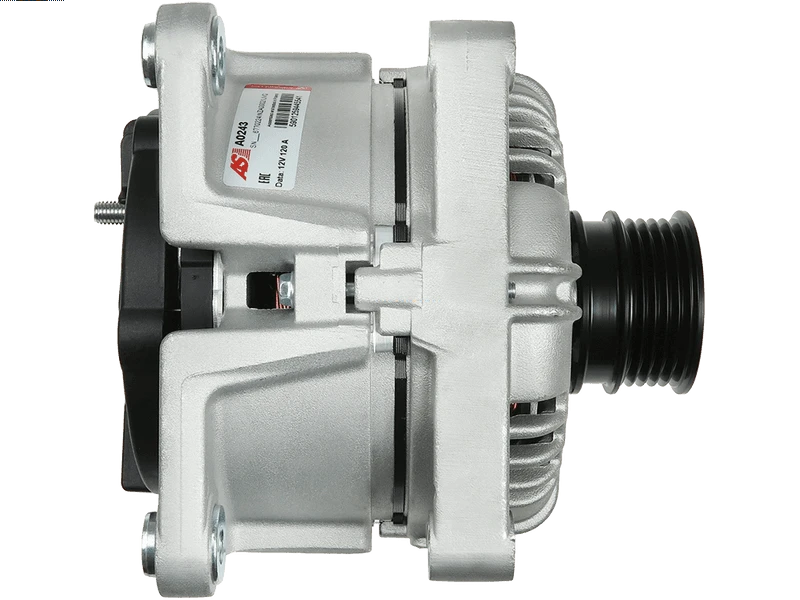

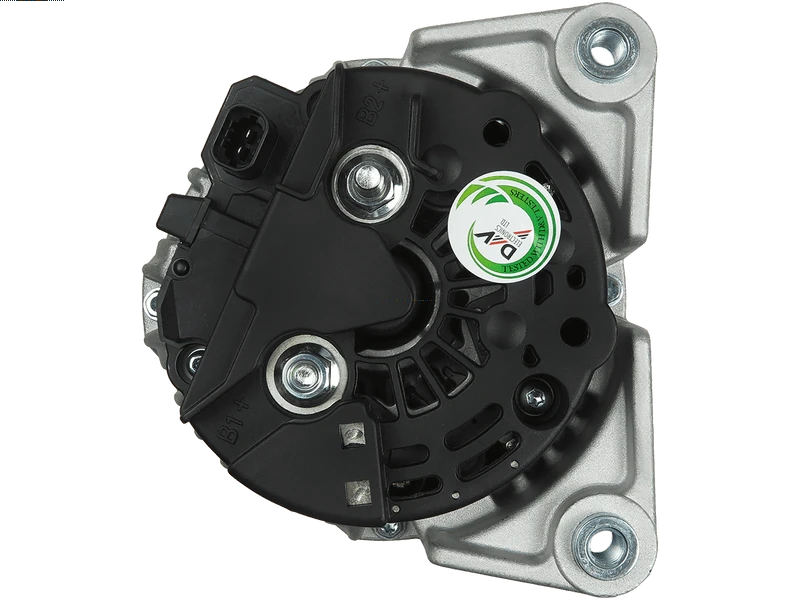

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 488.46 including GST
NZ$ 424.75 excluding GST
or four payments of $122.12
with
Learn More
each
A0243
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
0124425050Associated Numbers
0124425050 0986049990 11.1960 11475N 11475R 115306 13229985 135.575.120 20101405BN 2010504 28-6513 301960RI 32046140 4878 6204271 89212686 8EL738212-011 9049990 93190829 A0243 AEC1960 CA1960IR CAL10504AS DRA1148 EAA-221753 LRA03401 SB309Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 23 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 190 mm |
| Mount Inside Length or Pad Mount C-C (C) | 57 mm |
| OEM Product | No |
| Plug Code | PL_2200 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 63 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Astra 1.6 | [Z16XER] | 10.2006- |
| OPEL | Astra H 1.6 | [Z16XER] | 12.2006- |
| OPEL | Astra H 1.6 Ecotec | [Z16XER] | 02.2007- |
| OPEL | Astra H 1.6 GTC | [Z16XER] | 12.2006- |
| OPEL | Astra H 1.8 | [Z18XER] | 09.2005- |
| OPEL | Astra H 1.8 Ecotec | [Z18XER] | 02.2007- |
| OPEL | Astra H 1.8 GTC | [Z18XER] | 01.2006- |
| OPEL | Signum 1.8 | [Z18XER] | 09.2005- |
| OPEL | Vectra C 1.6 | [Z16XEP] | 01.2006- |
| OPEL | Vectra C 1.6 GTS | [Z16XEP] | 01.2006- |
| OPEL | Vectra C 1.8 GTS | [Z18XER] | 01.2006- |
| OPEL | Zafira B 1.6 | [Z16XER] | 01.2008- |
| VAUXHALL | Astra 1.8 | [Z18XER] | 05.2008- |
| VAUXHALL | Astra MK V 1.6 | [Z16XER] | 10.2006- |
| VAUXHALL | Astra Mk V 1.6 CC | [Z16XER] | 10.2006- |
| VAUXHALL | Astra Mk V 1.8 CC | [Z18XER] | 04.2006- |
| VAUXHALL | Astravan Mk V 1.6 | [Z16XEP] | 03.2005- |
| VAUXHALL | Signum 1.8 | [Z18XER] | 08.2005- |
| VAUXHALL | Vectra 1.6 | [Z16XEP] | 01.2006- |
| VAUXHALL | Vectra 1.6 GTS | [Z16XEP] | 01.2006- |
| VAUXHALL | Vectra 1.8 | [Z18XER] | 01.2006- |
| VAUXHALL | Vectra 1.8 GTS | [Z18XER] | 01.2006- |
| VAUXHALL | Zafira Mk II 1.6 | [Z16XER] | 12.2007- |
Reference Information
| 0124425050 | BOSCH |
| 0986049990 | BOSCH |
| 11.1960 | LAUBER |
| 11475N | WAI / TRANSPO |
| 11475R | WAI / TRANSPO |
| 115306 | CARGO |
| 1202428 | OPEL |
| 1202428 | VAUXHALL |
| 13229985 | OPEL |
| 135.575.120 | PSH |
| 135.575.120.280 | PSH |
| 135.575.120.460 | PSH |
| 135.575.120.500 | PSH |
| 20101405BN | REAL |
| 2010504 | SANDO |
| 209332 | ERA |
| 28-6513 | ELSTOCK |
| 301960RI | KUHNER |
| 312169 | RHIAG |
| 32046140 | HERTH+BUSS |
| 441891 | LOGISTIK |
| 4878 | CEVAM |
| 5510623 | MEAT & DORIA |
| 6204271 | OPEL |
| 89212686 | POWERMAX |
| 8EL738212-011 | HELLA |
| 9049990 | FRIESEN |
| 93190829 | SAAB |
| 95519865 | OPEL |
| 95519865 | VAUXHALL |
| A0243 | AS-PL |
| A12BH0644A2 | SIDAT |
| AEC1960 | AUTOELECTRO |
| AI-90204 | AINDE |
| ALT123140 | SIOM |
| ALT125040 | SIOM |
| ALT125040A | SIOM |
| ALT1414 | ELECTROLOG |
| ALT2146 | ROLLCO |
| ALT2178 | ROLLCO |
| ALT221540 | SIOM |
| ALT286513 | 3EFFE |
| ALT3095 | 3EFFE |
| ALTS281 | 3EFFE |
| ANM33368X | ANDEL |
| CA1960IR | HC PARTS |
| CAL10504AS | CASCO |
| DRA1148 | DELCO |
| F032115306 | CARGO |
| LRA03401 | LUCAS |
| LRA3401 | LUCAS |
| PRAS281 | 3EFFE |
| RNL4999 | RNL |
| SB309 | SOVEREIGN |
| STX100342 | STARDAX |
| STX100342R | STARDAX |
Video/Publications
A0243Related Items
