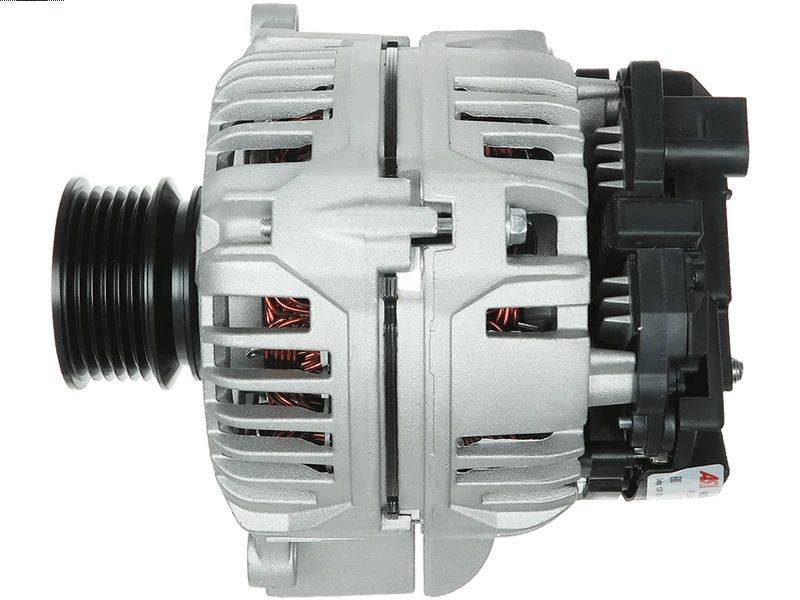

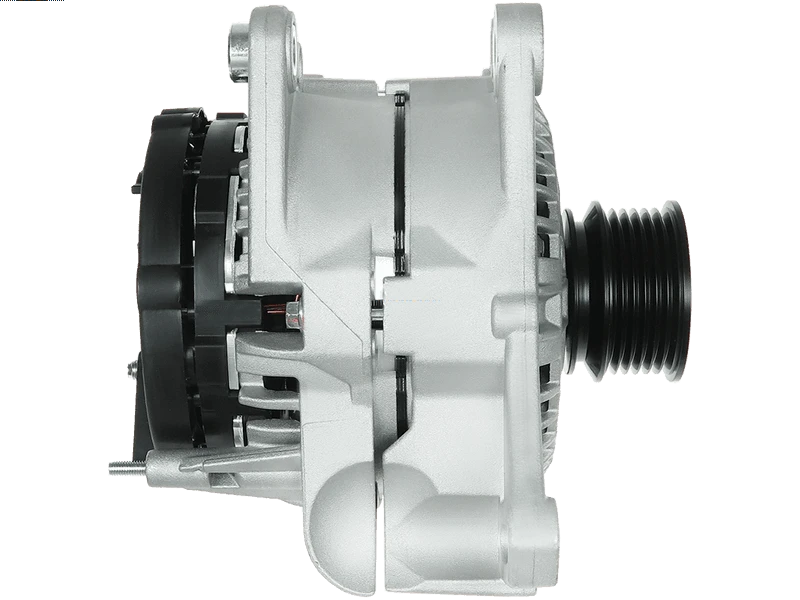

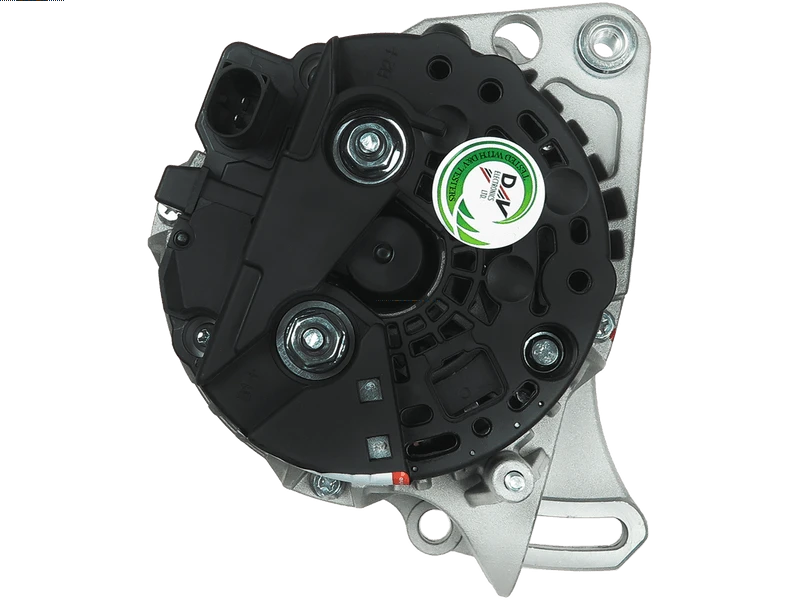

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 429.15 including GST
NZ$ 373.17 excluding GST
or four payments of $107.29
with
Learn More
each
A0254
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0124315008Associated Numbers
0124315008 037903025J 037903025Q 0986042630 11.1566 11.1566M 112411 2015316 20179613OE 22995N 2542258 28-3905 301566RI 32041910 4062 437397 439438 56855 89213804 9042630 9213804 944390426300 AEA4280 CA1566IR CAL15316GS DRB2630 LRA01998 SG8B016Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | M8x1.25 mm |
| Length (L.1) | 187 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 40 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SEAT | Ibiza 1.4 16V | [AUB] | 01.2002- |
| SKODA | Fabia 1.4 16V | [AUA] | 01.1999-12.2003 |
| SKODA | Fabia 1.4 16V | [AUB] | 01.1999-12.2003 |
| SKODA | Octavia 1.4 | [BCA] | 01.2004- |
Reference Information
| 0124315008 | BOSCH |
| 037903025G | VW |
| 037903025J | VW |
| 037903025N | VW |
| 037903025Q | VW |
| 0986042630 | BOSCH |
| 11.1566 | LAUBER |
| 11.1566M | LAUBER |
| 112411 | CARGO |
| 2015316 | SANDO |
| 20179613OE | REAL |
| 209157 | ERA |
| 22995N | WAI / TRANSPO |
| 2542258 | VALEO |
| 28-3905 | ELSTOCK |
| 301566RI | KUHNER |
| 310901 | RHIAG |
| 32041910 | HERTH+BUSS |
| 37903025J | VW |
| 37903025Q | VW |
| 4062 | CEVAM |
| 437397 | VALEO |
| 439438 | VALEO |
| 56855 | EAI |
| 89213804 | POWERMAX |
| 9042630 | FRIESEN |
| 9213804 | POWERMAX |
| 944390426300 | MAGNETI MARELLI |
| A0254 | AS-PL |
| AEA4280 | AUTOELECTRO |
| ALT00111 | ELECTROLOG |
| ALT173750 | SIOM |
| ALT2221 | 3EFFE |
| ALT3500 | SIOM |
| ALTF499 | 3EFFE |
| CA1566IR | HC PARTS |
| CAL15316GS | CASCO |
| DRB2630 | DELCO |
| F032112411 | CARGO |
| LRA01998 | LUCAS |
| LRA1998 | LUCAS |
| PRAF499 | 3EFFE |
| SG8B016 | VALEO |
| STX100413 | STARDAX |
| STX100413R | STARDAX |
| STX100604 | STARDAX |
Video/Publications
