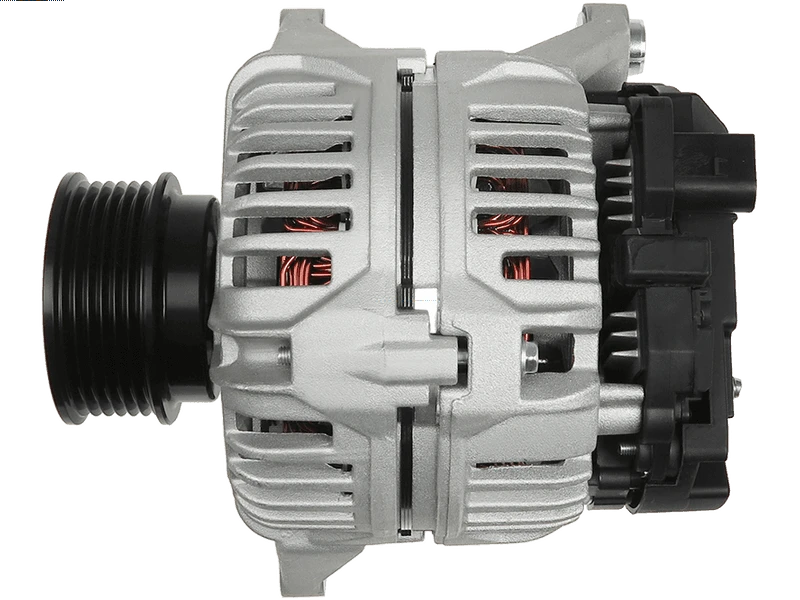

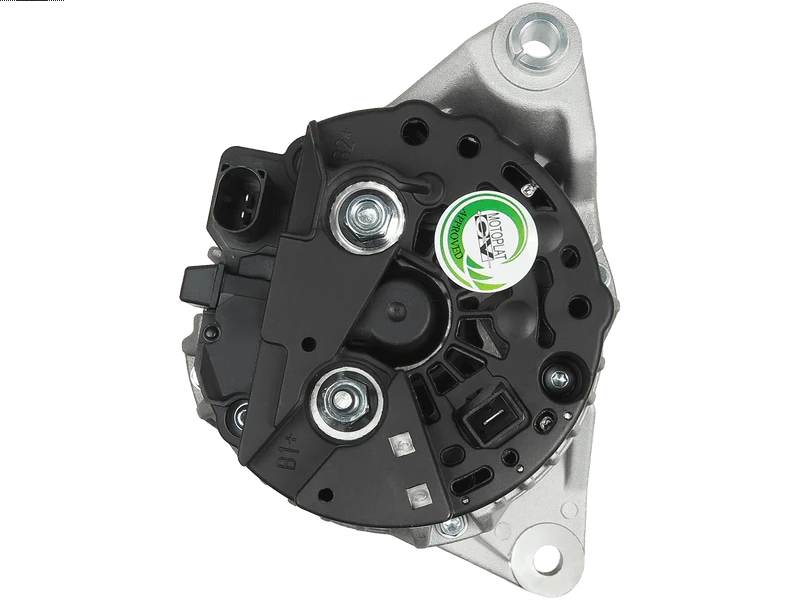

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 445.52 including GST
NZ$ 387.41 excluding GST
or four payments of $111.38
with
Learn More
each
A0255
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0124320002Associated Numbers
0124320002 0986042670 11.1684 11.1684M 113280 20101162OE 2010157 20101751OE 2010261 20130238 23187N 28-4649 301684RIB 437481 56918 7700377092 9042670 9451 ALT10408 CA1684IR CAL10157GS CAL10261GS DRB2670 EAA-221075 LRA02187Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | 11 mm |
| Length (L.1) | 192 mm |
| Mount Inside Length or Pad Mount C-C (C) | 81 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 68 mm |
| Pulley to Mount Distance (A) | 47 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| RENAULT V.I. | Mascott 110.35 2.8 | [8140.43.B.3586] | 01.1999-06.2004 |
| RENAULT V.I. | Mascott 110.35 2.8 | [8140.43.B.3588] | 01.1999-06.2004 |
| RENAULT V.I. | Mascott 110.35 2.8 | [8140.43.C.2586] | 01.1999-06.2004 |
| RENAULT V.I. | Mascott 110.50 2.8 | [8140.43.B.3586] | 01.1999-06.2004 |
| RENAULT V.I. | Mascott 110.50 2.8 | [8140.43.B.3588] | 01.1999-06.2004 |
| RENAULT V.I. | Mascott 110.50 2.8 | [8140.43.C.2586] | 01.1999-06.2004 |
| RENAULT V.I. | Mascott 110.55 2.8 | [8140.43.B.3586] | 01.1999-06.2004 |
| RENAULT V.I. | Mascott 110.55 2.8 | [8140.43.B.3588] | 01.1999-06.2004 |
| RENAULT V.I. | Mascott 110.55 2.8 | [8140.43.C.2586] | 01.1999-06.2004 |
| RENAULT V.I. | Mascott 110.60 2.8 | [8140.43.B.3586] | 01.1999-06.2004 |
| RENAULT V.I. | Mascott 110.60 2.8 | [8140.43.B.3588] | 01.1999-06.2004 |
| RENAULT V.I. | Mascott 110.60 2.8 | [8140.43.C.2586] | 01.1999-06.2004 |
| RENAULT V.I. | Mascott 130.35 2.8 | [8140.43.S.2585] | 01.1999-06.2004 |
| RENAULT V.I. | Mascott 130.35 2.8 | [8140.43.S.3585] | 01.1999-06.2004 |
| RENAULT V.I. | Mascott 130.55 2.8 | [8140.43.S.2585] | 01.1999-06.2004 |
| RENAULT V.I. | Mascott 130.55 2.8 | [8140.43.S.3585] | 01.1999-06.2004 |
| RENAULT V.I. | Mascott 130.65 2.8 | [8140.43.S.2585] | 01.1999-06.2004 |
| RENAULT V.I. | Mascott 130.65 2.8 | [8140.43.S.3585] | 01.1999-06.2004 |
| RENAULT V.I. | Mascott 140.35 2.8 | [8140.43k] | 01.2001-06.2004 |
| RENAULT V.I. | Mascott 140.55 2.8 | [8140.43k] | 01.2001-06.2004 |
| RENAULT V.I. | Mascott 140.65 2.8 | [8140.43k] | 01.2001-06.2004 |
| RENAULT V.I. | Mascott 150.35 2.8 | [8140.43N.3585] | 10.2001-06.2004 |
| RENAULT V.I. | Mascott 150.55 2.8 | [8140.43N.3585] | 10.2001-06.2004 |
| RENAULT V.I. | Mascott 150.65 2.8 | [8140.43N.3585] | 10.2001-06.2004 |
| RENAULT V.I. | Mascott 90.35 2.8 | [8140.63.2585] | 01.1999-12.2001 |
Reference Information
| 0124320002 | BOSCH |
| 0986042670 | BOSCH |
| 11.1684 | LAUBER |
| 11.1684M | LAUBER |
| 113280 | CARGO |
| 20101162OE | REAL |
| 2010261 | SANDO |
| 20130238 | PRESTOLITE |
| 210933 | ERA |
| 23187N | WAI / TRANSPO |
| 28-4649 | ELSTOCK |
| 301684RI | KUHNER |
| 301684RIB | KUHNER |
| 310985 | RHIAG |
| 437481 | VALEO |
| 441831 | LOGISTIK |
| 56918 | EAI |
| 7700377091 | RENAULT |
| 7700377092 | RENAULT |
| 9042670 | FRIESEN |
| 9451 | CEVAM |
| A0255 | AS-PL |
| A12BH0580A2 | SIDAT |
| AI-90030 | AINDE |
| ALT10408 | WOODAUTO |
| ALT122610 | SIOM |
| ALT1696 | ELECTROLOG |
| ALTL727 | 3EFFE |
| ANM44890X | ANDEL |
| CA1684IR | HC PARTS |
| CAL10261GS | CASCO |
| CGB-84649 | AINDE |
| DRB2670 | DELCO |
| F032113280 | CARGO |
| LRA02187 | LUCAS |
| LRA2187 | LUCAS |
| STX100310 | STARDAX |
| STX100326 | STARDAX |
Video/Publications
