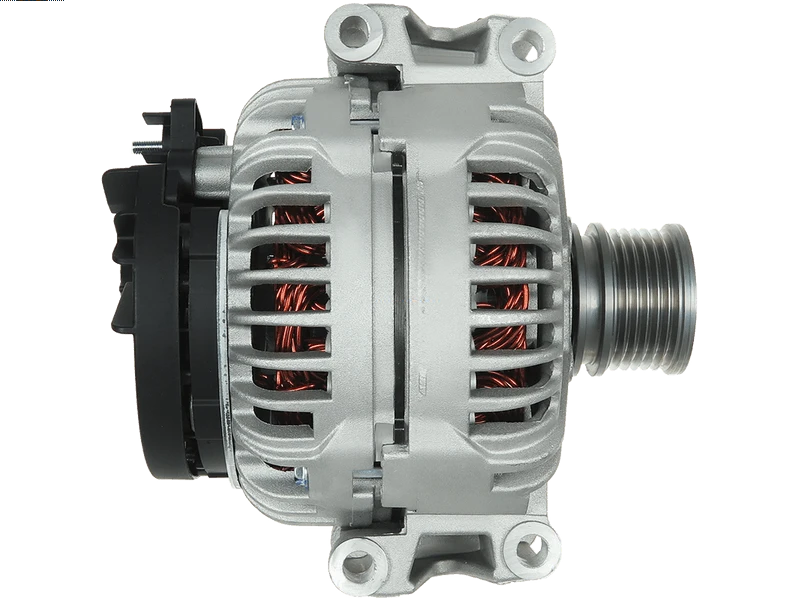

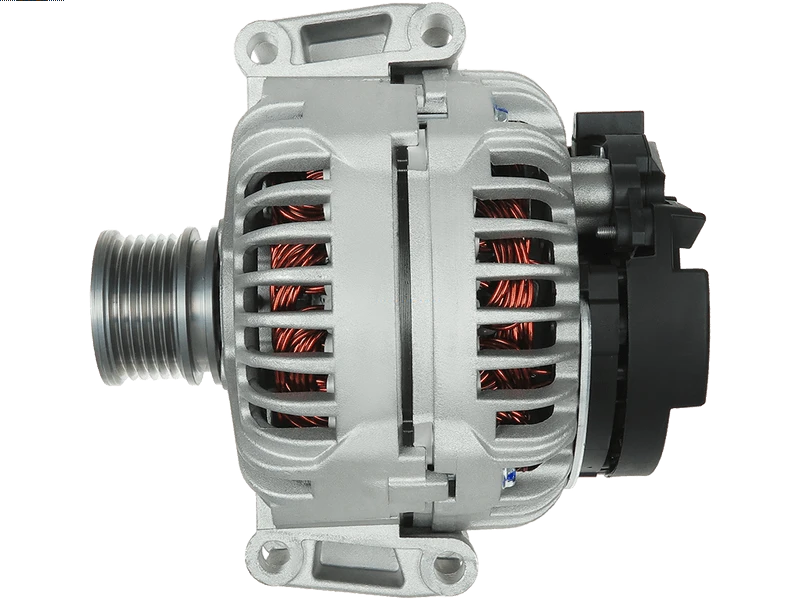

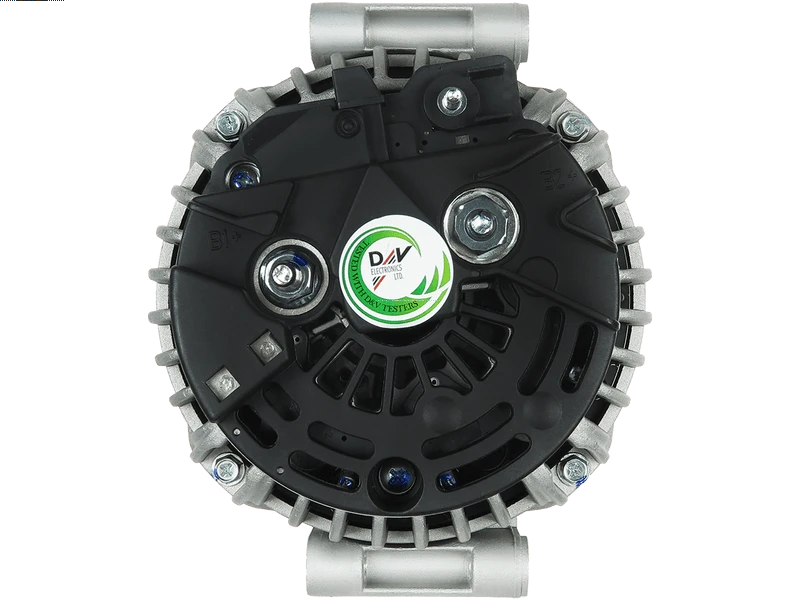

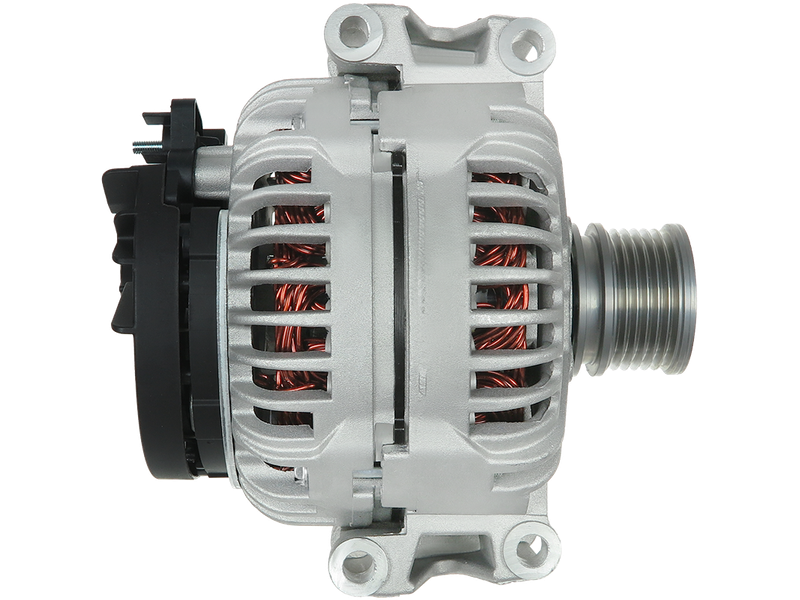

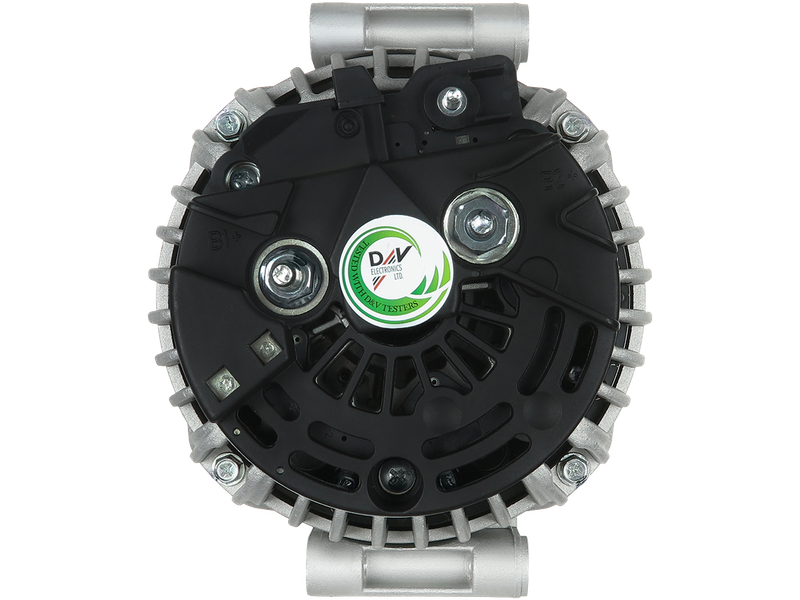

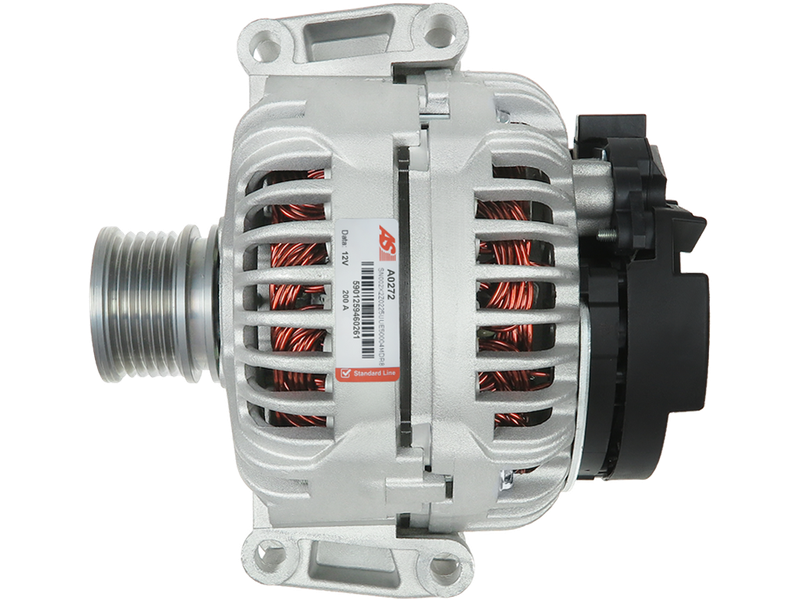

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 652.15 including GST
NZ$ 567.09 excluding GST
or four payments of $163.04
with
Learn More
each
A0272
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0124625020Associated Numbers
0124625020 12385N 20101343OE 2010343 28-6526 5117587AA 5117587AB 553316RI A0131541102 ALT10457 CAL10343GSSpecifications
| Amp | 200 A |
| Bottom Mounting Foot Width (B) | 70 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Diameter (D.4) | 10 mm |
| Length (L.1) | 200 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 70 mm |
| Pad mount thickness (E.2) | 70 mm |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley to Mount Distance (A) | 33 mm |
| Pulley Type | Clutch |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | Sprinter 208 2.2 CDi | [OM611.987] | 01.2000-12.2006 |
| MERCEDES BENZ | Sprinter 211 2.2 CDi | [OM611.981] | 01.2000-12.2006 |
| MERCEDES BENZ | Sprinter 213 2.2 CDi | [OM611.981] | 01.2000-12.2006 |
| MERCEDES BENZ | Sprinter 216 2.7 CDi | [OM612.981] | 01.2000-12.2006 |
| MERCEDES BENZ | Sprinter 308 2.2 CDi | [OM611.987] | 01.2000-12.2006 |
| MERCEDES BENZ | Sprinter 311 2.2 CDi | [OM611.981] | 01.2000-12.2006 |
| MERCEDES BENZ | Sprinter 313 2.2 CDi | [OM611.981] | 01.2000-12.2006 |
| MERCEDES BENZ | Sprinter 316 2.7 CDi | [OM612.981] | 01.2000-12.2006 |
| MERCEDES BENZ | Sprinter 408 2.2 CDi | [OM611.987] | 01.2000-12.2006 |
| MERCEDES BENZ | Sprinter 411 2.2 CDi | [OM611.981] | 01.2000-12.2006 |
| MERCEDES BENZ | Sprinter 413 2.2 CDi | [OM611.981] | 01.2000-12.2006 |
| MERCEDES BENZ | Sprinter 416 2.7 CDi | [OM612.981] | 01.2000-12.2006 |
| MERCEDES BENZ | Sprinter 616 2.7 CDi | [OM612.981] | 01.2001-12.2006 |
Reference Information
| 012028 | DA SILVA |
| 0124625011 | BOSCH |
| 0124625020 | BOSCH |
| 0124625020-R | BOSCH |
| 0124625206 | BOSCH |
| 0131541102 | MERCEDES |
| 013154110280 | MERCEDES |
| 05117587AA | FIAT |
| 0986046610 | BOSCH |
| 101342 | AUGER |
| 11.209.680 | ISKRA / LETRIKA |
| 112198 | FARCOM |
| 12046610 | EUROTEC |
| 12385N | WAI / TRANSPO |
| 1986A00657 | BOSCH |
| 1986A01114 | BOSCH |
| 20010343AV | ITAB AUTOMOTIVE |
| 20010343OV | ITAB AUTOMOTIVE |
| 20-0831 | AIRSTAL |
| 20101343BN | REAL |
| 20101343OE | REAL |
| 2010343.0 | SANDO |
| 2010343.1 | SANDO |
| 209087A | ERA |
| 210.430 | SAMPA |
| 220-30148 | ROBERT'S |
| 220-30148NOE | ROBERT'S |
| 2251312002 | DRI |
| 259ST58 | STARTCAR |
| 28-6526 | ELSTOCK |
| 28-6526CT | AINDE |
| 3120878 | HENKEL PARTS |
| 32046610 | HERTH+BUSS |
| 442429 | LOGISTIK |
| 444225 | VALEO |
| 5117587AA | FIAT |
| 5117587AB | FIAT |
| 5481FB0032117 | FRANKBERG |
| 5510520 | MEAT & DORIA |
| 5510520G | MEAT & DORIA |
| 553316RI | KUHNER |
| 553316RIB | KUHNER |
| 555.567.200.010 | PSH |
| 555.567.200.215 | PSH |
| 555.567.200.280 | PSH |
| 555.567.200.440 | PSH |
| 58259 | EAI |
| 72535141 | MAHLE |
| 89214999 | POWERMAX |
| 90-15-6528 | WILSON |
| 9046610 | FRIESEN |
| 9214999 | POWERMAX |
| 9357 | CEVAM |
| A0131541102 | MERCEDES |
| A013154110280 | MERCEDES |
| A0272 | AS-PL |
| A12BH0561 | SIDAT |
| A12BH0561A2 | SIDAT |
| A133.999 | PSH |
| A2143B | PRESTOLITE |
| A6482 | DIXIE |
| AAN8266 | ISKRA / LETRIKA |
| ABO343 | AUTOTEAM |
| AC-CBA5751 | ACAUTO |
| AI-90034 | AINDE |
| AL03041 | TMI |
| ALB3626 | KRAUF |
| ALT10457 | WOODAUTO |
| ALT123430 | SIOM |
| ALT123430A | SIOM |
| ALT1636 | ELECTROLOG |
| ALTS939 | 3EFFE |
| ANM48830 | ANDEL |
| AZMT-49-035-1230 | A.Z. MEISTERTEILE |
| AZMT-49-035-2157 | A.Z. MEISTERTEILE |
| BOS0124625020 | WOODAUTO |
| CAL10343AS | CASCO |
| CAL10343GS | CASCO |
| DRB6610 | DELCO |
| G100718 | BTS TURBO |
| G100719 | BTS TURBO |
| G106199 | BTS TURBO |
| IA9529 | ISKRA / LETRIKA |
| IR5495 | PROTECH |
| L46610 | ATL AUTOTECHNIK |
| LRA03414 | LUCAS |
| LRA3414 | LUCAS |
| ME8190 | SNRA |
| MG1092 | MAHLE |
| RNL4661 | RNL |
| STX102338R | STARDAX |
| TT11933 | TESLA TECHNICS |
| WAL02192 | WALKER |
| WG2203029 | WILMINK GROUP |
| WG2283081 | WILMINK GROUP |
| WOOALT10457 | WOODAUTO |
Video/Publications
A0272View your shopping basket or Browse other items in Alternators.
