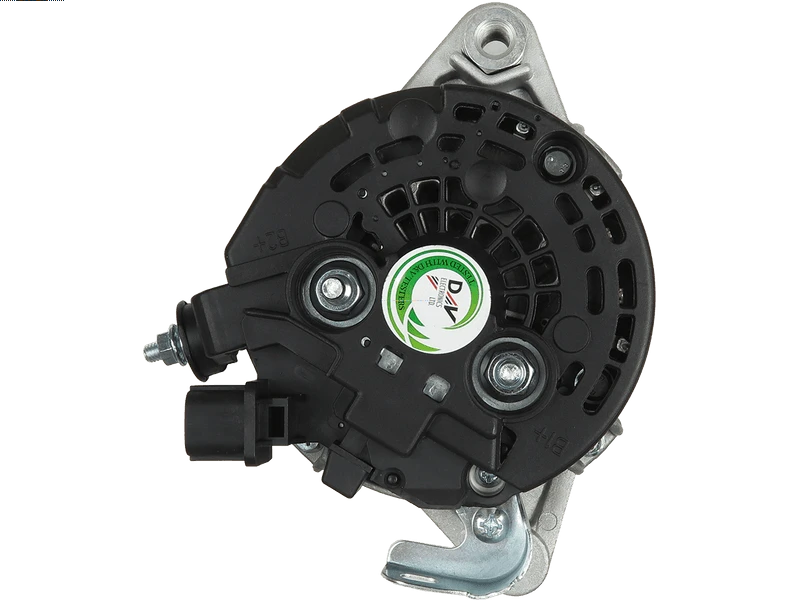

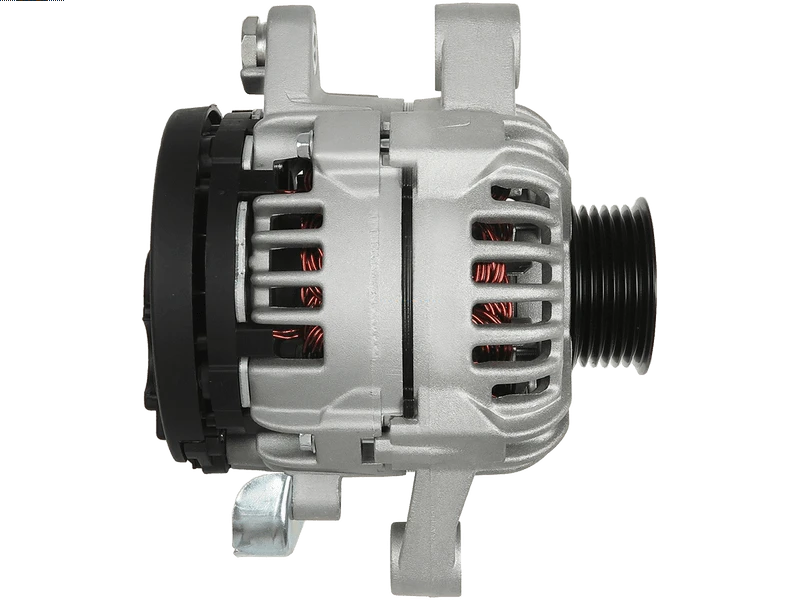

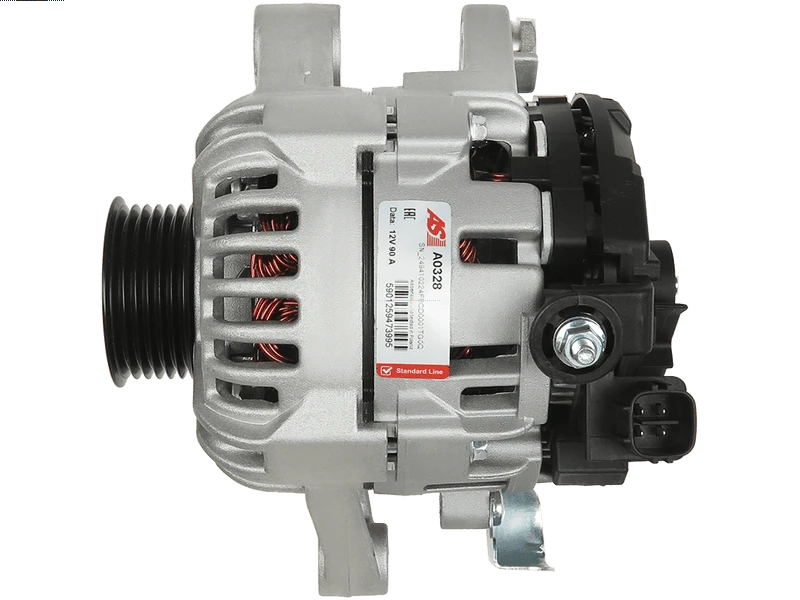

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 451.97 including GST
NZ$ 393.02 excluding GST
or four payments of $112.99
with
Learn More
each
A0328
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
0124225053Associated Numbers
0124225053 0124225054 0986080450 11.1929 195.929.090 20101304BN 2010403 2010404 20327R 20327RW 20356RW 27060-0J061 28-5799 28-5800 301929RI 301942RI 57373 9090849 9496 9497 A0328 A1058D AEK3188 CA1929IR CA1942IR CAL10403 CAL10403AS CAL10403ES CAL10403GS CAL10403OS CAL10403RS CAL10404 CAL10404AS CAL10404ES CAL10404GS CAL10404OS CAL10404RS DRA0621 DRA0622 EAA-222349 G104730-N LRA03187 LRA03188 UD10808A UD10809ASpecifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 27 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 170 mm |
| Mount Inside Length or Pad Mount C-C (C) | 39 mm |
| OEM Product | No |
| Plug Code | PL_4000 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 48 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Yaris 1.3 VVT-i | [2SZ-FE] | 01.2006-12.2008 |
Reference Information
| 0124225053 | BOSCH |
| 063731942010 | MAGNETI MARELLI |
| 114667 | CARGO |
| 195.929.090.010 | PSH |
| 195.929.090.280 | PSH |
| 195.929.090.415 | PSH |
| 195.929.090.780 | PSH |
| 20101304BN | REAL |
| 20101304RC | REAL |
| 2010403.0 | SANDO |
| 2010403.2 | SANDO |
| 20327R | WAI / TRANSPO |
| 210941 | ERA |
| 27060-0J061 | TOYOTA |
| 28-5800 | ELSTOCK |
| 301942RI | KUHNER |
| 446945 | LOGISTIK |
| 57373 | EAI |
| 89213553 | POWERMAX |
| 9496 | CEVAM |
| A0328 | AS-PL |
| A12BH0179A2 | SIDAT |
| AEK3188 | AUTOELECTRO |
| AG1147 | GHIBAUDI |
| AI-90162 | AINDE |
| AI-90162R | AINDE |
| ALN1929 | KRAUF |
| ALT10739 | WOODAUTO |
| ALT124030 | SIOM |
| ALT1426 | ELECTROLOG |
| ALTL793 | 3EFFE |
| ANM32842X | ANDEL |
| BOS0124225053 | WOODAUTO |
| CAL10403AS | CASCO |
| CAL10403RS | CASCO |
| CGB-85800 | AINDE |
| DA1732 | DELCO |
| DRA0622 | DELCO |
| F032114667 | CARGO |
| GA225053-A | GPARTS |
| GA225053B-R | GPARTS |
| J5112165 | HERTH+BUSS |
| LRA03188 | LUCAS |
| LRA3188 | LUCAS |
| MQA1942 | MAGNETI MARELLI |
| PRAL793 | 3EFFE |
| UD10808A | AS-PL |
| UD10809A | AS-PL |
Video/Publications
A0328Related Items
