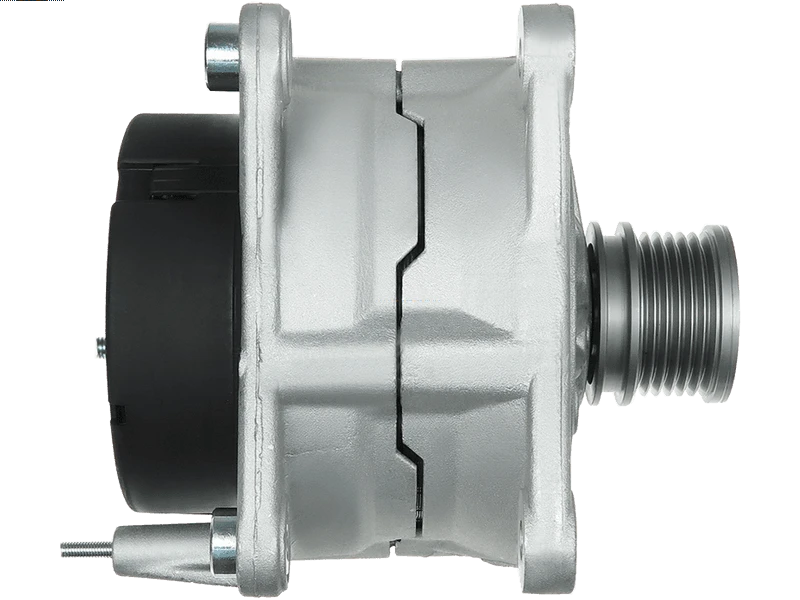

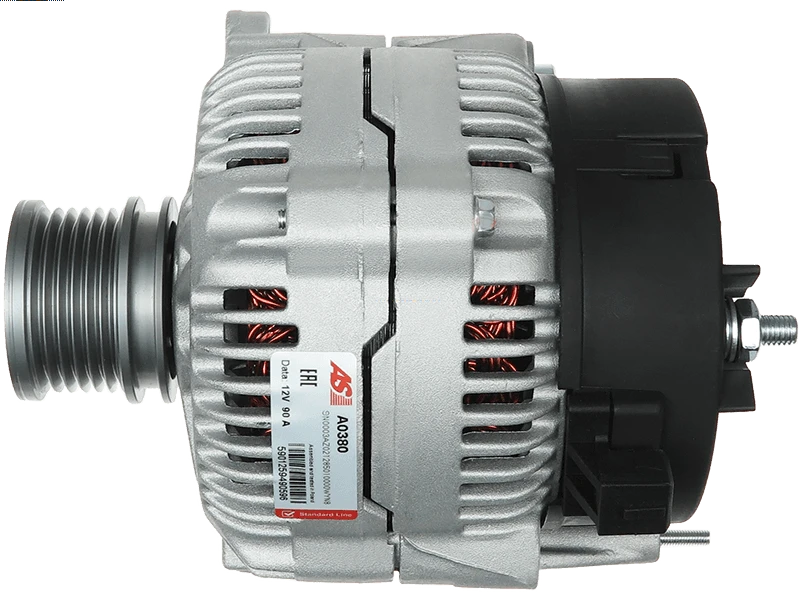

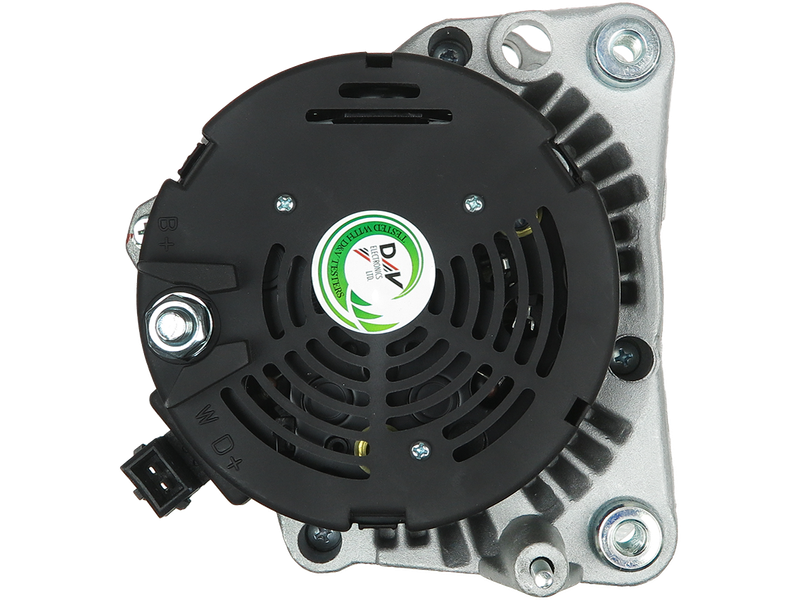

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 560.18 including GST
NZ$ 487.11 excluding GST
or four payments of $140.05
with
Learn More
each
A0380
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0123310049 0123320038 028903028J 0986040950 0986048950 11.1297 11.1510 11.1510M 11.203.078 111884 20101402BN 20101402OE 20101902BN 20101902RC 2010204 2010209 28-4869 301297RI 301510RI 305.512.070 305.512.090 32040950 35214370 4057 4058 56293 56821 6K0903028 89213090 8EL737769-001 9038390 9040950 9517482 AAK5349 AEA4282 CA1297IR CA1510IR CAL10204 CAL10204AS CAL10204ES CAL10204GS CAL10204OS CAL10204RS CAL10209AS CAL10209RS DRA4118 DRB0950 LRA02771 SA313 SA627 UD02243ASpecifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 197 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61 mm |
| OEM Product | No |
| Plug Code | PL_9105 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley to Mount Distance (A) | 40 mm |
| Pulley Type | Clutch |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SEAT | Alhambra 1.9 TDi | [AFN] | 08.1996-06.2000 |
| SEAT | Cordoba 1.9 SDi | [AEF] | 08.1996-06.1999 |
| SEAT | Cordoba 1.9 SDi | [AEY] | 08.1996-06.1999 |
| SEAT | Cordoba 1.9 SDi | [AEY] | 09.1996-06.1999 |
| SEAT | Cordoba 1.9 TDi | [1Z] | 08.1996-06.1999 |
| SEAT | Cordoba 1.9 TDi | [AFN] | 03.1997-06.1999 |
| SEAT | Cordoba 1.9 TDi | [AFN] | 07.1997-06.1999 |
| SEAT | Cordoba 1.9 TDi | [AHU] | 08.1996-06.1999 |
| SEAT | Ibiza 1.9 SDi | [AEF] | 08.1996-08.1999 |
| SEAT | Ibiza 1.9 SDi | [AEY] | 08.1996-08.1999 |
| SEAT | Ibiza 1.9 TDi | [1Z] | 08.1996-08.1999 |
| SEAT | Ibiza 1.9 TDi | [AFN] | 02.1997-08.1999 |
| SEAT | Ibiza 1.9 TDi | [AHU] | 08.1996-08.1999 |
| SEAT | Inca 1.7 Diesel | [AHB] | 09.1996- |
| SEAT | Toledo 1.9 TDi | [AFN] | 11.1996-03.1999 |
| SEAT | Toledo 1.9 TDi | [AHU] | 08.1995-03.1999 |
| VW | Caddy 1.7 SDi | [AHB] | 07.1996-09.2000 |
| VW | Caddy 1.9 SDi | [AEY] | 11.1995-01.2004 |
| VW | Caddy 1.9 TDi | [AHU] | 10.1996-01.2004 |
| VW | Caddy 1.9 TDi | [AHU] | 12.1996-01.2004 |
| VW | Caddy 1.9 TDi | [ALE] | 10.1996-01.2004 |
| VW | Caddy 1.9 TDi | [ALH] | 09.1997-01.2004 |
| VW | Golf III 1.9 Diesel | [1Y] | 07.1993-04.1999 |
| VW | Golf III 1.9 TD | [AAZ] | 07.1993-04.1999 |
| VW | Golf III 1.9 TD | [AAZ] | 11.1991-08.1997 |
| VW | Golf III 1.9 TDi | [AHU] | 08.1995-05.1998 |
| VW | Golf III 1.9 TDi | [AHU] | 09.1993-08.1997 |
| VW | Golf III 1.9 TDi | [ALE] | 05.1997-12.1997 |
| VW | Golf IV 1.9 TDi | [AHU] | 04.1998-06.2000 |
| VW | Golf IV 1.9 TDi | [ALE] | 04.1998-12.2001 |
| VW | Polo 1.7 SDi | [AKW] | 07.1997-09.2001 |
| VW | Polo 1.7 SDi | [AKW] | 08.1997-09.2001 |
| VW | Polo 1.8 GTi | [BJX] | 09.2005- |
| VW | Polo 1.9 SDi | [AEY] | 06.1997-09.2001 |
| VW | Polo 1.9 SDi | [AEY] | 12.1995-08.1999 |
| VW | Polo 1.9 TDi | [AFN] | 06.1998-09.2001 |
| VW | Polo 1.9 TDi | [AHU] | 05.1997-09.2001 |
| VW | Polo 1.9 TDi | [AHU] | 09.1996-08.2000 |
| VW | Polo 1.9 TDi | [ALE] | 11.1997-08.1999 |
| VW | Sharan 1.9 TDi | [AFN] | 09.1996-04.2000 |
Reference Information
| 0123310049 | BOSCH |
| 0123320038 | BOSCH |
| 028903028J | VW |
| 0986040950 | BOSCH |
| 0986048950 | BOSCH |
| 11.1297 | LAUBER |
| 11.1510 | LAUBER |
| 11.1510M | LAUBER |
| 111884 | CARGO |
| 11.203.078 | ISKRA / LETRIKA |
| 20101402BN | REAL |
| 20101402OE | REAL |
| 20101902BN | REAL |
| 20101902RC | REAL |
| 2010204 | SANDO |
| 2010209 | SANDO |
| 209095 | ERA |
| 210125 | ERA |
| 28-3594 | ELSTOCK |
| 28-4869 | ELSTOCK |
| 301297RI | KUHNER |
| 301510RI | KUHNER |
| 305.512.070 | PSH |
| 305.512.070.018 | PSH |
| 305.512.070.461 | PSH |
| 305.512.090 | PSH |
| 305.512.090.018 | PSH |
| 305.512.090.461 | PSH |
| 305.512.090.608 | PSH |
| 310874 | RHIAG |
| 32040950 | HERTH+BUSS |
| 35214370 | PRESTOLITE |
| 4057 | CEVAM |
| 4058 | CEVAM |
| 441444 | LOGISTIK |
| 441748 | LOGISTIK |
| 56293 | EAI |
| 56821 | EAI |
| 6K0903028 | VW |
| 6K0903028X | VW |
| 89213090 | POWERMAX |
| 8EL737769-001 | HELLA |
| 9038390 | FRIESEN |
| 9040950 | FRIESEN |
| 9517482 | MAGNETON |
| A0380 | AS-PL |
| AAK5349 | ISKRA / LETRIKA |
| AEA4282 | AUTOELECTRO |
| ALT10111 | ELECTROLOG |
| ALT122040 | SIOM |
| ALT122090 | SIOM |
| ALT79258 | ELECTROLOG |
| ALTS076 | 3EFFE |
| ALTS997 | 3EFFE |
| ALTS997B | 3EFFE |
| ANM43170X | ANDEL |
| CA1297IR | HC PARTS |
| CA1510IR | HC PARTS |
| CAL10204 | CASCO |
| CAL10204AS | CASCO |
| CAL10204ES | CASCO |
| CAL10204GS | CASCO |
| CAL10204OS | CASCO |
| CAL10204RS | CASCO |
| CAL10209AS | CASCO |
| CAL10209RS | CASCO |
| DRA4118 | DELCO |
| DRB0950 | DELCO |
| F032111884 | CARGO |
| LRA02771 | LUCAS |
| LRA2771 | LUCAS |
| LRB00482 | LUCAS |
| LRB482 | LUCAS |
| MG 253 | MAHLE |
| PRAS997 | 3EFFE |
| SA313 | SOVEREIGN |
| SA627 | SOVEREIGN |
| STX100593 | STARDAX |
| STX100600 | STARDAX |
| UD02243A | AS-PL |
