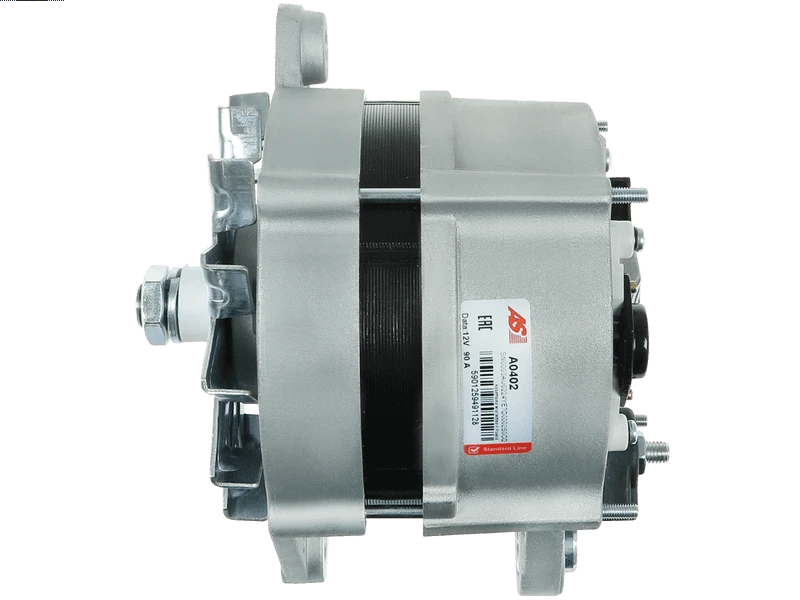

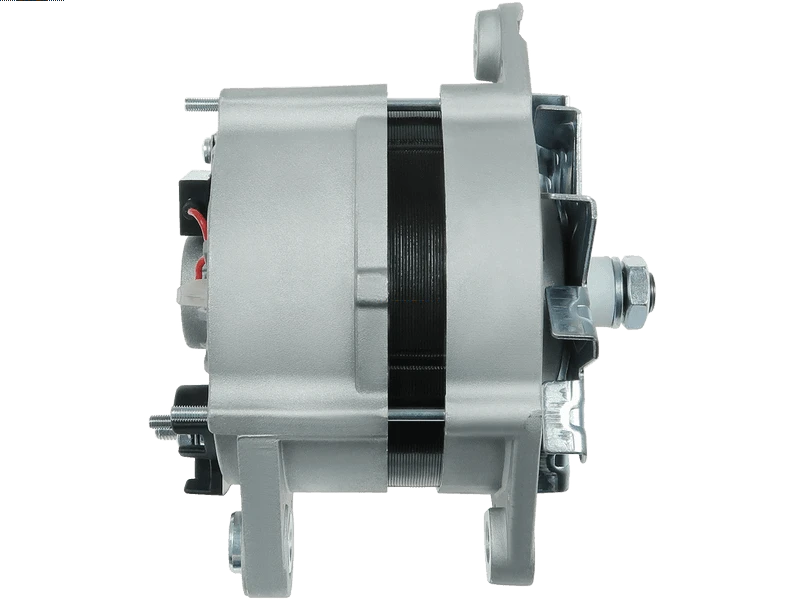

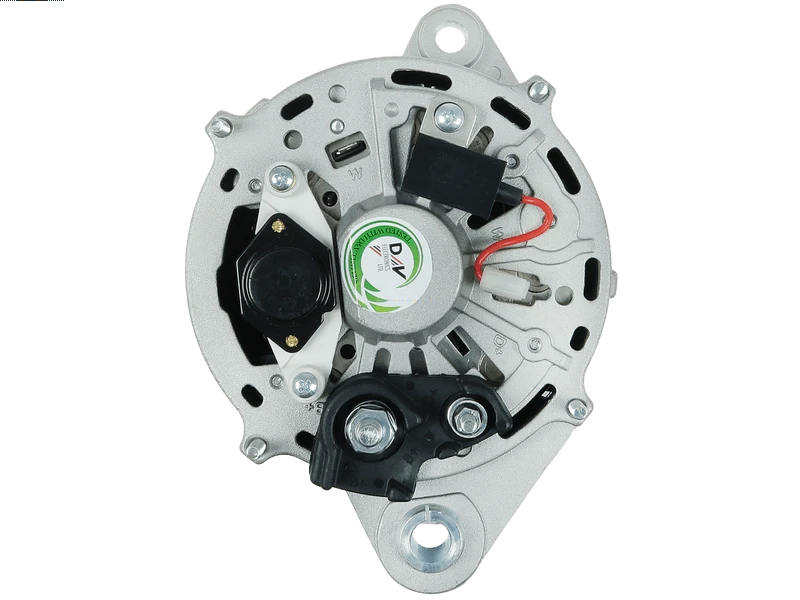

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 366.60 including GST
NZ$ 318.78 excluding GST
or four payments of $91.65
with
Learn More
each
A0402
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0120469034Associated Numbers
0120469034 0120469979 11.0727 11.0727M 11.1234 111860 14485R 2010167 20101761RC 20110395 2126 28-2733 301234RI 30727RI 4332 46423006 505.023.090 56283 56667 60807359 60811538 76977867 89212523 8EL737360-001 9036780 AEK1590 CA1234IR CA727IR CAL10167RS DRA3769 DRA6780 LRA01590 SA311 UD02238ASpecifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 14.50 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 12.50 mm |
| Diameter (D.3) | 12.50 mm |
| Length (L.1) | 176 mm |
| Mount Inside Length or Pad Mount C-C (C) | 67 mm |
| OEM Product | No |
| Plug Code | PL_9105 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Type | No Pulley |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Coupe 2.0 16V | [836A3.000] | 11.1993-08.1996 |
| FIAT | Coupe 2.0 Turbo 16V | [175A1.000] | 11.1993-08.1996 |
| FIAT | Croma 1.9 TD | [154C6.000] | 05.1989-10.1992 |
| FIAT | Croma 2.0 16V | [154E1.000] | 08.1992-08.1996 |
| FIAT | Croma 2.0 i.e. 2000 | [154C3.000] | 03.1987-09.1992 |
| FIAT | Croma 2.0 i.e. 2000 | [154C3.046] | 10.1987-08.1996 |
| FIAT | Croma 2.0 i.e. 2000 | [834B.146] | 10.1987-08.1996 |
| FIAT | Croma 2.0 i.e. Turbo 2000 | [154C4.046] | 06.1987-08.1996 |
| FIAT | Croma 2.0 i.e. Turbo 2000 | [834C.146] | 06.1987-08.1996 |
| FIAT | Croma 2.5 TD 2500 | [8144.97] | 05.1989-08.1996 |
| FIAT | Croma 2.5 TD 2500 | [8144.97Y] | 05.1989-08.1996 |
| FIAT | Tempra 1.8 i.e. | [159A4.000] | 03.1990-08.1996 |
| FIAT | Tempra 1.8 i.e. | [159A4.046] | 03.1992-08.1996 |
| FIAT | Tempra 1.8 i.e. | [159A4.046] | 03.1992-12.1993 |
| FIAT | Tempra 1.8 i.e. | [835C2.000] | 09.1993-08.1996 |
| FIAT | Tempra 1.8 i.e. | [835C4.000] | 09.1993-08.1996 |
| FIAT | Tempra 1.8 i.e. | [836A5.000] | 10.1994-08.1996 |
| FIAT | Tempra 2.0 i.e. | [159A6.046] | 01.1991-03.1995 |
| FIAT | Tempra 2.0 i.e. | [159A6.046] | 10.1990-08.1996 |
| FIAT | Tempra 2.0 i.e. 4x4 | [159A6.046] | 03.1992-03.1995 |
| FIAT | Tipo 1.6 i.e. | [149C2.046] | 02.1988-05.1991 |
| FIAT | Tipo 1.8 i.e. | [835C2.000] | 03.1993-04.1995 |
| FIAT | Tipo 1.8 i.e. | [836A5.000] | 03.1993-04.1995 |
| FIAT | Tipo 1.8 i.e. GT | [159A4.046] | 10.1990-06.1993 |
| FIAT | Tipo 2.0 16V | [160A8.046] | 07.1991-04.1995 |
| FIAT | Tipo 2.0 i.e. | [159A6.046] | 03.1990-04.1995 |
| FIAT | Tipo 2.0 i.e. 16V Sport | [836A3.000] | 03.1993-04.1995 |
| LANCIA | Dedra 1.8 i.e. | [835A2.000] | 09.1989-06.1994 |
| LANCIA | Dedra 1.8 i.e. | [835A2.046] | 09.1989-07.1999 |
| LANCIA | Dedra 2.0 16V | [836A3.000] | 07.1994-07.1999 |
| LANCIA | Dedra 2.0 HF Integrale | [835A7.000] | 11.1990-07.1994 |
| LANCIA | Dedra 2.0 HF Integrale | [835A7.046] | 11.1990-07.1994 |
| LANCIA | Dedra 2.0 i.e. | [835A5.000] | 09.1989-07.1992 |
| LANCIA | Dedra 2.0 i.e. | [835A5.046] | 09.1989-07.1999 |
| LANCIA | Dedra 2.0 i.e. Integrale | [835A7.000] | 05.1990-07.1994 |
| LANCIA | Dedra 2.0 i.e. Turbo | [835A8.046] | 04.1991-07.1999 |
| LANCIA | Dedra 2.0 Turbo | [835A8.000] | 11.1990-06.1994 |
| LANCIA | Delta 1.8 i.e. | [835C2.000] | 06.1993-08.1999 |
| LANCIA | Delta 1.8 i.e. | [835C4.000] | 07.1994-08.1999 |
| LANCIA | Delta 1.8 i.e. | [836A6.000] | 07.1994-08.1999 |
| LANCIA | Delta 1.8 i.e. | [836C4.000] | 07.1994-08.1999 |
| LANCIA | Delta 2.0 16V | [836A3.000] | 06.1993-08.1999 |
| LANCIA | Delta 2.0 Turbo 16V | [836A2.000] | 06.1993-08.1999 |
| LANCIA | Thema 2.0 16V | [834F1.000] | 05.1992-07.1994 |
| LANCIA | Thema 2.0 i.e. 16V | [834B2.246] | 02.1989-05.1992 |
| LANCIA | Thema 2.0 i.e. Turbo 16V | [834C1.246] | 04.1989-05.1992 |
Reference Information
| 0120469034 | BOSCH |
| 0120469979 | BOSCH |
| 11.0727 | LAUBER |
| 11.0727M | LAUBER |
| 11.1234 | LAUBER |
| 111860 | CARGO |
| 14485R | WAI / TRANSPO |
| 2010167 | SANDO |
| 20101761RC | REAL |
| 20110395 | PRESTOLITE |
| 210539 | ERA |
| 2126 | CEVAM |
| 28-2733 | ELSTOCK |
| 301234RI | KUHNER |
| 30727RI | KUHNER |
| 311275 | RHIAG |
| 4332 | CEVAM |
| 440874 | LOGISTIK |
| 441381 | LOGISTIK |
| 46423006 | FIAT |
| 505.023.090 | PSH |
| 56283 | EAI |
| 56667 | EAI |
| 60807359 | FIAT |
| 60811538 | FIAT |
| 7634024 | FIAT |
| 76977867 | FIAT |
| 7697867 | FIAT |
| 89212523 | POWERMAX |
| 8EL737360-001 | HELLA |
| 9036780 | FRIESEN |
| A12BH0916A2 | SIDAT |
| AEK1590 | AUTOELECTRO |
| ALT10236 | ELECTROLOG |
| ALT6690 | SIOM |
| ALTF199 | 3EFFE |
| ALTS156 | 3EFFE |
| ALTS156R | 3EFFE |
| ANM35989X | ANDEL |
| CA1234IR | HC PARTS |
| CA727IR | HC PARTS |
| CAL10167RS | CASCO |
| DRA3769 | DELCO |
| DRA6780 | DELCO |
| F032111860 | CARGO |
| LRA01590 | LUCAS |
| LRA1590 | LUCAS |
| PRAS156 | 3EFFE |
| PRAS156R | 3EFFE |
| SA311 | SOVEREIGN |
| STX100775 | STARDAX |
| STX101189 | STARDAX |
| UD02238A | AS-PL |
