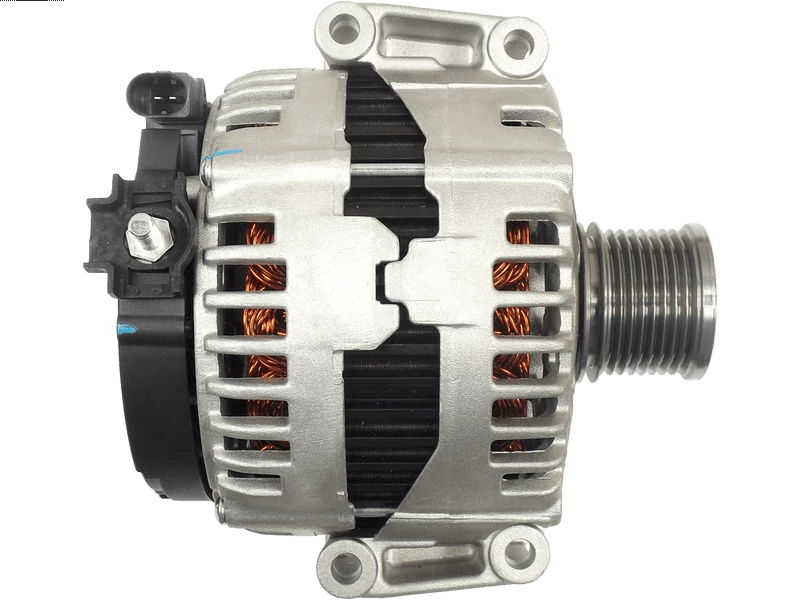

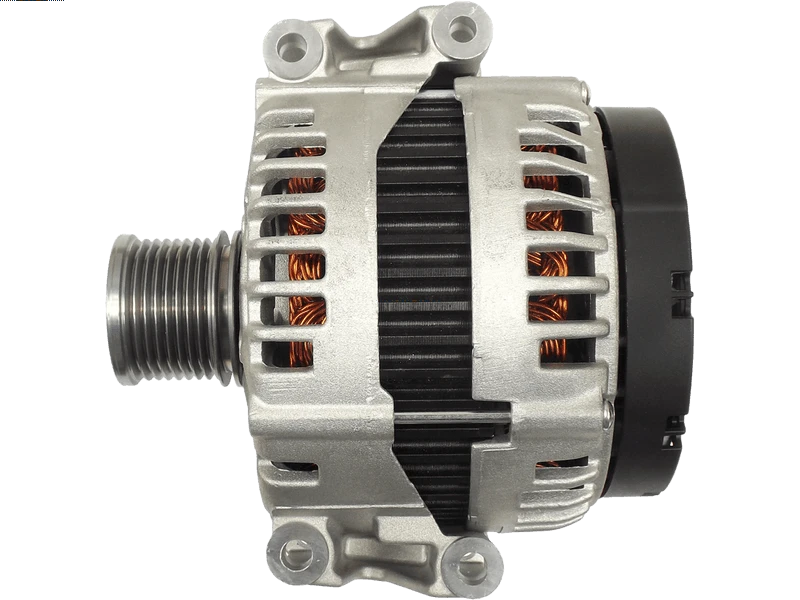

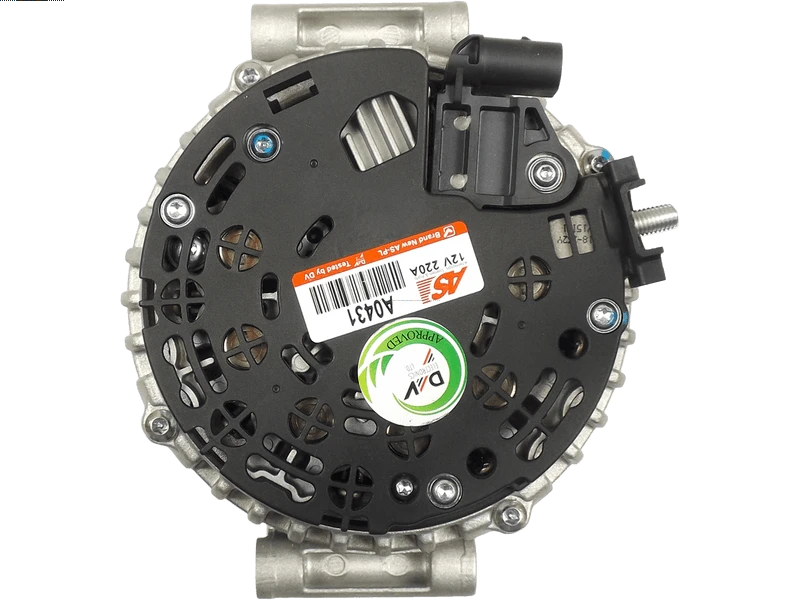

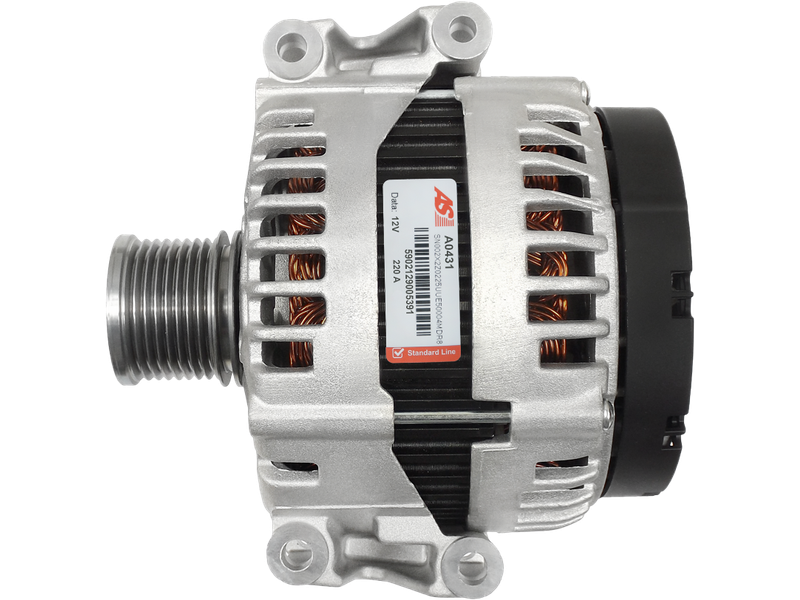

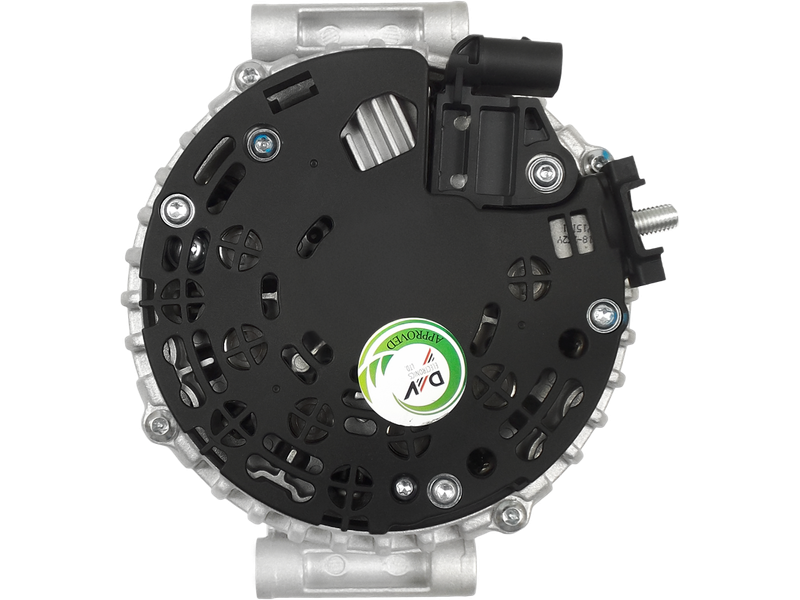

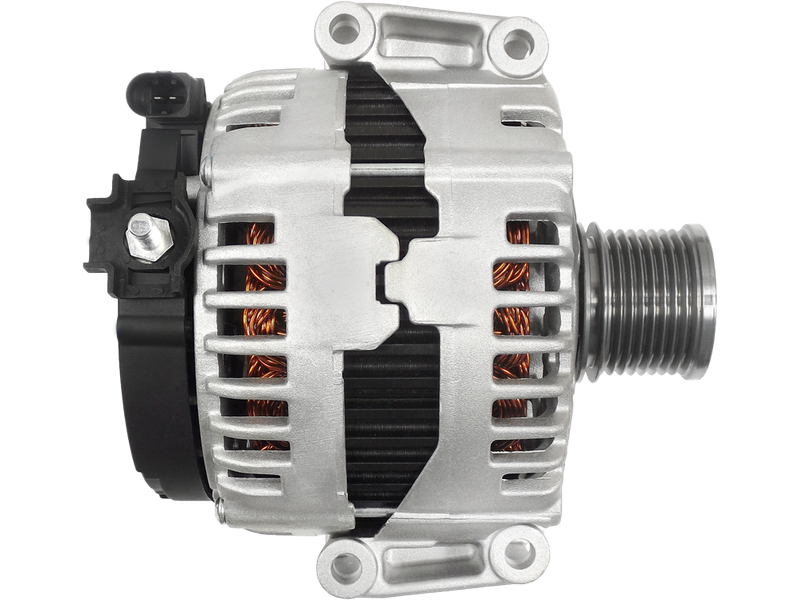

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 737.53 including GST
NZ$ 641.33 excluding GST
or four payments of $184.38
with
Learn More
each
A0431
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0121813003Associated Numbers
0121813003 0121813103 0131540902 0986047800 11308N 20101363BN 20101363OE 20101363RC 2010363 209039 28-5907 553371RI 553371RIK 555.550.220 89214977 90-15-6584 A-6549 A0131540902 AEK3295 ALB3814 ALT10727 BOS0121813103 CAL10363 CAL10363AS CAL10363ES CAL10363GS CAL10363OS CAL10363RS DB8910 DRB7800 EAA-222355 LRA03295 LRA3295 UD11347A UD800367(BOSCH)ASpecifications
| Amp | 220 A |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | 9 mm |
| Diameter (D.4) | 9 mm |
| Length (L.1) | 196 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 70 mm |
| Pad mount thickness (E.2) | 70 mm |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 8 qty |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley to Mount Distance (A) | 31 mm |
| Pulley Type | Clutch |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | GL 320 3.0 CDI 4-Matic | (X164)[OM642.940] | 09.2006-05.2009 |
| MERCEDES BENZ | ML 280 3.0 CDI 4-Matic | (W164)[OM642.940] | 07.2005-07.2009 |
| MERCEDES BENZ | ML 320 3.0 CDI 4-Matic | (W164)[OM642.940] | 07.2005-07.2009 |
| MERCEDES BENZ | R 320 3.0 CDI 4-Matic | (V251)[OM642.950] | 01.2006- |
| MERCEDES BENZ | R 320 3.0 CDI 4-Matic | (W251)[OM642.950] | 01.2006- |
| MERCEDES BENZ | S 320 3.0 CDI | (W221)[OM642.930] | 12.2005-06.2009 |
| MERCEDES BENZ | S 320 3.0 CDI 4-Matic | (W221)[OM642.932] | 10.2006-12.2013 |
Reference Information
| 0121813003 | BOSCH |
| 0121813103 | BOSCH |
| 0131540902 | MERCEDES |
| 013154090280 | MERCEDES |
| 0986047800 | BOSCH |
| 11308N | WAI / TRANSPO |
| 20101363BN | REAL |
| 20101363OE | REAL |
| 20101363RC | REAL |
| 2010363 | SANDO |
| 209039 | ERA |
| 28-5907 | ELSTOCK |
| 442571 | LOGISTIK |
| 5510709 | MEAT & DORIA |
| 553371RI | KUHNER |
| 553371RIK | KUHNER |
| 555.550.220 | PSH |
| 555.550.220.014 | PSH |
| 555.550.220.019 | PSH |
| 555.550.220.460 | PSH |
| 89214977 | POWERMAX |
| 90-15-6584 | WILSON |
| A0131540902 | MERCEDES |
| A013154090280 | MERCEDES |
| A0431 | AS-PL |
| A12BH0941AS | SIDAT |
| A-6549 | DIXIE |
| AEK3295 | AUTOELECTRO |
| AI-90128 | AINDE |
| ALB3814 | KRAUF |
| ALT10727 | WOODAUTO |
| ALT123630 | SIOM |
| ALT123630A | SIOM |
| ALT123630R | SIOM |
| ALT1365 | ELECTROLOG |
| ALTS753 | 3EFFE |
| ALTS753B | 3EFFE |
| BOS0121813103 | WOODAUTO |
| CAL10363 | CASCO |
| CAL10363AS | CASCO |
| CAL10363ES | CASCO |
| CAL10363GS | CASCO |
| CAL10363OS | CASCO |
| CAL10363RS | CASCO |
| CGB-85907 | AINDE |
| DB8910 | DELCO |
| DRB7800 | DELCO |
| LRA03295 | LUCAS |
| LRA3295 | LUCAS |
| PRAS753 | 3EFFE |
| PRAS753B | 3EFFE |
| UD11347A | AS-PL |
| UD800367(BOSCH)A | AS-PL |
