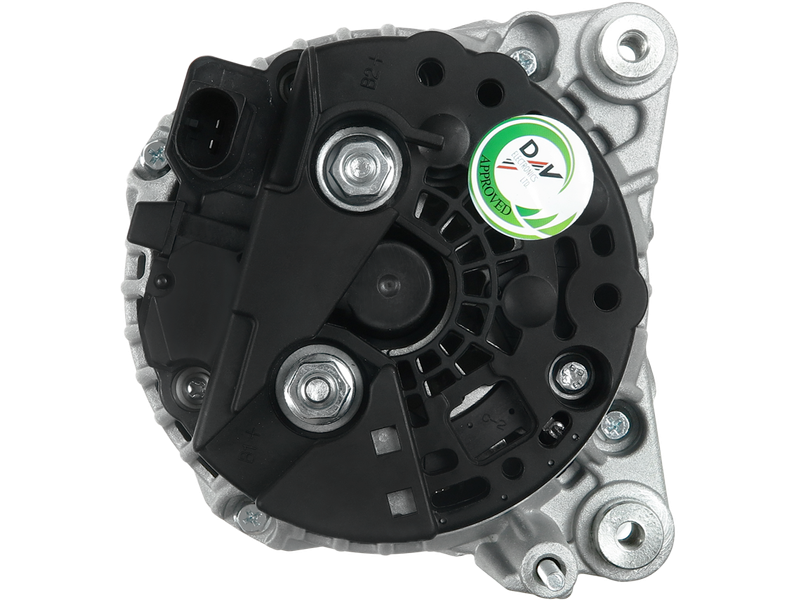

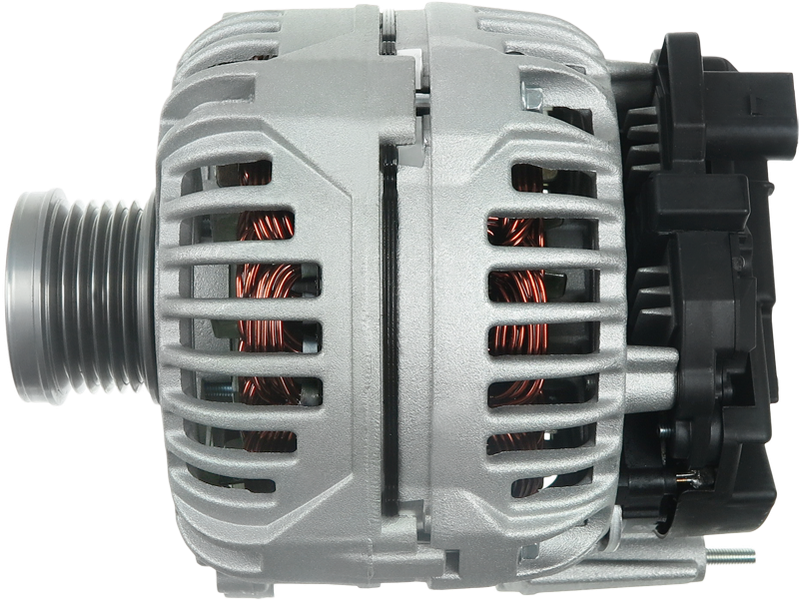

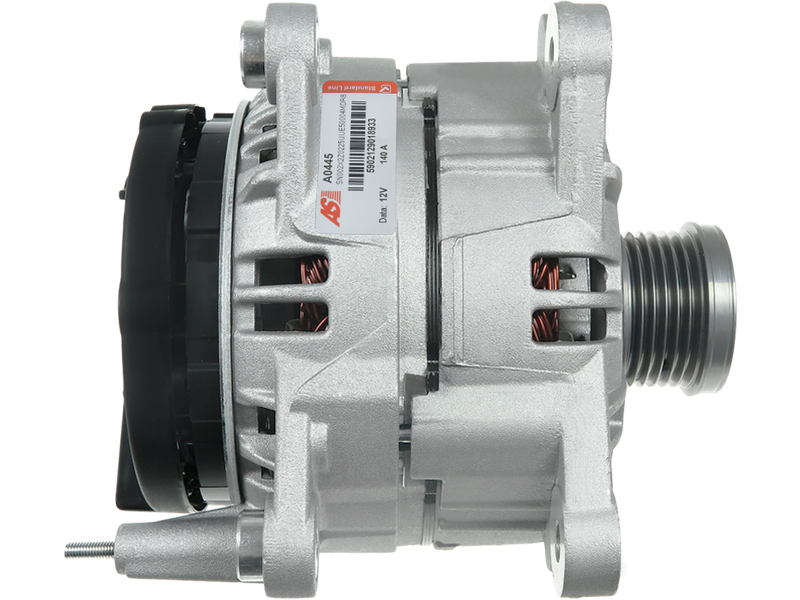

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 611.88 including GST
NZ$ 532.07 excluding GST
or four payments of $152.97
with
Learn More
each
A0445
No stock in NZ currently
No stock in NZ currently
Associated Numbers
0124525210 06A-903-023B 06A-903-023G 06A-903-023GX 28-6966 DRA0602 LRA03856 UD12108A UNIT BOM 220-022Specifications
| Amp | 140 A |
| Bottom Mounting Foot Width (B) | 14.30 mm |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 189 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61.90 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 30.50 mm |
| Pulley Type | Clutch |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SEAT | Exeo 1.8 TSi | [CDHA] | 09.2010- |
| SEAT | Exeo 1.8 TSi | [CDHB] | 05.2010- |
| SEAT | Exeo 2.0 TFSi | [CDND] | 05.2010- |
| SEAT | Exeo ST 1.8 TSi | [CDHA] | 09.2010- |
| SEAT | Exeo ST 1.8 TSi | [CDHB] | 05.2010- |
| SEAT | Exeo ST 2.0 TFSi | [CDND] | 05.2010- |
| VW | Amarok 2.0 TSi | [CFPA] | 01.2010- |
Reference Information
| 0124525210 | BOSCH |
| 03L903023CX | VW |
| 06A903023B | VW |
| 06A903023G | VW |
| 06A903023GX | VW |
| 2010163AOE | REAL |
| 2010A36.1 | SANDO |
| 28-6966 | ELSTOCK |
| ALT10320 | ELECTROLOG |
| ALT12A360 | SIOM |
| ALTE792 | 3EFFE |
| ALTL576 | 3EFFE |
| ALTL576B | 3EFFE |
| CAL10A36GS | CASCO |
| DRA0602 | DELCO |
| LRA03856 | LUCAS |
| LRA3856 | LUCAS |
| PRAE792 | 3EFFE |
| PRAL576 | 3EFFE |
| PRAL576B | 3EFFE |
| UD12108A | AS-PL |
| UNIT BOM 220-022 | WAI / TRANSPO |
Video/Publications
