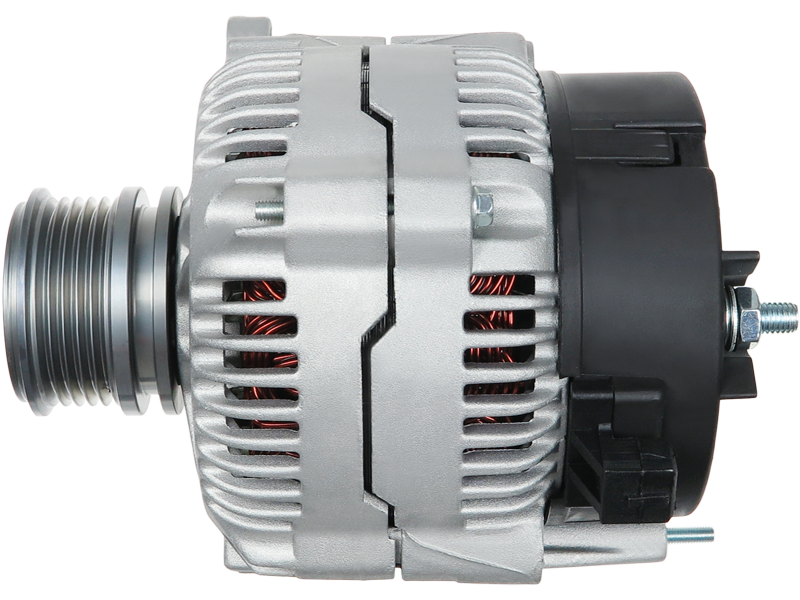

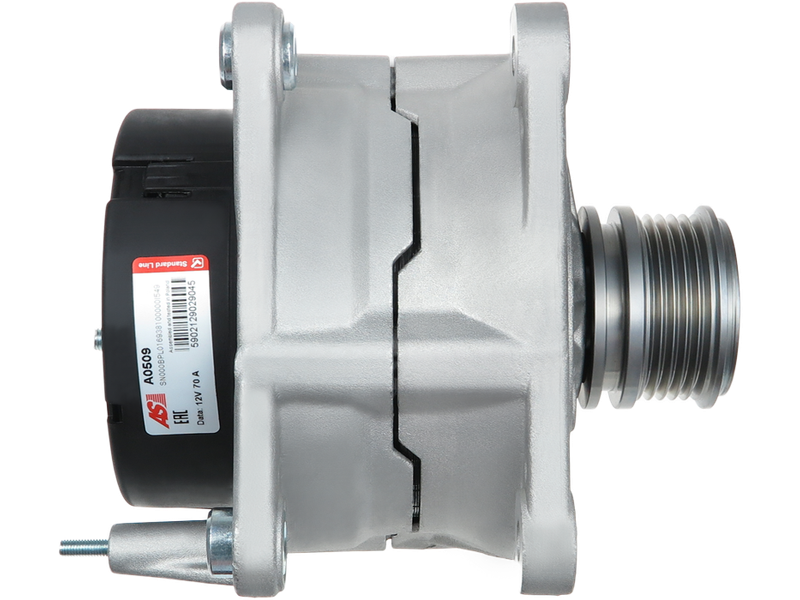

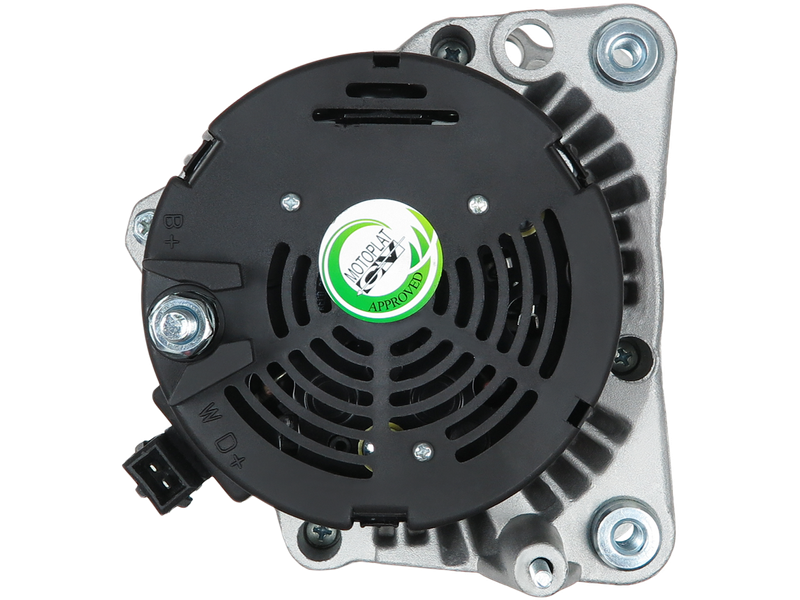

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 419.26 including GST
NZ$ 364.57 excluding GST
or four payments of $104.82
with
Learn More
each
A0509
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
0123310038Associated Numbers
0123310024 0123310038 028093027C 028903026B 0986040880 11.1255 21484N 28-3523 301255RI 305.505.070.010 305.505.070.215 30827RI 35214410 35215425 4591 56665 89213187 8EL012428-591 8EL737401-001 944390408800 AEA4284 ALT10213 CA1255IR DRB0880 LRB00484 SA315 UD12173ASpecifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 189 mm |
| Mount Inside Length or Pad Mount C-C (C) | 60 mm |
| OEM Product | No |
| Plug Code | PL_2100 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 42 mm |
| Pulley Type | Clutch |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SEAT | Arosa 1.7 SDi | [AHG] | 01.1997-12.1998 |
| SEAT | Arosa 1.7 SDi | [AKU] | 01.1997-12.1998 |
| SEAT | Ibiza 1.7 SDi | [AHB] | 01.1997-12.1999 |
| SKODA | Felicia 1.9 D | [AEF] | 01.1996-12.1999 |
| VW | Caddy 1.9 D | [AEF] | 01.1996-12.2000 |
| VW | Polo 1.7 D | [AHG] | 01.1997-12.1998 |
| VW | Polo 1.7 SDi | [AKU] | 01.1997-12.1998 |
| VW | Polo 1.9 D | [AEF] | 01.1996-12.1999 |
| VW | Polo 1.9 SDi | [AGD] | 01.1996-12.1999 |
Reference Information
| 0123310024 | BOSCH |
| 0123310038 | BOSCH |
| 028093027C | VW |
| 028903026B | VW |
| 0986040880 | BOSCH |
| 11.1255 | LAUBER |
| 20108501OE | REAL |
| 2048105.1 | SANDO |
| 210093 | ERA |
| 21484N | WAI / TRANSPO |
| 28-3523 | ELSTOCK |
| 301255RI | KUHNER |
| 305.505.070.010 | PSH |
| 305.505.070.215 | PSH |
| 30827RI | KUHNER |
| 310720 | RHIAG |
| 35214410 | PRESTOLITE |
| 35215425 | PRESTOLITE |
| 441402 | LOGISTIK |
| 4591 | CEVAM |
| 56665 | EAI |
| 89213187 | POWERMAX |
| 8EL012428-591 | HELLA |
| 8EL737401-001 | HELLA |
| 944390408800 | MAGNETI MARELLI |
| A132.368 | PSH |
| AEA4284 | AUTOELECTRO |
| ALT10085 | ELECTROLOG |
| ALT10213 | WOODAUTO |
| ALT501050 | SIOM |
| ALT6760 | SIOM |
| ALTS113 | 3EFFE |
| ALTY070L | 3EFFE |
| ANM43100X | ANDEL |
| CA1255IR | HC PARTS |
| CAL48105GS | CASCO |
| DRB0880 | DELCO |
| LRB00484 | LUCAS |
| LRB484 | LUCAS |
| PRAL146 | 3EFFE |
| PRAL146B | 3EFFE |
| PRAS113 | 3EFFE |
| SA315 | SOVEREIGN |
| STA0532R | BOVEZ |
| STX100457 | STARDAX |
| STX100457R | STARDAX |
| UD12173A | AS-PL |
