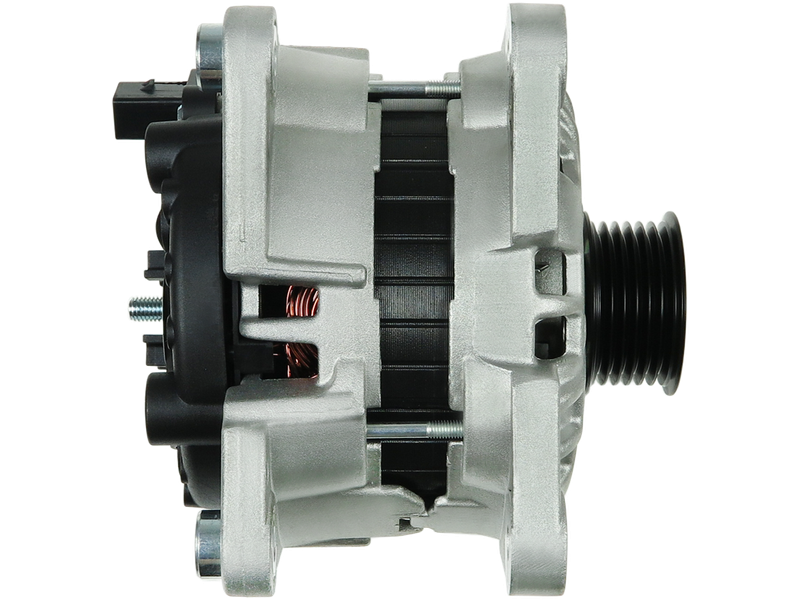

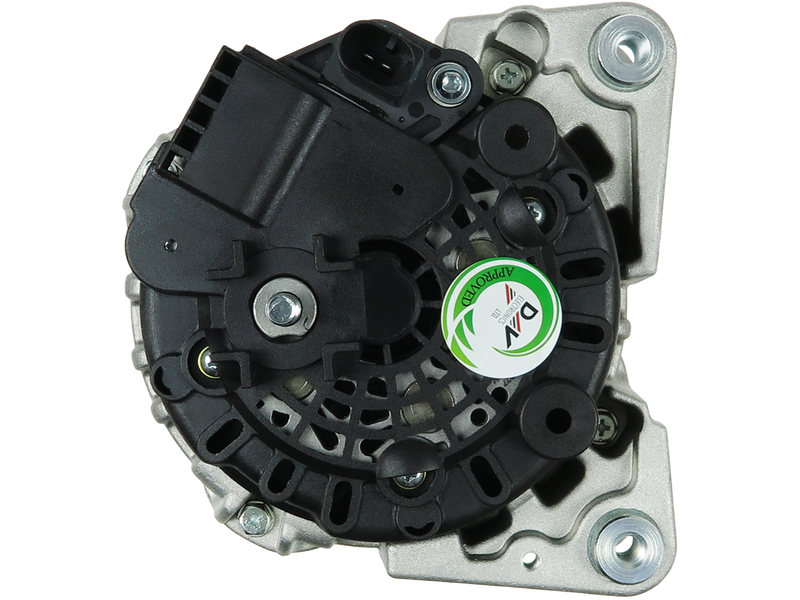

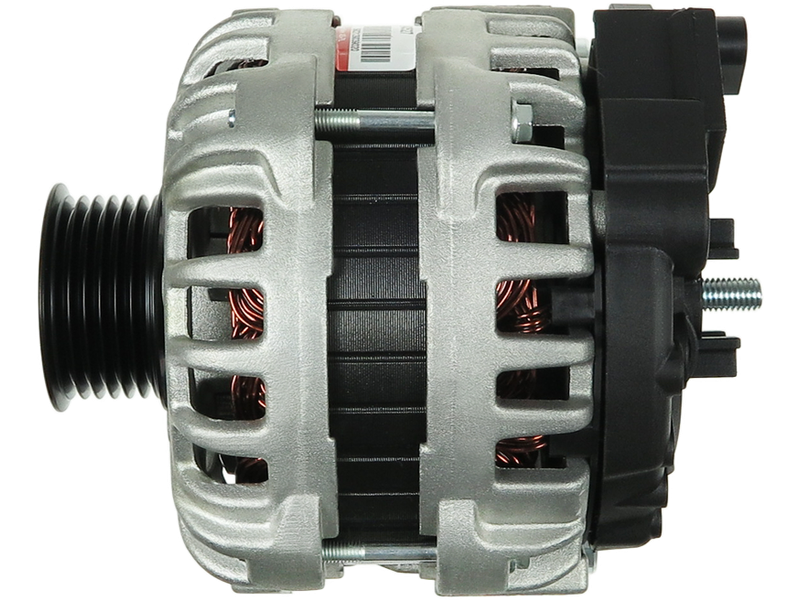

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 522.51 including GST
NZ$ 454.36 excluding GST
or four payments of $130.63
with
Learn More
each
A0527
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
F000BL0636Associated Numbers
04C903023B 04C903023BX 115695 209261 24119N 24119N-OS 28-6745 305.931.110 4371 554189RI 57537 A0527 AEK3684 ALB3425 ALT10787 BOSF000BL06A0 DA2356 DRA1246 F000BL0636 F000BL06A0 LRA03684 LRA3684 UD12129ASpecifications
| Amp | 110 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 165 mm |
| Mount Inside Length or Pad Mount C-C (C) | 60.50 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 49 mm |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SEAT | MiI 1.0 | [CHYA] | 10.2011- |
| SEAT | MiI 1.0 | [CHYB] | 10.2011- |
| SEAT | MiI 1.0 | [DAFA] | 10.2011- |
| SEAT | MiI 1.0 EcoFuel | [CPGA] | 11.2012- |
| SKODA | Citigo 1.0 | [CHYA] | 10.2011- |
| SKODA | Citigo 1.0 | [CHYB] | 10.2011- |
| SKODA | Citigo 1.0 CNG | [CPGA] | 11.2012- |
| VW | UP 1.0 | [CHYA] | 08.2011- |
| VW | UP 1.0 | [CHYB] | 08.2011- |
| VW | UP 1.0 | [DAFA] | 08.2011- |
| VW | UP 1.0 EcoFuel | [CPGA] | 11.2012- |
Reference Information
| 04C903023B | VW |
| 04C903023BX | VW |
| 04E903025P | VW |
| 063735695010 | MAGNETI MARELLI |
| 0986082940 | BOSCH |
| 10444668 | ALANKO |
| 114179 | FARCOM |
| 115695 | CARGO |
| 12090503 | EUROTEC |
| 1986A01073 | BOSCH |
| 20010587OV | ITAB AUTOMOTIVE |
| 20101785OE | REAL |
| 2010587.1 | SANDO |
| 209261 | ERA |
| 209261A | ERA |
| 2115011102 | DRI |
| 24119N | WAI / TRANSPO |
| 24119N-OS | WAI / TRANSPO |
| 28-6745 | ELSTOCK |
| 305.931.110.010 | PSH |
| 305.931.110.018 | PSH |
| 305.931.110.210 | PSH |
| 305.931.110.212 | PSH |
| 305.931.110.280 | PSH |
| 305.931.110.395 | PSH |
| 3117664 | HENKEL PARTS |
| 3117665 | HENKEL PARTS |
| 32082940 | HERTH+BUSS |
| 4371 | CEVAM |
| 441757 | LOGISTIK |
| 456404 | VALEO |
| 4G1168 | RIDEX |
| 537ST75 | STARTCAR |
| 5510567 | MEAT & DORIA |
| 554189RI | KUHNER |
| 554189RIB | KUHNER |
| 57537 | EAI |
| 89216392 | POWERMAX |
| 9090883 | FRIESEN |
| A0527 | AS-PL |
| A12BH0402 | SIDAT |
| A12BH0402A2 | SIDAT |
| A132.495 | PSH |
| A148.305 | PSH |
| AAL1880 | APEC |
| AC-CBA5819 | ACAUTO |
| AEK3684 | AUTOELECTRO |
| AL03232 | TMI |
| ALB3425 | KRAUF |
| ALT10787 | WOODAUTO |
| ALT1209 | ELECTROLOG |
| ALTE203 | 3EFFE |
| ANM33466X | ANDEL |
| AU8081 | SNRA |
| BOSF000BL06A0 | WOODAUTO |
| CAL10587GS | CASCO |
| CGB-86745 | AINDE |
| DA2356 | DELCO |
| DRA1246 | DELCO |
| F000BL04R1 | BOSCH |
| F000BL0636 | BOSCH |
| F000BL06A0 | BOSCH |
| F032115695 | CARGO |
| IR5939 | PROTECH |
| L50410 | ATL AUTOTECHNIK |
| LRA03684 | LUCAS |
| LRA3684 | LUCAS |
| MQA5695 | MAGNETI MARELLI |
| NPANAL1880 | NAPA |
| PRAE203 | 3EFFE |
| SEGF000BL0636 | WOODAUTO |
| STX110281 | STARDAX |
| STX110281R | STARDAX |
| TG11S136 | VALEO |
| TT12765 | TESLA |
| UD12129A | AS-PL |
| WG2011219 | WILMINK GROUP |
| WG2011220 | WILMINK GROUP |
| WG2281109 | WILMINK GROUP |
| WG2283054 | WILMINK GROUP |
| WG2283980 | WILMINK GROUP |
| WOOALT10787 | WOODAUTO |
Video/Publications
