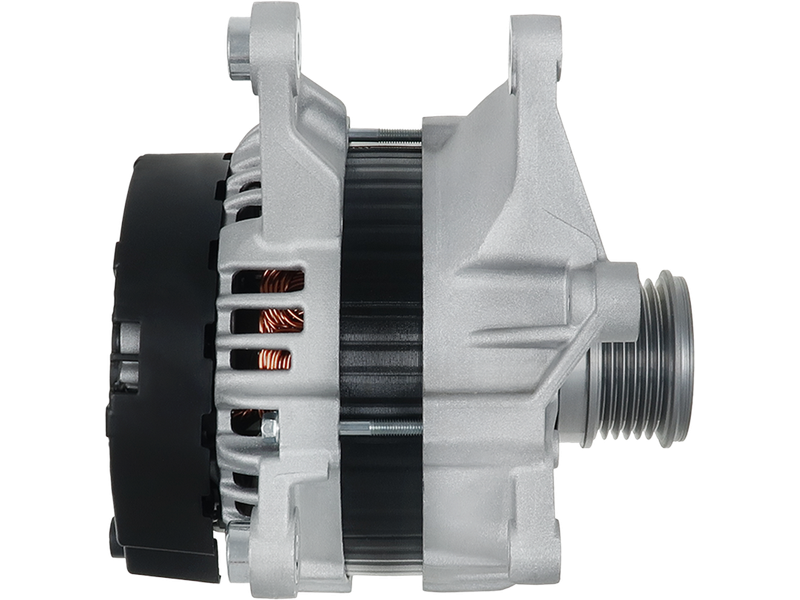

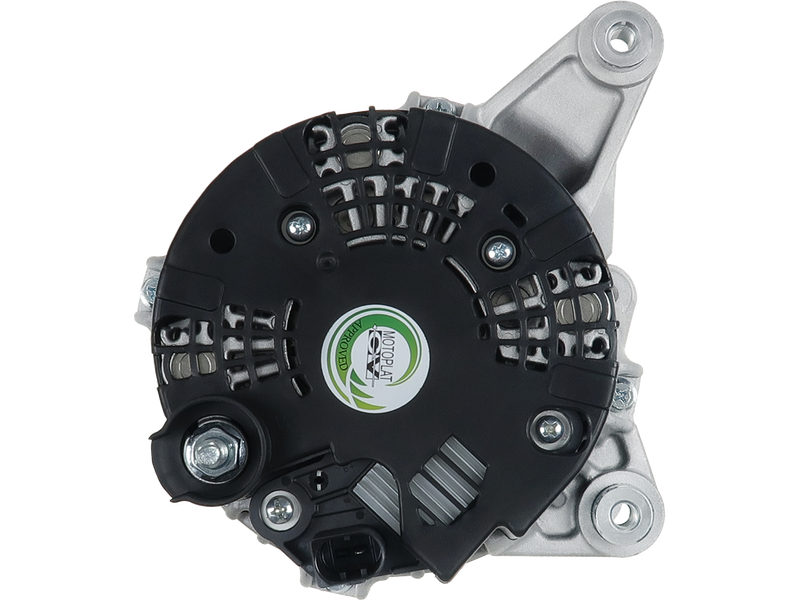

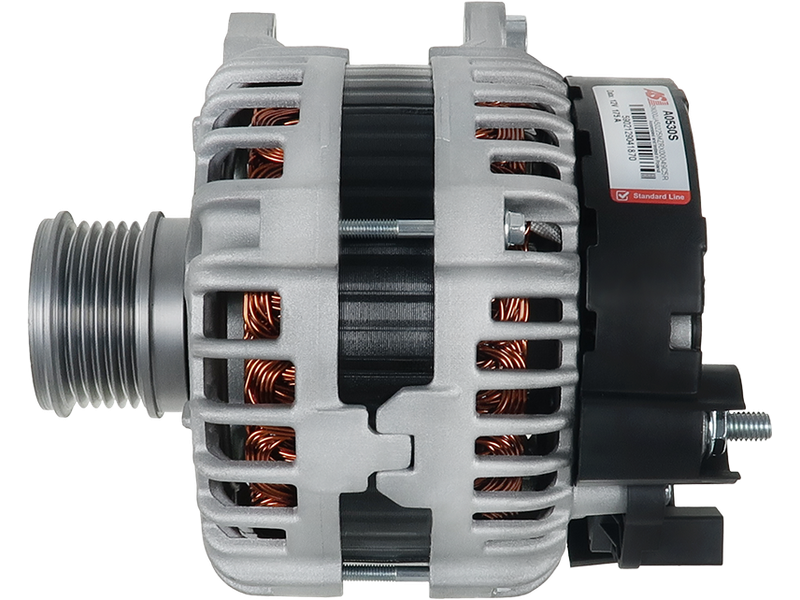

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 818.57 including GST
NZ$ 711.80 excluding GST
or four payments of $204.64
with
Learn More
each
AAM-C6026
A0530S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0125711100Associated Numbers
0009061503 0009064702 0125711120 209257 554289RIB 555.930.175 A0009061503 A0009064702 A0530S DRA1557 UD13165A KRAUF ALB7120 ALB7120GE Mercedes Benz 0008081503 A0008081503 ZAUFER 301N22227Z Mercedes-Benz 0009060922 0125711099 Bosch show 0125711099OR +line 0125711100 0125711119 0125711120OR 0986081850 ruil 12090723 EuroTec 2253181752 DRI 286942 Elstock 555929175 PSH 555930175 931557 EDR 931558 A0009060922 Remy DRA1558 LRA03832 Lucas 65-1737g 0-125-711-099 0-125-711-100 Newman AL0786N Reman AL0786X Service Europe 0-986-081-857 IAT A20781 Industry 20781 Lester 000-906-09-22 000-906-09-22-80 A-000-906-09-22 A-906-0922-80 A00-090-60-922-80 A000-906-09-22 PIC 220-5861 Romaine Electric 20781N SEG Automotive 0125.711.099 Voltux V2-20781 WAI
690125711099
Specifications
| Amp | 175 A |
| Bottom Mounting Foot Width (B) | 13.5 mm |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 192 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 52 mm |
| Pulley to Mount Distance (A) | 31 mm |
| Pulley Type | CLUTCH |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | C 160 1.6 | (S205)[M274.910] | 04.2015-11.2019 |
| MERCEDES BENZ | C 160 1.6 | (W205)[M274.910] | 04.2015-11.2019 |
| MERCEDES BENZ | C160 1.6 | (205)[M274.910] | 01.2015- |
| MERCEDES BENZ | C 180 1.6 | (A205)[M274.910] | 06.2016-08.2020 |
| MERCEDES BENZ | C 180 1.6 | (C204)[M274.910] | 01.2013- |
| MERCEDES BENZ | C 180 1.6 | (C205)[M274.910] | 10.2015-08.2020 |
| MERCEDES BENZ | C 180 1.6 | (C205)[M274.910] | 11.2018-08.2020 |
| MERCEDES BENZ | C 180 1.6 | (S204)[M274.910] | 02.2012-08.2014 |
| MERCEDES BENZ | C 180 1.6 | (S205)[M274.910] | 09.2014-08.2020 |
| MERCEDES BENZ | C 180 1.6 | (W205)[M274.910] | 03.2014-03.2021 |
| MERCEDES BENZ | C 180 1.6 | (W205)[M274.910] | 10.2018-03.2021 |
| MERCEDES BENZ | C180 1.6 | (205)[M274.910] | 01.2014- |
| MERCEDES BENZ | C 180 1.6 CGi | (W204)[M274.910] | 01.2008-01.2014 |
| MERCEDES BENZ | C180 1.6 CGi | (204)[M274.910] | 01.2012-12.2014 |
| MERCEDES BENZ | C 200 2.0 | (A205)[M274.920] | 06.2016-05.2018 |
| MERCEDES BENZ | C 200 2.0 | (C205)[M274.920] | 10.2015-05.2018 |
| MERCEDES BENZ | C 200 2.0 | (S205)[M274.920] | 09.2014-05.2018 |
| MERCEDES BENZ | C 200 2.0 | (W205)[M274.920] | 12.2013-08.2018 |
| MERCEDES BENZ | C200 2.0 | (205)[M274.920] | 01.2013- |
| MERCEDES BENZ | C 200 2.0 4-Matic | (S205)[M274.920] | 04.2015-05.2018 |
| MERCEDES BENZ | C 200 2.0 4-Matic | (W205)[M274.920] | 04.2015-08.2018 |
| MERCEDES BENZ | E 180 1.6 | (W213)[M274.910] | 01.2017-06.2019 |
| MERCEDES BENZ | E180 1.6 | (213)[M274.910] | 01.2017- |
| MERCEDES BENZ | E 200 2.0 | (A207)[M274.920] | 03.2013-12.2016 |
| MERCEDES BENZ | E 200 2.0 | (A238)[M274.920] | 06.2017- |
| MERCEDES BENZ | E 200 2.0 | (C207)[M274.920] | 06.2013-12.2016 |
| MERCEDES BENZ | E 200 2.0 | (C238)[M274.920] | 12.2016- |
| MERCEDES BENZ | E 200 2.0 | (S212)[M274.920] | 11.2012-12.2016 |
| MERCEDES BENZ | E 200 2.0 | (S213)[M274.920] | 07.2016-06.2020 |
| MERCEDES BENZ | E 200 2.0 | (W212)[M274.920] | 01.2013-12.2016 |
| MERCEDES BENZ | E 200 2.0 | (W213)[M274.920] | 01.2016-02.2019 |
| MERCEDES BENZ | E200 2.0 | (212)[M274.920] | 01.2012- |
| MERCEDES BENZ | E200 2.0 | (213)[M274.920] | 01.2016- |
| MERCEDES BENZ | E200 2.0 | (238)[M274.920] | 01.2016- |
| MERCEDES BENZ | E 200 2.0 4-Matic | (A238)[M274.920] | 10.2017- |
| MERCEDES BENZ | E 200 2.0 4-Matic | (C238)[M274.920] | 06.2017- |
| MERCEDES BENZ | E 200 2.0 4-Matic | (S213)[M274.920] | 01.2017-06.2019 |
| MERCEDES BENZ | E 200 2.0 4-Matic | (W213)[M274.920] | 07.2016-06.2019 |
| MERCEDES BENZ | E200 2.0 4-Matic | (213)[M274.920] | 01.2016- |
| MERCEDES BENZ | E200 2.0 4-Matic | (238)[M274.920] | 01.2017- |
| MERCEDES BENZ | E 200 2.0 NGT | (W212)[M274.920] | 07.2013-12.2015 |
| MERCEDES BENZ | E 250 2.0 | (A207)[M274.920] | 06.2013-12.2016 |
| MERCEDES BENZ | E 250 2.0 | (C207)[M274.920] | 06.2013-12.2016 |
| MERCEDES BENZ | E 250 2.0 | (S212)[M274.920] | 11.2012-12.2016 |
| MERCEDES BENZ | E 250 2.0 | (W212)[M274.920] | 01.2013-12.2016 |
| MERCEDES BENZ | E 250 2.0 | (W213)[M274.920] | 07.2016-10.2023 |
| MERCEDES BENZ | E250 2.0 | (212)[M274.920] | 01.2012- |
| MERCEDES BENZ | E250 2.0 | (213)[M274.920] | 01.2016- |
| MERCEDES BENZ | GLC200 2.0 | (253)[M274.920] | 01.2015- |
| MERCEDES BENZ | GLK 200 2.0 | (X204)[M274.920] | 08.2013-06.2015 |
| MERCEDES BENZ | GLK200 2.0 | (204)[M274.920] | 01.2013- |
| MERCEDES BENZ | GLK 250 2.0 | (X204)[M274.920] | 08.2013-06.2015 |
| MERCEDES BENZ | GLK250 2.0 | (204)[M274.920] | 01.2013- |
| MERCEDES BENZ | GLK 250 2.0 4-Matic | (X204)[M274.920] | 08.2013-06.2015 |
| MERCEDES BENZ | GLK250 2.0 4-Matic | (204)[M270.920] | 01.2013- |
| MERCEDES BENZ | SLC 180 1.6 | (R172)[M274.910] | 01.2016- |
| MERCEDES BENZ | SLC180 1.6 | (172)[M274.910] | 01.2016- |
| MERCEDES BENZ | SLC 200 2.0 | (R172)[M274.920] | 01.2016- |
| MERCEDES BENZ | SLC200 2.0 | (172)[M274.920] | 01.2016- |
| MERCEDES BENZ | SLC 300 2.0 | (R172)[M274.920] | 01.2016- |
| MERCEDES BENZ | SLC300 2.0 | (172)[M274.920] | 01.2016- |
| MERCEDES BENZ | SLK 200 2.0 | (R172)[M274.920] | 04.2015- |
| MERCEDES BENZ | SLK200 2.0 | (172)[M274.920] | 01.2015- |
| MERCEDES BENZ | SLK 300 2.0 | (R172)[M274.920] | 07.2015- |
| MERCEDES BENZ | SLK300 2.0 | (172)[M274.920] | 01.2015- |
Reference Information
0125711119 209563 20781N LRA3832 QRA3376 32711099 H5510718 ALB7111 A12BH0972 209563A 8EL015630-831 WG2011486 0125711120 5510718 F032116631 LRA03832 IR5841 10444481 4419 28-6942 2253181752 CGB-86942 ALT125340 12090723 555.929.175.280 UD17104A A0009060922 AEK3832 89215807 3121019 554289RI UD102379A ALT1658 2010534.1 A12BH0972AS 0009060922 116631 AZMT-49-035-2052 0125711100 TT12844 8550505694 28-6942CT 554289RIB BOS0125711099 A0009061503 555.929.175.014 ALT2353CP AL03404 UD13165A 114439 20010534OV 555.929.175.010 L51680 L51681 555.929.175.018 A0530S 0986081850 0009061503 ABO534 0125711099 CAL10534GS 20101435OE ALT10808Video/Publications
