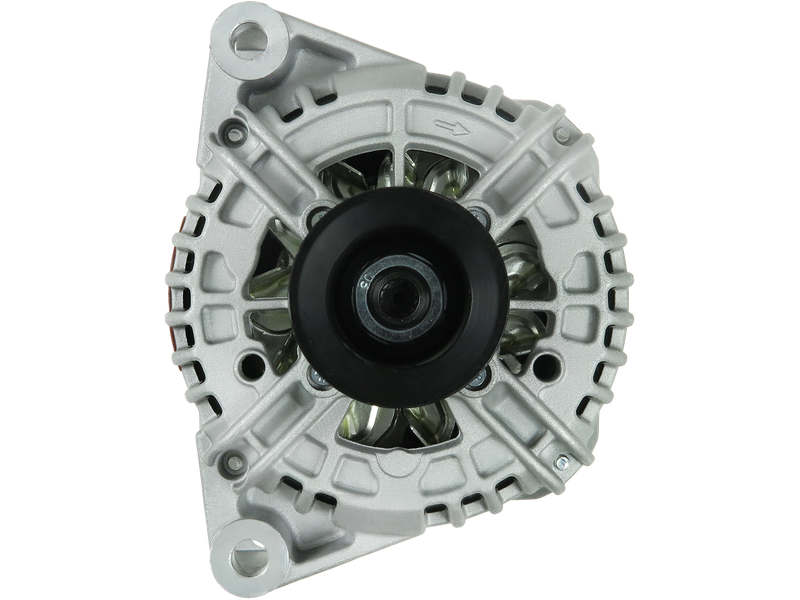

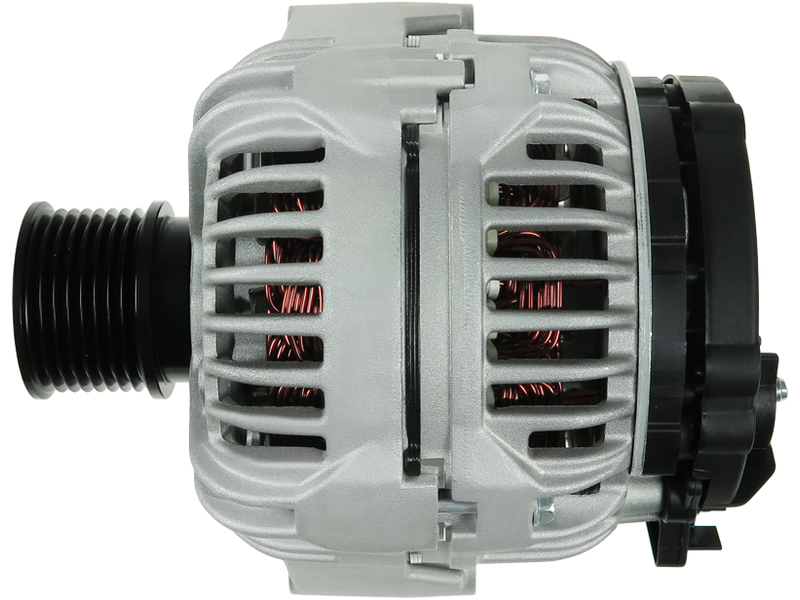

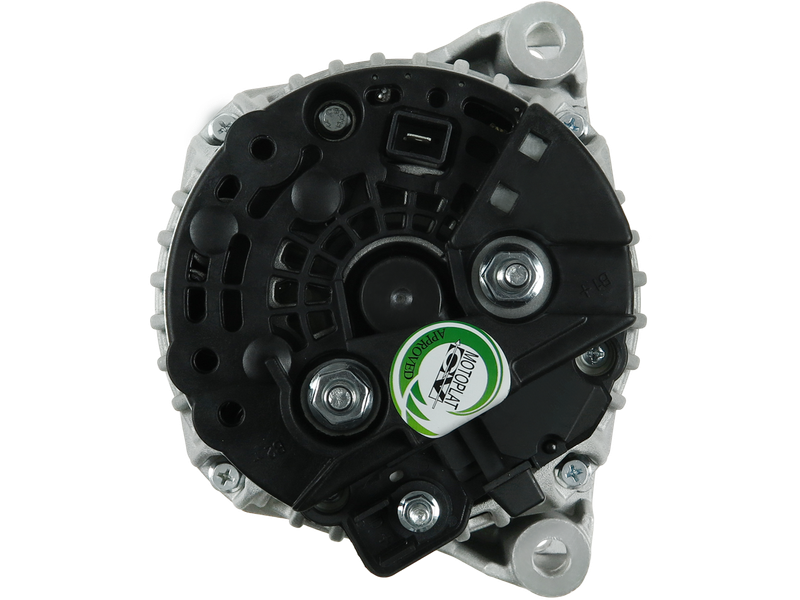

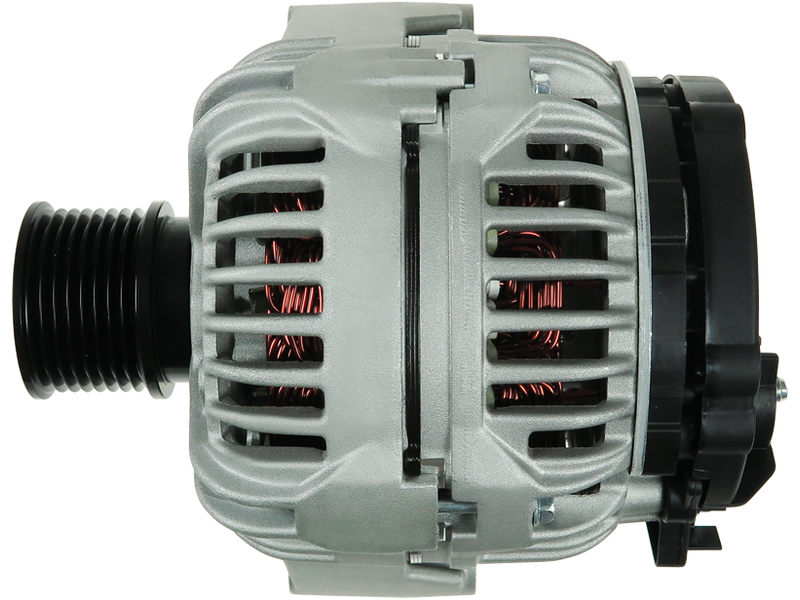

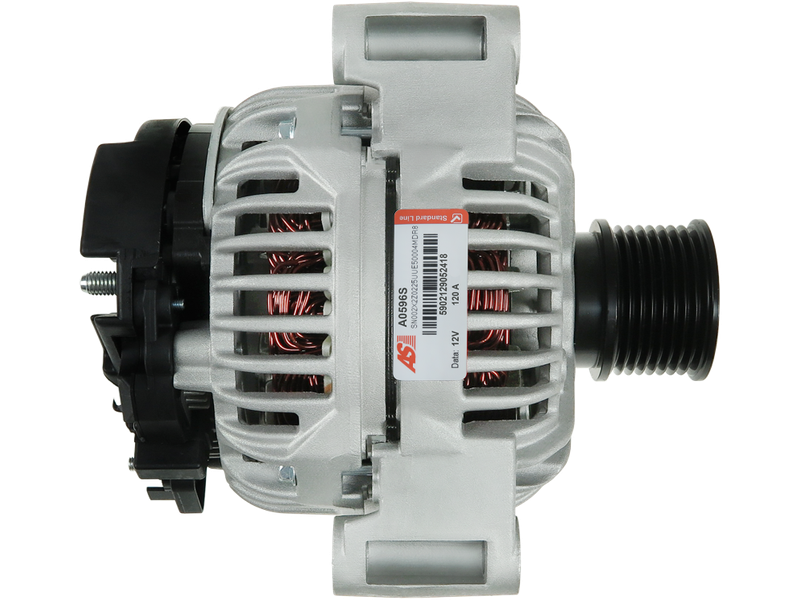

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 454.92 including GST
NZ$ 395.58 excluding GST
or four payments of $113.73
with
Learn More
each
A0596S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
00081547202 0081547202 0081549202 008154920280 0120465013 0124515191 20130201 28-3779 30646RI 555.504.120 A0081547202 A0081549202 A008154920280 ALT10556 BOS0124515191 LRA01903 UD13533ASpecifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 56 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 11 mm |
| Length (L.1) | 203 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 8 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 93 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | 600 SE 6.0 | [M120.980] | 01.1991-12.1993 |
| MERCEDES BENZ | 600 SE 6.0 | [M120.982] | 01.1991-12.1993 |
| MERCEDES BENZ | 600 SEC 6.0 | [M120.980] | 01.1991-12.1993 |
| MERCEDES BENZ | 600 SEC 6.0 | [M120.982] | 01.1991-12.1993 |
| MERCEDES BENZ | 600 SEL 6.0 | [M120.980] | 01.1991-12.1993 |
| MERCEDES BENZ | S 300 3.0 | [M104.990] | 01.1991-12.1993 |
| MERCEDES BENZ | S 320 3.2 | [M104.944] | 01.1993-12.1998 |
| MERCEDES BENZ | S 320 3.2 | [M104.990] | 01.1993-12.1998 |
| MERCEDES BENZ | S 500 5.0 | [M119.970] | 01.1991-12.1995 |
| MERCEDES BENZ | S 500 5.0 | [M119.980] | 01.1991-12.1995 |
| MERCEDES BENZ | S 600 6.0 | [M120.980] | 01.1993-12.1998 |
| MERCEDES BENZ | S 600 6.0 | [M120.982] | 01.1993-12.1998 |
Reference Information
| 0081547202 | MERCEDES |
| 0081547302 | MERCEDES |
| 0081547402 | MERCEDES |
| 008154740280 | MERCEDES |
| 0081548302 | MERCEDES |
| 0081548402 | MERCEDES |
| 0081549202 | MERCEDES |
| 008154920280 | MERCEDES |
| 0091541302 | MERCEDES |
| 009154130280 | MERCEDES |
| 010449 | DA SILVA |
| 011-003-000995R | REMANTE |
| 0120465003 | BOSCH |
| 0120465004 | BOSCH |
| 0120465013 | BOSCH |
| 0120465014 | BOSCH |
| 0120465016 | BOSCH |
| 0120465017 | BOSCH |
| 0123540003 | BOSCH |
| 0124515191 | BOSCH |
| 0986037340 | BOSCH |
| 0986037347 | BOSCH |
| 0986037380 | BOSCH |
| 11.203.110 | ISKRA / LETRIKA |
| 11.203.855 | ISKRA / LETRIKA |
| 11.204.145 | ISKRA / LETRIKA |
| 118401 | FARCOM |
| 12037340 | EUROTEC |
| 12037380 | EUROTEC |
| 13356 | LESTER |
| 13356N-8G | WAI / TRANSPO |
| 13359 | LESTER |
| 1986A00860 | BOSCH |
| 20010105AV | ITAB AUTOMOTIVE |
| 20-0442 | AIRSTAL |
| 2010105.0 | SANDO |
| 20101501BN | REAL |
| 20130201 | PRESTOLITE |
| 210618A | ERA |
| 2251141202 | DRI |
| 2251221202 | DRI |
| 28-3529 | ELSTOCK |
| 28-3779 | ELSTOCK |
| 28-3779CT | AINDE |
| 30646RI | KUHNER |
| 3120626 | HENKEL PARTS |
| 395ST65 | STARTCAR |
| 440793 | LOGISTIK |
| 4444 | CEVAM |
| 555.503.120.010 | PSH |
| 555.503.120.440 | PSH |
| 555.504.120.010 | PSH |
| 56395 | EAI |
| 72735570 | MAHLE |
| 89212621 | POWERMAX |
| 8EL725930-001 | HELLA |
| 90-15-6198 | WILSON |
| 9037340 | FRIESEN |
| 9037380 | FRIESEN |
| 9212621 | POWERMAX |
| A0081547202 | MERCEDES |
| A0081547302 | MERCEDES |
| A0081547402 | MERCEDES |
| A008154740280 | MERCEDES |
| A0081548302 | MERCEDES |
| A0081548402 | MERCEDES |
| A0081549202 | MERCEDES |
| A008154920280 | MERCEDES |
| A0091541302 | MERCEDES |
| A009154130280 | MERCEDES |
| A12BH0933A2 | SIDAT |
| A133.131 | PSH |
| A133.146 | PSH |
| A146.988 | PSH |
| AAN5127 | ISKRA / LETRIKA |
| AAN5304 | ISKRA / LETRIKA |
| AAN5756 | ISKRA / LETRIKA |
| ABO105A | AUTOTEAM |
| AG0131 | GHIBAUDI |
| AG0131RB | GHIBAUDI |
| AL01685 | TMI |
| AL01914 | TMI |
| ALB0646 | KRAUF |
| ALT10533 | WOODAUTO |
| ALT10556 | WOODAUTO |
| ALT121050 | SIOM |
| ALT121050A | SIOM |
| ALT1504 | ELECTROLOG |
| ALT1505 | ELECTROLOG |
| ALT1614 | ELECTROLOG |
| ALT2085 | WOODAUTO |
| ALT475 | ROLLCO |
| ALTS710 | 3EFFE |
| ANM39600 | ANDEL |
| BOS0124515191 | WOODAUTO |
| BREF0321986A00860 | CARWOOD GROUP |
| CA1081IR | HC PARTS |
| CA646IR | HELLA |
| CAL10105AS | CASCO |
| DRA7340 | DELCO |
| DRA7380 | DELCO |
| G100014 | BTS TURBO |
| IA1111 | ISKRA / LETRIKA |
| LEA0941 | LE PART |
| LRA01743 | LUCAS |
| LRA01903 | LUCAS |
| LRA1743 | LUCAS |
| LRA1903 | LUCAS |
| ME8032 | SNRA |
| MG571 | MAHLE |
| PRAS710 | 3EFFE |
| QRA1853 | QUINTON HAZELL |
| QRA3490 | QUINTON HAZELL |
| RE73662N | THE NEWLINE |
| RNL515191 | RNL |
| TT11451 | TESLA TECHNICS |
| UD13533A | AS-PL |
| WAL02817 | WALKER |
| WG2043865 | WILMINK GROUP |
| WG2277466 | WILMINK GROUP |
| WG2282910 | WILMINK GROUP |
| WOOALT10533 | WOODAUTO |
| WOOALT10556 | WOODAUTO |
| WOOALT2085 | WOODAUTO |
