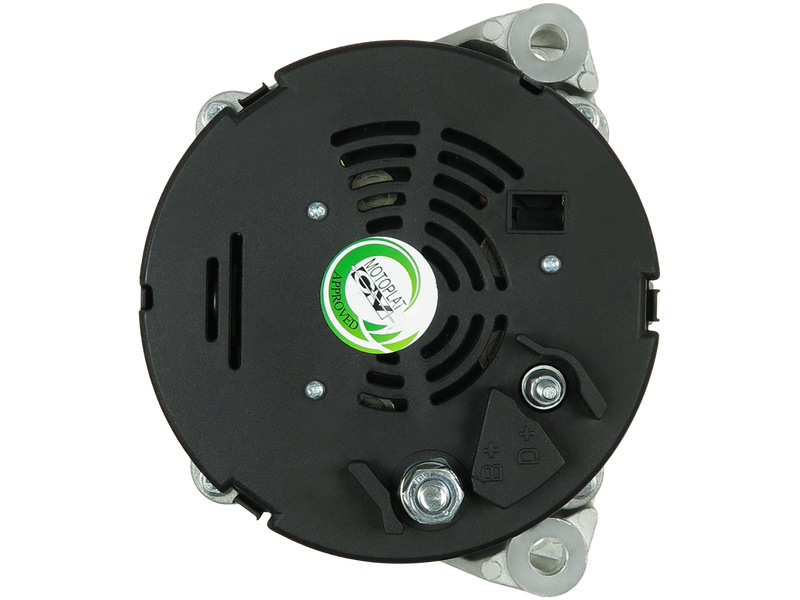

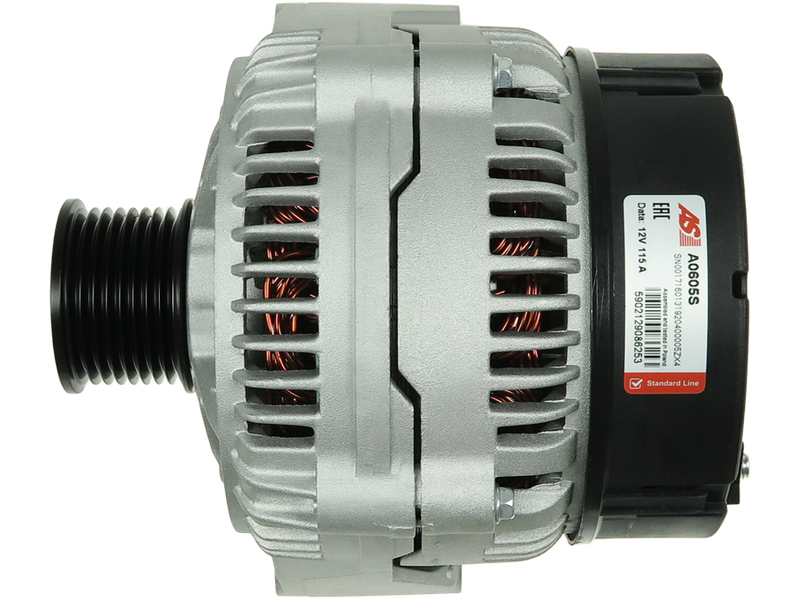

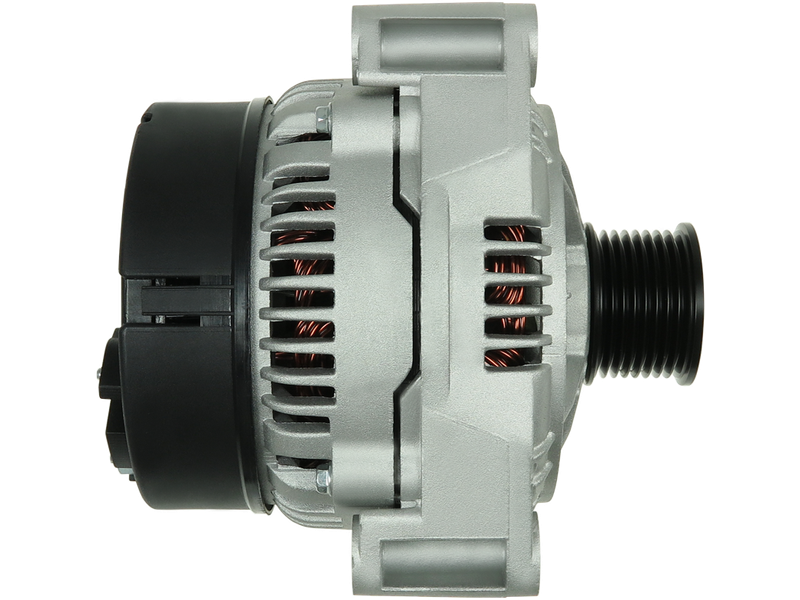

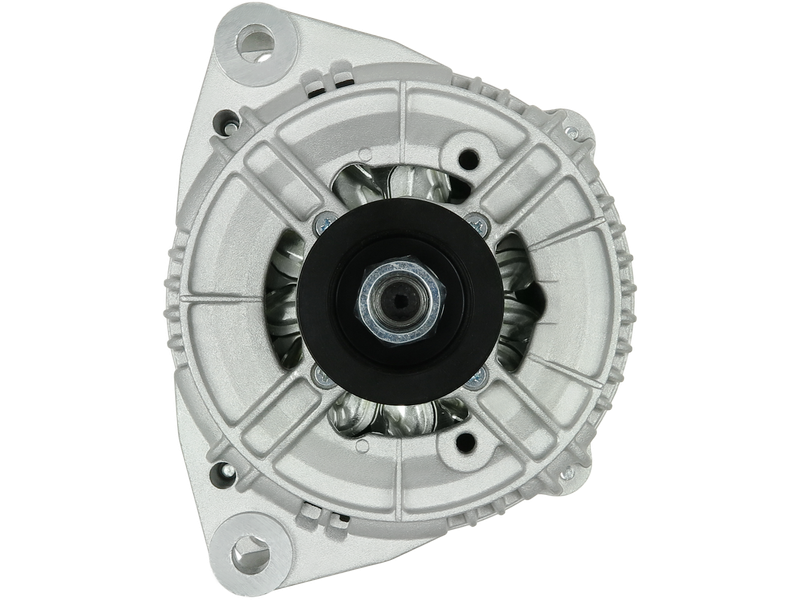

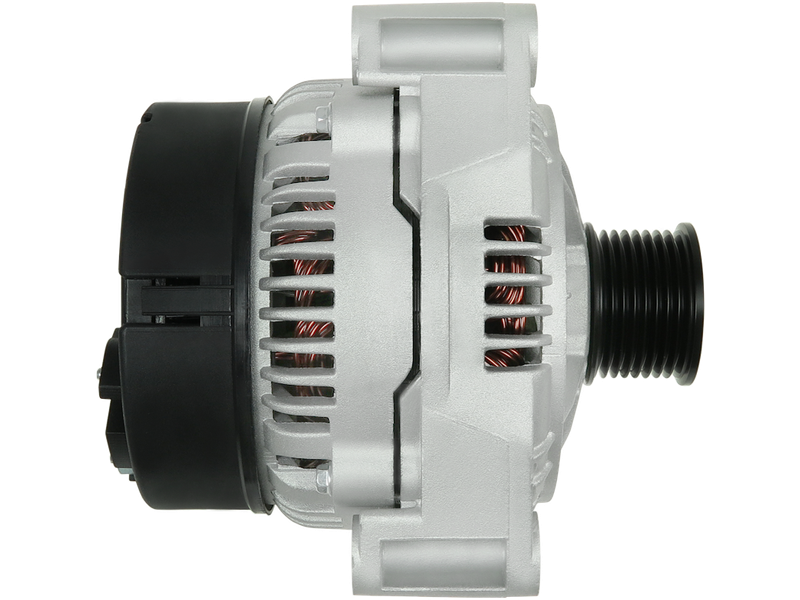

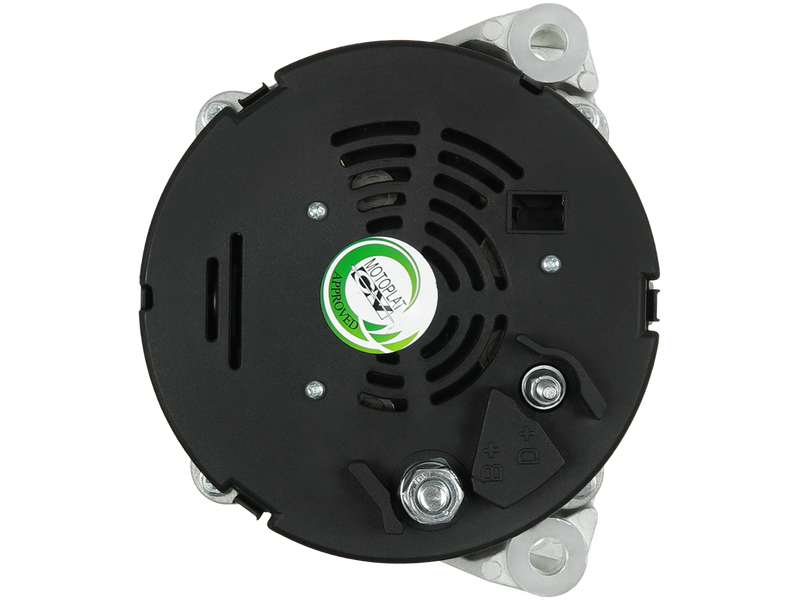

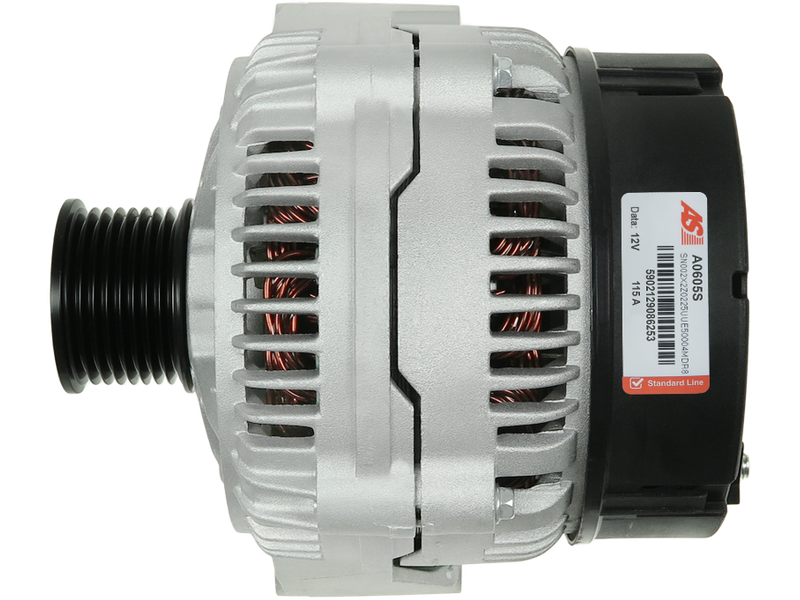

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 510.40 including GST
NZ$ 443.83 excluding GST
or four payments of $127.60
with
Learn More
each
A0605S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0123512500Associated Numbers
0123512500 0124515126 0986046030 220-30107 28-3843 301493RI 553797RI 553797RIB 635.006.115 89212407 8EL737739-001 90-15-6390 AL111676 AL114093 ALB1493 DB7140 DRB6030 EAA-211105 LRA01949 LRA1949 UD14988ASpecifications
| Amp | 115 A |
| Bottom Mounting Foot Width (B) | 56 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 11 mm |
| Length (L.1) | 193 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 8 qty |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley to Mount Distance (A) | 79.50 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | 6010 4.6 | 01.1997-12.2003 | |
| JOHN DEERE | 6010 4.6 | 01.1999-12.2003 | |
| JOHN DEERE | 6010 6.8 | 01.1997-12.2001 | |
| JOHN DEERE | 6010 6.8 | 01.1997-12.2003 | |
| JOHN DEERE | 6010 6.8 | 01.1999-12.2003 | |
| JOHN DEERE | 6010 E 6.8 | ||
| JOHN DEERE | 6010 SE 4.6 | 01.1997-12.2003 | |
| JOHN DEERE | 6020 4.6 | 01.2002-12.2007 | |
| JOHN DEERE | 6020 4.6 | 01.2004-12.2007 | |
| JOHN DEERE | 6020 6.8 | 01.2002-12.2007 | |
| JOHN DEERE | 6020 S 4.6 | 01.2002-12.2007 | |
| JOHN DEERE | 6020 SE 4.6 | 01.2004-12.2007 | |
| JOHN DEERE | 6110 4.6 | 01.1997-12.2003 | |
| JOHN DEERE | 6110 SE 4.6 | 01.1997-12.2003 | |
| JOHN DEERE | 6120 4.6 | 01.2004-12.2007 | |
| JOHN DEERE | 6125 E 6.8 | ||
| JOHN DEERE | 6210 4.6 | 01.1999-12.2003 | |
| JOHN DEERE | 6220 4.6 | 01.2002-12.2007 | |
| JOHN DEERE | 6310 4.6 | 01.1999-12.2003 | |
| JOHN DEERE | 6310L 6.8 | 01.1999-12.2003 | |
| JOHN DEERE | 6310 SE 4.6 | 01.1999-12.2003 | |
| JOHN DEERE | 6320 4.6 | 01.2002-12.2007 | |
| JOHN DEERE | 6410 6.8 | 01.1997-12.2001 | |
| JOHN DEERE | 6410 SE 4.6 | 01.1999-12.2003 | |
| JOHN DEERE | 6420 4.6 | 01.2002-12.2007 | |
| JOHN DEERE | 6420 S 4.6 | 01.2002-12.2007 | |
| JOHN DEERE | 6510 6.8 | 01.1997-12.2001 | |
| JOHN DEERE | 6520 6.8 | 01.2002-12.2007 | |
| JOHN DEERE | 6610 6.8 | 01.1997-12.2003 | |
| JOHN DEERE | 6620 6.8 | 01.2002-12.2007 | |
| JOHN DEERE | 6810 6.8 | 01.1997-12.2003 | |
| JOHN DEERE | 6820 6.8 | 01.2002-12.2007 | |
| JOHN DEERE | 6820 S 6.8 | 01.2002-12.2007 | |
| JOHN DEERE | 6910 6.8 | 01.1999-12.2003 | |
| JOHN DEERE | 6920 6.8 | 01.2002-12.2007 |
Reference Information
| 0123512500 | BOSCH |
| 0124515126 | BOSCH |
| 0986046030 | BOSCH |
| 112062 | CARGO |
| 116453 | CARGO |
| 220-30107 | ROBERT'S |
| 28-3843 | ELSTOCK |
| 301493RI | KUHNER |
| 310856 | RHIAG |
| 441640 | LOGISTIK |
| 553797RI | KUHNER |
| 553797RIB | KUHNER |
| 635.006.115 | PSH |
| 635.006.115.281 | PSH |
| 635.006.115.460 | PSH |
| 89212407 | POWERMAX |
| 8EL737739-001 | HELLA |
| 90-15-6390 | WILSON |
| A12BH0431A2 | SIDAT |
| A134.259 | PSH |
| A147.146 | PSH |
| AL111676 | JOHN DEERE |
| AL114093 | JOHN DEERE |
| AL166646 | JOHN DEERE |
| ALB1493 | KRAUF |
| ALT125920 | SIOM |
| ALT125920A | SIOM |
| ALT1477B | ELECTROLOG |
| ALTS686 | 3EFFE |
| ALTS686B | 3EFFE |
| ANM48250X | ANDEL |
| CA1493IR | HC PARTS |
| CGB-83843 | AINDE |
| DB7140 | DELCO |
| DRB6030 | DELCO |
| F032112062 | CARGO |
| F032116453 | CARGO |
| LRA01949 | LUCAS |
| LRA1949 | LUCAS |
| PRAS686 | 3EFFE |
| PRAS686B | 3EFFE |
| SE501827 | JOHN DEERE |
| STX101520 | STARDAX |
| UD14988A | AS-PL |
