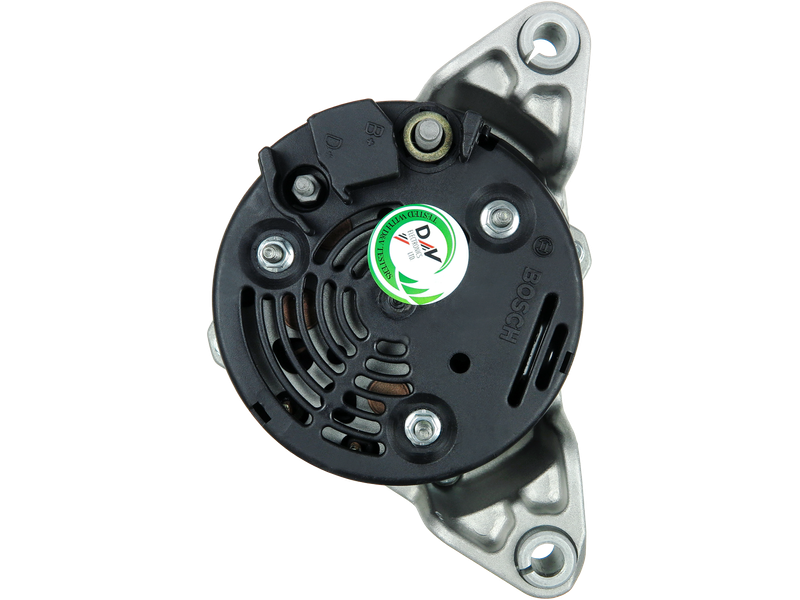

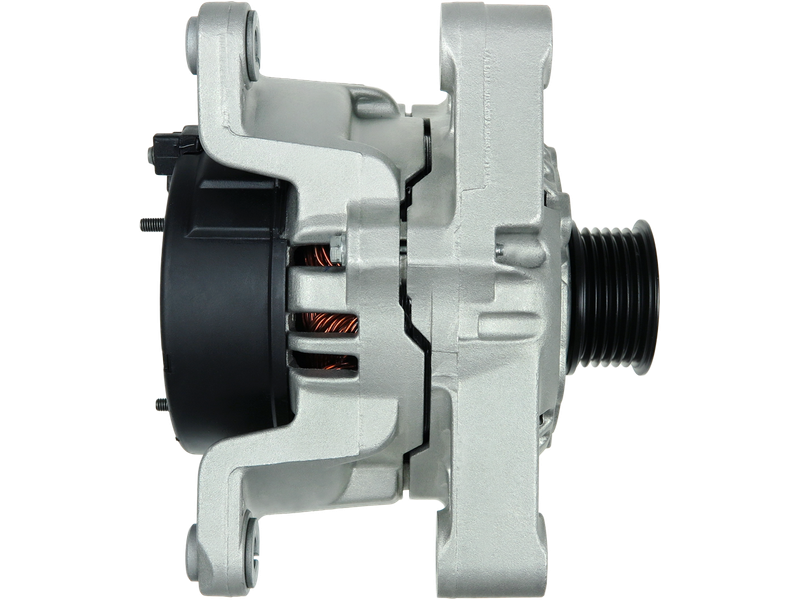

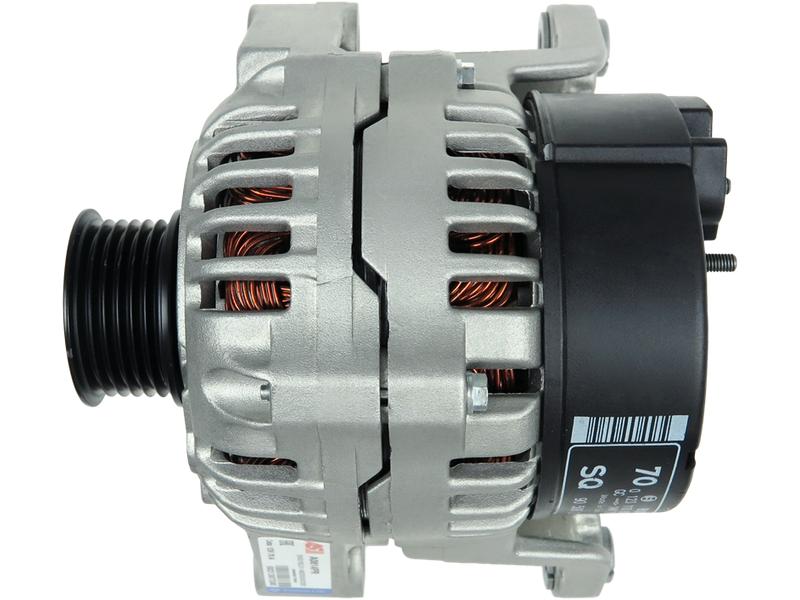

A0614PR - Remanufactured AS-PL Alternator

Specifications

Amp	70 A
Bottom Mounting Foot Width (B)	34 mm
Diameter (D.1)	11 mm
Diameter (D.2)	11 mm
Diameter (D.3)	10 mm
Diameter (D.4)	10 mm
Grooves	6 qty
Length (L.1)	170 mm
Mount Inside Length or Pad Mount C-C (C)	57 mm
OEM Product	No
Outside Diameter (O.D.1)	49 mm
Plug Code	PL_9104
Product Line	Premium Line
Product Type	Remanufactured
Pulley to Mount Distance (A)	51 mm
Pulley Type	SOLID
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
OPEL	Omega B 2.0 DTi 16V	[X20DTH]	09.1997-09.2000
OPEL	Vectra B 2.0 Di 16V	[X20DTL]	11.1996-04.2002
OPEL	Vectra B 2.0 Di 16V	[X20DTL]	11.1996-06.2000
OPEL	Vectra B 2.0 DTi 16V	[X20DTH]	06.1997-04.2002
OPEL	Vectra B 2.0 DTi 16V	[X20DTH]	06.1997-07.2003
OPEL	Vectra B 2.0 DTi 16V	[Y20DTH]	06.1997-04.2002
OPEL	Vectra B 2.0 DTi 16V	[Y20DTH]	06.1997-07.2003

Reference Information

123110006 ALB1326 90540883 124225023 6204036 9512032 441473 90512216 9.4439E+11 90506201 LRB409 220-5210 301490RI 986044960 PRAS929 90540916 28-3901 0124225023 R1530013 437214 DRA3797N 4603 135.510.070 ALT10142 BOM UNIT 21409R AG0573 6204023 MRA44960 DA4907N 32041250 301326RI LRB00409 9192824 DRA3797 1516477R 0123110006 310768 9133601 0986044960 AEA4209 ALTS929 56726 89212451 DA4907

Video/Publications

0123110006 0124225023 0986044960 135.510.070 21409R 28-3901 301326RI 301490RI 310768 32041250 437214 4603 56726 6204023 89212451 90506201 90512216 944390449600 AEA4209 AG0573 ALB1326 ALT10142 ALTS929 DA4907 DA4907N DRA3797 DRA3797N LRB00409 LRB409 MRA44960 PRAS929 UNIT BOM 220-5210
