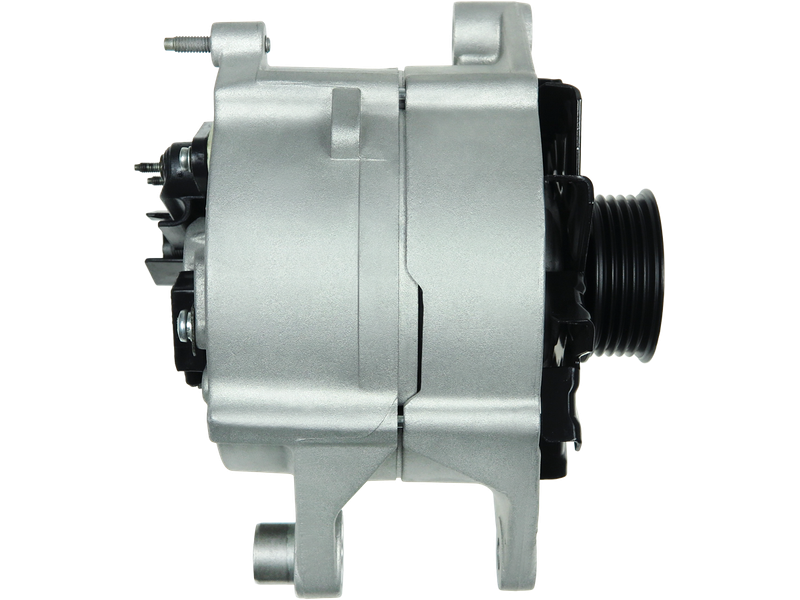

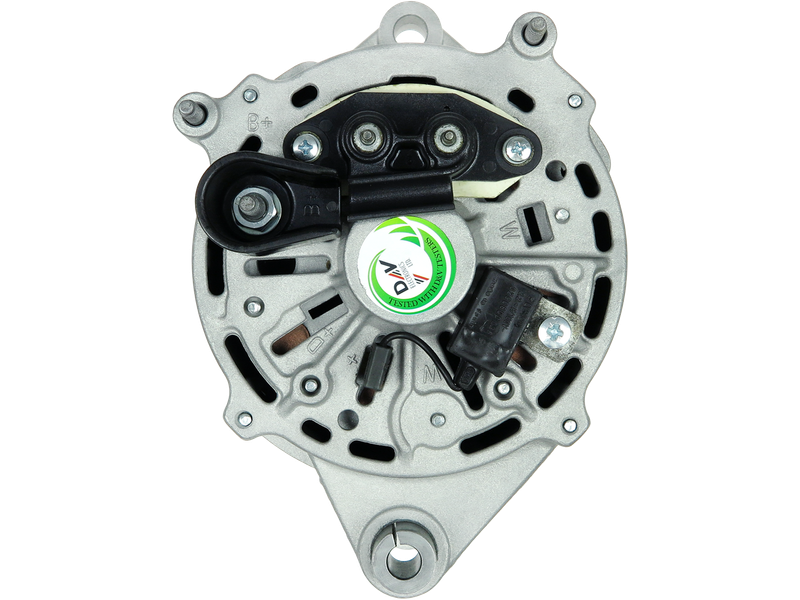

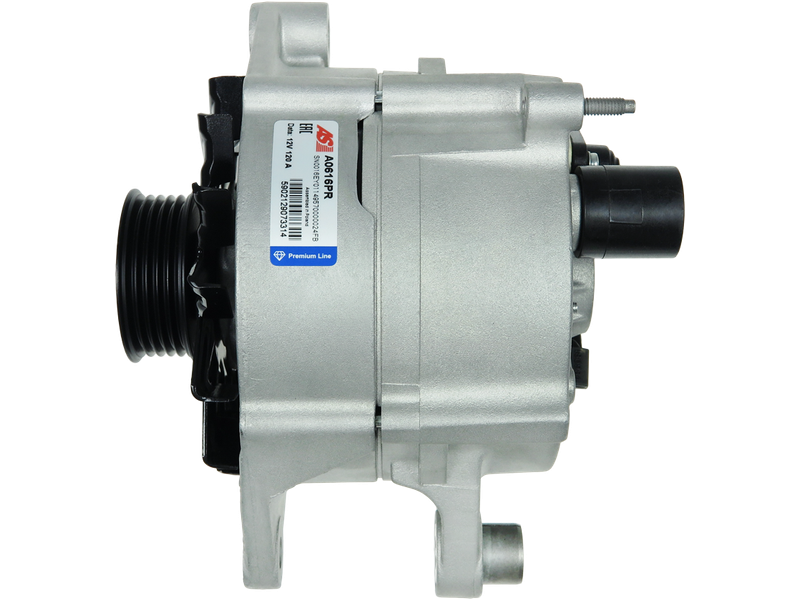

Remanufactured AS-PL Alternator
PREMIUM LINE
AS-PL
BOSCH
Price:
NZ$ 402.65 including GST
NZ$ 350.13 excluding GST
or four payments of $100.66
with
Learn More
each
A0616PR
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0120450029 038522233F 04727035 2010161 22124R 27-2819 385221233F 38522233F 4625 4727035 501213 56320 835.003.120 89213390 8EL737350-001 944390900790 AEF1213 ALB1213 ALT10476 CAL10161 CAL10161AS CAL10161ES CAL10161GS CAL10161OS CAL10161RS LRA01123 LRA1123 MRA90079 UNIT BOM 220-270CASpecifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 12 mm |
| Diameter (D.1) | 11.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 178 mm |
| Mount Inside Length or Pad Mount C-C (C) | 54 mm |
| OEM Product | No |
| Plug Code | PL_9102 |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 57.50 mm |
| Pulley to Mount Distance (A) | 35 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHRYSLER | Grand Voyager 2.5 TD | [425CLIRS/X] | 01.1995-03.2001 |
| CHRYSLER | Grand Voyager 2.5 TD | [ENC] | 01.1995-03.2001 |
| CHRYSLER | Voyager 2.5 TD | [09B] | 01.1992-09.1995 |
| CHRYSLER | Voyager 2.5 TD | [425CLIRS/X] | 01.1995-03.2001 |
| CHRYSLER | Voyager 2.5 TD | [ENC] | 01.1995-03.2001 |
| CHRYSLER | Voyager 2.5 TD | [M00] | 01.1992-09.1995 |
Reference Information
| 0120450029 | BOSCH |
| 038522233F | CHRYSLER |
| 04727035 | CHRYSLER |
| 2010161 | SANDO |
| 22124R | WAI / TRANSPO |
| 27-2819 | ELSTOCK |
| 385221233F | CHRYSLER |
| 38522233F | CHRYSLER |
| 448347 | LOGISTIK |
| 4625 | CEVAM |
| 4686021 | CHRYSLER |
| 4727035 | CHRYSLER |
| 4727036 | CHRYSLER |
| 4727236 | CHRYSLER |
| 501213 | KUHNER |
| 56320 | EAI |
| 835.003.120 | PSH |
| 89213390 | POWERMAX |
| 8EL737350-001 | HELLA |
| 944390900790 | MAGNETI MARELLI |
| AEF1213 | AUTOELECTRO |
| ALB1213 | KRAUF |
| ALT10476 | WOODAUTO |
| ALT121610 | SIOM |
| ALTS756 | 3EFFE |
| ALTS756R | 3EFFE |
| CAL10161 | CASCO |
| CAL10161AS | CASCO |
| CAL10161ES | CASCO |
| CAL10161GS | CASCO |
| CAL10161OS | CASCO |
| CAL10161RS | CASCO |
| CGB-72819 | AINDE |
| LRA01123 | LUCAS |
| LRA1123 | LUCAS |
| MRA90079 | MAGNETI MARELLI |
| PRAS756 | 3EFFE |
| UNIT BOM 220-270CA | WAI / TRANSPO |
Video/Publications
