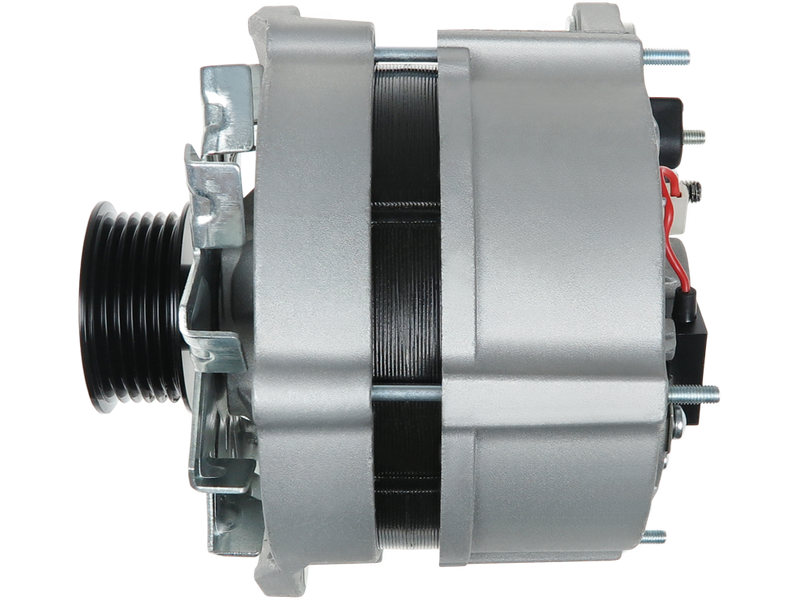

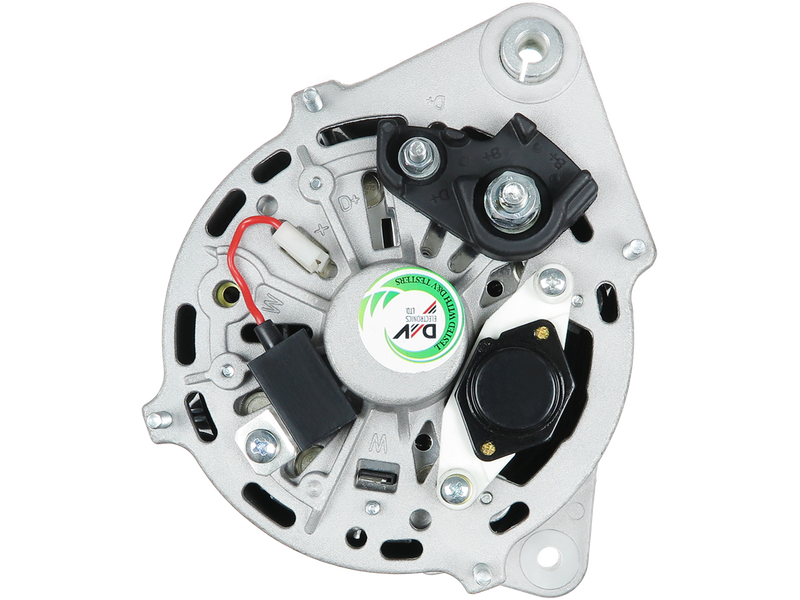

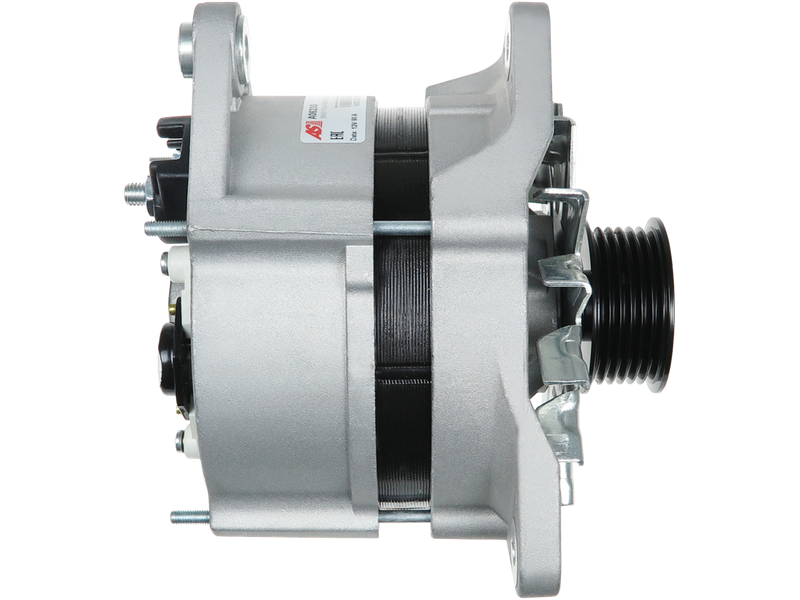

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 402.87 including GST
NZ$ 350.32 excluding GST
or four payments of $100.72
with
Learn More
each
A0623S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0120469016 0120469017 0120469909 0120469910 0986038200 1204116 1204143 1204221 135.014.090 28-2778 30846RI 32038200 437123 4454 56394 89212961 90338170 90338188 90338503 90339322 90378503 90379322 90443097 90443927 943356517010 AEC0846 ALB0846 ALT10278 CA846IR LRA01611 UNIT BOM 220-5336 UNIT BOM 220-5336ASpecifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 12.50 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | 8.50 mm |
| Length (L.1) | 179 mm |
| Mount Inside Length or Pad Mount C-C (C) | 81.50 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 34 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Omega A 2.6 i | [C26NE] | 01.1990-12.1991 |
| OPEL | Omega A 3.0 | [C30LE] | 01.1987-12.1994 |
| OPEL | Omega A 3.0 | [C30NE] | 01.1987-12.1994 |
| OPEL | Omega A 3.0 | [C30SEJ] | 01.1987-12.1994 |
| OPEL | Omega A 3.0 | [C30XEI] | 01.1987-12.1994 |
| OPEL | Omega A 3.6 24V | [C36GET] | 01.1990-12.1991 |
| OPEL | Senator B 2.6 i | [C26NE] | 01.1990-12.1993 |
| OPEL | Senator B 3.0 i 24V | [C30SE] | 01.1989-12.1993 |
| VAUXHALL | Carlton 2.6 i | [C26NE] | 01.1990-12.1991 |
| VAUXHALL | Carlton 3.0 24V | [C30SE] | 01.1989-12.1991 |
| VAUXHALL | Carlton 3.0 24V | [C30SEJ] | 01.1989-12.1991 |
| VAUXHALL | Carlton 3.0 24V Lotus | [A18XEL] | 01.1990-12.1991 |
| VAUXHALL | Carlton 3.0 i | [C30NE] | 01.1989-12.1991 |
| VAUXHALL | Senator B 2.6 i | [C26NE] | 01.1990-12.1994 |
| VAUXHALL | Senator B 3.0 i | [C30LE] | 01.1988-12.1994 |
| VAUXHALL | Senator B 3.0 i | [C30NE] | 01.1988-12.1994 |
| VAUXHALL | Senator B 3.0 i 24V | [C30SE] | 01.1987-12.1994 |
Reference Information
| 0120469016 | BOSCH |
| 0120469017 | BOSCH |
| 0120469909 | BOSCH |
| 0120469910 | BOSCH |
| 0986038200 | BOSCH |
| 1204116 | OPEL |
| 1204143 | OPEL |
| 1204221 | OPEL |
| 135.014.090 | PSH |
| 28-2778 | ELSTOCK |
| 30846RI | KUHNER |
| 311337 | RHIAG |
| 32038200 | HERTH+BUSS |
| 437123 | VALEO |
| 440993 | LOGISTIK |
| 4454 | CEVAM |
| 56394 | EAI |
| 89212961 | POWERMAX |
| 90338170 | OPEL |
| 90338188 | OPEL |
| 90338503 | OPEL |
| 90339322 | OPEL |
| 90378503 | OPEL |
| 90379322 | OPEL |
| 9038330 | FRIESEN |
| 90443097 | OPEL |
| 90443927 | OPEL |
| 943356517010 | MAGNETI MARELLI |
| A155.190 | PSH |
| AEC0846 | AUTOELECTRO |
| ALB0846 | KRAUF |
| ALT10278 | WOODAUTO |
| ALT3027 | 3EFFE |
| ALTF528 | 3EFFE |
| CA846IR | HC PARTS |
| CGB-82778 | AINDE |
| LRA01611 | LUCAS |
| LRA1611 | LUCAS |
| PRAF528 | 3EFFE |
| UNIT BOM 220-5336 | WAI / TRANSPO |
| UNIT BOM 220-5336A | WAI / TRANSPO |
Video/Publications
