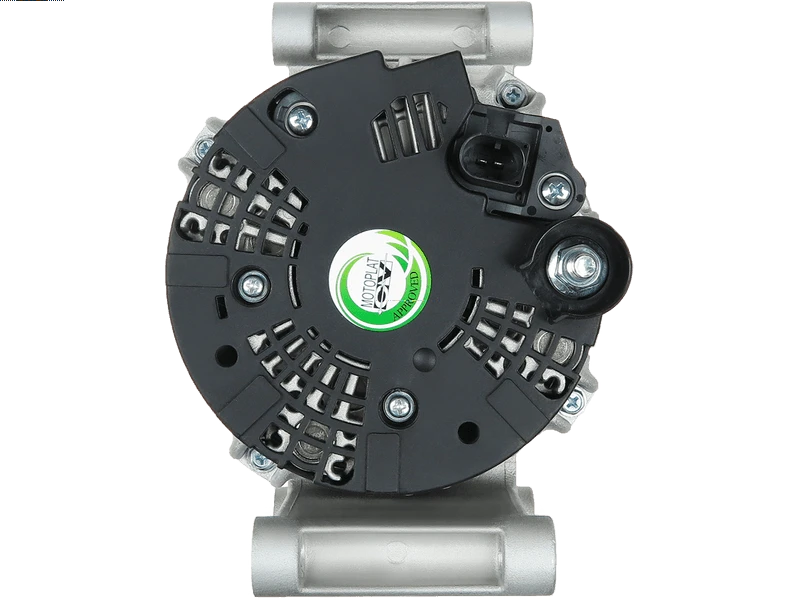

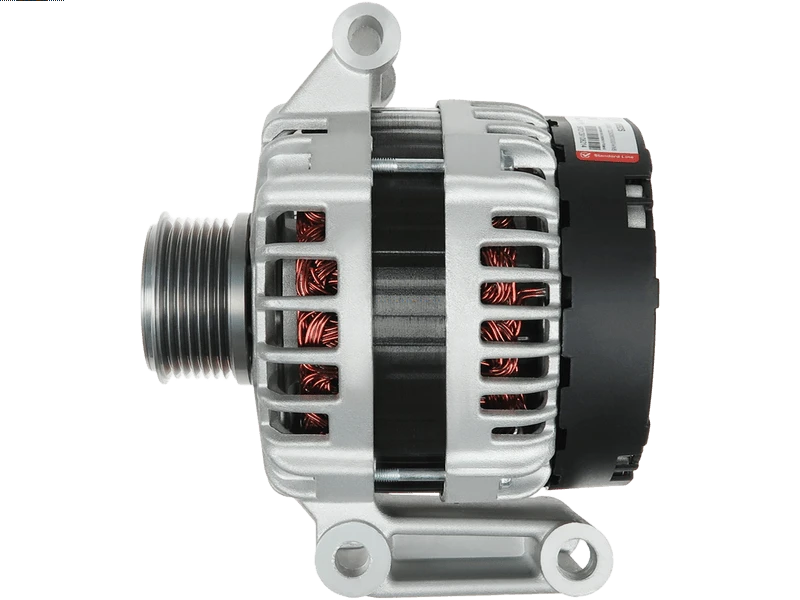

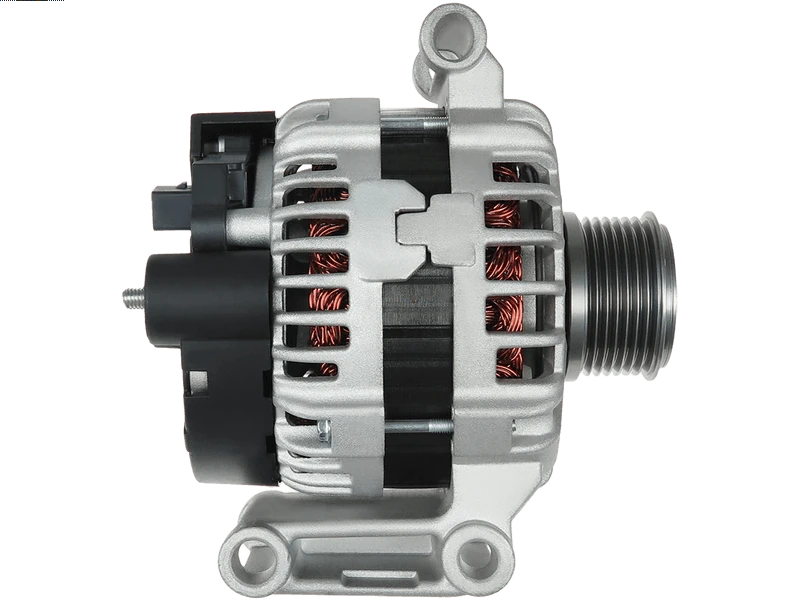

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 682.76 including GST
NZ$ 593.70 excluding GST
or four payments of $170.69
with
Learn More
each
A0692S
No stock in NZ currently
No stock in NZ currently
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0125711018Associated Numbers
0125711018 0125711049 1730987 1747017 20101444 2010444 210862 595.558.150 AC1T-10300-CA AC1T-10300-CB ALB0949 BOS0125711049 CAL10444GS UD13012ASpecifications
| Amp | 150 A |
| Diameter (D.1) | 11.50 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | 13 mm |
| Length (L.1) | 191 mm |
| Mount Inside Length or Pad Mount C-C (C) | 73.50 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 92.50 mm |
| Pad mount thickness (E.2) | 92.50 mm |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 59 mm |
| Pulley to Mount Distance (A) | 43 mm |
| Pulley Type | Clutch |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Transit 2.4 TD | 07.2006- | |
| FORD | Transit 2.4 TD | 07.2006-12.2014 | |
| FORD | Transit 2.4 TDCi | [H9FD] | 04.2006-08.2014 |
| FORD | Transit 2.4 TDCi | [JXFA] | 04.2006-08.2014 |
| FORD | Transit 2.4 TDCi | [JXFC] | 04.2006-08.2014 |
| FORD | Transit 2.4 TDCi | [PHFA] | 04.2006-08.2014 |
| FORD | Transit 2.4 TDCi | [PHFC] | 04.2006-08.2014 |
| FORD | Transit 2.4 TDCi 4x4 | [H9FB] | 11.2006-08.2014 |
| FORD | Transit 2.4 TDCi RWD | [H9FB] | 04.2006-08.2014 |
| FORD | Transit 2.4 TDCi RWD | [H9FD] | 04.2006-08.2014 |
| FORD | Transit 2.4 TDCi RWD | [JXFA] | 04.2006-08.2014 |
| FORD | Transit 2.4 TDCi RWD | [JXFC] | 04.2006-08.2014 |
| FORD | Transit 2.4 TDCi RWD | [PHFA] | 04.2006-08.2014 |
| FORD | Transit 2.4 TDCi RWD | [PHFC] | 04.2006-08.2014 |
| FORD | Transit 3.2 TDCi | [SAFA] | 02.2008-08.2014 |
| FORD | Transit 3.2 TDCi | [SAFB] | 02.2008-08.2014 |
| FORD | Transit 3.2 TDCi RWD | [SAFA] | 09.2007-08.2014 |
| FORD | Transit 3.2 TDCi RWD | [SAFB] | 09.2007-08.2014 |
Reference Information
| 002-201201 | ASHIKA |
| 0121615003 | BOSCH |
| 0121615103 | BOSCH |
| 0125711018 | BOSCH |
| 0125711049 | BOSCH |
| 063731922010 | MAGNETI MARELLI |
| 0986047920 | BOSCH |
| 10443250 | ALANKO |
| 1372737 | FORD |
| 1404792 | FORD |
| 1581844 | FORD |
| 1730987 | FORD |
| 1747017 | FORD |
| 1791837 | FORD |
| 1904971 | FORD |
| 1986A00678 | BOSCH |
| 20101803 | REAL |
| 20101803BN | REAL |
| 20101803OE | REAL |
| 2010308.0 | SANDO |
| 2010308.1 | SANDO |
| 2097255 | FORD |
| 210422 | ERA |
| 210862 | ERA |
| 2191941502 | DRI |
| 2201201 | JAPKO |
| 23977N | WAI / TRANSPO |
| 23977R | WAI / TRANSPO |
| 28-5592 | ELSTOCK |
| 301922RI | KUHNER |
| 301922RIB | KUHNER |
| 301922RIV | KUHNER |
| 32047920 | HERTH+BUSS |
| 440476 | VALEO |
| 442040 | LOGISTIK |
| 4721 | CEVAM |
| 57099 | EAI |
| 595.558.150.010 | PSH |
| 595.558.150.280 | PSH |
| 595.558.150.500 | PSH |
| 6C1J-10300-CA | FORD |
| 6C1T-10300-CA | FORD |
| 6C1T-10300-CB | FORD |
| 6C1T-10300-CC | FORD |
| 6C1T-10300-CD | FORD |
| 6C1T10300CV | FORD |
| 6CIJ-10300-CA | FORD |
| 7H1210300AA | LAND ROVER |
| 7H12-10300-AA | FORD |
| 89213300 | POWERMAX |
| 8EL012428-821 | HELLA |
| 8EL738212-141 | HELLA |
| 9090242 | FRIESEN |
| 943319221010 | MAGNETI MARELLI |
| 944390902420 | MAGNETI MARELLI |
| A12BH0062 | SIDAT |
| A12BH0062A2 | SIDAT |
| A134.495 | PSH |
| A146.603 | PSH |
| A2043V | PRESTOLITE |
| ABO308 | AUTOTEAM |
| ABO308A | AUTOTEAM |
| AC1T-10300-CA | FORD |
| AC1T-10300-CB | FORD |
| AEK2978 | AUTOELECTRO |
| AG1203 | GHIBAUDI |
| AL201201 | JAPANPARTS |
| ALB0949 | KRAUF |
| ALB1922 | KRAUF |
| ALT10220 | ELECTROLOG |
| ALT10397 | WOODAUTO |
| ALT123080 | SIOM |
| ALT123080A | SIOM |
| ALT1810 | ELECTROLOG |
| ALT487CP | ROLLCO |
| ALTL641B | 3EFFE |
| ANM40140X | ANDEL |
| AZMT-49-035-1238 | A.Z. MEISTERTEILE |
| BOS0121615103 | WOODAUTO |
| BOS0125711049 | WOODAUTO |
| CA1922IR | HC PARTS |
| CAL10308AS | CASCO |
| CAL10308GS | CASCO |
| CGB-14792 | AINDE |
| DB9030 | DELCO |
| DRB7920 | DELCO |
| DRB7920N | DELCO |
| EZ4630 | ELTA AUTOMOTIVE |
| FG15S215 | VALEO |
| FGN15S215 | VALEO |
| GA615003-A | GPARTS |
| LRA02978 | LUCAS |
| LRA2978 | LUCAS |
| MRA90242 | MAGNETI MARELLI |
| NEK2978 | AUTOELECTRO |
| PRAL621 | 3EFFE |
| RAA28031 | DELCO |
| RE6C1T-10300CD | FORD |
| RE6C1T-10300-CD | FORD |
| REAC1T-10300CA | FORD |
| RNL4792 | RNL |
| SEG0125711049 | WOODAUTO |
| STX100149 | STARDAX |
| STX100149R | STARDAX |
| UD13012A | AS-PL |
| YLE500310 | FORD |
Video/Publications
